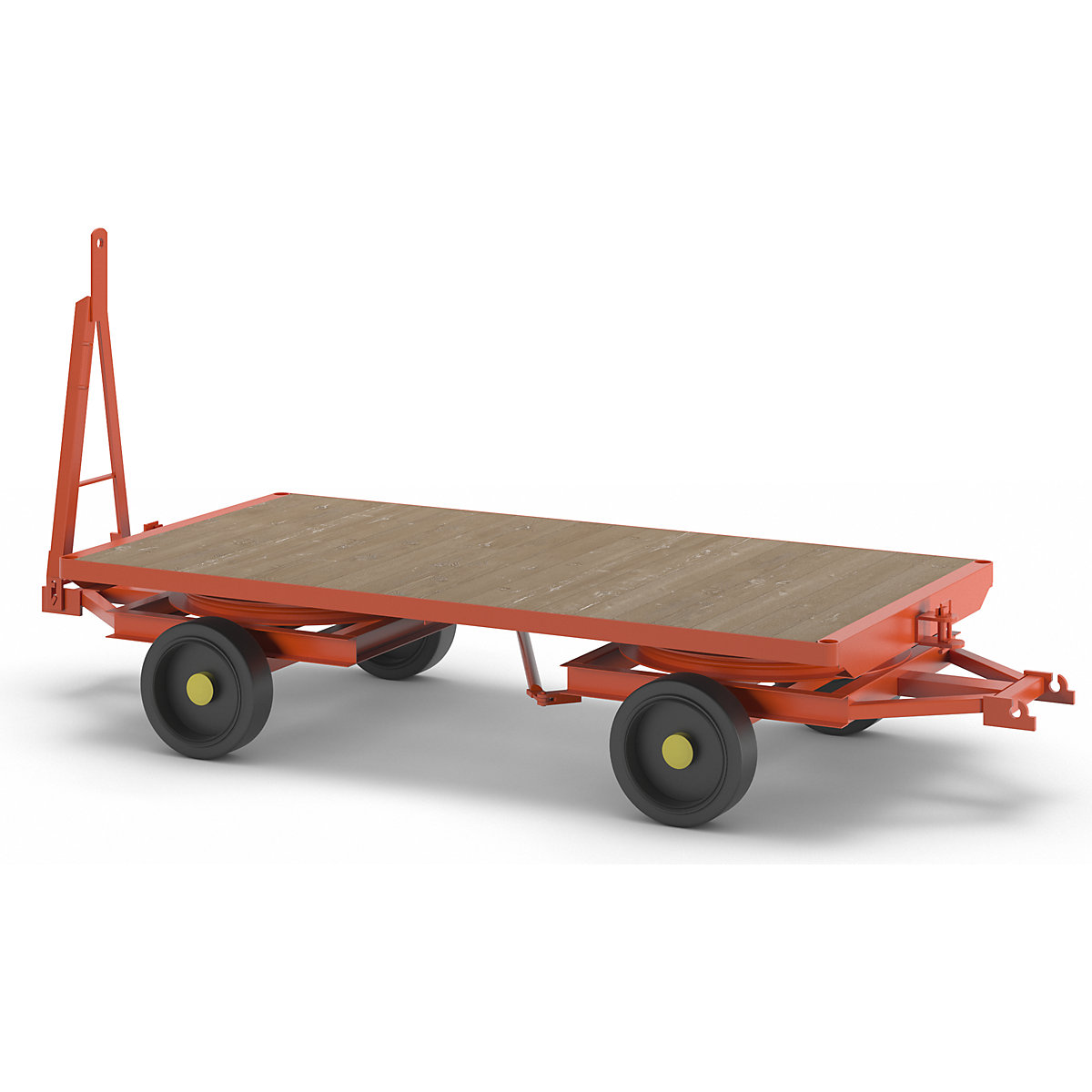

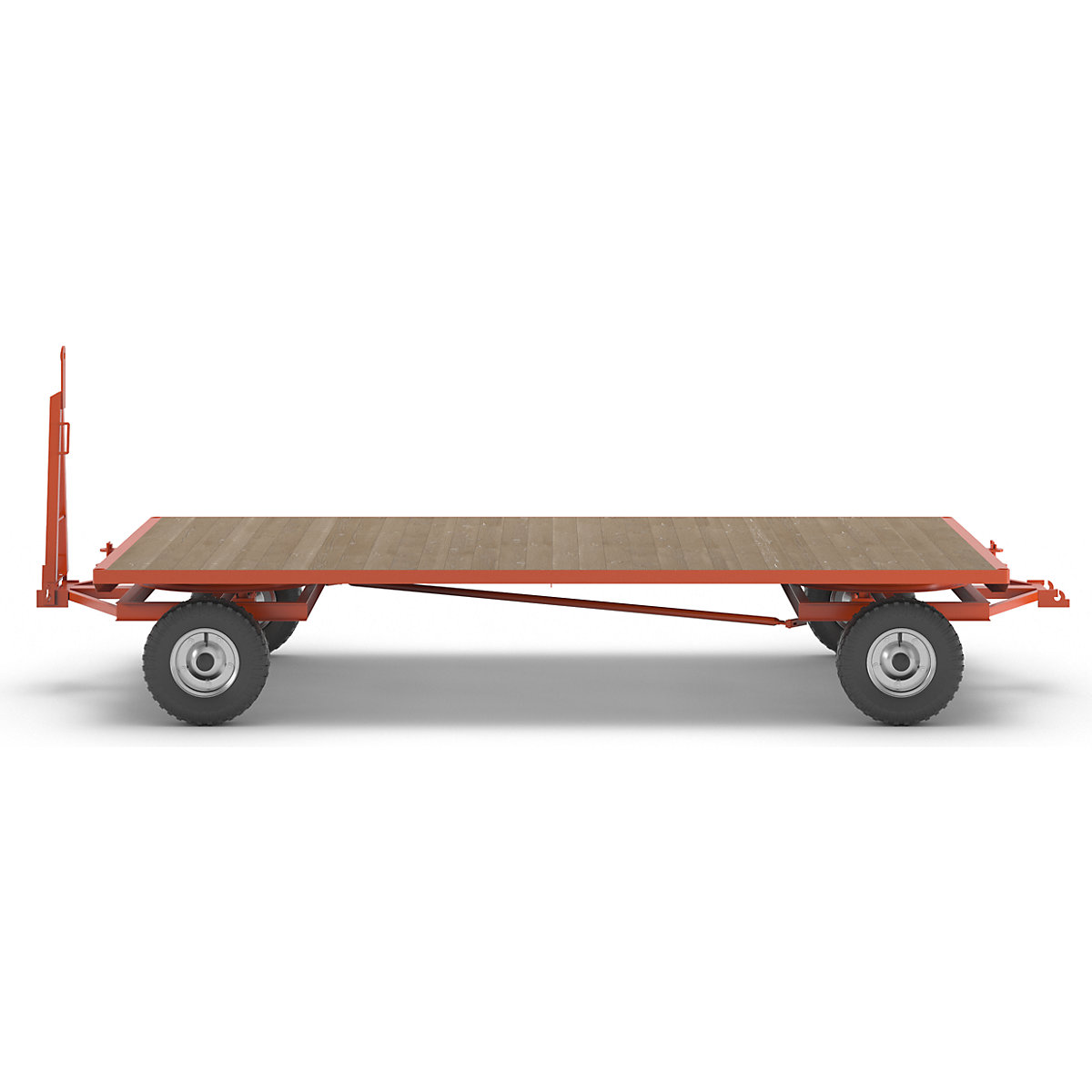

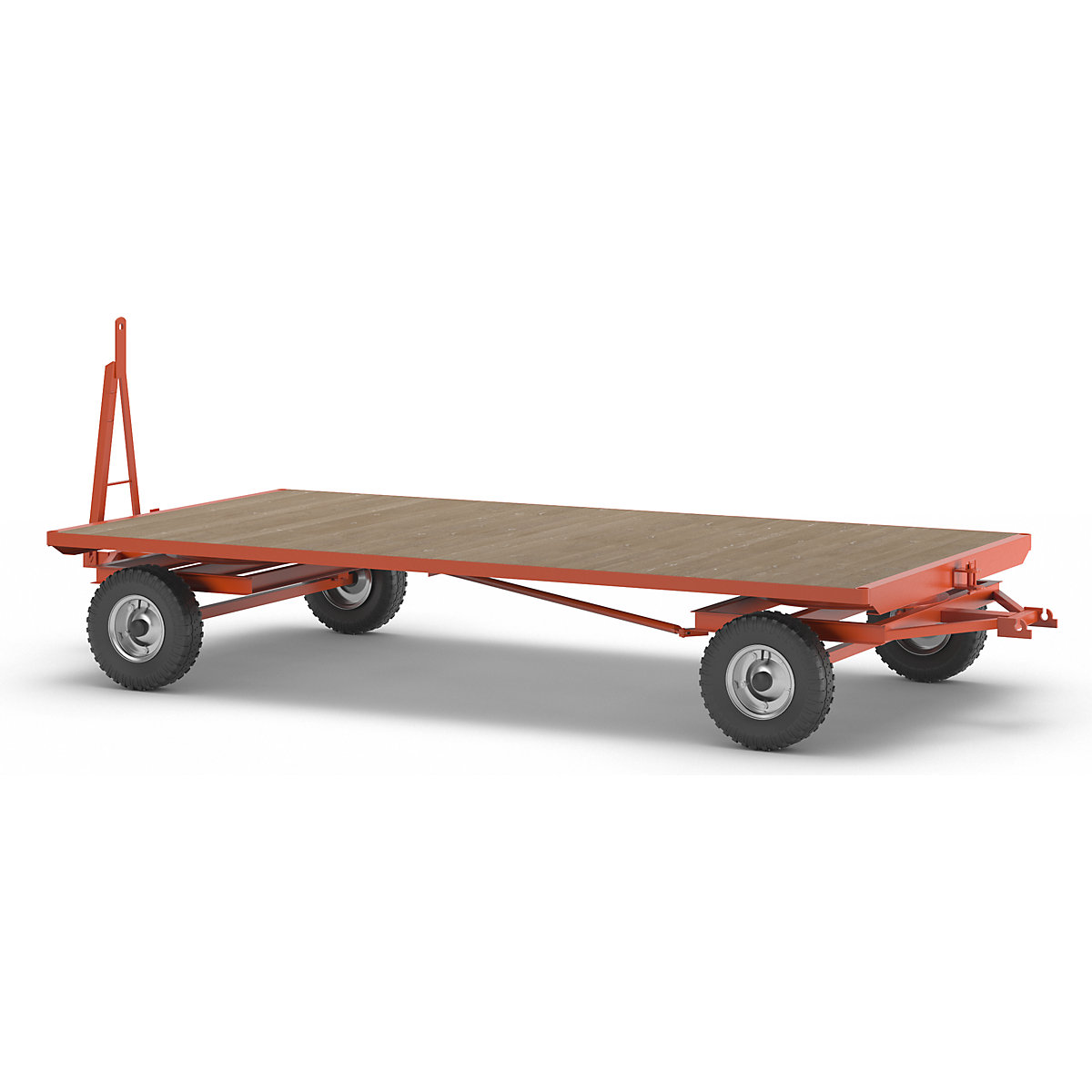

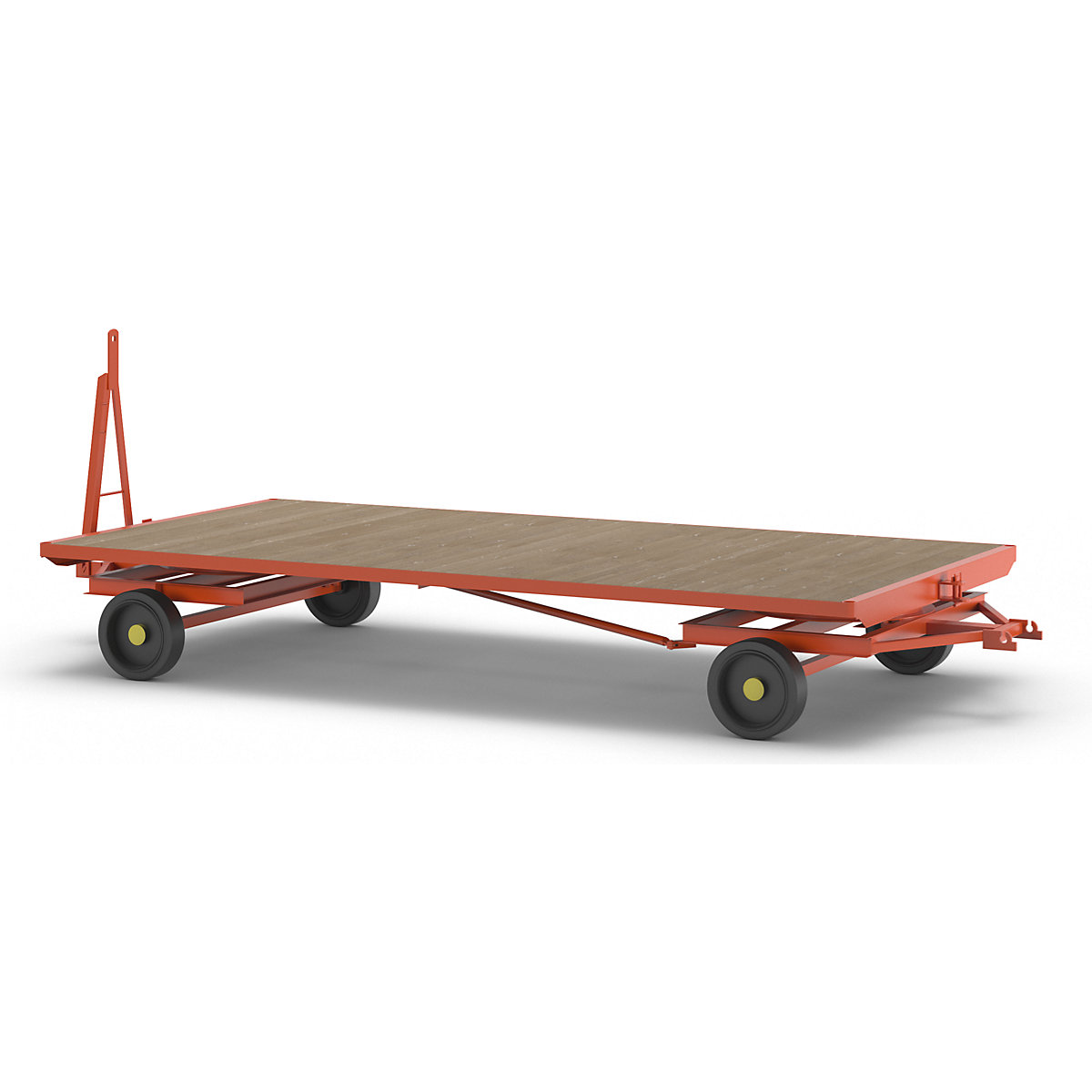

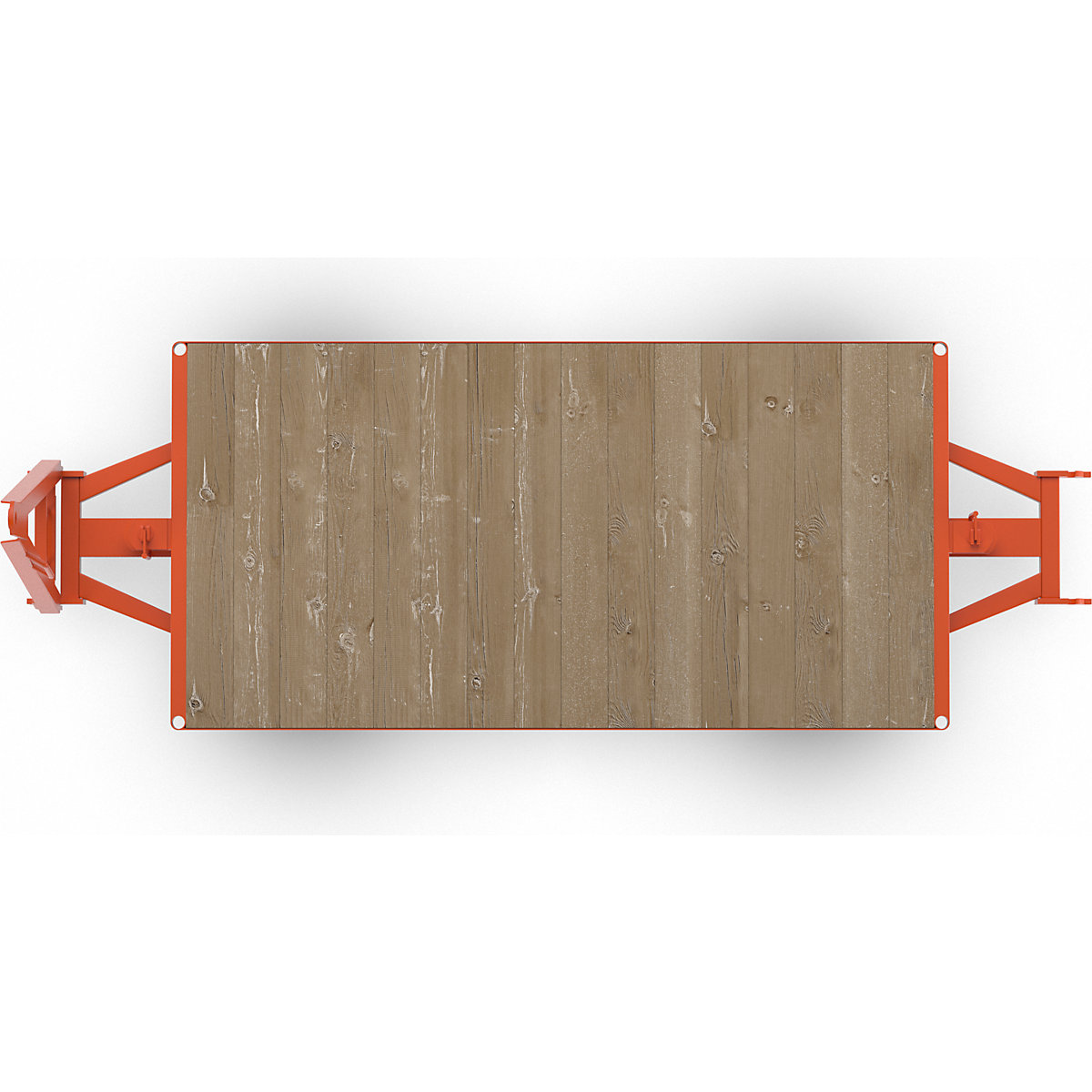

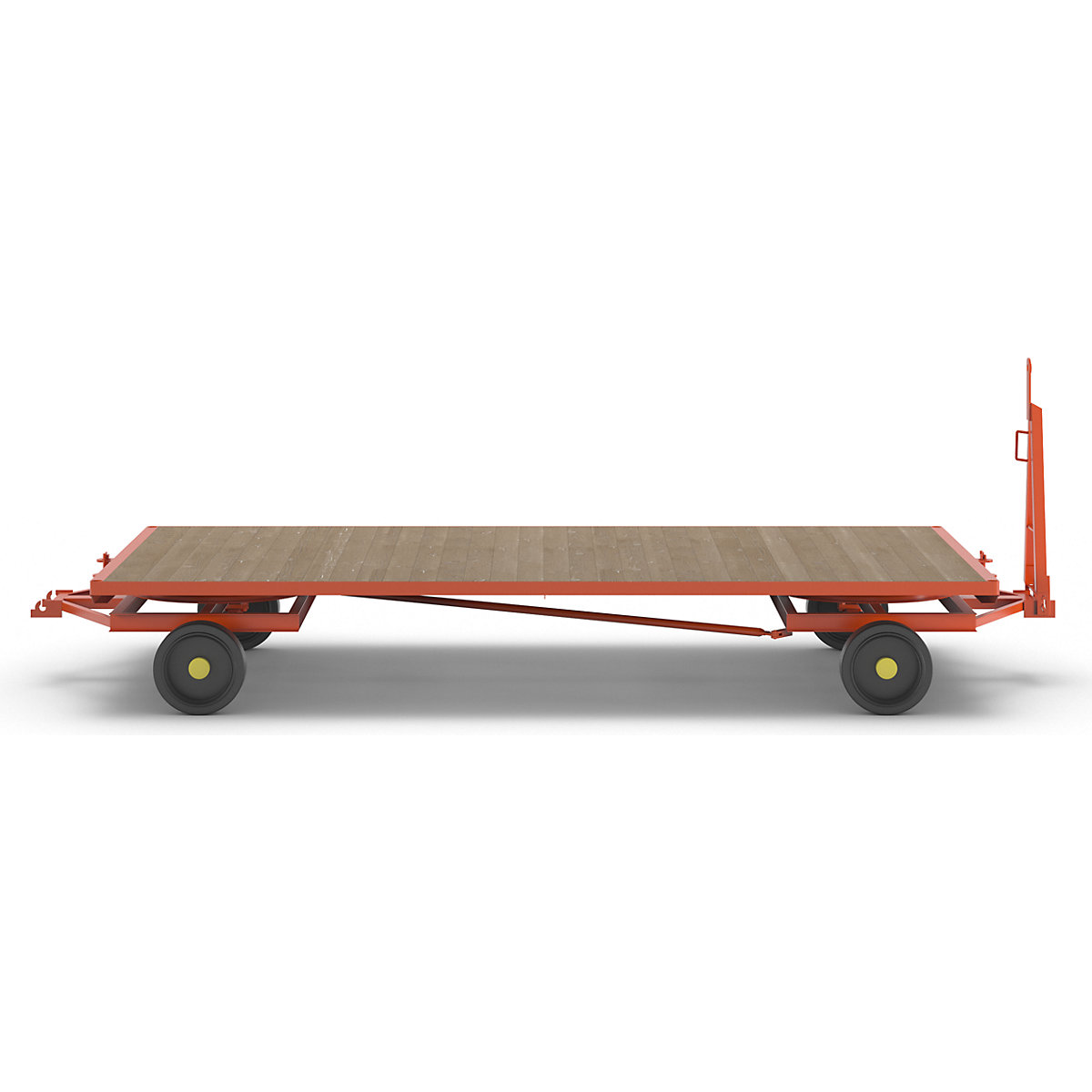

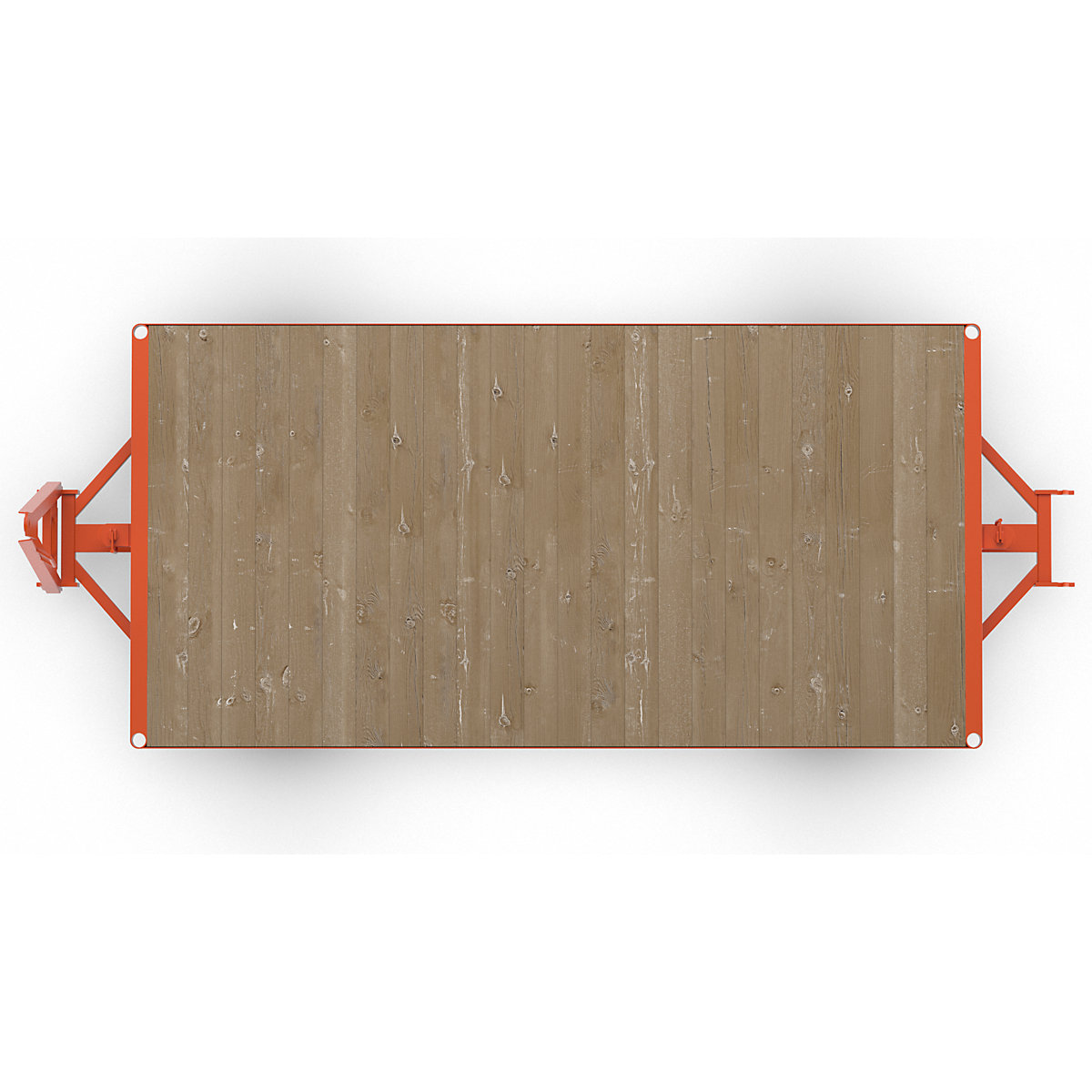

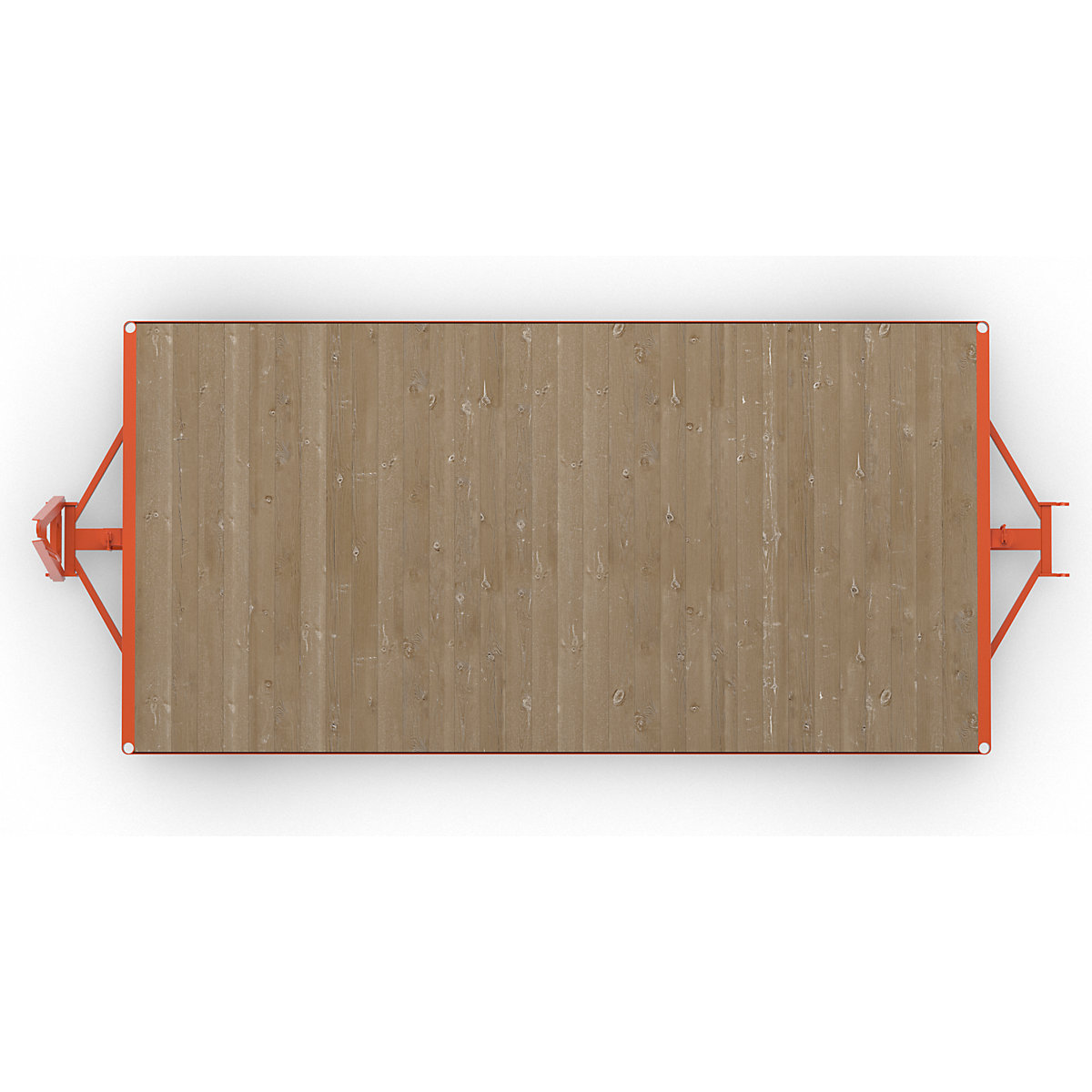

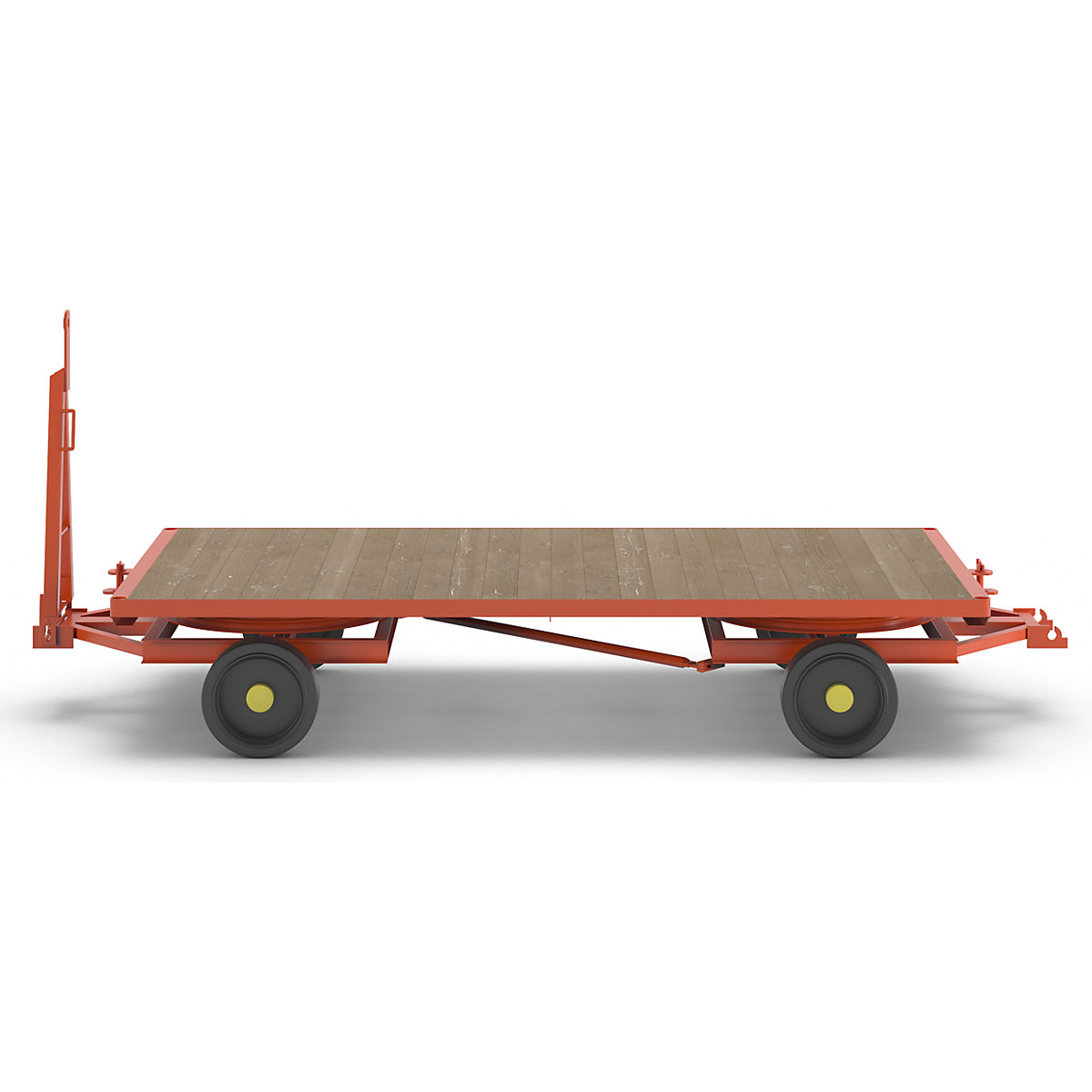

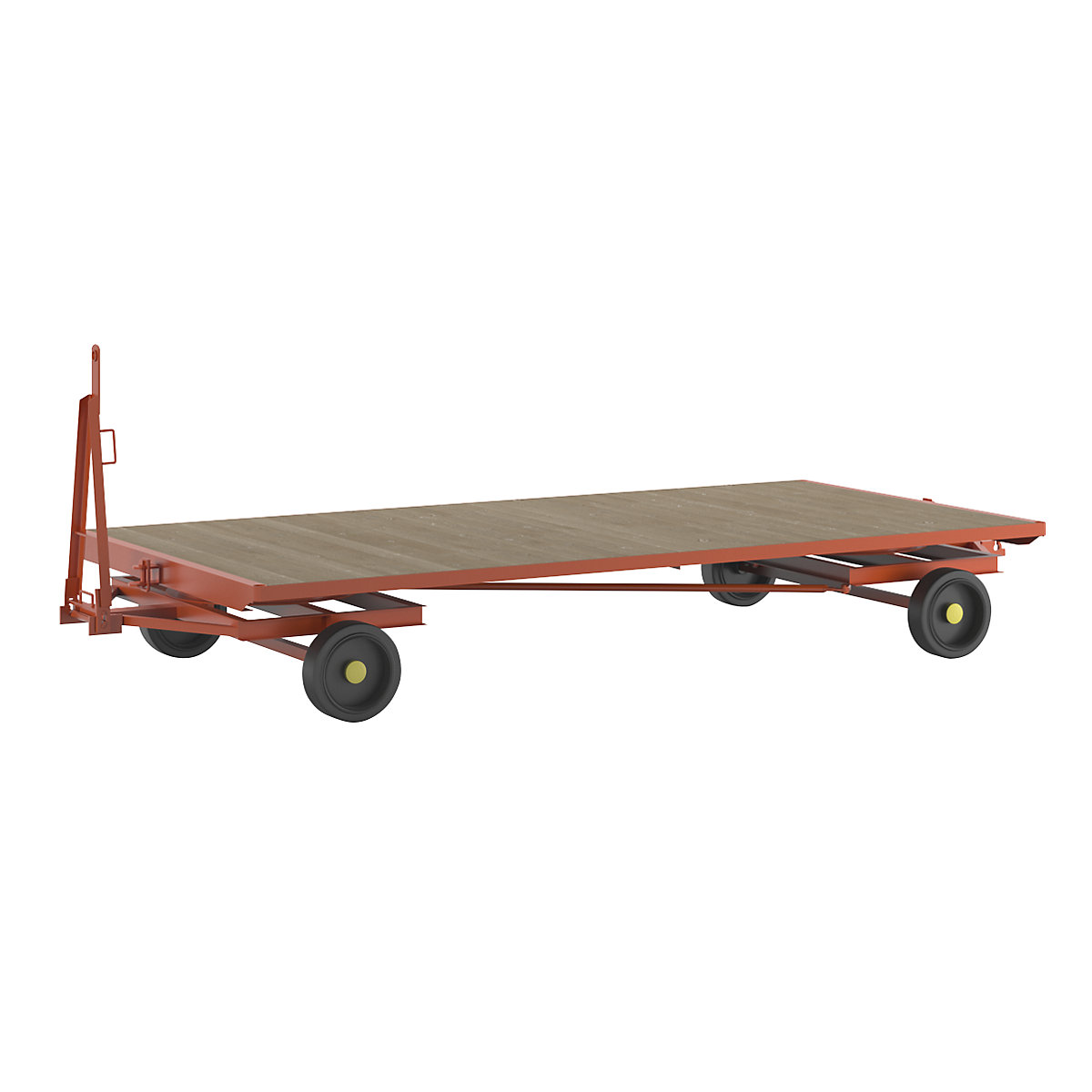

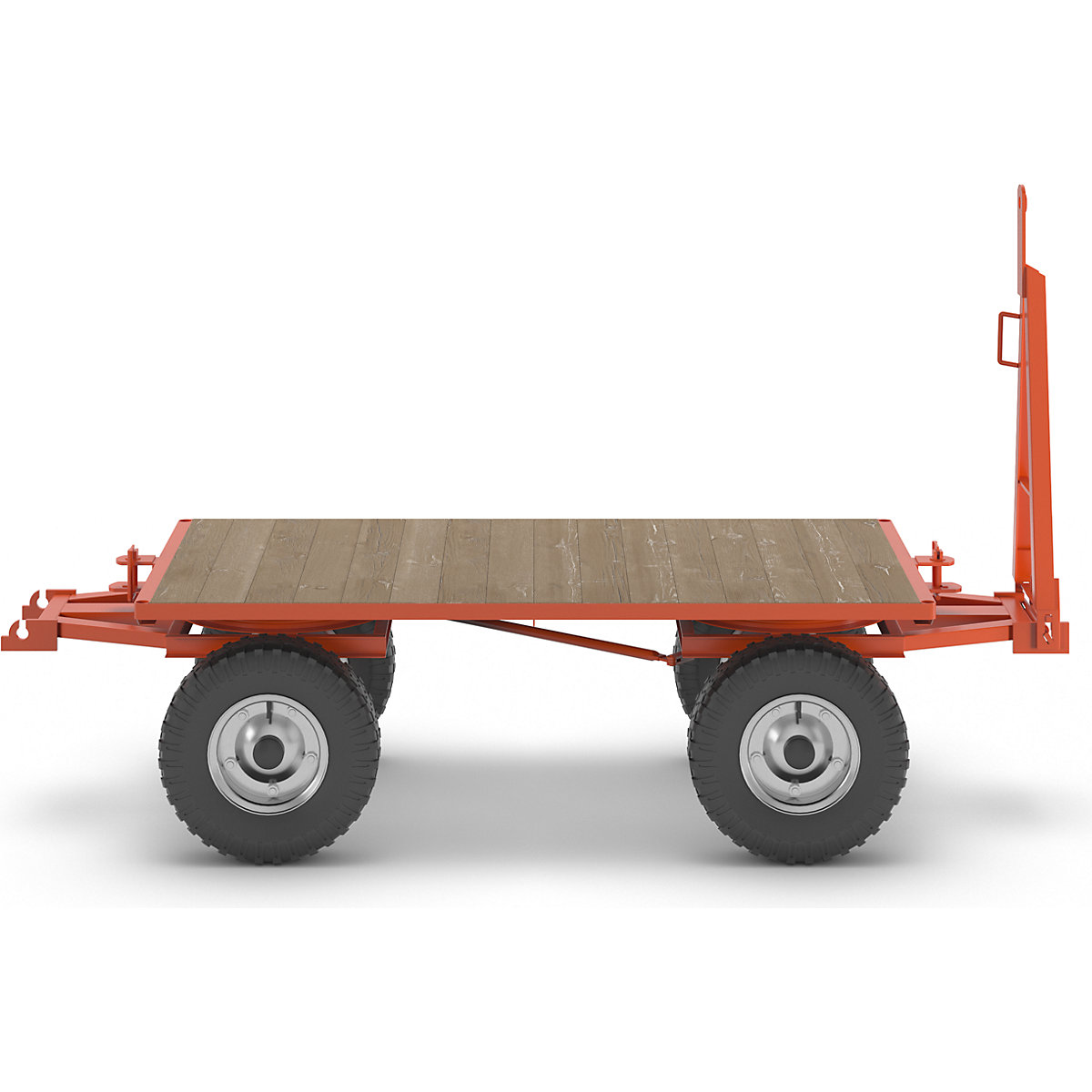

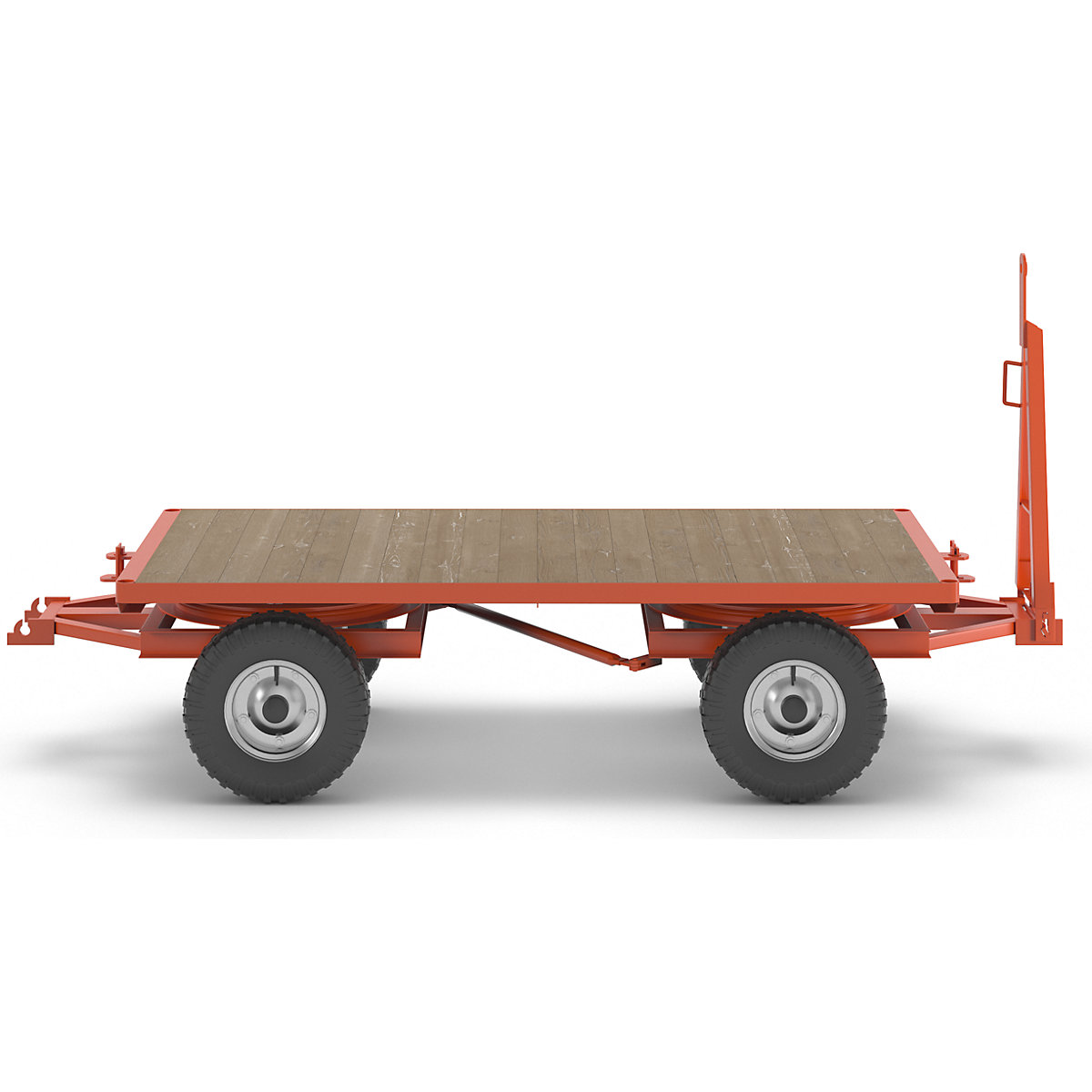

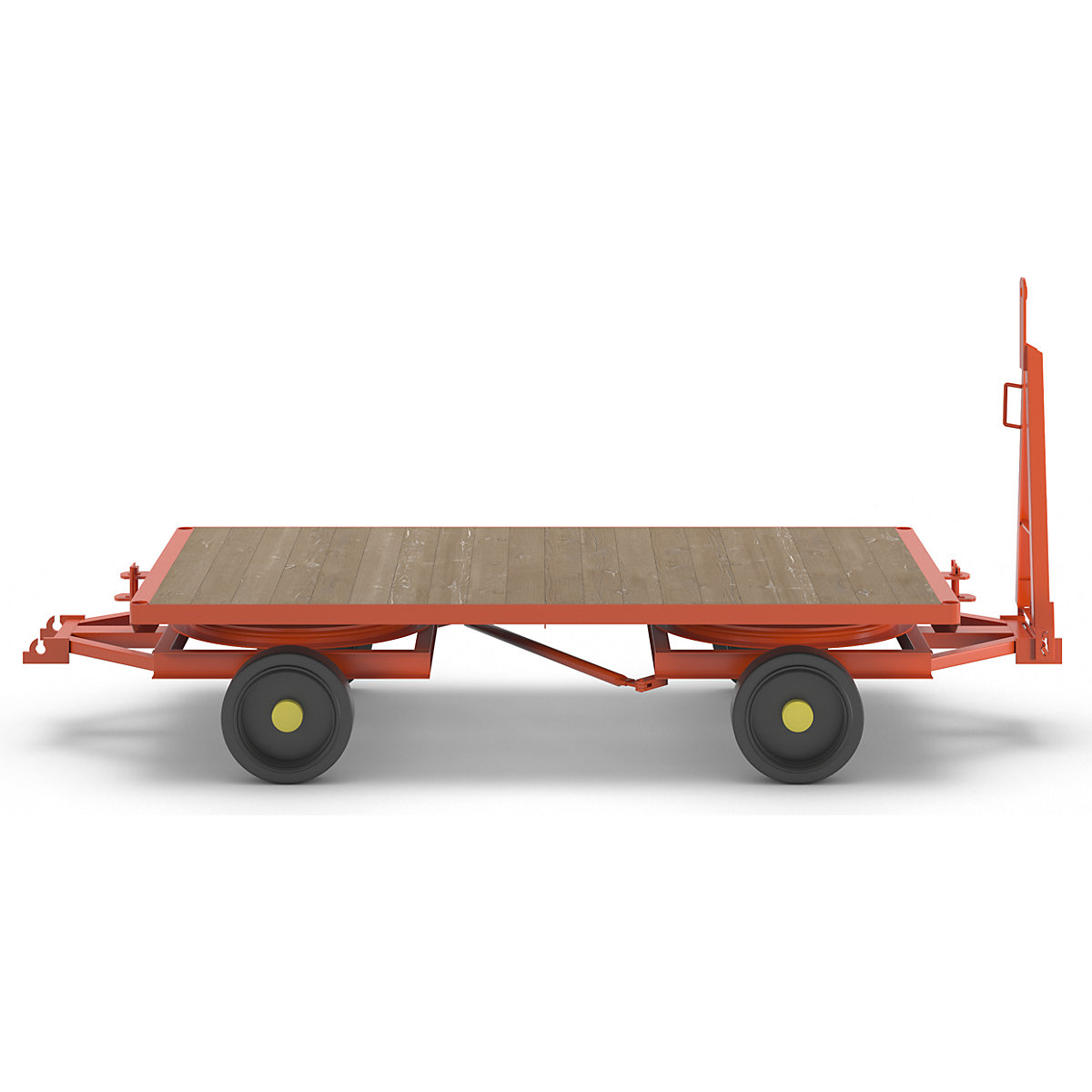

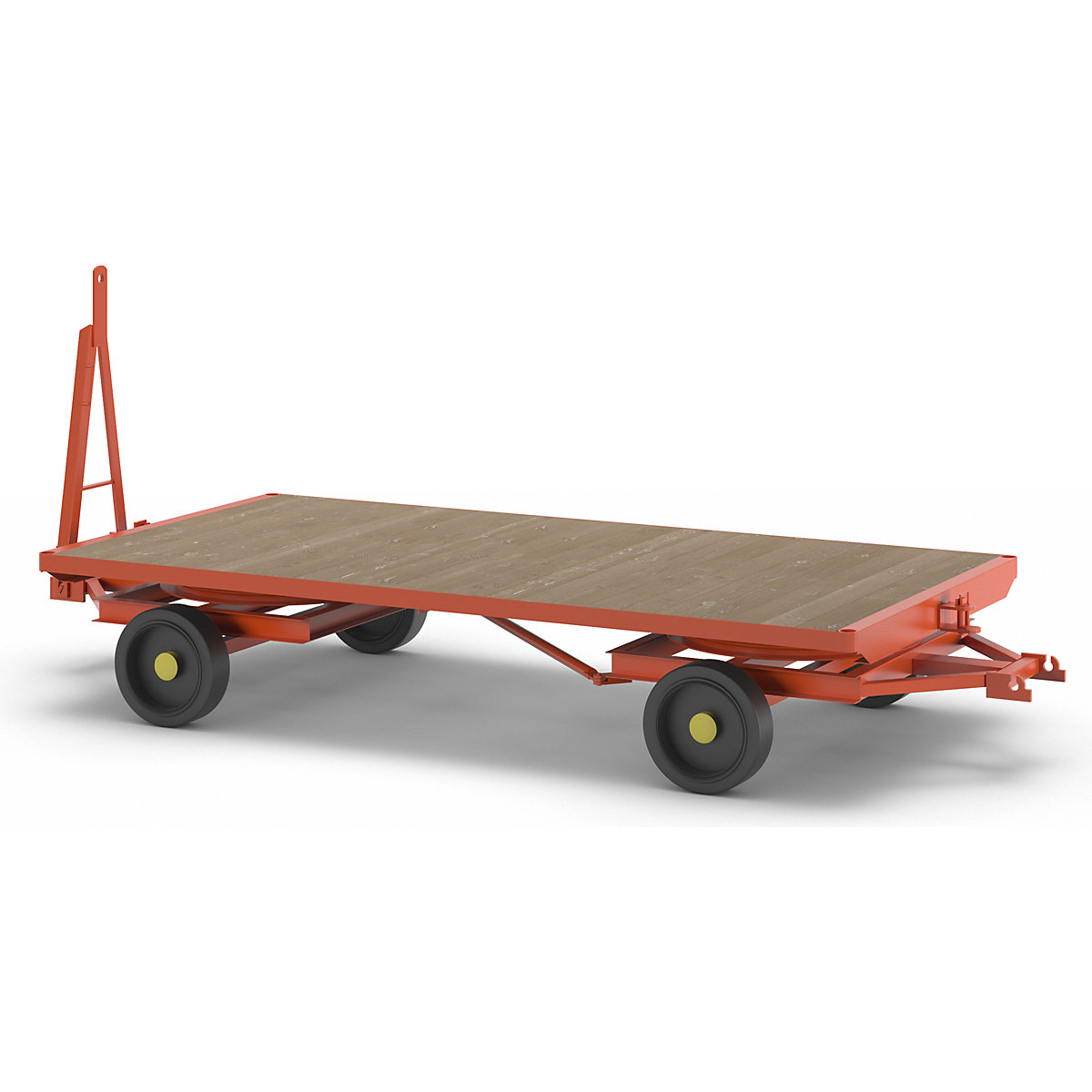

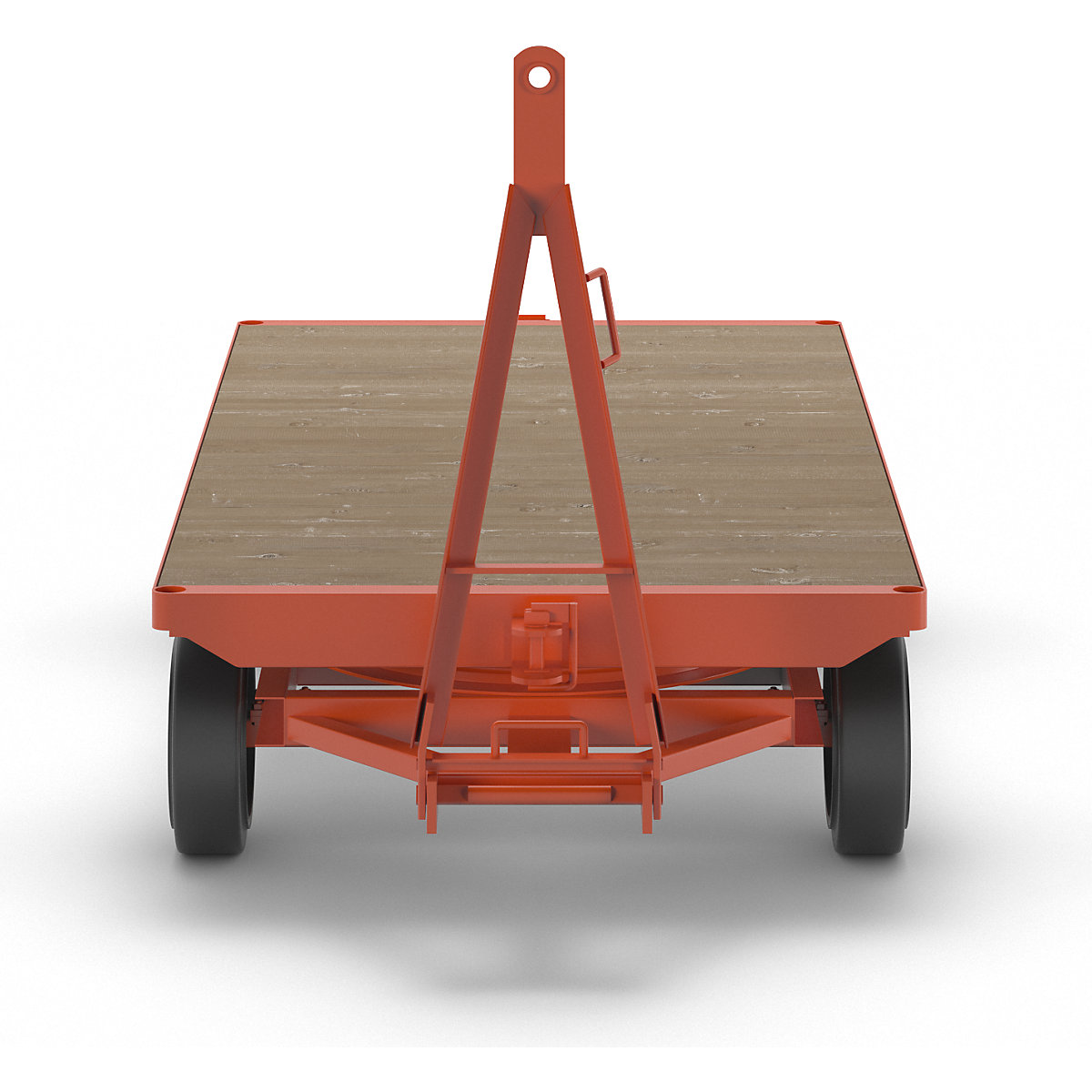

Trailers, 4-wheel double turntable steering, max. load 5 t
|
|

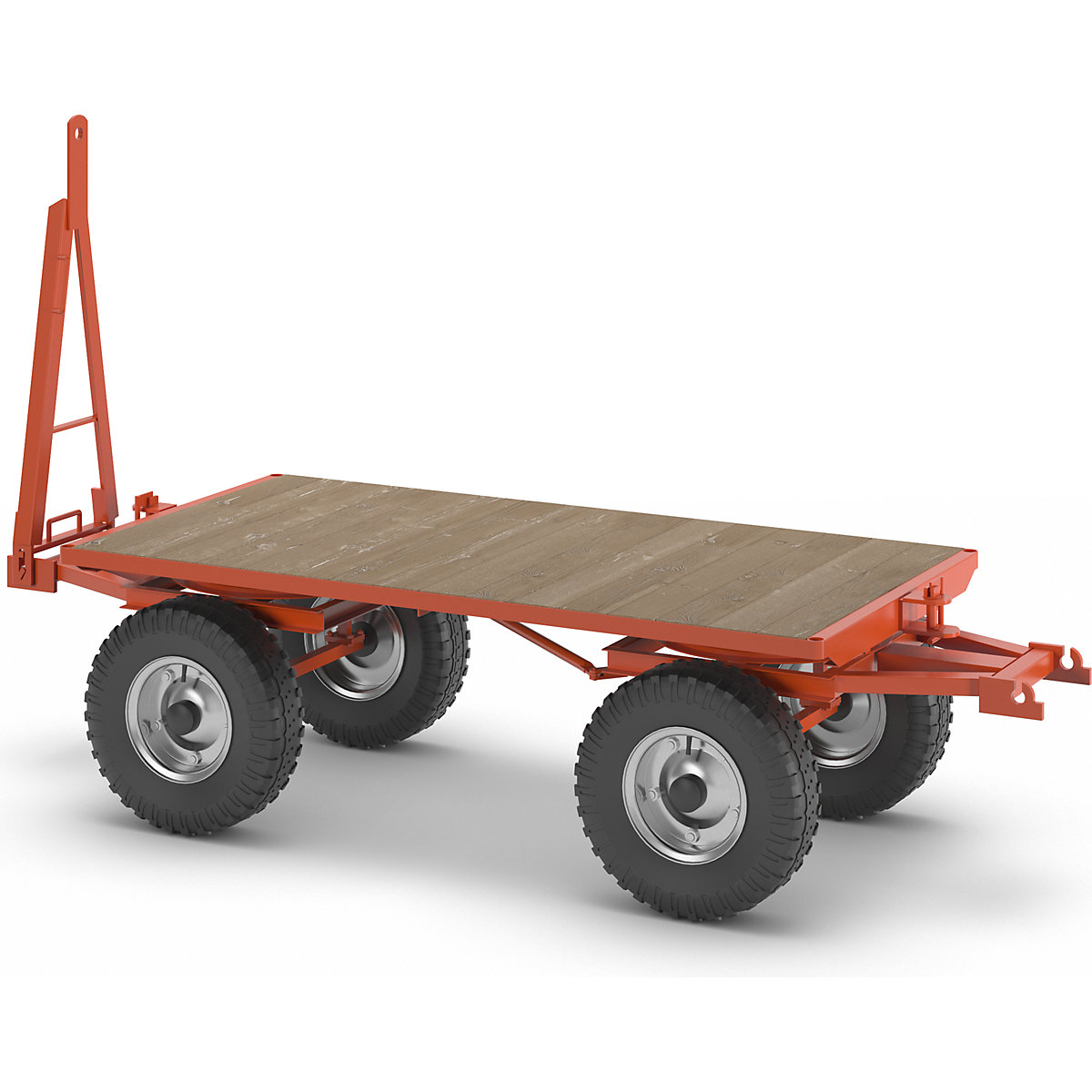

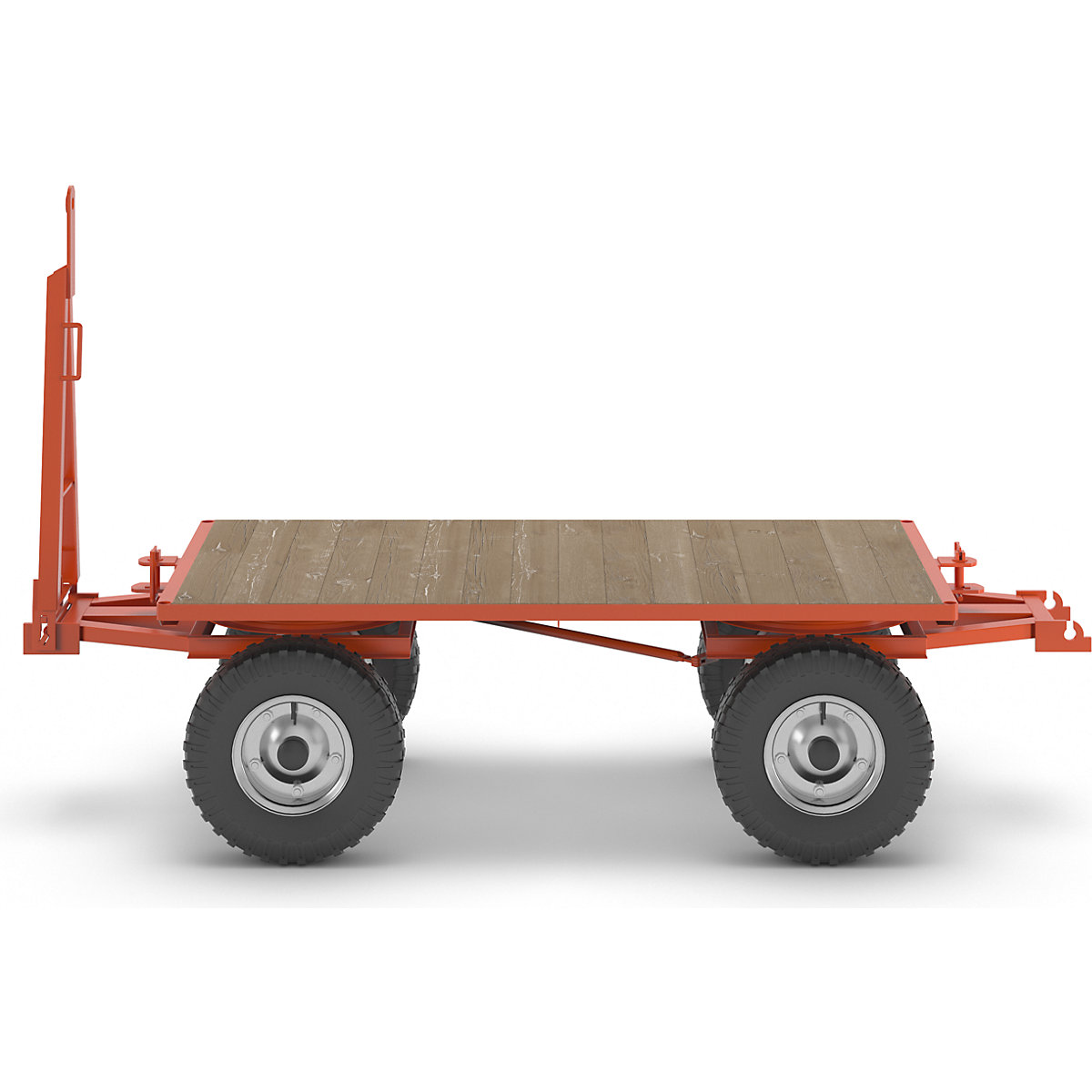

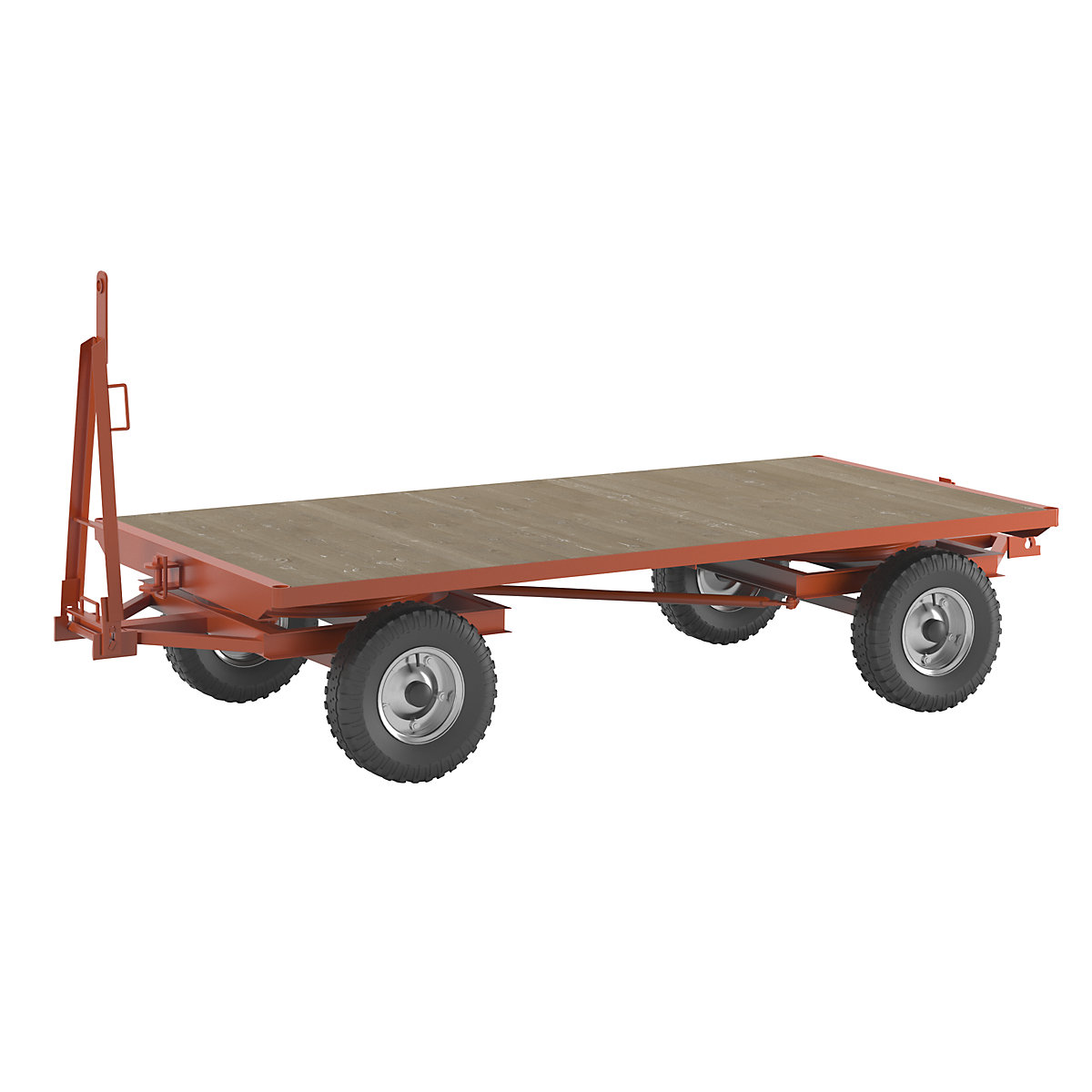

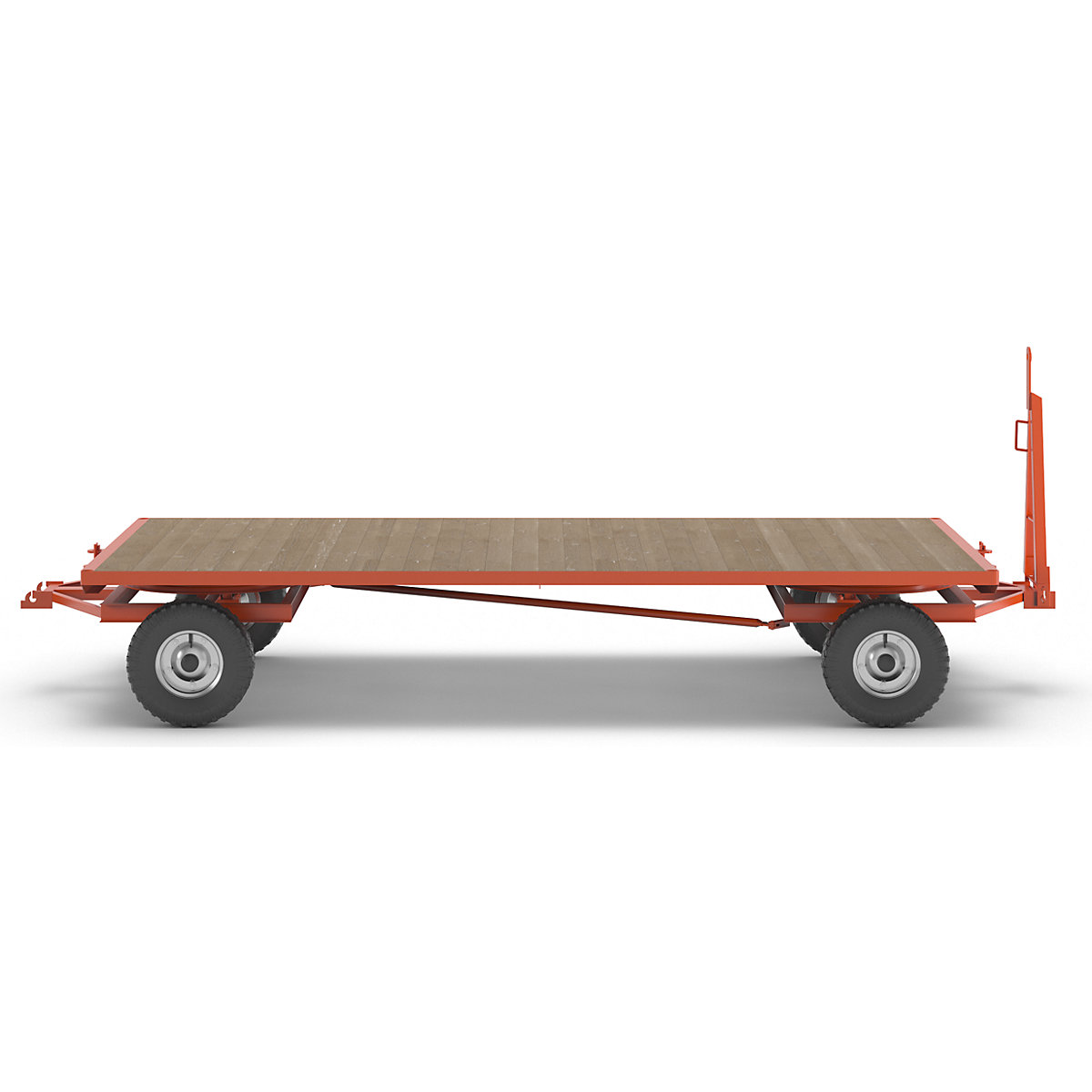

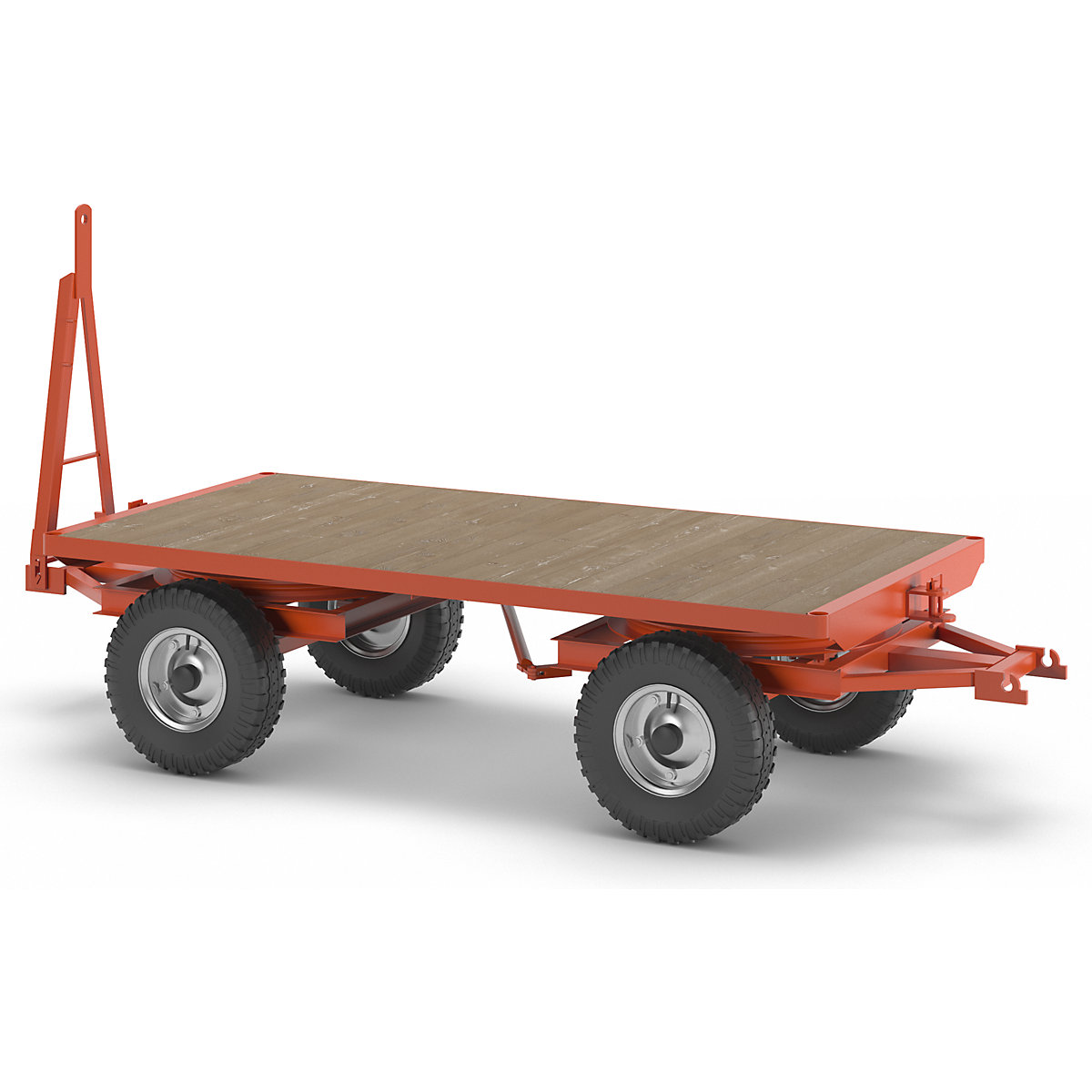

3 tonne model with pneumatic tyres

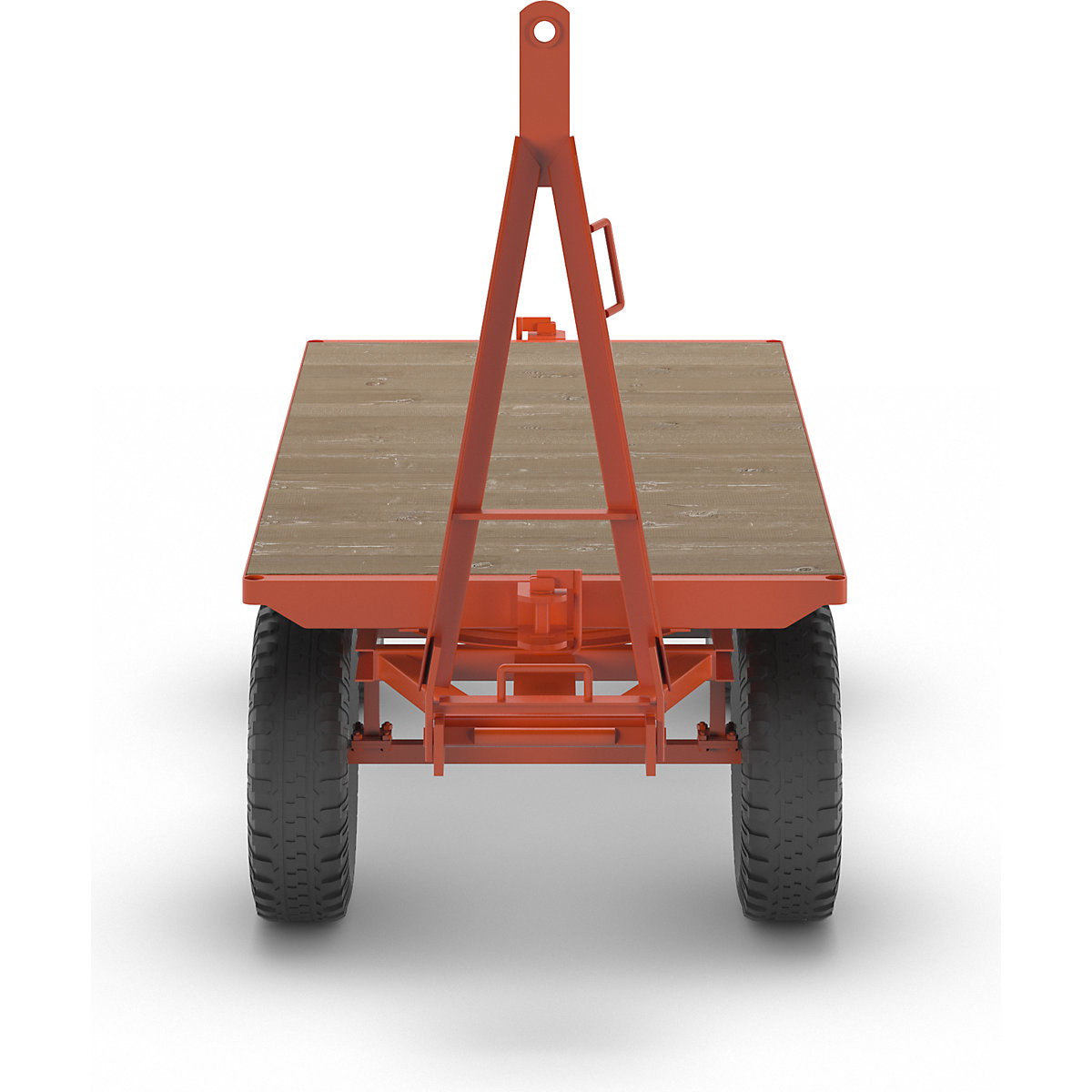

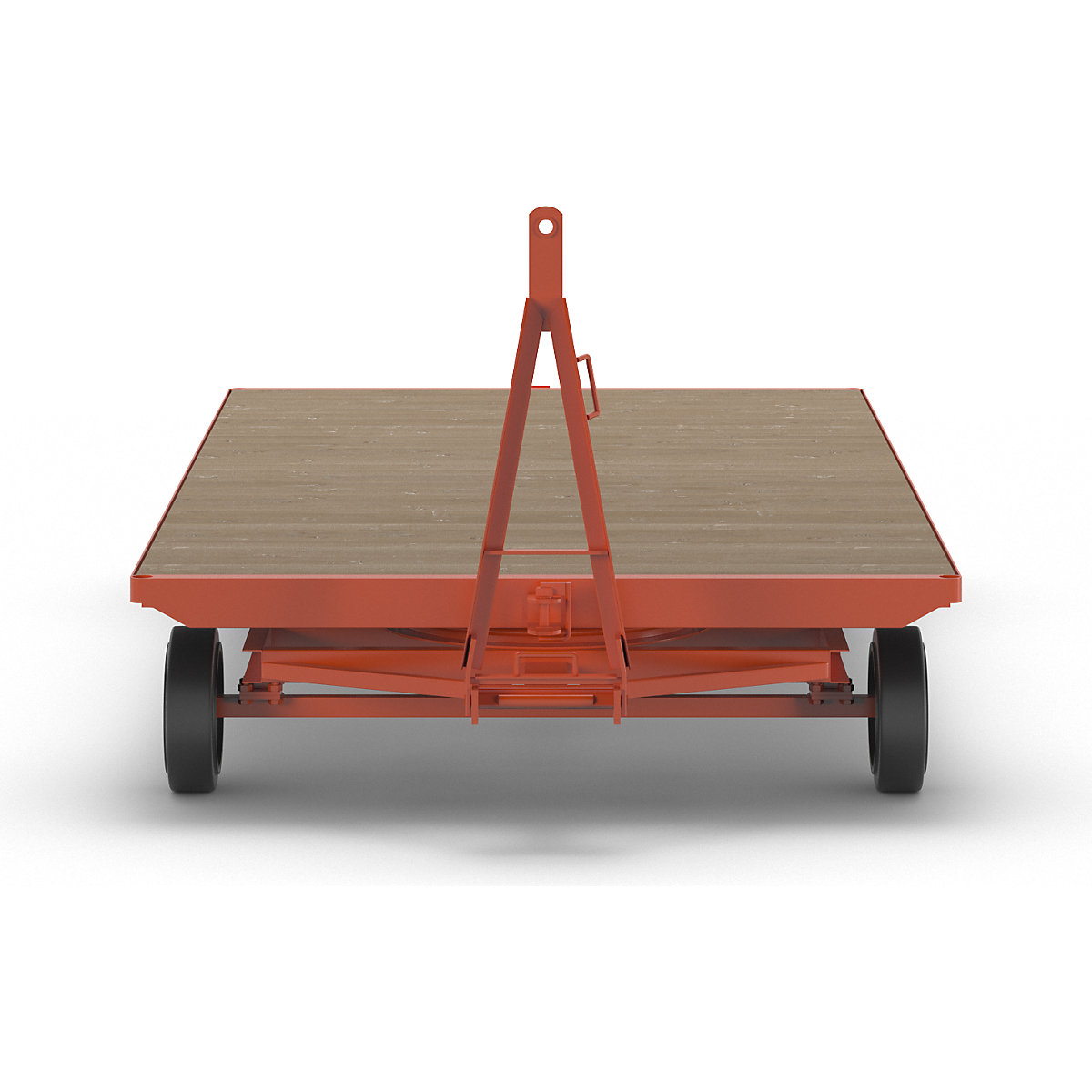

Detachable drawbar
|
|
Tracking stability
|
|
|
Small turning radius
|
|
|
Steering radius 35°, anti-tipping
|
|
|
Detachable drawbar, towing connection on both sides
|

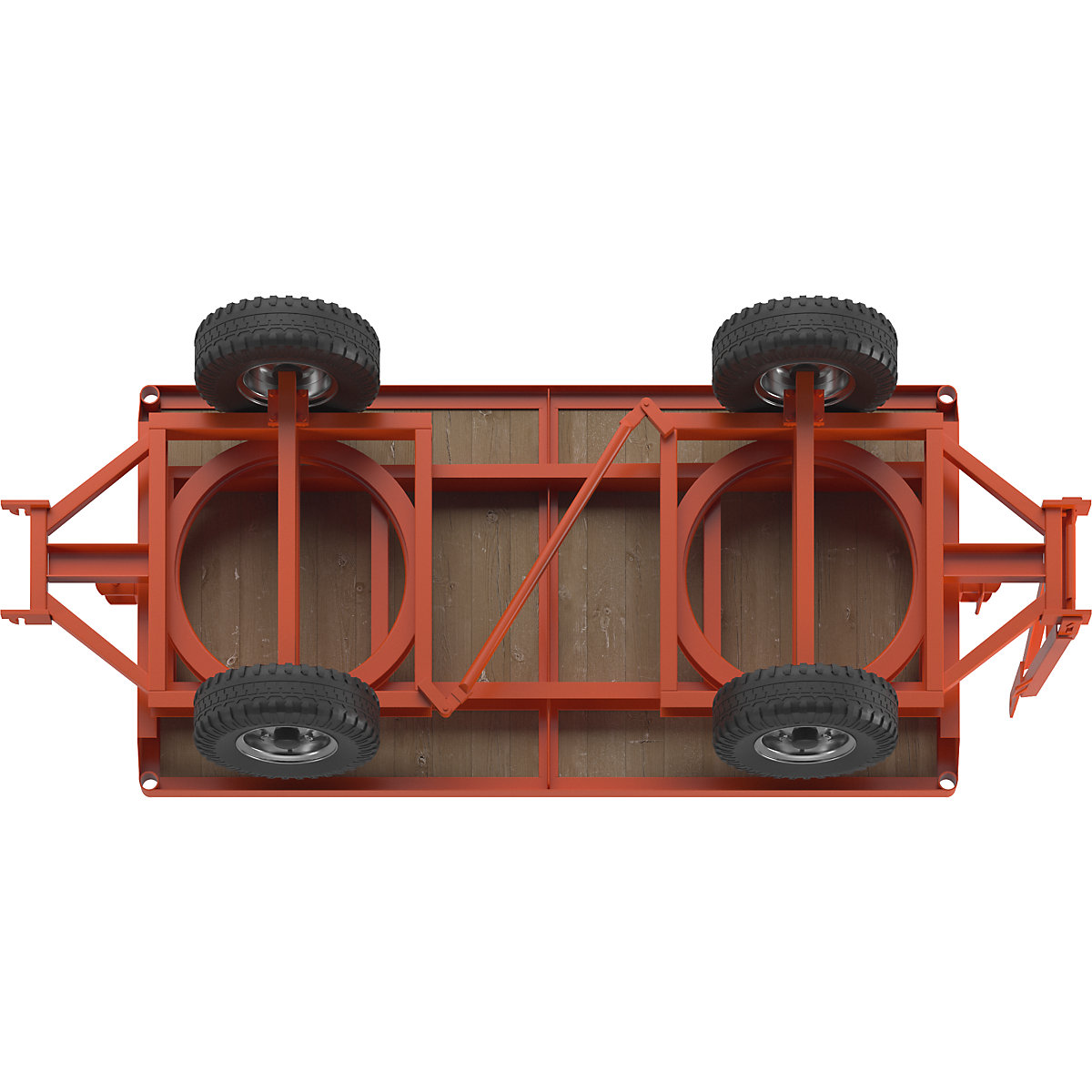

Chassis

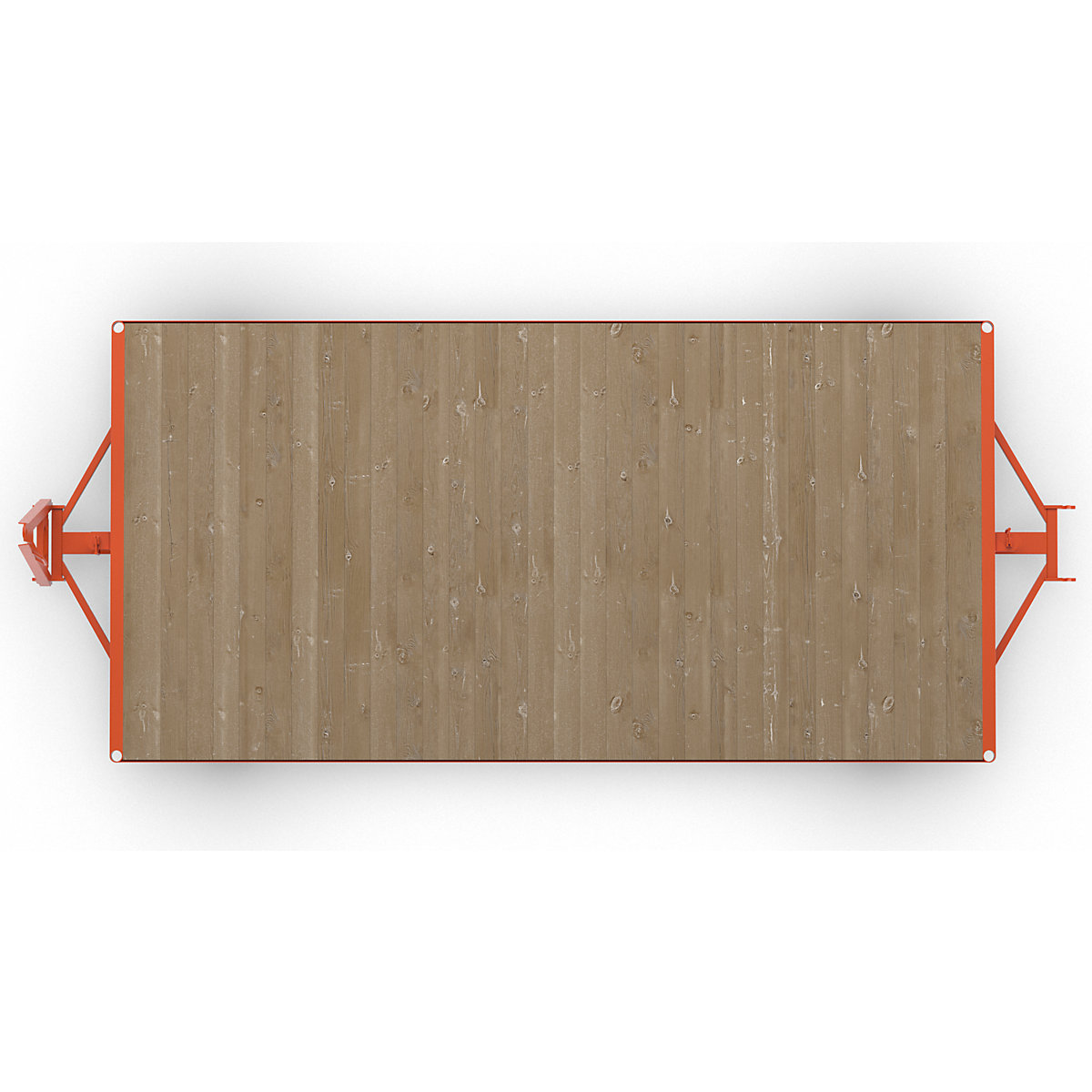

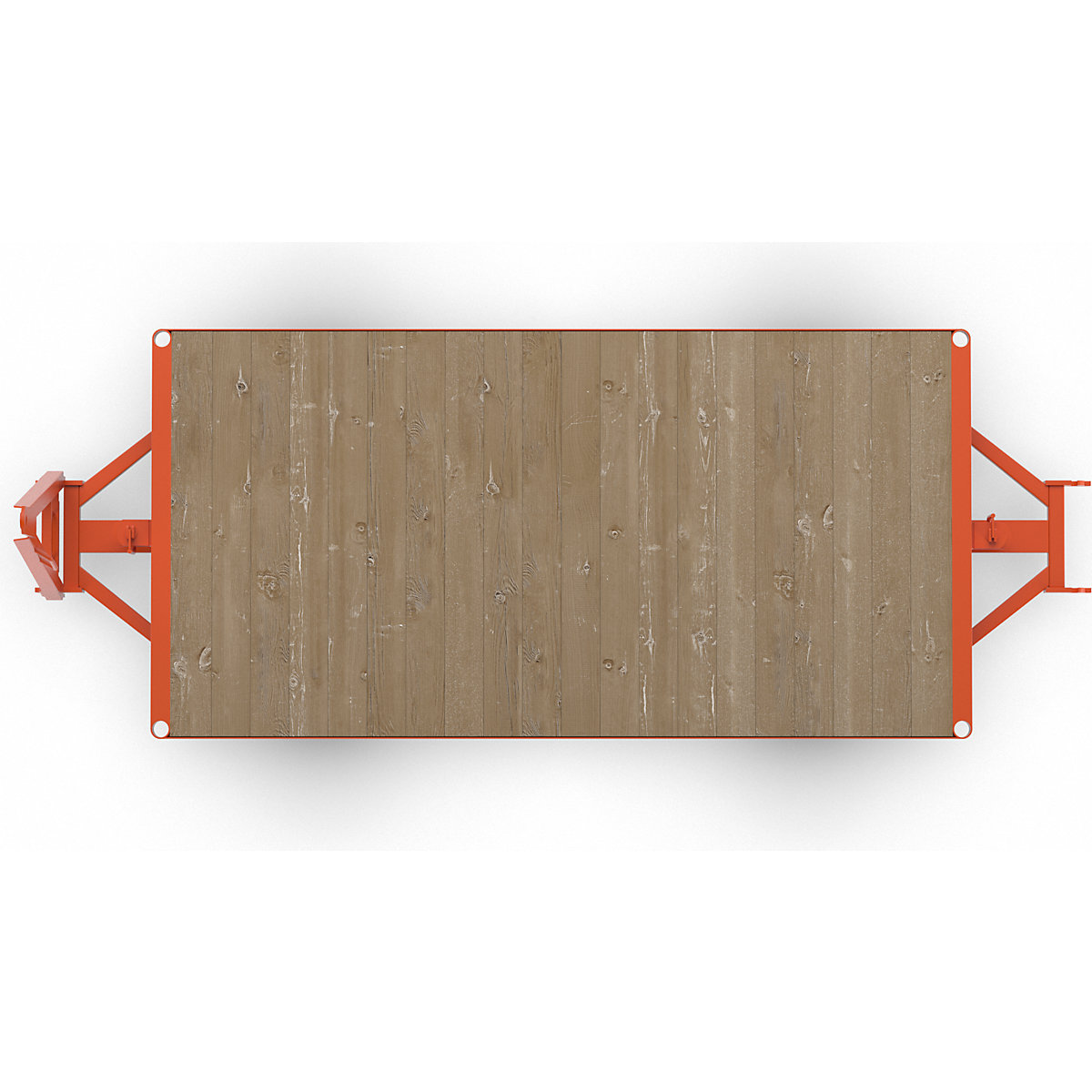

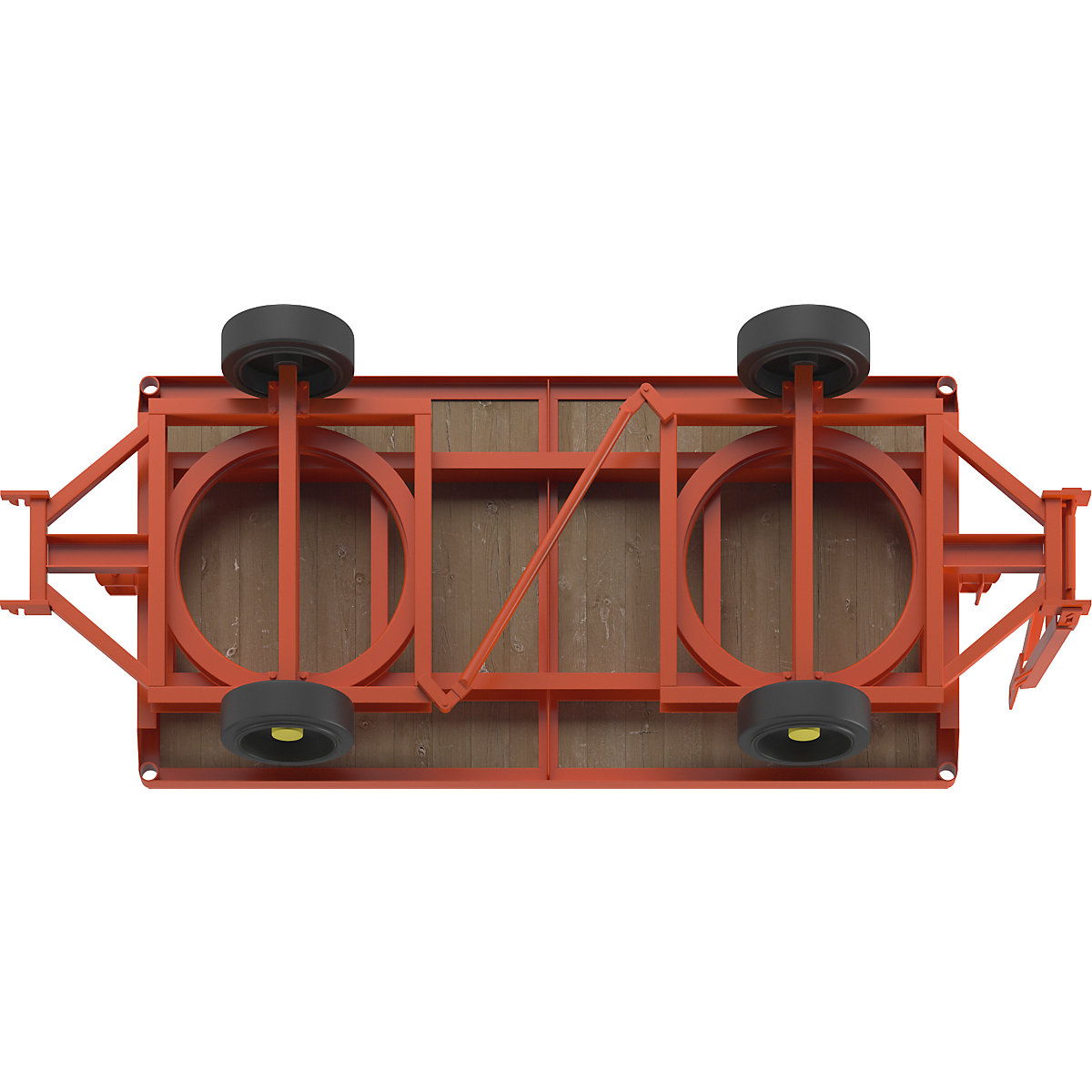

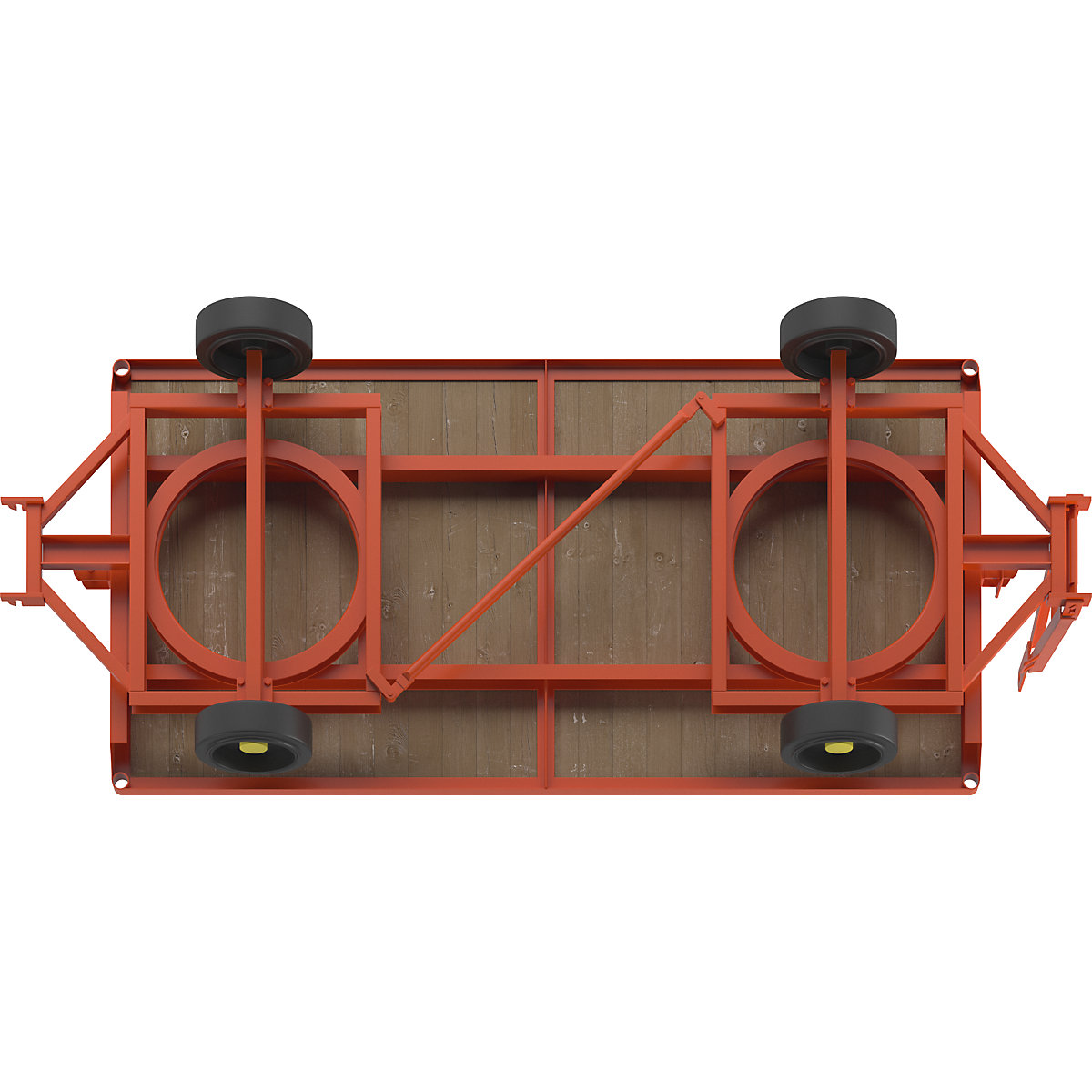

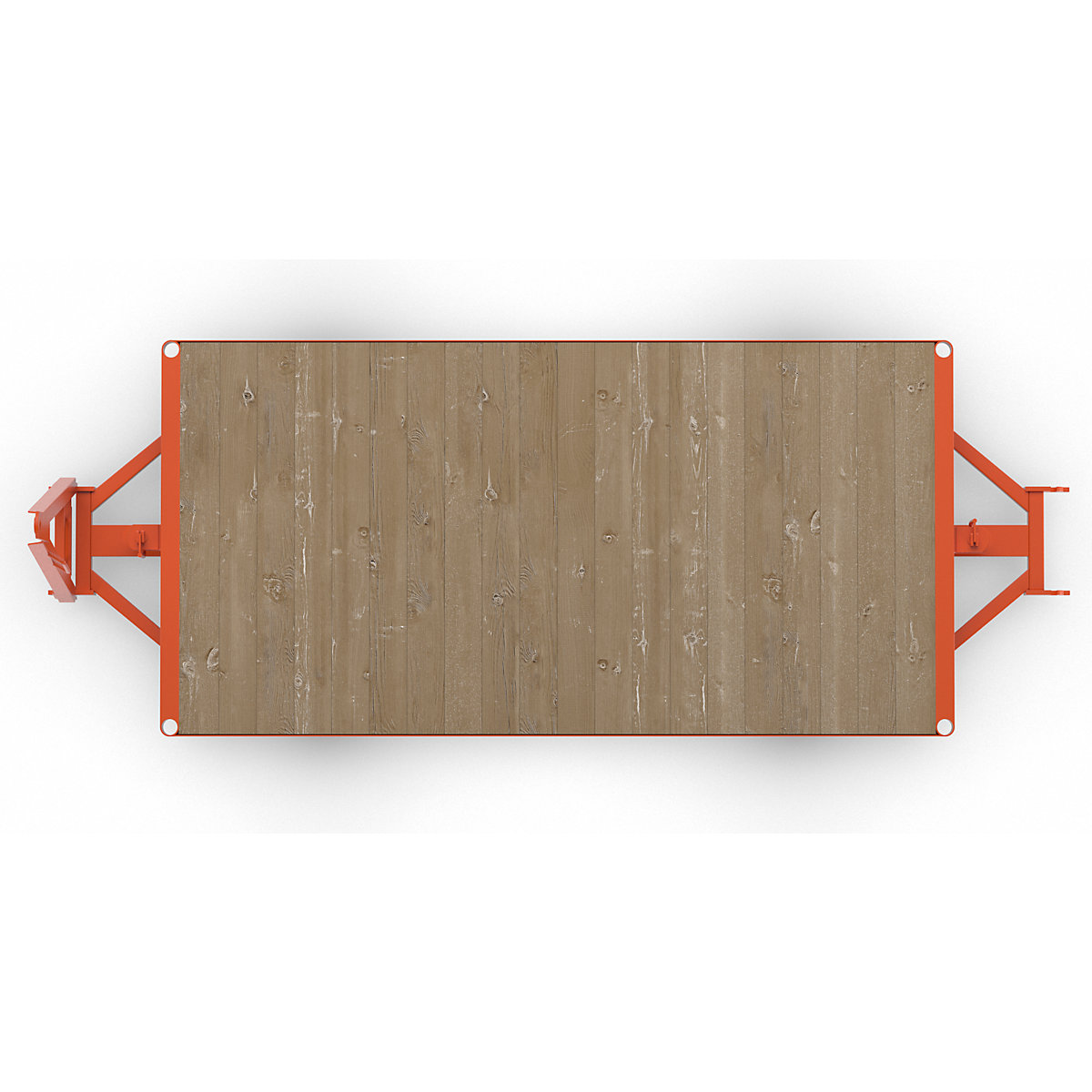

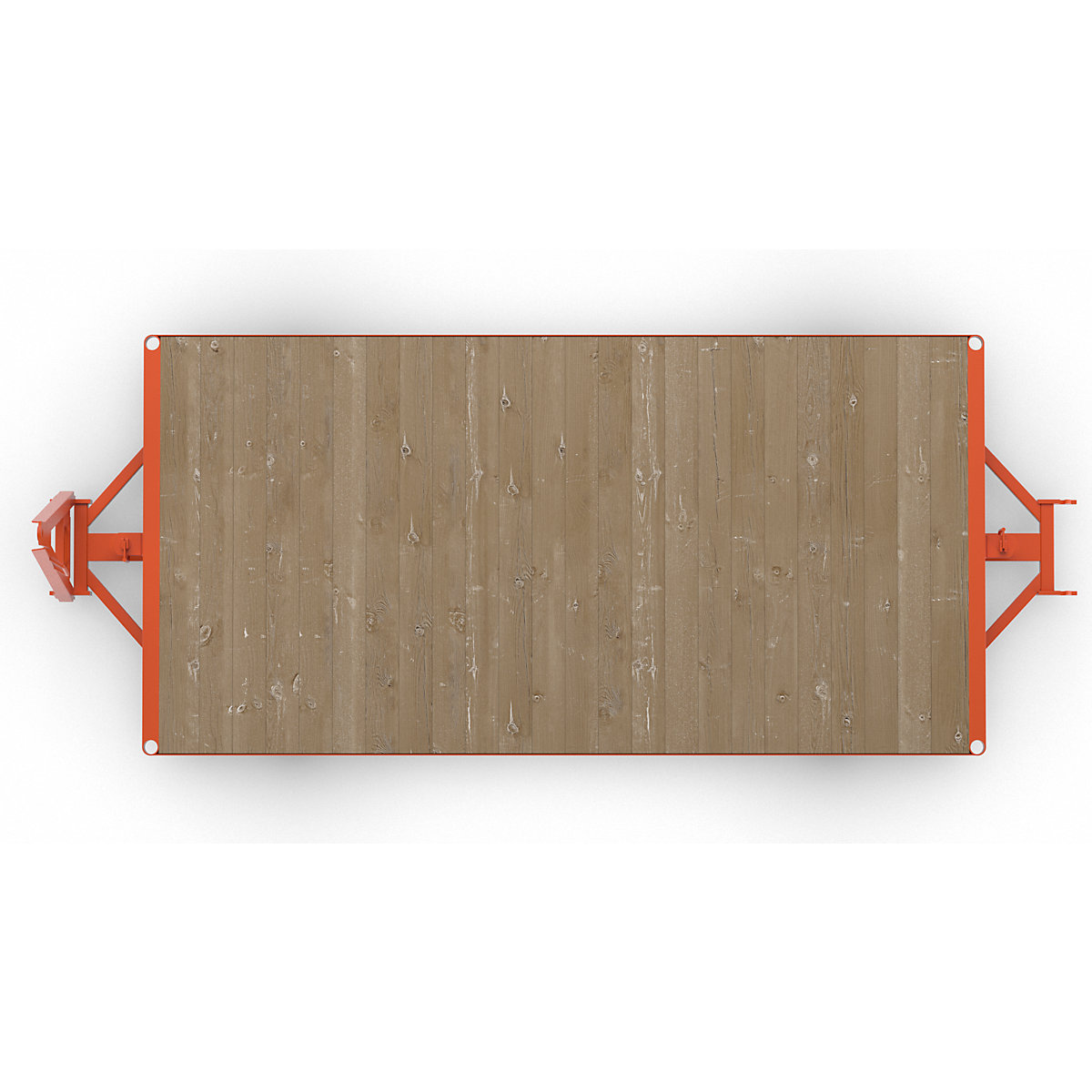

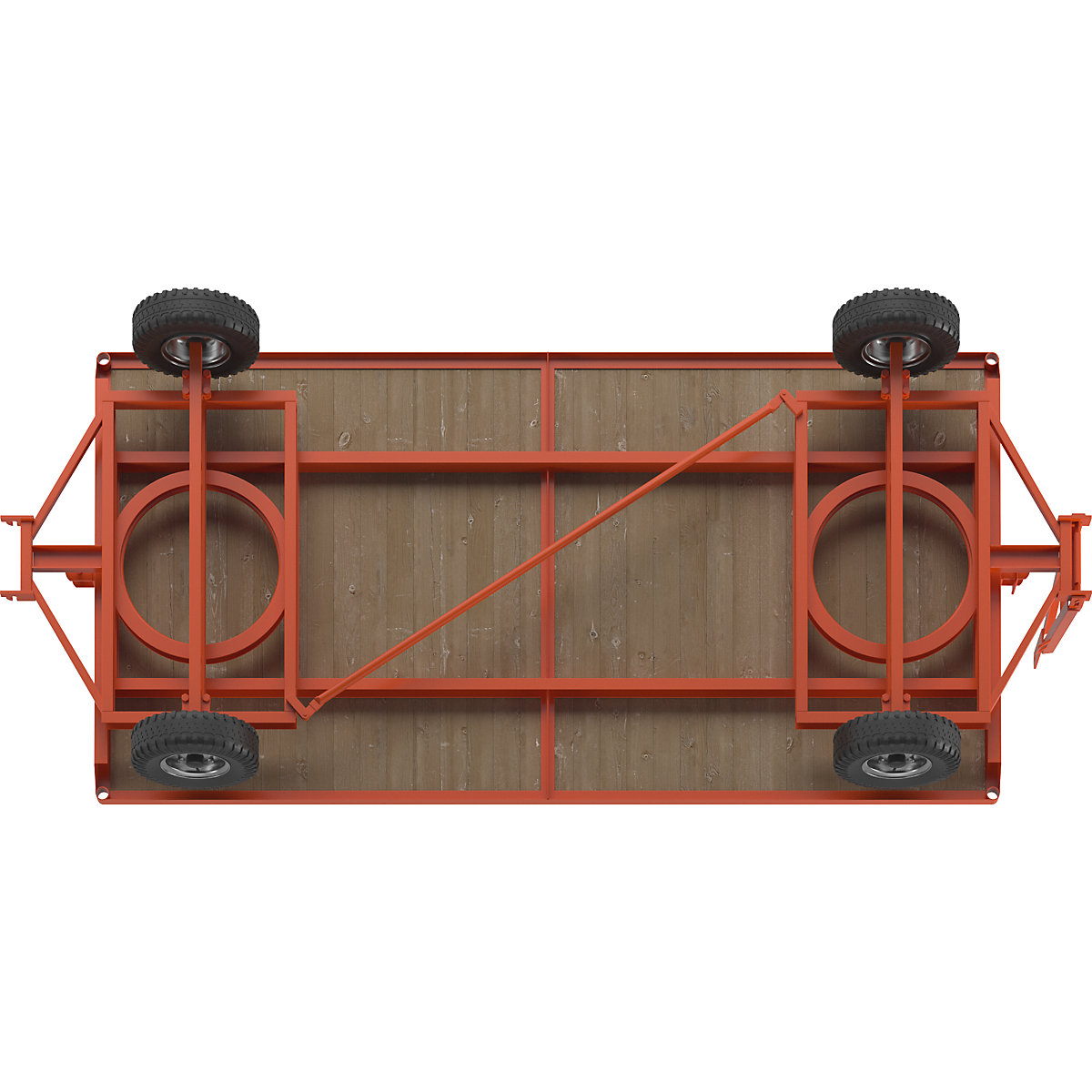

Frame construction with rounded corners. Pipe corners for attaching posts or side panels, or as tie-down eyelets. Pine laminate, permanently impregnated. Trailer coupling.
Wheel type
Solid rubber or pneumatic tyres. Hubs with double ball bearings.
Paintwork
Pure orange RAL 2004.

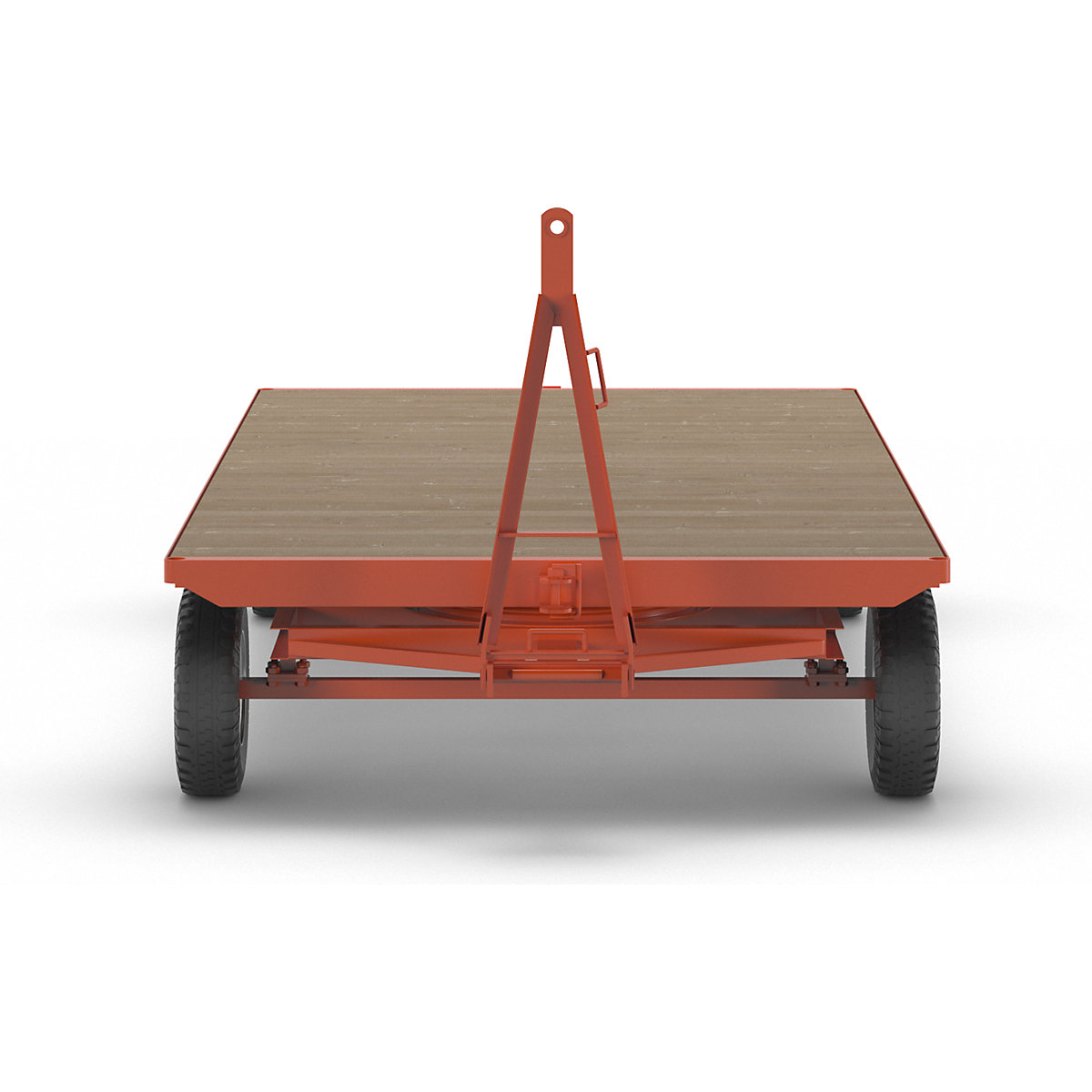

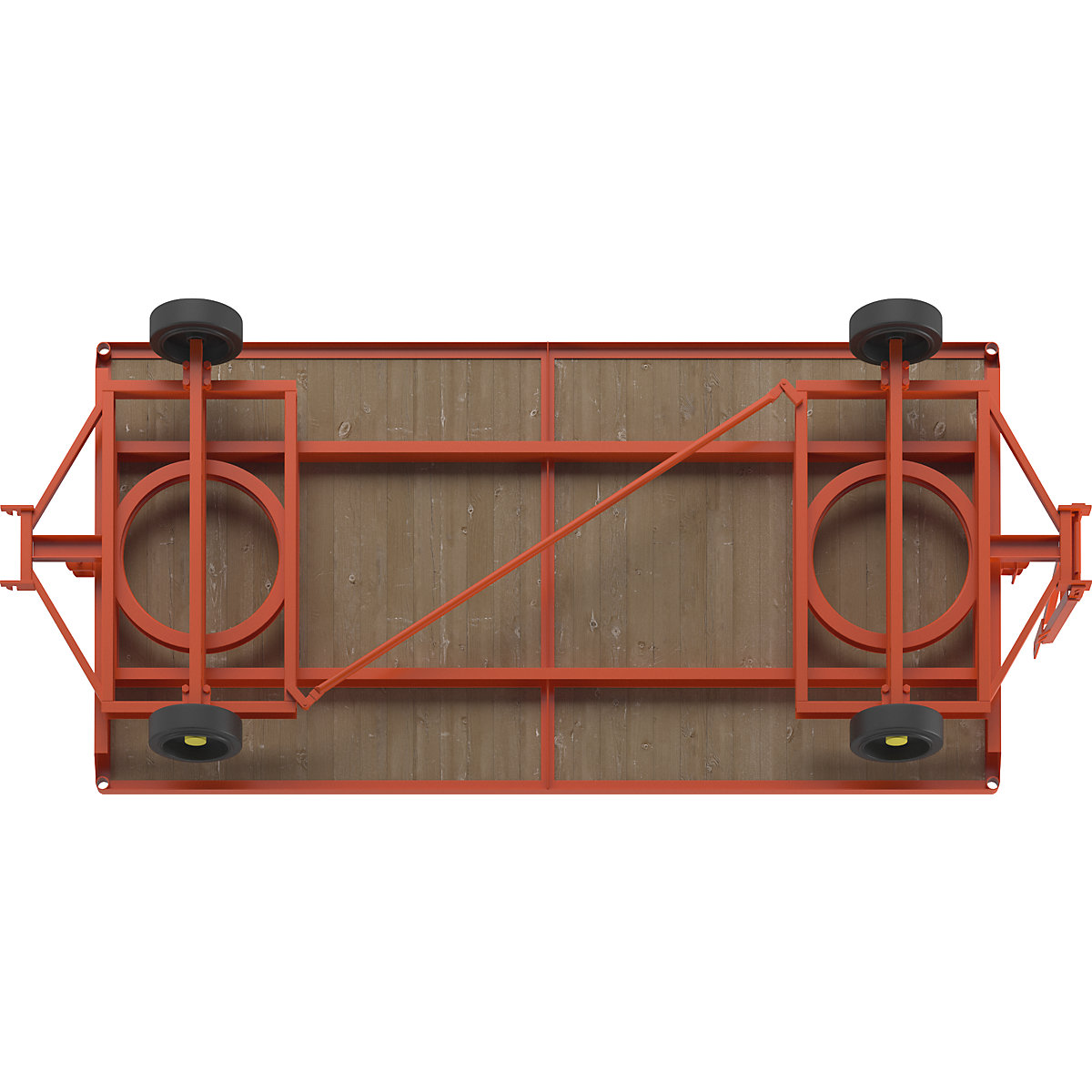

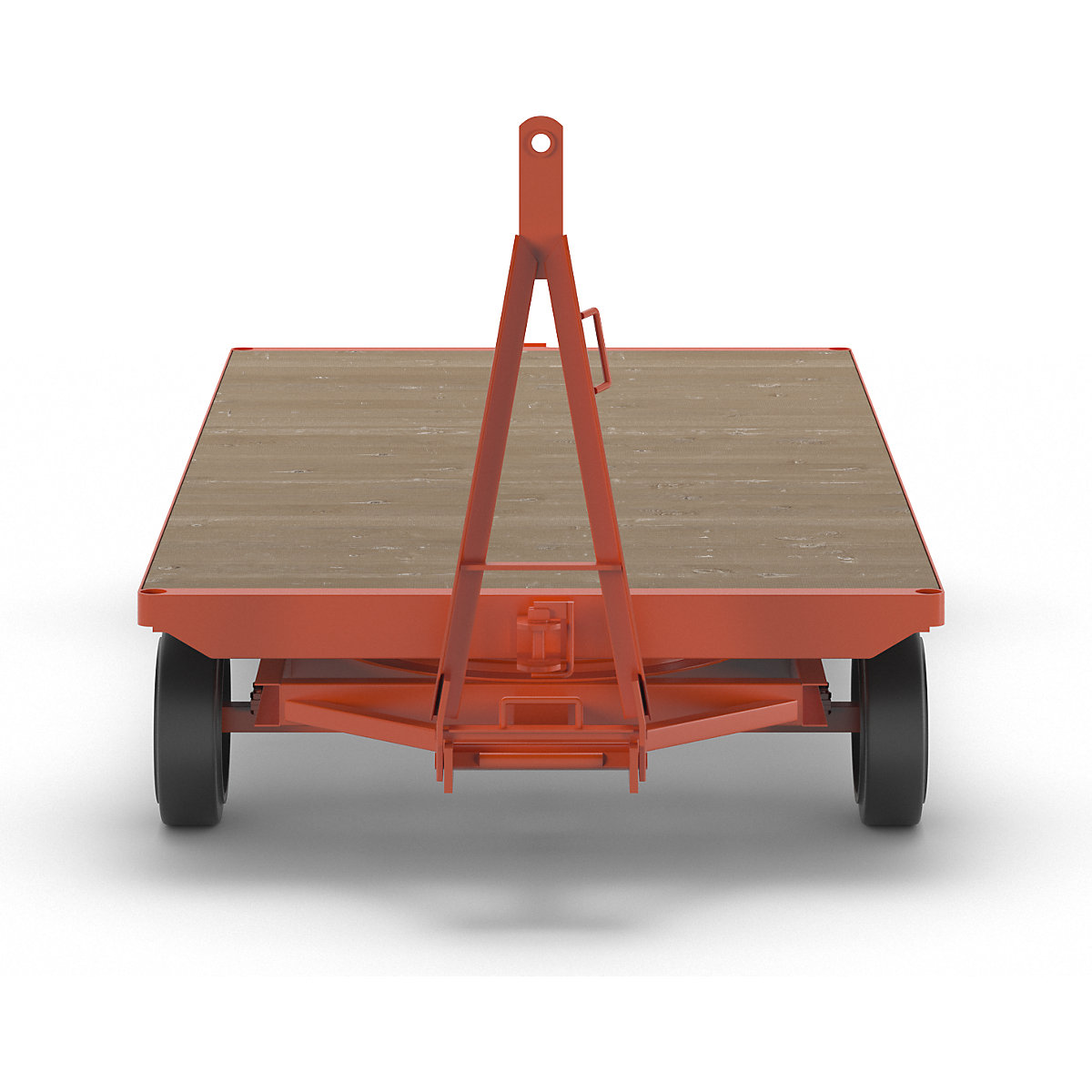

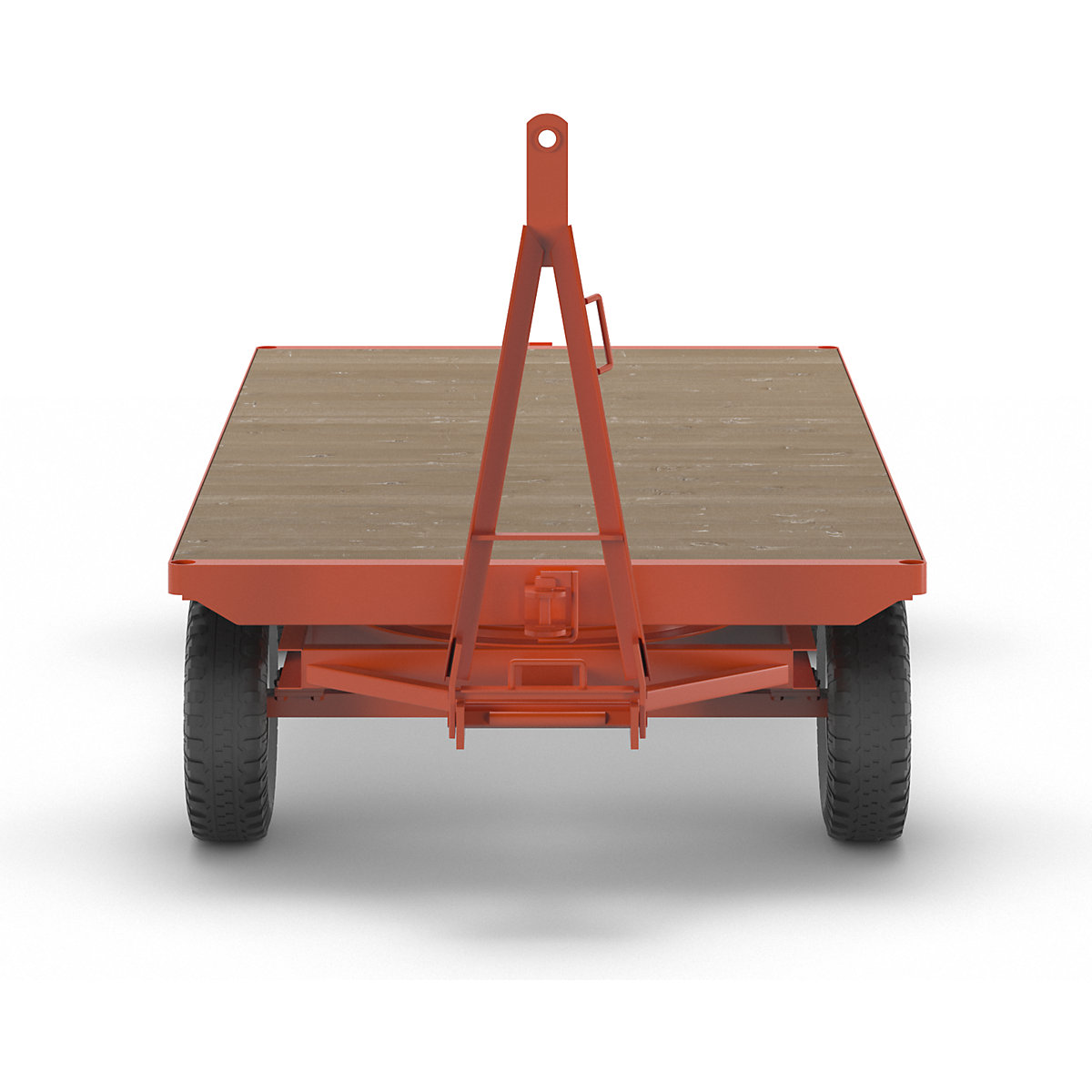

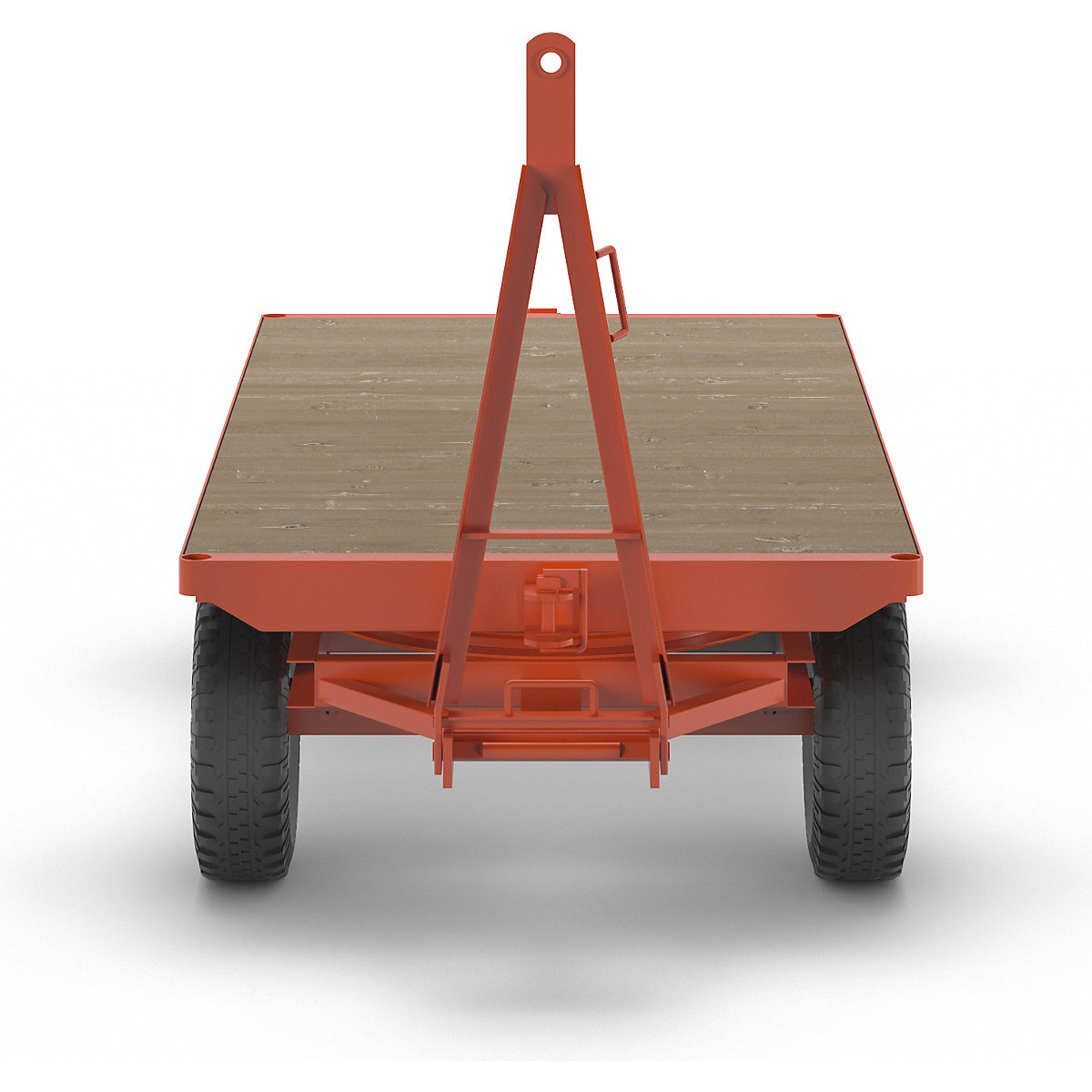

2-axle turntable steering, steering stop limit. Triangle drawbar, height adjustable with fall arrest.
|
The technical specifications for these trailers makes it necessary to manufacture them to order.
For this reason, please be aware that these items may not be returned.
|
|
|
Available on request
|
|
|
Parking brake, rubber axle and leaf spring, CSE tyres, side panels and other accessories
|
|
|
|
Technical details:
|
Max. load at 6 km/h
|
t
|
5
|
|
Platform material
|
|
wood coating, impregnated
|
|
Type of tyre
|
|
single tyre
|
|
Turning angle
|
°
|
35
|
|
Finish
|
|
painted
|
|
Colour
|
|
pure orange RAL 2004
|
|
Removable shaft
|
|
yes
|
|
Steering
|
|
4-wheel double turntable
|
|
Towing eyelet diameter
|
mm
|
35
|
|
|
DT
|
|
Platform length
|
|
Platform width
|
|
Loading height
|
|
Wheel type
|
|
Wheel diameter
|
|
Wheel width
|
|
Ref.
|
|
Price
|
|
|
|
DT
|
|
|
|
mm
|
|
mm
|
|
mm
|
|
|
|
mm
|
|
mm
|
|
|
|
£
|
|
|
|
|
|
|
|
2000
|
|
1000
|
|
540
|
|

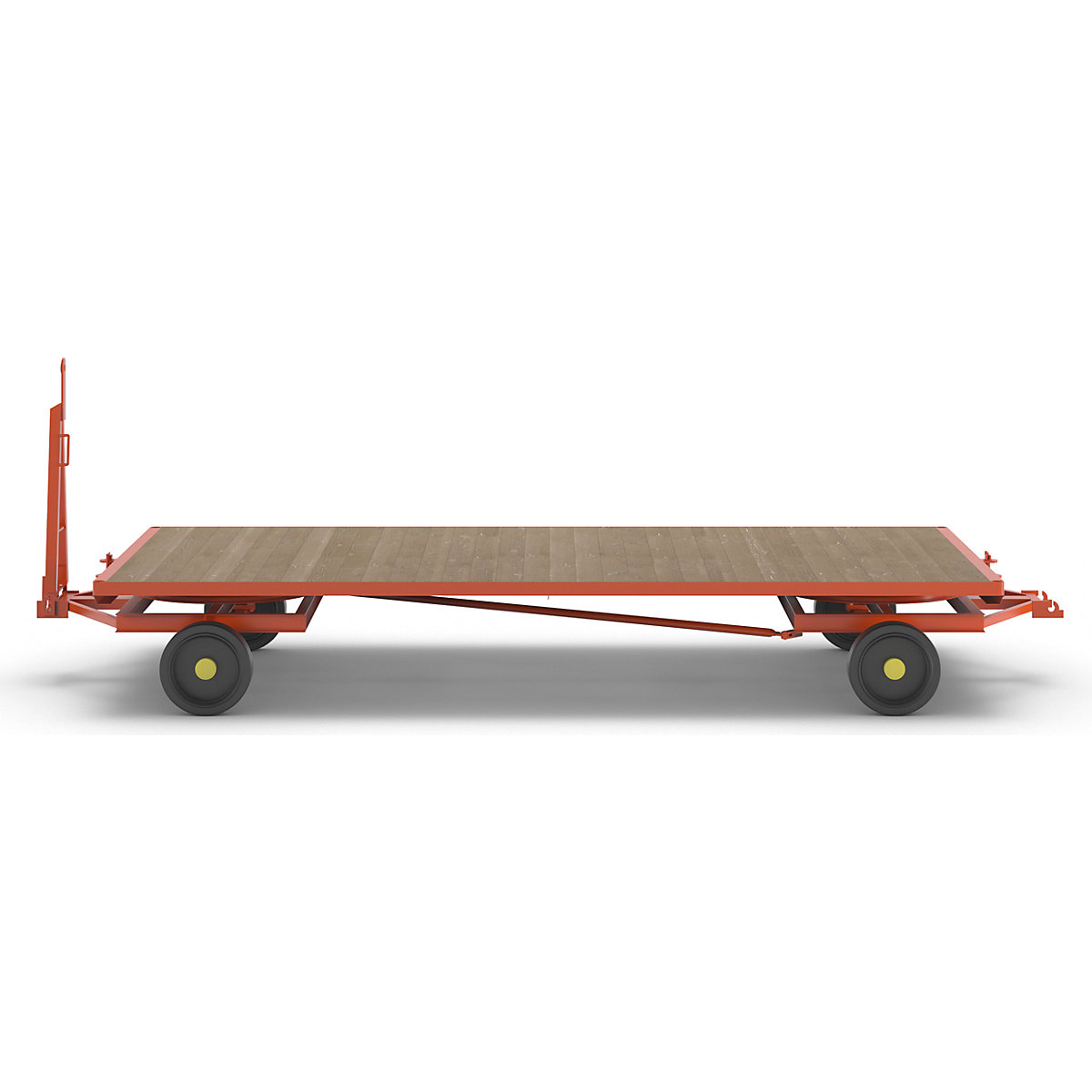

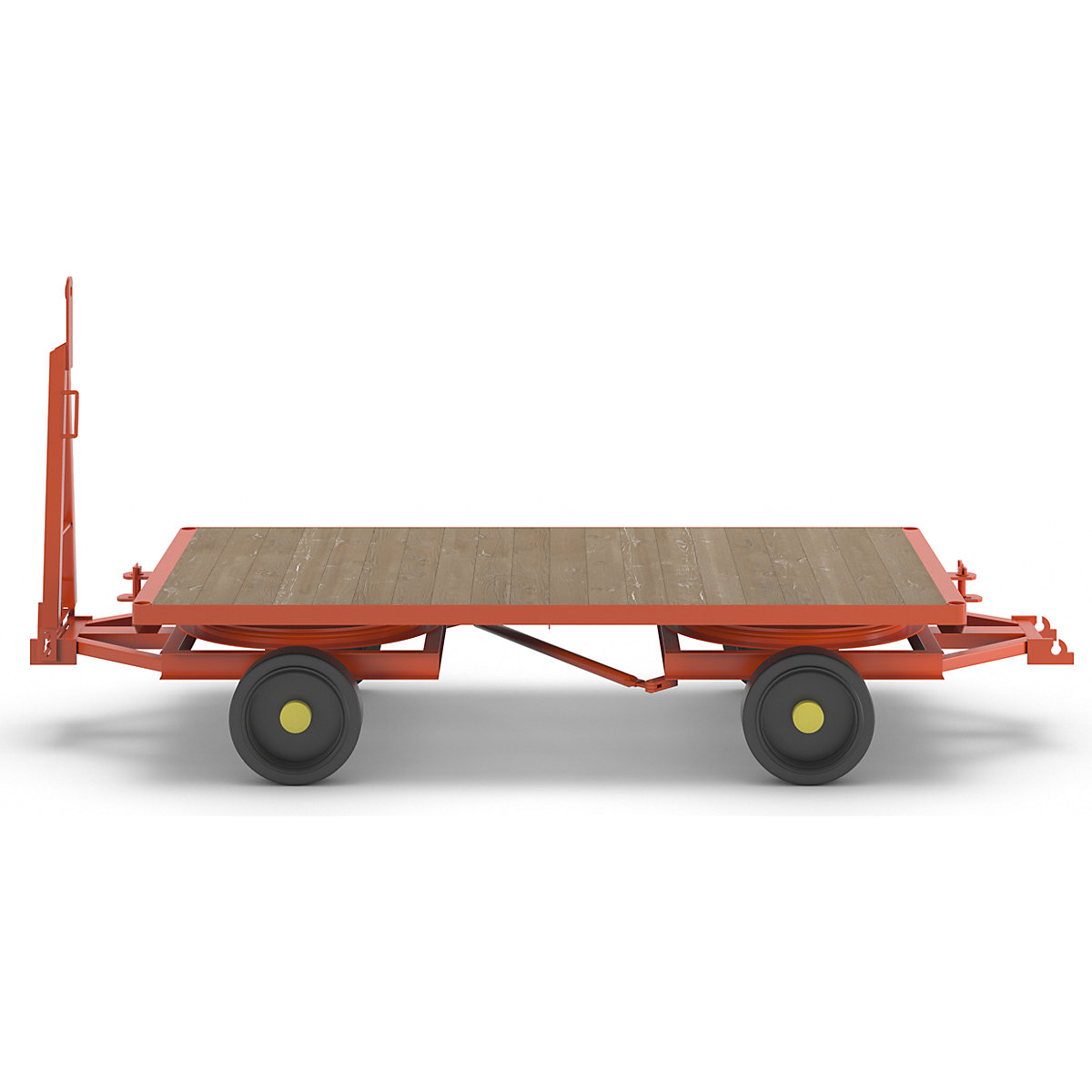

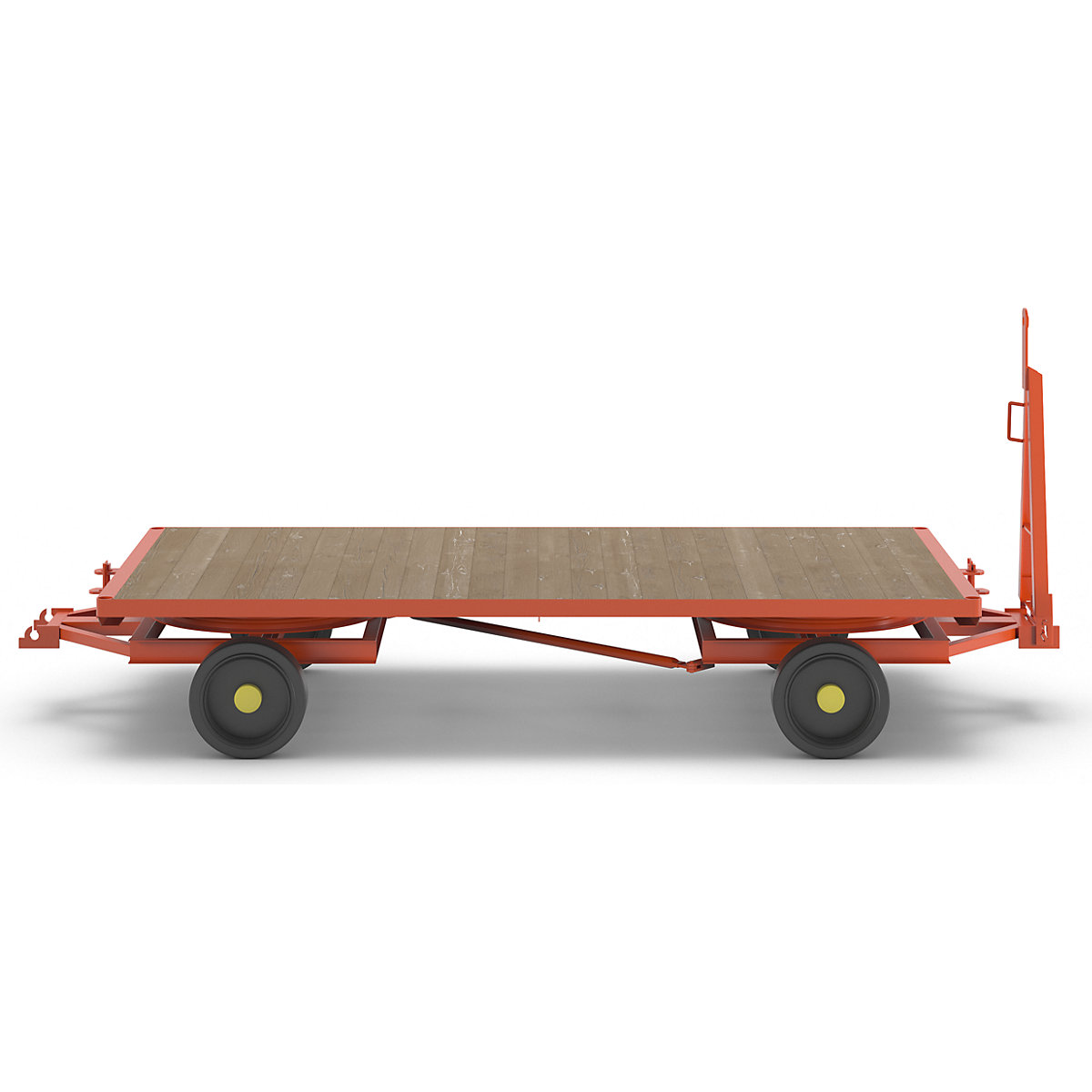

solid rubber
|
|
405
|
|
130
|
|
757 802
|
|
2,602.00
|
|
|
|
|
|
|
|

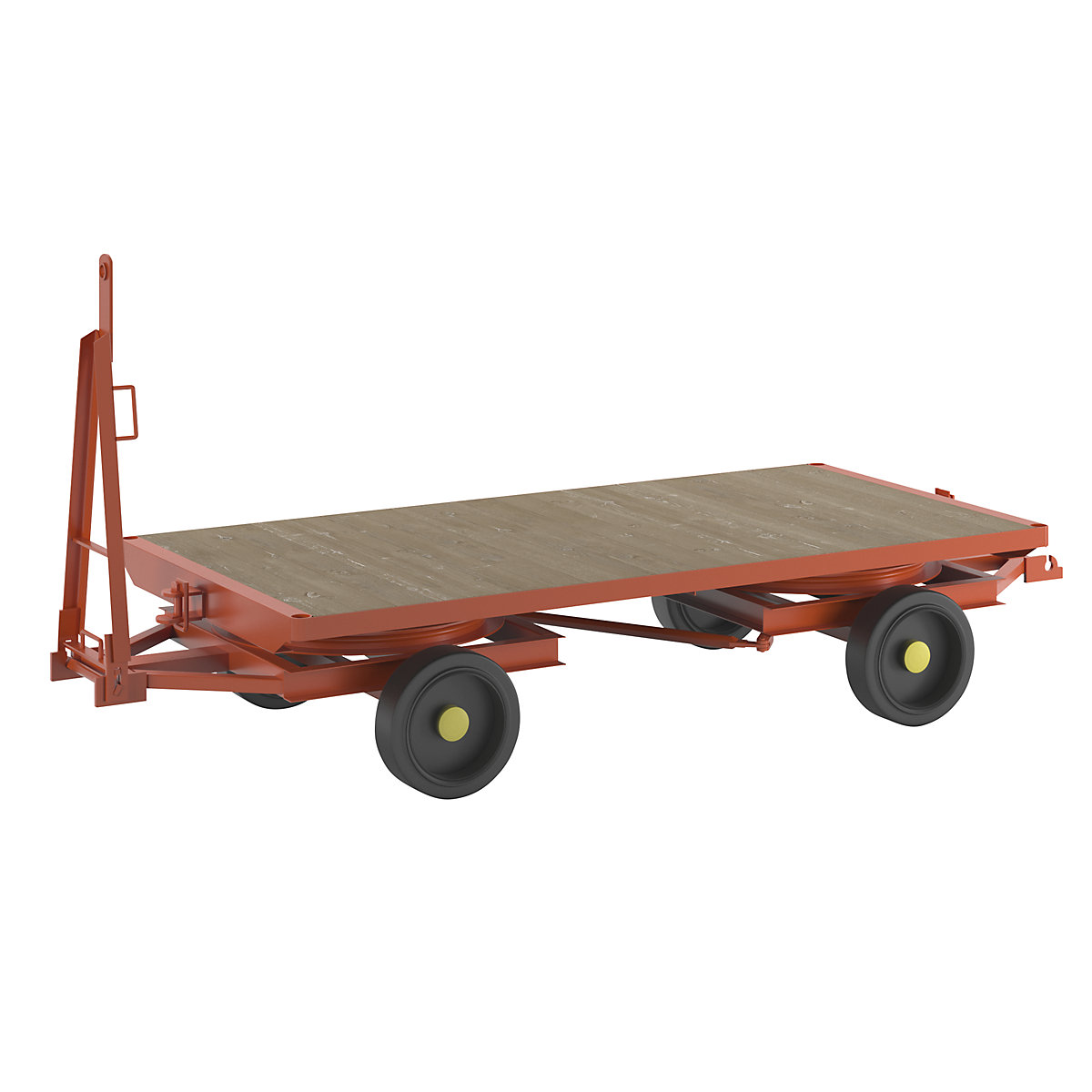

2500
|
|
1250
|
|
540
|
|
solid rubber
|
|
405
|
|
130
|
|
757 829
|
|
2,833.00
|
|
|
|
|
|
|
|

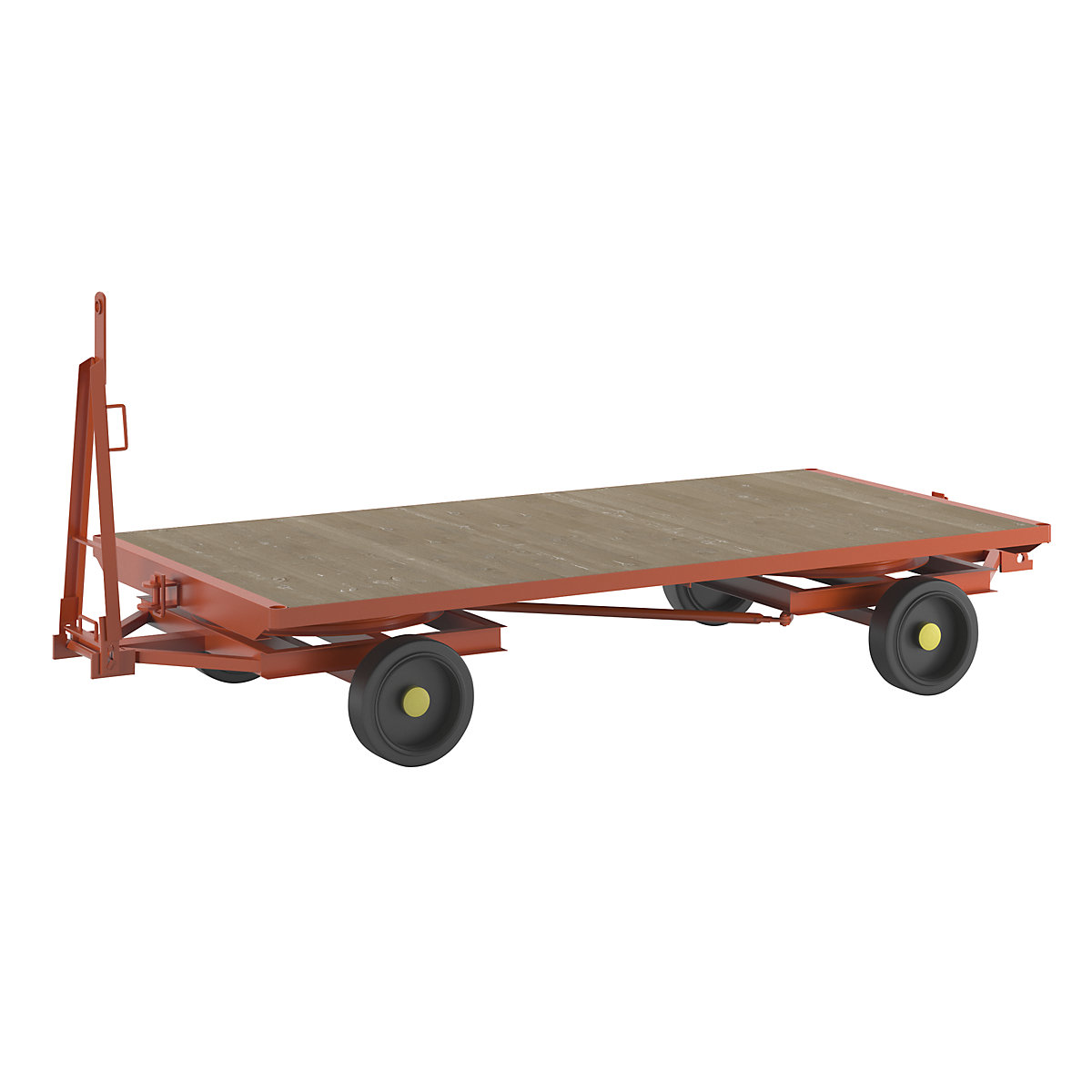

3000
|
|
1500
|
|
545
|
|
solid rubber
|
|
405
|
|
130
|
|
757 845
|
|
3,208.00
|
|
|
|
|
|
|
|
4000
|
|
2000
|
|
600
|
|
solid rubber
|
|
405
|
|
130
|
|
921 164
|
|
3,702.00
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

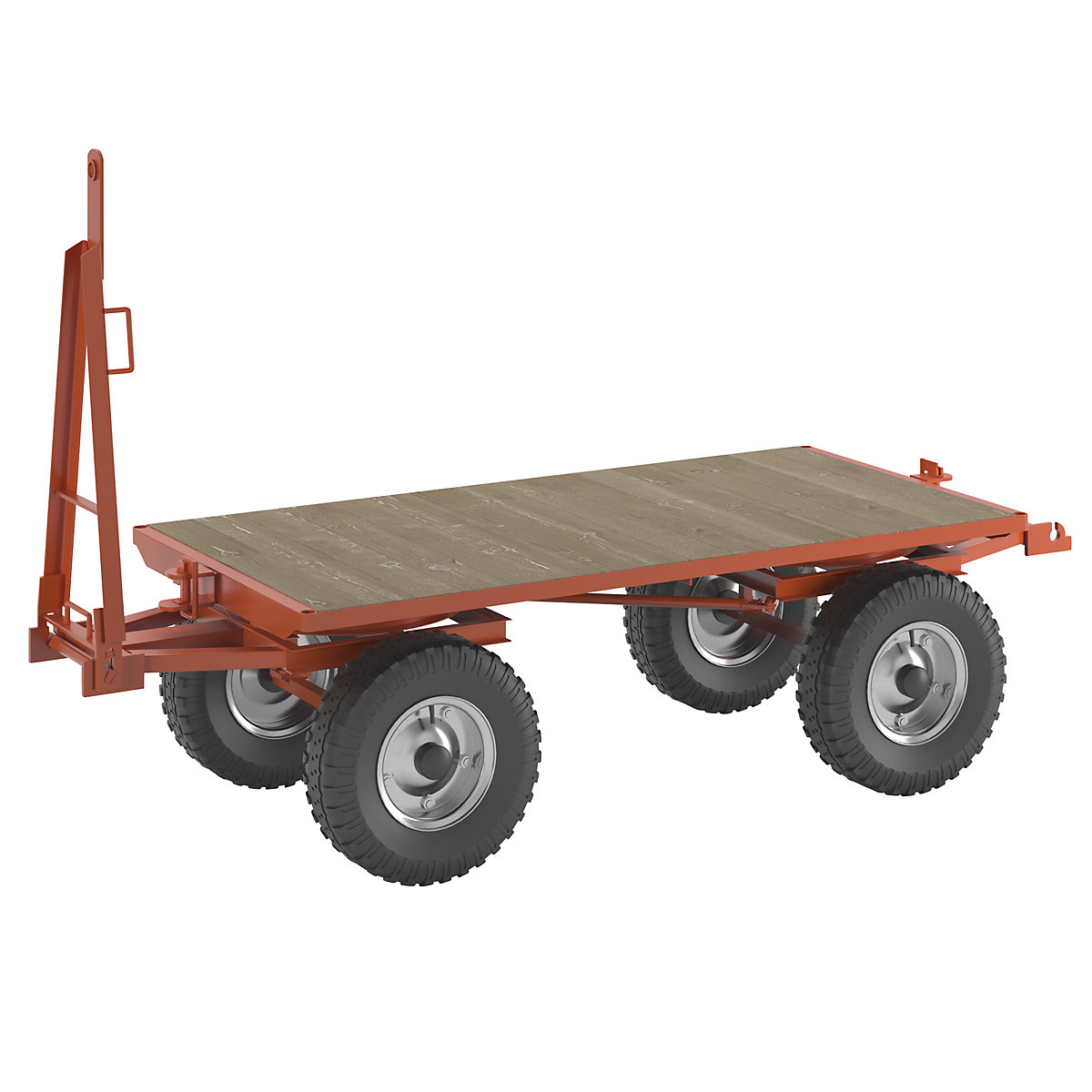

2000
|
|
1000
|
|
660
|
|

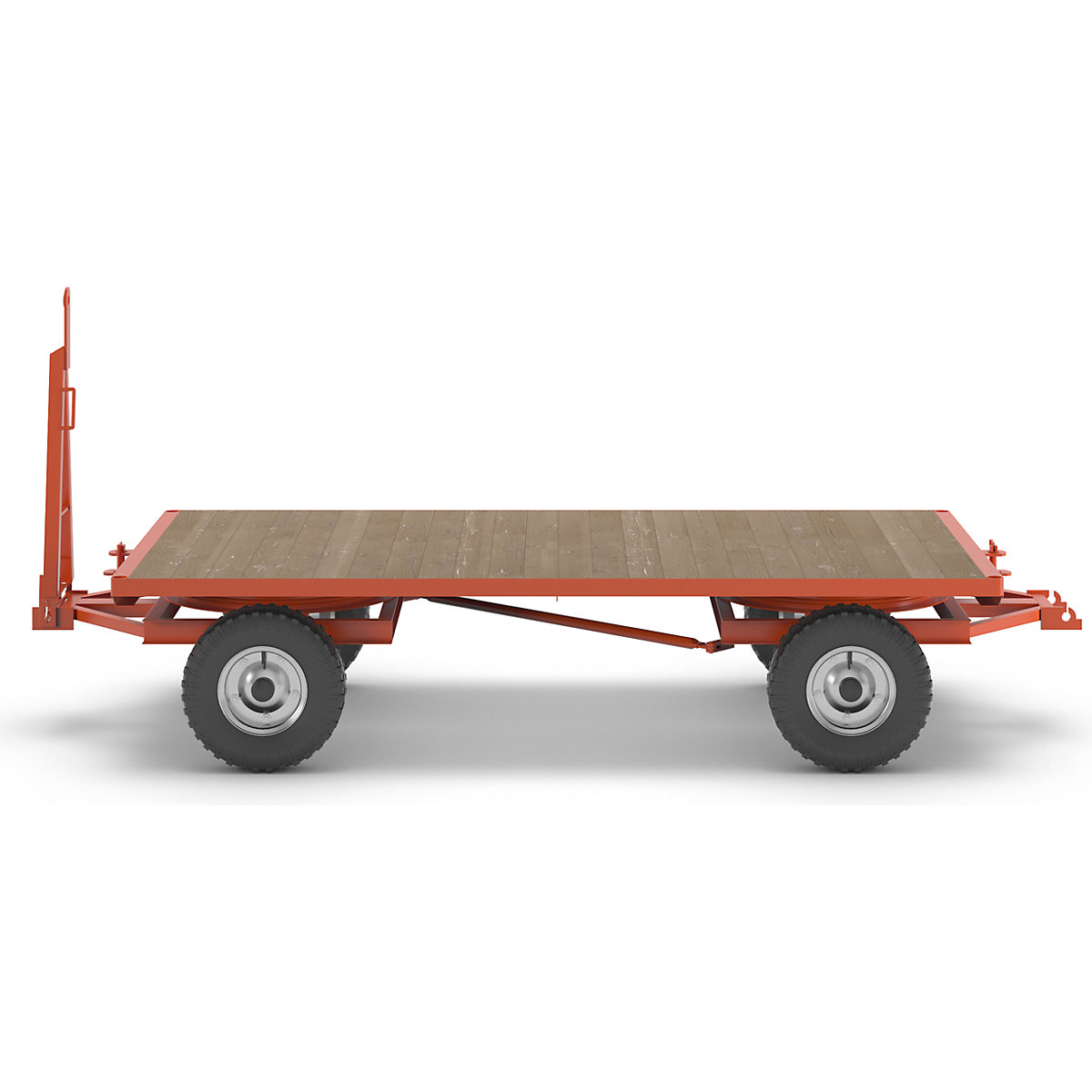

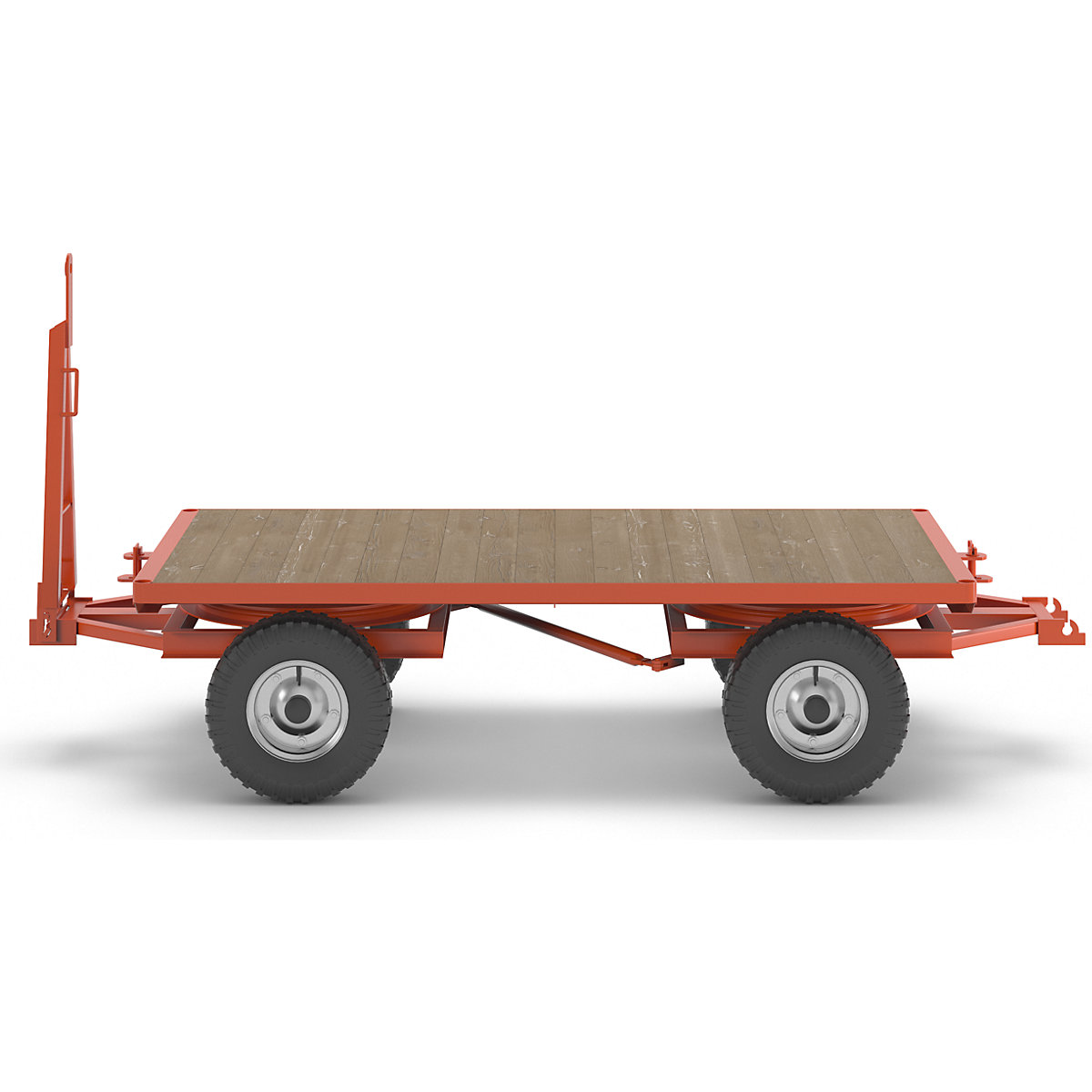

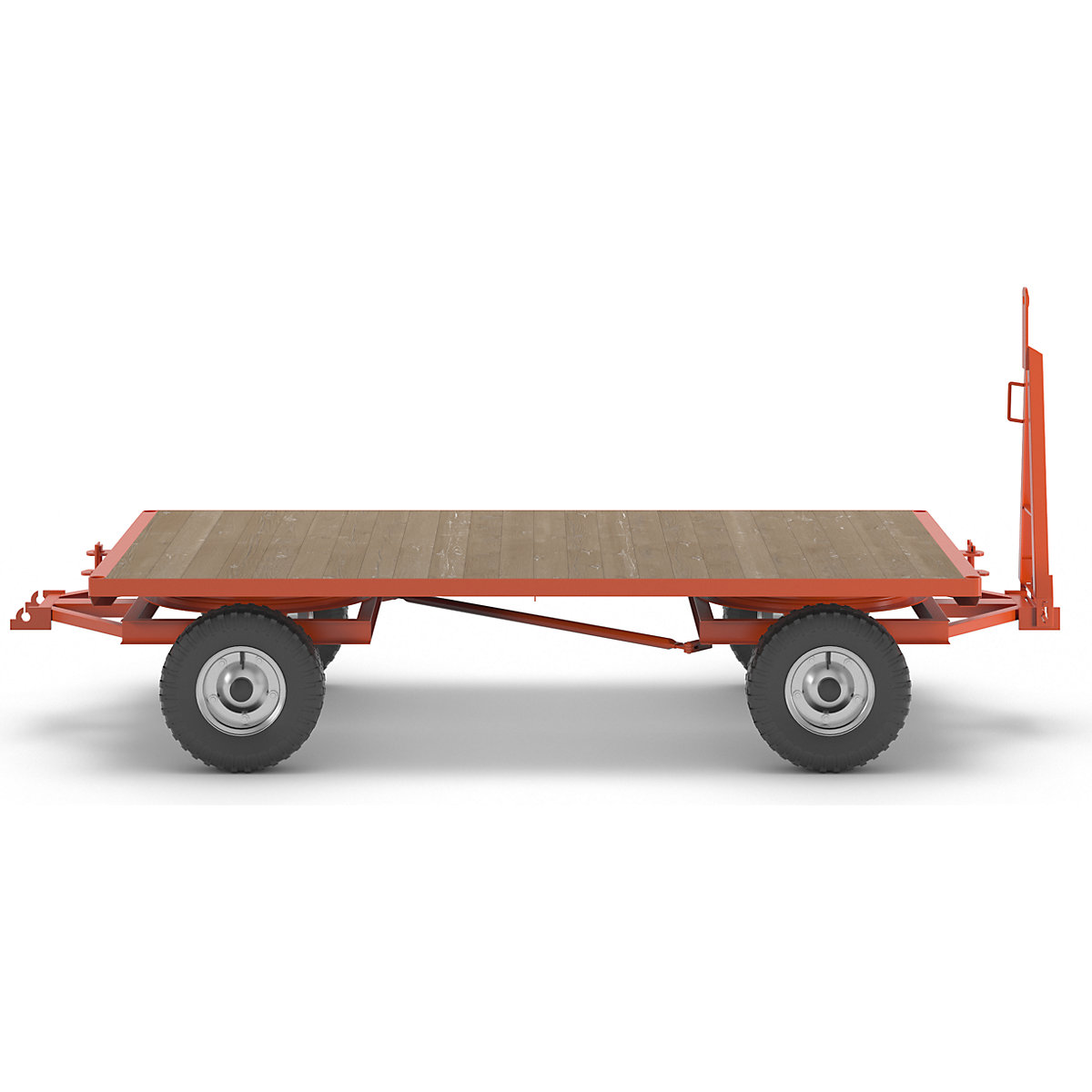

pneumatic tyres
|
|
550
|
|
170
|
|
757 810
|
|
2,678.00
|
|
|
|
|
|
|
|

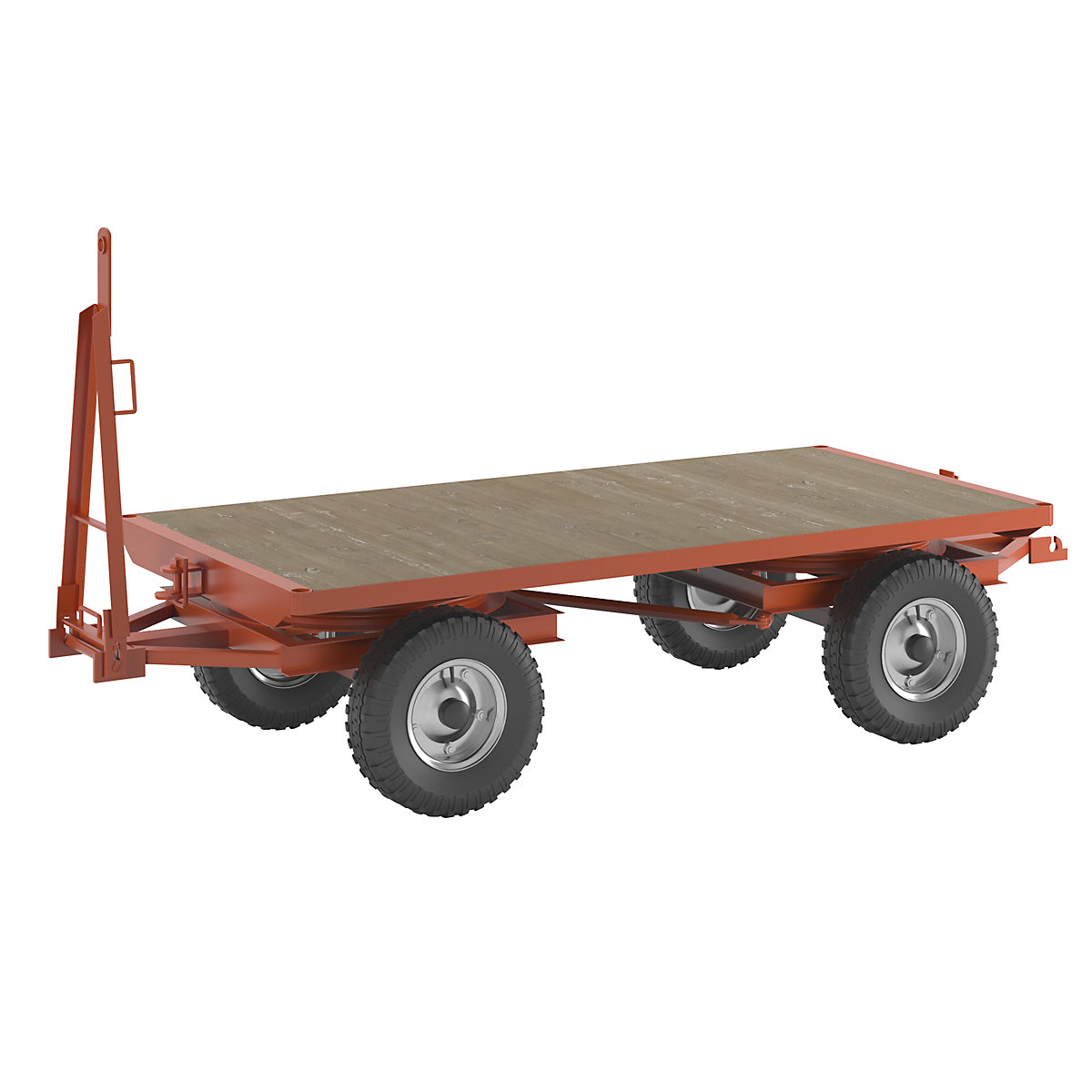

2500
|
|
1250
|
|
660
|
|
pneumatic tyres
|
|
550
|
|
170
|
|
757 837
|
|
2,885.00
|
|
|
|
|
|
|
|

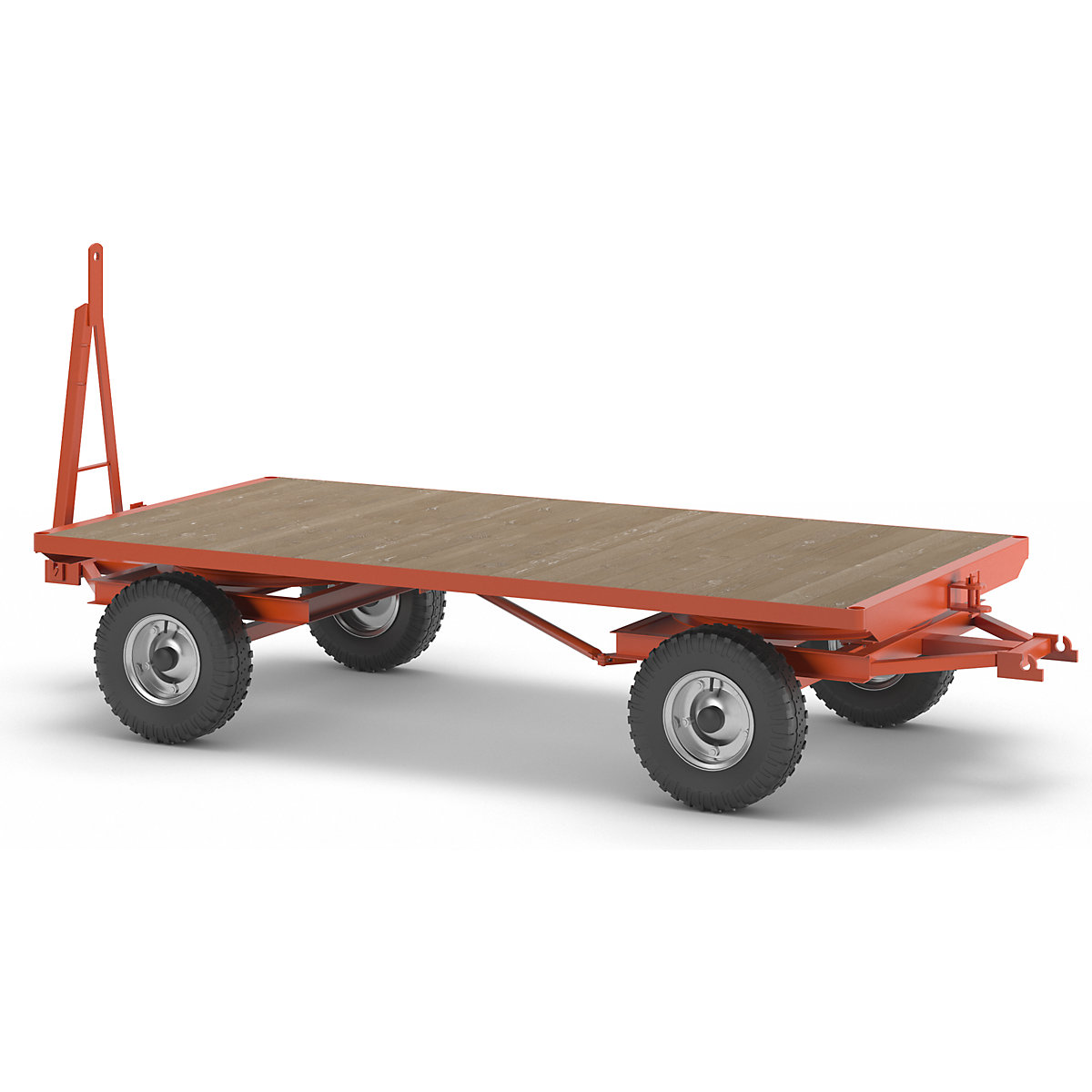

3000
|
|
1500
|
|
660
|
|
pneumatic tyres
|
|
550
|
|
170
|
|
757 853
|
|
3,242.00
|
|
|
|
|
|
|
|

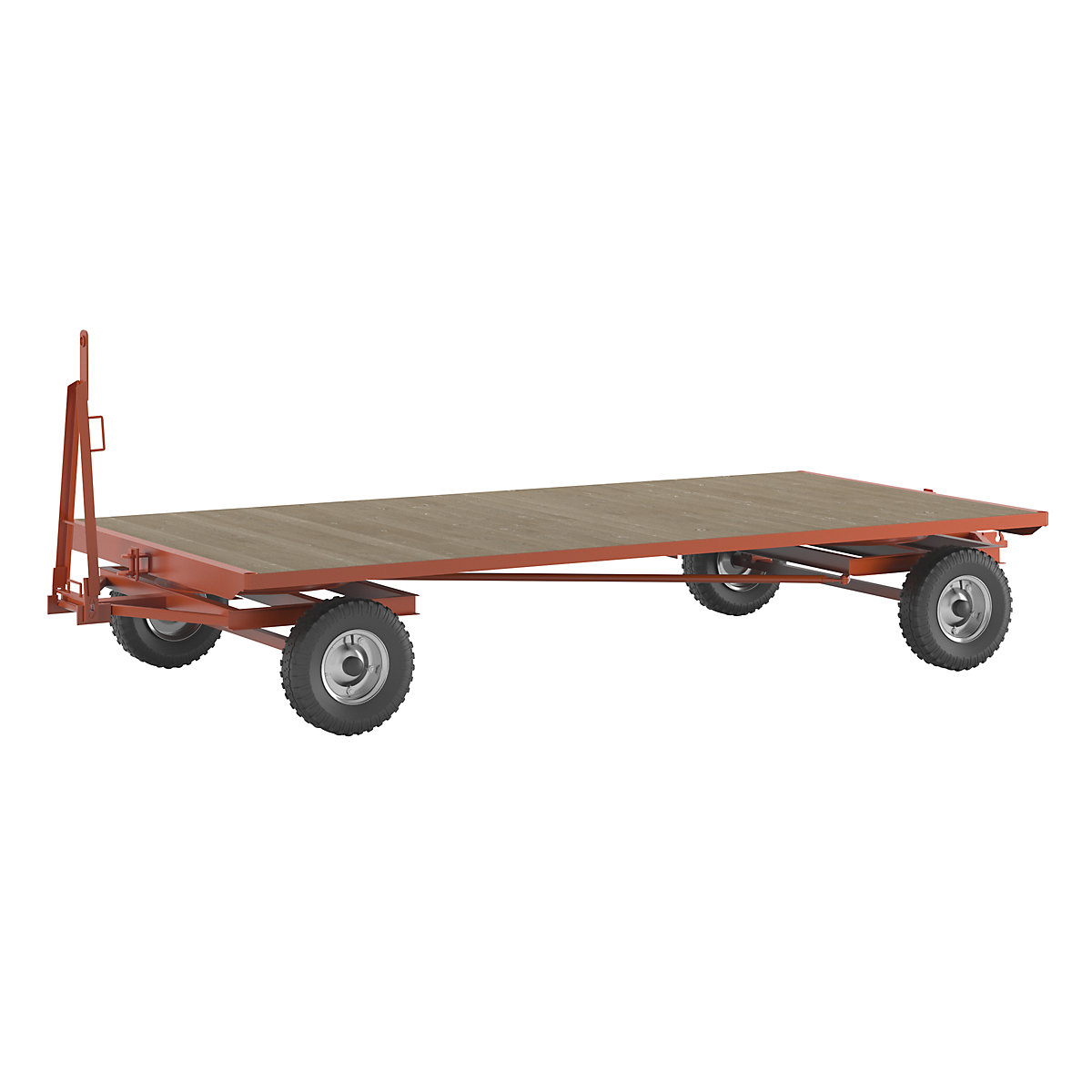

4000
|
|
2000
|
|
685
|
|
pneumatic tyres
|
|
550
|
|
170
|
|
921 166
|
|
3,711.00
|
|
|
|
|
|
Delivery time:
|
 ex warehouse |
 up to 1 week |
 up to 2 weeks |
 up to 3 weeks |
 up to 4 weeks |
more than 4 weeks |
|
|
|
|
|
