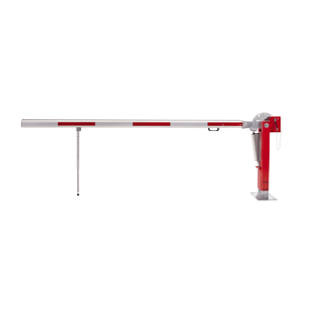

Mannus – Access barrier, steel

with gas pressure spring and fixed support arm

With counterbalance weight or gas pressure spring (double stroke) for easy manual operation
Automatic end position locking when opened or closed when using lock housing
Height adjustable for optimum adaptation to ground conditions
With a gas pressure spring for easy manual operation

Barrier beam
Oval aluminium tubing, one-piece, 102 x 82 mm. Non-seizing. Powder coated in pure white RAL 9010. Reflective film on both sides.
Barrier lengths from 5.5 m are fitted with a hoist reinforcement.

Main post to bolt in place
All steel parts hot dip galvanised or made of stainless steel. Powder coated in traffic red RAL 3020.

Foundation work to be performed by customer.

Support arm to bolt in place
All steel parts hot dip galvanised or made of stainless steel. Powder coated in traffic red RAL 3020.
Secured with optional lock case
Barrier with profile cylinder lock, incl. 3 keys. Nesting post with fittings for padlock (not supplied).

Supplied without fixing material.

Barriers for setting in concrete, in alternative lengths and colours are available on request.

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm

Price / item (Ex. VAT)

from £1,390.00

Order quantity:

{"articleNo":"M2353189","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

11 of 11 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 488562 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 3 m

4 Week delivery

{"articleNo":"488562","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 3,500 mm Barrier beam length: 3,000 mm Barrier clearance length: 2,924 mm Weight: 79 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"3500","formattedValue":"3,500"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"2924","formattedValue":"2,924"},{"name":"Weight [kg]","normalizedName":"","value":"79","formattedValue":"79"}]}

Item no.: 488563 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 3.5 m

4 Week delivery

{"articleNo":"488563","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 4,000 mm Barrier beam length: 3,500 mm Barrier clearance length: 3,424 mm Weight: 84 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"4000","formattedValue":"4,000"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"3500","formattedValue":"3,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"3424","formattedValue":"3,424"},{"name":"Weight [kg]","normalizedName":"","value":"84","formattedValue":"84"}]}

Item no.: 488564 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 4 m

4 Week delivery

{"articleNo":"488564","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 4,500 mm Barrier beam length: 4,000 mm Barrier clearance length: 3,924 mm Weight: 85 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"4500","formattedValue":"4,500"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"4000","formattedValue":"4,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"3924","formattedValue":"3,924"},{"name":"Weight [kg]","normalizedName":"","value":"85","formattedValue":"85"}]}

Item no.: 488565 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 4.5 m

4 Week delivery

{"articleNo":"488565","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 5,000 mm Barrier beam length: 4,500 mm Barrier clearance length: 4,424 mm Weight: 86 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"5000","formattedValue":"5,000"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"4500","formattedValue":"4,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"4424","formattedValue":"4,424"},{"name":"Weight [kg]","normalizedName":"","value":"86","formattedValue":"86"}]}

Item no.: 488566 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 5 m

4 Week delivery

{"articleNo":"488566","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 5,500 mm Barrier beam length: 5,000 mm Barrier clearance length: 4,924 mm Weight: 87 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"5500","formattedValue":"5,500"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"5000","formattedValue":"5,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"4924","formattedValue":"4,924"},{"name":"Weight [kg]","normalizedName":"","value":"87","formattedValue":"87"}]}

Item no.: 488567 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 5.5 m

4 Week delivery

{"articleNo":"488567","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 6,000 mm Barrier beam length: 5,500 mm Barrier clearance length: 5,424 mm Weight: 88 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"6000","formattedValue":"6,000"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"5500","formattedValue":"5,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"5424","formattedValue":"5,424"},{"name":"Weight [kg]","normalizedName":"","value":"88","formattedValue":"88"}]}

Item no.: 488568 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 6 m

4 Week delivery

{"articleNo":"488568","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 6,000 mm Barrier beam length: 6,000 mm Barrier clearance length: 5,924 mm Weight: 89 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"6000","formattedValue":"6,000"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"6000","formattedValue":"6,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"5924","formattedValue":"5,924"},{"name":"Weight [kg]","normalizedName":"","value":"89","formattedValue":"89"}]}

Item no.: 488570 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 6.5 m

4 Week delivery

{"articleNo":"488570","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 7,000 mm Barrier beam length: 6,500 mm Barrier clearance length: 6,424 mm Weight: 96 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"7000","formattedValue":"7,000"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"6500","formattedValue":"6,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"6424","formattedValue":"6,424"},{"name":"Weight [kg]","normalizedName":"","value":"96","formattedValue":"96"}]}

Item no.: 488571 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 7 m

4 Week delivery

{"articleNo":"488571","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 7,500 mm Barrier beam length: 7,000 mm Barrier clearance length: 7,024 mm Weight: 97 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"7500","formattedValue":"7,500"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"7000","formattedValue":"7,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"7024","formattedValue":"7,024"},{"name":"Weight [kg]","normalizedName":"","value":"97","formattedValue":"97"}]}

Item no.: 488572 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 7.5 m

4 Week delivery

{"articleNo":"488572","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 8,000 mm Barrier beam length: 7,500 mm Barrier clearance length: 7,424 mm Weight: 98 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"8000","formattedValue":"8,000"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"7500","formattedValue":"7,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"7424","formattedValue":"7,424"},{"name":"Weight [kg]","normalizedName":"","value":"98","formattedValue":"98"}]}

Item no.: 488573 49

Mannus – Access barrier, steel, with gas pressure spring and fixed support arm, barrier beam length 8 m

4 Week delivery

{"articleNo":"488573","name":"Mannus – Access barrier, steel with gas pressure spring and fixed support arm","baseProduct":"M2353189","productUrl":"/p/M2353189/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_steel_pdpsmall--000060275490_PRD_org_all.jpg"}

Item properties:

Overall width: 8,500 mm Barrier beam length: 8,000 mm Barrier clearance length: 8,024 mm Weight: 99 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"8500","formattedValue":"8,500"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"8000","formattedValue":"8,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"8024","formattedValue":"8,024"},{"name":"Weight [kg]","normalizedName":"","value":"99","formattedValue":"99"}]}

Technical data

Post material	steel
Colour	red white
Type of mounting	for bolting in place
Uprights	with fixed support arm
Model	with gas pressure spring
Lock type	locking bolt with handle and anti-freeze coating
Finish	powder coated
Barrier boom profile	oval, 115 x 82 mm
Barrier boom material	powder coated aluminium
Method of operation	manual
Supplied	pre-assembled, final assembly by customer
