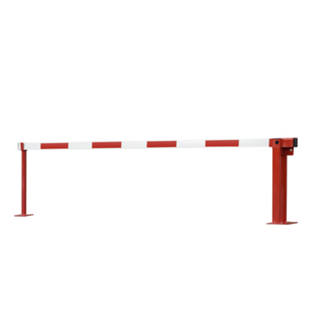

Access barrier with gas pressure spring

fixed support arm

Compact design – no protruding counterbalance weight
Comfortable opening and closing due to double cylinder gas pressure spring
Locks in open and closed position for safety

Barrier beam
Rectangular aluminium tubing, one-piece, 90 x 60 mm. Non-seizing. Powder coated in pure white RAL 9010.
Reflective film on both sides.

Main post to bolt in place
All steel parts zinc plated. Powder coated in flame red RAL 3000.

Lock
With a round cylinder lock as standard, 2 keys incl. Triangular lock available (extra cost). Please ensure that you specify the preferred type of lock when ordering your barriers.

Lock restraint
Key can only be removed with barrier in horizontal position, with lock engaged and with round cylinder closed.

Foundation work to be performed by customer.

Support arm to bolt in place
All steel parts zinc plated. Powder coated in flame red RAL 3000.

Barriers for setting in concrete, in alternative lengths and colours are available on request.

Access barrier with gas pressure spring, fixed support arm

Price / item (Ex. VAT)

from £1,079.00

Order quantity:

{"articleNo":"M1000060","name":"Access barrier with gas pressure spring fixed support arm","baseProduct":"","productUrl":"/p/M1000060/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_with_gas_pressure_spring_pdpsmall--AA00706890II-01.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

7 of 7 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 706890 49

Access barrier with gas pressure spring, fixed support arm, barrier beam length 3 m

Over 4 weeks

{"articleNo":"706890","name":"Access barrier with gas pressure spring fixed support arm","baseProduct":"M1000060","productUrl":"/p/M1000060/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_with_gas_pressure_spring_pdpsmall--AA00706890II-01.jpg"}

Item properties:

Overall width: 3,350 mm Barrier beam length: 3,000 mm Barrier clearance length: 2,880 mm Weight: 66.5 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"3350","formattedValue":"3,350"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"2880","formattedValue":"2,880"},{"name":"Weight [kg]","normalizedName":"","value":"66.5","formattedValue":"66.5"}]}

Item no.: 706898 49

Access barrier with gas pressure spring, fixed support arm, barrier beam length 3.5 m

Over 4 weeks

{"articleNo":"706898","name":"Access barrier with gas pressure spring fixed support arm","baseProduct":"M1000060","productUrl":"/p/M1000060/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_with_gas_pressure_spring_pdpsmall--AA00706898II-01.jpg"}

Item properties:

Overall width: 3,850 mm Barrier beam length: 3,500 mm Barrier clearance length: 3,380 mm Weight: 76.25 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"3850","formattedValue":"3,850"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"3500","formattedValue":"3,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"3380","formattedValue":"3,380"},{"name":"Weight [kg]","normalizedName":"","value":"76.25","formattedValue":"76.25"}]}

Item no.: 706899 49

Access barrier with gas pressure spring, fixed support arm, barrier beam length 4 m

Over 4 weeks

{"articleNo":"706899","name":"Access barrier with gas pressure spring fixed support arm","baseProduct":"M1000060","productUrl":"/p/M1000060/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_with_gas_pressure_spring_pdpsmall--AA00706899II-01.jpg"}

Item properties:

Overall width: 4,350 mm Barrier beam length: 4,000 mm Barrier clearance length: 3,880 mm Weight: 89 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"4350","formattedValue":"4,350"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"4000","formattedValue":"4,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"3880","formattedValue":"3,880"},{"name":"Weight [kg]","normalizedName":"","value":"89","formattedValue":"89"}]}

Item no.: 706907 49

Access barrier with gas pressure spring, fixed support arm, barrier beam length 4.5 m

Over 4 weeks

{"articleNo":"706907","name":"Access barrier with gas pressure spring fixed support arm","baseProduct":"M1000060","productUrl":"/p/M1000060/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_with_gas_pressure_spring_pdpsmall--AA00706907II-01.jpg"}

Item properties:

Overall width: 4,850 mm Barrier beam length: 4,500 mm Barrier clearance length: 4,380 mm Weight: 95.75 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"4850","formattedValue":"4,850"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"4500","formattedValue":"4,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"4380","formattedValue":"4,380"},{"name":"Weight [kg]","normalizedName":"","value":"95.75","formattedValue":"95.75"}]}

Item no.: 706908 49

Access barrier with gas pressure spring, fixed support arm, barrier beam length 5 m

Over 4 weeks

{"articleNo":"706908","name":"Access barrier with gas pressure spring fixed support arm","baseProduct":"M1000060","productUrl":"/p/M1000060/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_with_gas_pressure_spring_pdpsmall--AA00706908II-01.jpg"}

Item properties:

Overall width: 5,350 mm Barrier beam length: 5,000 mm Barrier clearance length: 4,880 mm Weight: 105.5 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"5350","formattedValue":"5,350"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"5000","formattedValue":"5,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"4880","formattedValue":"4,880"},{"name":"Weight [kg]","normalizedName":"","value":"105.5","formattedValue":"105.5"}]}

Item no.: 706916 49

Access barrier with gas pressure spring, fixed support arm, barrier beam length 5.5 m

Over 4 weeks

{"articleNo":"706916","name":"Access barrier with gas pressure spring fixed support arm","baseProduct":"M1000060","productUrl":"/p/M1000060/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_with_gas_pressure_spring_pdpsmall--AA00706917II-01.jpg"}

Item properties:

Overall width: 5,850 mm Barrier beam length: 5,500 mm Barrier clearance length: 5,380 mm Weight: 115.25 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"5850","formattedValue":"5,850"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"5500","formattedValue":"5,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"5380","formattedValue":"5,380"},{"name":"Weight [kg]","normalizedName":"","value":"115.25","formattedValue":"115.25"}]}

Item no.: 706917 49

Access barrier with gas pressure spring, fixed support arm, barrier beam length 6 m

Over 4 weeks

{"articleNo":"706917","name":"Access barrier with gas pressure spring fixed support arm","baseProduct":"M1000060","productUrl":"/p/M1000060/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Access_barrier_with_gas_pressure_spring_pdpsmall--AA00706917II-01.jpg"}

Item properties:

Overall width: 6,350 mm Barrier beam length: 6,000 mm Barrier clearance length: 5,880 mm Weight: 125 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"6350","formattedValue":"6,350"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"6000","formattedValue":"6,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"5880","formattedValue":"5,880"},{"name":"Weight [kg]","normalizedName":"","value":"125","formattedValue":"125"}]}

Technical data

Post material	steel
Colour	red white
Type of mounting	for bolting in place
Model	with fixed support arm
Lock type	barrier with round cylinder lock
Finish	zinc plated and powder coated
Barrier boom profile	rectangular, 90 x 60 mm
Barrier boom material	powder coated aluminium
Method of operation	manual
Supplied	flat pack
