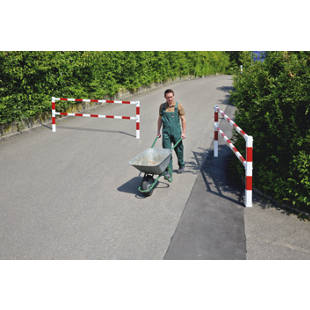

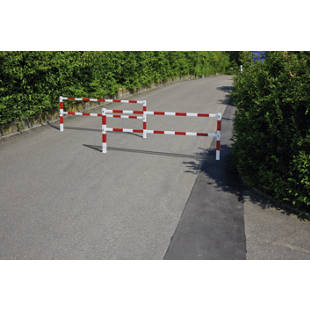

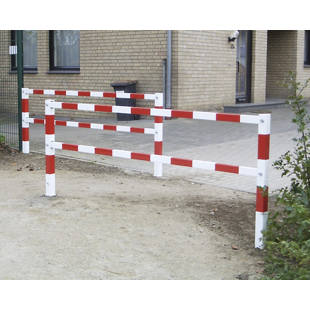

Gate barrier

1 pair

Two individual sections
Each section pivots separately (horizontally)
Easy to operate
Highly versatile

Robust design made of rectangular steel tubing, hot dip galvanised and painted red / white.

Overall height above ground 1000 mm.
Posts 70 x 70 mm.
Cross beams 60 x 40 mm.

One post of each section is set in concrete, the other in a ground sleeve for easy removal. Supplied with 1 ground sleeve.
With triangle lock to DIN 3223 as standard.
Profile cylinder lock with 3 keys available at extra cost.

Gate barrier, 1 pair

Price / pair (Ex. VAT)

from £839.00

Order quantity:

{"articleNo":"M1035229","name":"Gate barrier 1 pair","baseProduct":"","productUrl":"/p/M1035229/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Gate_barrier_pdpsmall--000023317415_PRD_org_all.jpg"}

Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

5 of 5 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / pair

Item no.: 116647 49

Gate barrier, 1 pair, width of each section 1500 mm

Over 4 weeks

{"articleNo":"116647","name":"Gate barrier 1 pair","baseProduct":"M1035229","productUrl":"/p/M1035229/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Gate_barrier_pdpsmall--000023317415_PRD_org_all.jpg"}

Item properties:

Overall width: 3,000 mm Barrier clearance length: 1,400 mm Weight: 70 kg Width of each section: 1,500 mm Weight per item: 35 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"3000","formattedValue":"3,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"1400","formattedValue":"1,400"},{"name":"Weight [kg]","normalizedName":"","value":"70","formattedValue":"70"},{"name":"Width of each section [mm]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Weight per item [kg]","normalizedName":"","value":"35","formattedValue":"35"}]}

Item no.: 116648 49

Gate barrier, 1 pair, width of each section 2000 mm

Over 4 weeks

{"articleNo":"116648","name":"Gate barrier 1 pair","baseProduct":"M1035229","productUrl":"/p/M1035229/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Gate_barrier_pdpsmall--000023317415_PRD_org_all.jpg"}

Item properties:

Overall width: 4,000 mm Barrier clearance length: 1,900 mm Weight: 85 kg Width of each section: 2,000 mm Weight per item: 42.5 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"4000","formattedValue":"4,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"1900","formattedValue":"1,900"},{"name":"Weight [kg]","normalizedName":"","value":"85","formattedValue":"85"},{"name":"Width of each section [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Weight per item [kg]","normalizedName":"","value":"42.5","formattedValue":"42.5"}]}

Item no.: 116649 49

Gate barrier, 1 pair, width of each section 2500 mm

Over 4 weeks

{"articleNo":"116649","name":"Gate barrier 1 pair","baseProduct":"M1035229","productUrl":"/p/M1035229/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Gate_barrier_pdpsmall--000023317415_PRD_org_all.jpg"}

Item properties:

Overall width: 5,000 mm Barrier clearance length: 2,400 mm Weight: 100 kg Width of each section: 2,500 mm Weight per item: 50 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"5000","formattedValue":"5,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"2400","formattedValue":"2,400"},{"name":"Weight [kg]","normalizedName":"","value":"100","formattedValue":"100"},{"name":"Width of each section [mm]","normalizedName":"","value":"2500","formattedValue":"2,500"},{"name":"Weight per item [kg]","normalizedName":"","value":"50","formattedValue":"50"}]}

Item no.: 116650 49

Gate barrier, 1 pair, width of each section 3000 mm

Over 4 weeks

{"articleNo":"116650","name":"Gate barrier 1 pair","baseProduct":"M1035229","productUrl":"/p/M1035229/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Gate_barrier_pdpsmall--000023317415_PRD_org_all.jpg"}

Item properties:

Overall width: 6,000 mm Barrier clearance length: 2,900 mm Weight: 115 kg Width of each section: 3,000 mm Weight per item: 57.5 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"6000","formattedValue":"6,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"2900","formattedValue":"2,900"},{"name":"Weight [kg]","normalizedName":"","value":"115","formattedValue":"115"},{"name":"Width of each section [mm]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Weight per item [kg]","normalizedName":"","value":"57.5","formattedValue":"57.5"}]}

Item no.: 116651 49

Gate barrier, 1 pair, width of each section 3500 mm

Over 4 weeks

{"articleNo":"116651","name":"Gate barrier 1 pair","baseProduct":"M1035229","productUrl":"/p/M1035229/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Gate_barrier_pdpsmall--000023317415_PRD_org_all.jpg"}

Item properties:

Overall width: 7,000 mm Barrier clearance length: 3,400 mm Weight: 130 kg Width of each section: 3,500 mm Weight per item: 65 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"7000","formattedValue":"7,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"3400","formattedValue":"3,400"},{"name":"Weight [kg]","normalizedName":"","value":"130","formattedValue":"130"},{"name":"Width of each section [mm]","normalizedName":"","value":"3500","formattedValue":"3,500"},{"name":"Weight per item [kg]","normalizedName":"","value":"65","formattedValue":"65"}]}

Technical data

Height above ground	1,000 mm
Post material	rectangular steel pipe
Colour	red white
Type of mounting	for setting in concrete, with removable ground sleeve
Lock type	triangular utility lock
Finish	hot dip galvanised and painted
Supplied	flat pack
