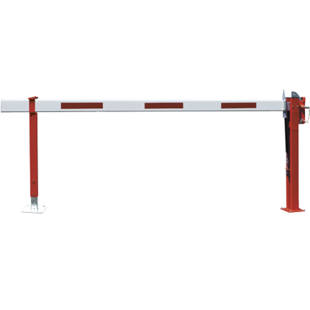

Mannus – Manual barrier

fixed support arm

With gas pressure spring without protruding counterweight
Reflective red/white film on both sides
Barrier beam with sit-proof saddle
Lockable – as standard with padlock
With fixed support

All steel parts hot dip galvanised and double powder coated in traffic red RAL 3020.
One-piece barrier beam made of rectangular steel tubing, HxW 108 x 46 mm (height incl. 15 mm sit-proof saddle).
Powder coated, pure white RAL 9010, and both sides with red/white reflective film.
Main post to bolt in place, made of two steel pipes, 120 x 40 x 3 mm.
Barrier beam can be adjusted vertically by ±5%.
Stainless steel bolts for locking with padlock (not included).

Made of tubular steel, 70 x 40 x 3 mm, to bolt in place.
Height adjustable from –100 / +150 mm.

Available on request
– Profile cylinder and triangular locks (can be fitted and exchanged at any time)
– Lock holders on support arms
– Floor anchor for setting in concrete (foundation work to be performed by customer)

Mannus – Manual barrier, fixed support arm

Price / item (Ex. VAT)

from £839.00

Order quantity:

{"articleNo":"M1035205","name":"Mannus – Manual barrier fixed support arm","baseProduct":"","productUrl":"/p/M1035205/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Manual_barrier_pdpsmall--AA00116663II-01.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

7 of 7 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 116663 49

Mannus – Manual barrier, fixed support arm, barrier beam length 3 m

4 Week delivery

{"articleNo":"116663","name":"Mannus – Manual barrier fixed support arm","baseProduct":"M1035205","productUrl":"/p/M1035205/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Manual_barrier_pdpsmall--AA00116663II-01.jpg"}

Item properties:

Overall width: 3,200 mm Barrier beam length: 3,000 mm Barrier clearance length: 3,160 mm Weight: 59 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"3200","formattedValue":"3,200"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"3160","formattedValue":"3,160"},{"name":"Weight [kg]","normalizedName":"","value":"59","formattedValue":"59"}]}

Item no.: 116664 49

Mannus – Manual barrier, fixed support arm, barrier beam length 3.5 m

4 Week delivery

{"articleNo":"116664","name":"Mannus – Manual barrier fixed support arm","baseProduct":"M1035205","productUrl":"/p/M1035205/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Manual_barrier_pdpsmall--AA00116663II-01.jpg"}

Item properties:

Overall width: 3,700 mm Barrier beam length: 3,500 mm Barrier clearance length: 3,660 mm Weight: 59.5 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"3700","formattedValue":"3,700"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"3500","formattedValue":"3,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"3660","formattedValue":"3,660"},{"name":"Weight [kg]","normalizedName":"","value":"59.5","formattedValue":"59.5"}]}

Item no.: 116665 49

Mannus – Manual barrier, fixed support arm, barrier beam length 4 m

4 Week delivery

{"articleNo":"116665","name":"Mannus – Manual barrier fixed support arm","baseProduct":"M1035205","productUrl":"/p/M1035205/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Manual_barrier_pdpsmall--AA00116663II-01.jpg"}

Item properties:

Overall width: 4,200 mm Barrier beam length: 4,000 mm Barrier clearance length: 4,160 mm Weight: 60 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"4200","formattedValue":"4,200"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"4000","formattedValue":"4,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"4160","formattedValue":"4,160"},{"name":"Weight [kg]","normalizedName":"","value":"60","formattedValue":"60"}]}

Item no.: 116666 49

Mannus – Manual barrier, fixed support arm, barrier beam length 4.5 m

4 Week delivery

{"articleNo":"116666","name":"Mannus – Manual barrier fixed support arm","baseProduct":"M1035205","productUrl":"/p/M1035205/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Manual_barrier_pdpsmall--AA00116663II-01.jpg"}

Item properties:

Overall width: 4,700 mm Barrier beam length: 4,500 mm Barrier clearance length: 4,660 mm Weight: 60.5 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"4700","formattedValue":"4,700"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"4500","formattedValue":"4,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"4660","formattedValue":"4,660"},{"name":"Weight [kg]","normalizedName":"","value":"60.5","formattedValue":"60.5"}]}

Item no.: 116667 49

Mannus – Manual barrier, fixed support arm, barrier beam length 5 m

4 Week delivery

{"articleNo":"116667","name":"Mannus – Manual barrier fixed support arm","baseProduct":"M1035205","productUrl":"/p/M1035205/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Manual_barrier_pdpsmall--AA00116663II-01.jpg"}

Item properties:

Overall width: 5,200 mm Barrier beam length: 5,000 mm Barrier clearance length: 5,160 mm Weight: 61 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"5200","formattedValue":"5,200"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"5000","formattedValue":"5,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"5160","formattedValue":"5,160"},{"name":"Weight [kg]","normalizedName":"","value":"61","formattedValue":"61"}]}

Item no.: 116668 49

Mannus – Manual barrier, fixed support arm, barrier beam length 5.5 m

4 Week delivery

{"articleNo":"116668","name":"Mannus – Manual barrier fixed support arm","baseProduct":"M1035205","productUrl":"/p/M1035205/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Manual_barrier_pdpsmall--AA00116663II-01.jpg"}

Item properties:

Overall width: 5,700 mm Barrier beam length: 5,500 mm Barrier clearance length: 5,660 mm Weight: 61.5 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"5700","formattedValue":"5,700"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"5500","formattedValue":"5,500"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"5660","formattedValue":"5,660"},{"name":"Weight [kg]","normalizedName":"","value":"61.5","formattedValue":"61.5"}]}

Item no.: 116669 49

Mannus – Manual barrier, fixed support arm, barrier beam length 6 m

4 Week delivery

{"articleNo":"116669","name":"Mannus – Manual barrier fixed support arm","baseProduct":"M1035205","productUrl":"/p/M1035205/","imageUrl":"/Barriers_Bollards/Parking_access_barriers/Manual_barrier_pdpsmall--AA00116663II-01.jpg"}

Item properties:

Overall width: 6,200 mm Barrier beam length: 6,000 mm Barrier clearance length: 6,160 mm Weight: 62 kg

{"features":[{"name":"Overall width [mm]","normalizedName":"Width","value":"6200","formattedValue":"6,200"},{"name":"Barrier beam length [mm]","normalizedName":"","value":"6000","formattedValue":"6,000"},{"name":"Barrier clearance length [mm]","normalizedName":"","value":"6160","formattedValue":"6,160"},{"name":"Weight [kg]","normalizedName":"","value":"62","formattedValue":"62"}]}

Technical data

Post material	tubular steel
Colour	traffic red RAL 3020 pure white RAL 9010
Type of mounting	for bolting in place
Model	with fixed support arm
Lock type	fittings for padlock
Finish	hot dip galvanised, additionally powder coated
Barrier boom profile	108 x 46 mm
Barrier boom material	rectangular steel pipe
Method of operation	manual
Supplied	flat pack

Additional information Datasheet
