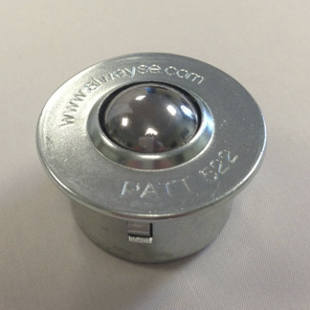

Ball unit with fastening element

steel ball

For easy movement, rotation and positioning of loads with minimal effort
Run smoothly with precise rolling characteristics
Max. conveyor speed 2 m/s

Proven use in conveyor systems and in the packing industry, for feed and processing equipment. Zinc plated sheet steel housing and cover plate.
With oil impregnated felt seal to keep dirt out and protect against corrosion. Hardened roller housing and ball. Dirt outlet.

Mounts with integrated spring clips. Can also be used to compensate for mounting holes which are too large. Easy assembly.

This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit

Available while supplies last.

Available with plastic balls on request.

Ball unit with fastening element, steel ball

Price / item (Ex. VAT)

from £15.50

Order quantity:

{"articleNo":"M1001141","name":"Ball unit with fastening element steel ball","baseProduct":"","productUrl":"/p/M1001141/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_fastening_element_pdpsmall--AA00946094II-01.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 946094 49

Ball unit with fastening element, steel ball, ball Ø 22 mm, effective load 160 kg

5-7 Working days

{"articleNo":"946094","name":"Ball unit with fastening element steel ball","baseProduct":"M1001141","productUrl":"/p/M1001141/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_fastening_element_pdpsmall--AA00946094II-01.jpg"}

Item properties:

Ball diameter: 22 mm Effective load: 160 kg Overall height: 30 mm Housing diameter: 36 ± 0,08 mm Flange diameter: 45 mm Container diameter: 37 + 0,5 mm Container thickness: 3 mm Ball protrusion above table plane: 9,8 ± 0,2 mm Flange height: 5.5 mm Flange thickness: 2.8 mm Weight: 0.13 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"22","formattedValue":"22"},{"name":"Effective load [kg]","normalizedName":"","value":"160","formattedValue":"160"},{"name":"Overall height [mm]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Housing diameter [mm]","normalizedName":"","value":"36 ± 0,08","formattedValue":"36 ± 0,08"},{"name":"Flange diameter [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Container diameter [mm]","normalizedName":"","value":"37 + 0,5","formattedValue":"37 + 0,5"},{"name":"Container thickness [mm]","normalizedName":"","value":"3","formattedValue":"3"},{"name":"Ball protrusion above table plane [mm]","normalizedName":"","value":"9,8 ± 0,2","formattedValue":"9,8 ± 0,2"},{"name":"Flange height [mm]","normalizedName":"","value":"5.5","formattedValue":"5.5"},{"name":"Flange thickness [mm]","normalizedName":"","value":"2.8","formattedValue":"2.8"},{"name":"Weight [kg]","normalizedName":"","value":"0.13","formattedValue":"0.13"}]}

Item no.: 946096 49

Ball unit with fastening element, steel ball, ball Ø 30 mm, effective load 300 kg

5-7 Working days

{"articleNo":"946096","name":"Ball unit with fastening element steel ball","baseProduct":"M1001141","productUrl":"/p/M1001141/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_fastening_element_pdpsmall--AA00946094II-01.jpg"}

Item properties:

Ball diameter: 30 mm Effective load: 300 kg Overall height: 37 mm Housing diameter: 45 ± 0,13 mm Flange diameter: 55 mm Container diameter: 46 + 0,5 mm Container thickness: 6 mm Ball protrusion above table plane: 13,8 ± 0,3 mm Flange height: 8.3 mm Flange thickness: 4 mm Weight: 0.28 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Effective load [kg]","normalizedName":"","value":"300","formattedValue":"300"},{"name":"Overall height [mm]","normalizedName":"","value":"37","formattedValue":"37"},{"name":"Housing diameter [mm]","normalizedName":"","value":"45 ± 0,13","formattedValue":"45 ± 0,13"},{"name":"Flange diameter [mm]","normalizedName":"","value":"55","formattedValue":"55"},{"name":"Container diameter [mm]","normalizedName":"","value":"46 + 0,5","formattedValue":"46 + 0,5"},{"name":"Container thickness [mm]","normalizedName":"","value":"6","formattedValue":"6"},{"name":"Ball protrusion above table plane [mm]","normalizedName":"","value":"13,8 ± 0,3","formattedValue":"13,8 ± 0,3"},{"name":"Flange height [mm]","normalizedName":"","value":"8.3","formattedValue":"8.3"},{"name":"Flange thickness [mm]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Weight [kg]","normalizedName":"","value":"0.28","formattedValue":"0.28"}]}

Technical data

Design of ball rollers	with fastening elements
Ball material	steel
Housing material	sheet steel, galvanised
Seal material	felt, oil saturated
Max. speed	2 m/s
Supplied	assembled
