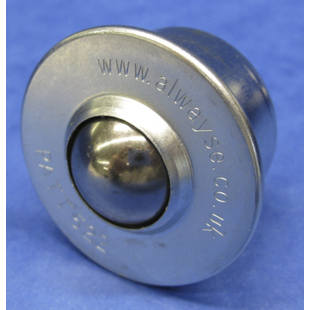

Ball unit with flange

steel ball

For easy movement, rotation and positioning of loads with minimal effort
Run smoothly with precise rolling characteristics
Max. conveyor speed 2 m/s

Proven use in conveyor systems and in the packing industry, for feed and processing equipment. Zinc plated sheet steel housing and cover plate. Hardened cup and ball. Dirt outlet.

With oil impregnated felt seal to keep out dirt and protect against corrosion.
Ball units with steel balls (mat. no. 1.1269) for heavy goods, suitable for operating temperatures up to 100 °C.

This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit

Available while supplies last.

Available with stainless steel balls on request.

Ball unit with flange, steel ball

Price / item (Ex. VAT)

from £14.00

Order quantity:

{"articleNo":"M1001131","name":"Ball unit with flange steel ball","baseProduct":"","productUrl":"/p/M1001131/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_flange_pdpsmall--AA00946086II-01.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 946088 49

Ball unit with flange, steel ball, ball Ø 30 mm, effective load 300 kg

5-7 Working days

{"articleNo":"946088","name":"Ball unit with flange steel ball","baseProduct":"M1001131","productUrl":"/p/M1001131/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_flange_pdpsmall--AA00946086II-01.jpg"}

Item properties:

Ball diameter: 30 mm Effective load: 300 kg Overall height: 37 mm Housing diameter: 45 ± 0,08 mm Flange diameter: 55 mm Ball protrusion above table plane: 13.8 ± 0.3 mm Flange height: 8.3 mm Weight: 0.28 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Effective load [kg]","normalizedName":"","value":"300","formattedValue":"300"},{"name":"Overall height [mm]","normalizedName":"","value":"37","formattedValue":"37"},{"name":"Housing diameter [mm]","normalizedName":"","value":"45 ± 0,08","formattedValue":"45 ± 0,08"},{"name":"Flange diameter [mm]","normalizedName":"","value":"55","formattedValue":"55"},{"name":"Ball protrusion above table plane [mm]","normalizedName":"","value":"13.8 ± 0.3","formattedValue":"13.8 ± 0.3"},{"name":"Flange height [mm]","normalizedName":"","value":"8.3","formattedValue":"8.3"},{"name":"Weight [kg]","normalizedName":"","value":"0.28","formattedValue":"0.28"}]}

Item no.: 946089 49

Ball unit with flange, steel ball, ball Ø 45 mm, effective load 610 kg

5-7 Working days

{"articleNo":"946089","name":"Ball unit with flange steel ball","baseProduct":"M1001131","productUrl":"/p/M1001131/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_flange_pdpsmall--AA00946086II-01.jpg"}

Item properties:

Ball diameter: 45 mm Effective load: 610 kg Overall height: 53.5 mm Housing diameter: 62 ± 0,095 mm Flange diameter: 75 mm Ball protrusion above table plane: 19 ± 0.4 mm Flange height: 10 mm Weight: 0.73 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Effective load [kg]","normalizedName":"","value":"610","formattedValue":"610"},{"name":"Overall height [mm]","normalizedName":"","value":"53.5","formattedValue":"53.5"},{"name":"Housing diameter [mm]","normalizedName":"","value":"62 ± 0,095","formattedValue":"62 ± 0,095"},{"name":"Flange diameter [mm]","normalizedName":"","value":"75","formattedValue":"75"},{"name":"Ball protrusion above table plane [mm]","normalizedName":"","value":"19 ± 0.4","formattedValue":"19 ± 0.4"},{"name":"Flange height [mm]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Weight [kg]","normalizedName":"","value":"0.73","formattedValue":"0.73"}]}

Technical data

Design of ball rollers	standard
Ball material	steel
Housing material	sheet steel, galvanised
Seal material	felt, oil saturated
Max. speed	2 m/s
Flange thickness	4 mm
Supplied	assembled
