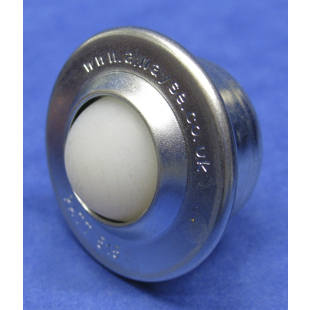

Ball unit with flange

plastic ball

For easy movement, rotation and positioning of loads with minimal effort
Run smoothly with precise rolling characteristics
Max. conveyor speed 0.25 m/s

Proven use in conveyor systems and in the packing industry, for feed and processing equipment. Zinc plated sheet steel housing and cover plate. Hardened cup and ball. Dirt outlet.

With dry felt seal.
Ball units with plastic balls (PA) for the transport of fragile goods such as glass, polished aluminium, brass, sheet steel, etc. Suitable for operating temperatures up to 30 °C.

This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit

Available while supplies last.

Available with stainless steel balls on request.

Ball unit with flange, plastic ball

Price / item (Ex. VAT)

from £11.50

Order quantity:

{"articleNo":"M1001132","name":"Ball unit with flange plastic ball","baseProduct":"","productUrl":"/p/M1001132/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_flange_pdpsmall--AA00946090II-01.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 946091 49

Ball unit with flange, plastic ball, ball Ø 22 mm, effective load 20 kg

5-7 Working days

{"articleNo":"946091","name":"Ball unit with flange plastic ball","baseProduct":"M1001132","productUrl":"/p/M1001132/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_flange_pdpsmall--AA00946090II-01.jpg"}

Item properties:

Ball diameter: 22 mm Effective load: 20 kg Overall height: 30 mm Housing diameter: 36 ± 0,08 mm Flange diameter: 45 mm Ball protrusion above table plane: 9.8 ± 0.2 mm Flange height: 5.5 mm Flange thickness: 2.8 mm Weight: 0.1 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"22","formattedValue":"22"},{"name":"Effective load [kg]","normalizedName":"","value":"20","formattedValue":"20"},{"name":"Overall height [mm]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Housing diameter [mm]","normalizedName":"","value":"36 ± 0,08","formattedValue":"36 ± 0,08"},{"name":"Flange diameter [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Ball protrusion above table plane [mm]","normalizedName":"","value":"9.8 ± 0.2","formattedValue":"9.8 ± 0.2"},{"name":"Flange height [mm]","normalizedName":"","value":"5.5","formattedValue":"5.5"},{"name":"Flange thickness [mm]","normalizedName":"","value":"2.8","formattedValue":"2.8"},{"name":"Weight [kg]","normalizedName":"","value":"0.1","formattedValue":"0.1"}]}

Item no.: 946092 49

Ball unit with flange, plastic ball, ball Ø 30 mm, effective load 25 kg

5-7 Working days

{"articleNo":"946092","name":"Ball unit with flange plastic ball","baseProduct":"M1001132","productUrl":"/p/M1001132/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_flange_pdpsmall--AA00946090II-01.jpg"}

Item properties:

Ball diameter: 30 mm Effective load: 25 kg Overall height: 37 mm Housing diameter: 45 ± 0,08 mm Flange diameter: 55 mm Ball protrusion above table plane: 13.8 ± 0.3 mm Flange height: 8.3 mm Flange thickness: 4 mm Weight: 0.18 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Effective load [kg]","normalizedName":"","value":"25","formattedValue":"25"},{"name":"Overall height [mm]","normalizedName":"","value":"37","formattedValue":"37"},{"name":"Housing diameter [mm]","normalizedName":"","value":"45 ± 0,08","formattedValue":"45 ± 0,08"},{"name":"Flange diameter [mm]","normalizedName":"","value":"55","formattedValue":"55"},{"name":"Ball protrusion above table plane [mm]","normalizedName":"","value":"13.8 ± 0.3","formattedValue":"13.8 ± 0.3"},{"name":"Flange height [mm]","normalizedName":"","value":"8.3","formattedValue":"8.3"},{"name":"Flange thickness [mm]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Weight [kg]","normalizedName":"","value":"0.18","formattedValue":"0.18"}]}
