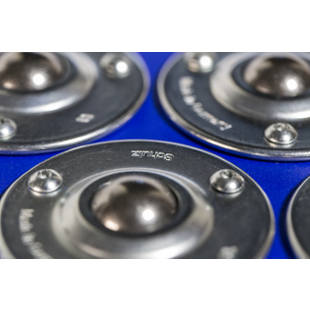

Ball unit with recessed sheet steel housing

Ball unit with recessed sheet steel housing

plastic ball

For easy movement, rotation and positioning of loads with minimal effort
Run smoothly with precise rolling characteristics
Max. conveyor speed 3 m/s

These high quality ball units are suitable for transporting products and goods which require the option of being moved horizontally to all sides and being rotated around the vertical axis. They guarantee low friction transport of materials on conveyor systems when a high load bearing capacity is required. A change of direction can be realised quickly. Our ball units are characterised by high temperature tolerance and impact resistance.

Ball unit with low overall height.

When conveying delicate materials (e.g. glass), we recommend plastic ball bearings and a maximum conveyor speed of 0.5 m/s.

This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit

Full stainless steel also available on request.

Ball unit with recessed sheet steel housing, plastic ball

Price / item (Ex. VAT)

from £11.50

Order quantity:

{"articleNo":"M1288227","name":"Ball unit with recessed sheet steel housing plastic ball","baseProduct":"","productUrl":"/p/M1288227/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_recessed_sheet_steel_housing_pdpsmall--000058084378_PRD_org_all.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

5 of 5 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 476197 49

Ball unit with recessed sheet steel housing, plastic ball, load-bearing ball Ø 15 mm, effective load 10 kg

5-7 Working days

{"articleNo":"476197","name":"Ball unit with recessed sheet steel housing plastic ball","baseProduct":"M1288227","productUrl":"/p/M1288227/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_recessed_sheet_steel_housing_pdpsmall--95777.jpg"}

Item properties:

Ball diameter: 15 mm Effective load: 10 kg Overall height: 18.5 mm Housing diameter: 22.2 mm Circle of holes diameter: 30 mm Flange diameter: 41.3 mm Bore hole diameter: 3.5 mm Installation height: 10.2 mm Fastening drill holes: 2 Weight: 0.03 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"15","formattedValue":"15"},{"name":"Effective load [kg]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Overall height [mm]","normalizedName":"","value":"18.5","formattedValue":"18.5"},{"name":"Housing diameter [mm]","normalizedName":"","value":"22.2","formattedValue":"22.2"},{"name":"Circle of holes diameter [mm]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Flange diameter [mm]","normalizedName":"","value":"41.3","formattedValue":"41.3"},{"name":"Bore hole diameter [mm]","normalizedName":"","value":"3.5","formattedValue":"3.5"},{"name":"Installation height [mm]","normalizedName":"","value":"10.2","formattedValue":"10.2"},{"name":"Fastening drill holes","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Weight [kg]","normalizedName":"","value":"0.03","formattedValue":"0.03"}]}

Item no.: 476198 49

Ball unit with recessed sheet steel housing, plastic ball, load-bearing ball Ø 19 mm, effective load 20 kg

5-7 Working days

{"articleNo":"476198","name":"Ball unit with recessed sheet steel housing plastic ball","baseProduct":"M1288227","productUrl":"/p/M1288227/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_recessed_sheet_steel_housing_pdpsmall--95777.jpg"}

Item properties:

Ball diameter: 19 mm Effective load: 20 kg Overall height: 22 mm Housing diameter: 29 mm Circle of holes diameter: 35 mm Flange diameter: 49 mm Bore hole diameter: 5.1 mm Installation height: 10 mm Fastening drill holes: 2 Weight: 0.07 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"19","formattedValue":"19"},{"name":"Effective load [kg]","normalizedName":"","value":"20","formattedValue":"20"},{"name":"Overall height [mm]","normalizedName":"","value":"22","formattedValue":"22"},{"name":"Housing diameter [mm]","normalizedName":"","value":"29","formattedValue":"29"},{"name":"Circle of holes diameter [mm]","normalizedName":"","value":"35","formattedValue":"35"},{"name":"Flange diameter [mm]","normalizedName":"","value":"49","formattedValue":"49"},{"name":"Bore hole diameter [mm]","normalizedName":"","value":"5.1","formattedValue":"5.1"},{"name":"Installation height [mm]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Fastening drill holes","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Weight [kg]","normalizedName":"","value":"0.07","formattedValue":"0.07"}]}

Item no.: 476199 49

Ball unit with recessed sheet steel housing, plastic ball, load-bearing ball Ø 25 mm, effective load 40 kg

5-7 Working days

{"articleNo":"476199","name":"Ball unit with recessed sheet steel housing plastic ball","baseProduct":"M1288227","productUrl":"/p/M1288227/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_recessed_sheet_steel_housing_pdpsmall--95777.jpg"}

Item properties:

Ball diameter: 25 mm Effective load: 40 kg Overall height: 30 mm Housing diameter: 38.1 mm Circle of holes diameter: 55.6 mm Flange diameter: 73 mm Bore hole diameter: 5.1 mm Installation height: 14.2 mm Fastening drill holes: 3 Weight: 0.12 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"25","formattedValue":"25"},{"name":"Effective load [kg]","normalizedName":"","value":"40","formattedValue":"40"},{"name":"Overall height [mm]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Housing diameter [mm]","normalizedName":"","value":"38.1","formattedValue":"38.1"},{"name":"Circle of holes diameter [mm]","normalizedName":"","value":"55.6","formattedValue":"55.6"},{"name":"Flange diameter [mm]","normalizedName":"","value":"73","formattedValue":"73"},{"name":"Bore hole diameter [mm]","normalizedName":"","value":"5.1","formattedValue":"5.1"},{"name":"Installation height [mm]","normalizedName":"","value":"14.2","formattedValue":"14.2"},{"name":"Fastening drill holes","normalizedName":"","value":"3","formattedValue":"3"},{"name":"Weight [kg]","normalizedName":"","value":"0.12","formattedValue":"0.12"}]}

Item no.: 476200 49

Ball unit with recessed sheet steel housing, plastic ball, load-bearing ball Ø 32 mm, effective load 90 kg

5-7 Working days

{"articleNo":"476200","name":"Ball unit with recessed sheet steel housing plastic ball","baseProduct":"M1288227","productUrl":"/p/M1288227/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_recessed_sheet_steel_housing_pdpsmall--95777.jpg"}

Item properties:

Ball diameter: 32 mm Effective load: 90 kg Overall height: 36 mm Housing diameter: 45.5 mm Circle of holes diameter: 58.7 mm Flange diameter: 73.8 mm Bore hole diameter: 5.1 mm Installation height: 16.2 mm Fastening drill holes: 3 Weight: 0.18 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"32","formattedValue":"32"},{"name":"Effective load [kg]","normalizedName":"","value":"90","formattedValue":"90"},{"name":"Overall height [mm]","normalizedName":"","value":"36","formattedValue":"36"},{"name":"Housing diameter [mm]","normalizedName":"","value":"45.5","formattedValue":"45.5"},{"name":"Circle of holes diameter [mm]","normalizedName":"","value":"58.7","formattedValue":"58.7"},{"name":"Flange diameter [mm]","normalizedName":"","value":"73.8","formattedValue":"73.8"},{"name":"Bore hole diameter [mm]","normalizedName":"","value":"5.1","formattedValue":"5.1"},{"name":"Installation height [mm]","normalizedName":"","value":"16.2","formattedValue":"16.2"},{"name":"Fastening drill holes","normalizedName":"","value":"3","formattedValue":"3"},{"name":"Weight [kg]","normalizedName":"","value":"0.18","formattedValue":"0.18"}]}

Item no.: 476201 49

Ball unit with recessed sheet steel housing, plastic ball, load-bearing ball Ø 40 mm, effective load 140 kg

5-7 Working days

{"articleNo":"476201","name":"Ball unit with recessed sheet steel housing plastic ball","baseProduct":"M1288227","productUrl":"/p/M1288227/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_recessed_sheet_steel_housing_pdpsmall--95777.jpg"}

Item properties:

Ball diameter: 40 mm Effective load: 140 kg Overall height: 48.5 mm Housing diameter: 63 mm Circle of holes diameter: 70.2 mm Flange diameter: 94.6 mm Bore hole diameter: 7 mm Installation height: 21.2 mm Fastening drill holes: 3 Weight: 0.5 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"40","formattedValue":"40"},{"name":"Effective load [kg]","normalizedName":"","value":"140","formattedValue":"140"},{"name":"Overall height [mm]","normalizedName":"","value":"48.5","formattedValue":"48.5"},{"name":"Housing diameter [mm]","normalizedName":"","value":"63","formattedValue":"63"},{"name":"Circle of holes diameter [mm]","normalizedName":"","value":"70.2","formattedValue":"70.2"},{"name":"Flange diameter [mm]","normalizedName":"","value":"94.6","formattedValue":"94.6"},{"name":"Bore hole diameter [mm]","normalizedName":"","value":"7","formattedValue":"7"},{"name":"Installation height [mm]","normalizedName":"","value":"21.2","formattedValue":"21.2"},{"name":"Fastening drill holes","normalizedName":"","value":"3","formattedValue":"3"},{"name":"Weight [kg]","normalizedName":"","value":"0.5","formattedValue":"0.5"}]}
