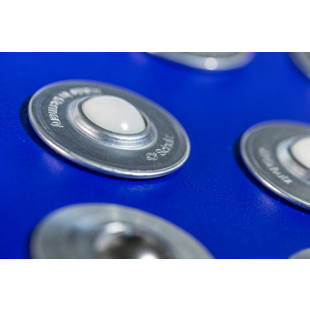

Ball unit with sheet steel housing and flange

Ball unit with sheet steel housing and flange

plastic ball

For easy movement, rotation and positioning of loads with minimal effort
Run smoothly with precise rolling characteristics

These high quality ball units are suitable for transporting products and goods which require the option of being moved horizontally to all sides and being rotated around the vertical axis. They guarantee low friction transport of materials on conveyor systems when a high load bearing capacity is required. A change of direction can be realised quickly. Our ball units are characterised by high temperature tolerance and impact resistance.

Standard ball unit that covers most applications.

When conveying delicate materials (e.g. glass), we recommend plastic ball bearings and a maximum conveyor speed of 0.5 m/s.

This is how to find the right ball unit to suit the load:
Weight of the goods being conveyed / 3 = max. dynamic load of a ball unit

Full stainless steel also available on request.

Ball unit with sheet steel housing and flange, plastic ball

Price / item (Ex. VAT)

from £6.30

Order quantity:

{"articleNo":"M1288138","name":"Ball unit with sheet steel housing and flange plastic ball","baseProduct":"","productUrl":"/p/M1288138/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_sheet_steel_housing_and_flange_pdpsmall--000058084375_PRD_org_all.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

3 of 3 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 476166 49

Ball unit with sheet steel housing and flange, plastic ball, load-bearing ball Ø 15 mm, effective load 25 kg

5-7 Working days

{"articleNo":"476166","name":"Ball unit with sheet steel housing and flange plastic ball","baseProduct":"M1288138","productUrl":"/p/M1288138/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_sheet_steel_housing_and_flange_pdpsmall--000058084375_PRD_org_all.jpg"}

Item properties:

Ball diameter: 15 mm Effective load: 25 kg Overall height: 21 mm Housing diameter: 24 mm Flange diameter: 31 mm Installation height: 9.5 mm Weight: 0.03 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"15","formattedValue":"15"},{"name":"Effective load [kg]","normalizedName":"","value":"25","formattedValue":"25"},{"name":"Overall height [mm]","normalizedName":"","value":"21","formattedValue":"21"},{"name":"Housing diameter [mm]","normalizedName":"","value":"24","formattedValue":"24"},{"name":"Flange diameter [mm]","normalizedName":"","value":"31","formattedValue":"31"},{"name":"Installation height [mm]","normalizedName":"","value":"9.5","formattedValue":"9.5"},{"name":"Weight [kg]","normalizedName":"","value":"0.03","formattedValue":"0.03"}]}

Item no.: 476167 49

Ball unit with sheet steel housing and flange, plastic ball, load-bearing ball Ø 22 mm, effective load 50 kg

5-7 Working days

{"articleNo":"476167","name":"Ball unit with sheet steel housing and flange plastic ball","baseProduct":"M1288138","productUrl":"/p/M1288138/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_sheet_steel_housing_and_flange_pdpsmall--000058084375_PRD_org_all.jpg"}

Item properties:

Ball diameter: 22 mm Effective load: 50 kg Overall height: 30.5 mm Housing diameter: 36 mm Flange diameter: 45 mm Installation height: 10 mm Weight: 0.09 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"22","formattedValue":"22"},{"name":"Effective load [kg]","normalizedName":"","value":"50","formattedValue":"50"},{"name":"Overall height [mm]","normalizedName":"","value":"30.5","formattedValue":"30.5"},{"name":"Housing diameter [mm]","normalizedName":"","value":"36","formattedValue":"36"},{"name":"Flange diameter [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Installation height [mm]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Weight [kg]","normalizedName":"","value":"0.09","formattedValue":"0.09"}]}

Item no.: 476168 49

Ball unit with sheet steel housing and flange, plastic ball, load-bearing ball Ø 30 mm, effective load 100 kg

5-7 Working days

{"articleNo":"476168","name":"Ball unit with sheet steel housing and flange plastic ball","baseProduct":"M1288138","productUrl":"/p/M1288138/","imageUrl":"/Conveying_equipment/Ball_rollers/Ball_unit_with_sheet_steel_housing_and_flange_pdpsmall--000058084375_PRD_org_all.jpg"}

Item properties:

Ball diameter: 30 mm Effective load: 100 kg Overall height: 37 mm Housing diameter: 45 mm Flange diameter: 55 mm Installation height: 14 mm Weight: 0.17 kg

{"features":[{"name":"Ball diameter [mm]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Effective load [kg]","normalizedName":"","value":"100","formattedValue":"100"},{"name":"Overall height [mm]","normalizedName":"","value":"37","formattedValue":"37"},{"name":"Housing diameter [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Flange diameter [mm]","normalizedName":"","value":"55","formattedValue":"55"},{"name":"Installation height [mm]","normalizedName":"","value":"14","formattedValue":"14"},{"name":"Weight [kg]","normalizedName":"","value":"0.17","formattedValue":"0.17"}]}
