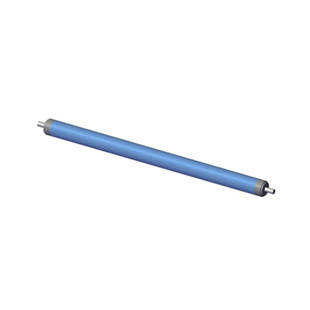

Gura – Plastic conveyor roller

roller Ø 20 mm, axle Ø 6 mm

For light duty roller conveyors and flow shelves
Plastic coating, ideal for sensitive goods and components
Quick to install, low in noise and maintenance free

These rollers are characterised by a particularly quiet run and their quick assembly. The different versions are popular in all industries due to their flexibility and they cover a wide range of applications.
They are suitable for linking up assembly workstations and for transporting fragile electronic components.

The indicated max. loads apply only with load distributed equally across the entire casing length.

Stainless steel conveyor rollers, steel coated with PVC, zinc plated model, with stainless steel bearing – available in additional length and diameters upon request.

Gura – Plastic conveyor roller, roller Ø 20 mm, axle Ø 6 mm

Price / item (Ex. VAT)

from £8.30

Order quantity:

{"articleNo":"M1831","name":"Gura – Plastic conveyor roller roller Ø 20 mm, axle Ø 6 mm","baseProduct":"","productUrl":"/p/M1831/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424736_PRD_org_all.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

3 of 3 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 177504 49

Gura – Plastic conveyor roller, roller Ø 20 mm, axle Ø 6 mm, length 200 mm

4 Week delivery

{"articleNo":"177504","name":"Gura – Plastic conveyor roller roller Ø 20 mm, axle Ø 6 mm","baseProduct":"M1831","productUrl":"/p/M1831/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424735_PRD_org_all.jpg"}

Item properties:

Max. load: 3 kg Installation length: 205 mm Casing length: 200 mm Weight: 0.09 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"3","formattedValue":"3"},{"name":"Installation length [mm]","normalizedName":"","value":"205","formattedValue":"205"},{"name":"Casing length [mm]","normalizedName":"","value":"200","formattedValue":"200"},{"name":"Weight [kg]","normalizedName":"","value":"0.09","formattedValue":"0.09"}]}

Item no.: 177520 49

Gura – Plastic conveyor roller, roller Ø 20 mm, axle Ø 6 mm, length 300 mm

5-7 Working days

{"articleNo":"177520","name":"Gura – Plastic conveyor roller roller Ø 20 mm, axle Ø 6 mm","baseProduct":"M1831","productUrl":"/p/M1831/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424735_PRD_org_all.jpg"}

Item properties:

Max. load: 2 kg Installation length: 305 mm Casing length: 300 mm Weight: 0.13 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Installation length [mm]","normalizedName":"","value":"305","formattedValue":"305"},{"name":"Casing length [mm]","normalizedName":"","value":"300","formattedValue":"300"},{"name":"Weight [kg]","normalizedName":"","value":"0.13","formattedValue":"0.13"}]}

Item no.: 177547 49

Gura – Plastic conveyor roller, roller Ø 20 mm, axle Ø 6 mm, length 400 mm

5-7 Working days

{"articleNo":"177547","name":"Gura – Plastic conveyor roller roller Ø 20 mm, axle Ø 6 mm","baseProduct":"M1831","productUrl":"/p/M1831/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424735_PRD_org_all.jpg"}

Item properties:

Max. load: 1.5 kg Installation length: 405 mm Casing length: 400 mm Weight: 0.16 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"1.5","formattedValue":"1.5"},{"name":"Installation length [mm]","normalizedName":"","value":"405","formattedValue":"405"},{"name":"Casing length [mm]","normalizedName":"","value":"400","formattedValue":"400"},{"name":"Weight [kg]","normalizedName":"","value":"0.16","formattedValue":"0.16"}]}
