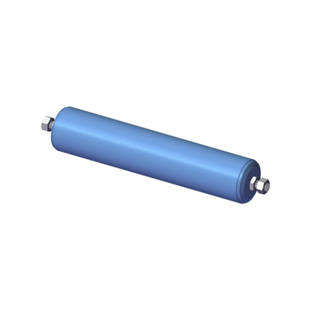

Gura – Plastic conveyor roller

roller Ø 63 mm, threaded axle M 12 x 20

For light duty roller conveyors and flow shelves
Plastic coating, ideal for sensitive goods and components
Quick to install, low in noise and maintenance free

These rollers are characterised by a particularly quiet run and their quick assembly. The different versions are popular in all industries due to their flexibility and they cover a wide range of applications.
They are suitable for linking up assembly workstations and for transporting fragile electronic components.

The indicated max. loads apply only with load distributed equally across the entire casing length.

Stainless steel conveyor rollers, steel coated with PVC, zinc plated model, with stainless steel bearing – available in additional length and diameters upon request.

Gura – Plastic conveyor roller, roller Ø 63 mm, threaded axle M 12 x 20

Price / item (Ex. VAT)

from £25.00

Order quantity:

{"articleNo":"M1837","name":"Gura – Plastic conveyor roller roller Ø 63 mm, threaded axle M 12 x 20","baseProduct":"","productUrl":"/p/M1837/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424856_PRD_org_all.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

6 of 6 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 178020 49

Gura – Plastic conveyor roller, roller Ø 63 mm, threaded axle M 12 x 20, length 200 mm

5-7 Working days

{"articleNo":"178020","name":"Gura – Plastic conveyor roller roller Ø 63 mm, threaded axle M 12 x 20","baseProduct":"M1837","productUrl":"/p/M1837/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424855_PRD_org_all.jpg"}

Item properties:

Max. load: 60 kg Installation length: 220 mm Casing length: 200 mm Weight: 0.59 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"60","formattedValue":"60"},{"name":"Installation length [mm]","normalizedName":"","value":"220","formattedValue":"220"},{"name":"Casing length [mm]","normalizedName":"","value":"200","formattedValue":"200"},{"name":"Weight [kg]","normalizedName":"","value":"0.59","formattedValue":"0.59"}]}

Item no.: 178055 49

Gura – Plastic conveyor roller, roller Ø 63 mm, threaded axle M 12 x 20, length 300 mm

5-7 Working days

{"articleNo":"178055","name":"Gura – Plastic conveyor roller roller Ø 63 mm, threaded axle M 12 x 20","baseProduct":"M1837","productUrl":"/p/M1837/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424855_PRD_org_all.jpg"}

Item properties:

Max. load: 60 kg Installation length: 320 mm Casing length: 300 mm Weight: 0.77 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"60","formattedValue":"60"},{"name":"Installation length [mm]","normalizedName":"","value":"320","formattedValue":"320"},{"name":"Casing length [mm]","normalizedName":"","value":"300","formattedValue":"300"},{"name":"Weight [kg]","normalizedName":"","value":"0.77","formattedValue":"0.77"}]}

Item no.: 178098 49

Gura – Plastic conveyor roller, roller Ø 63 mm, threaded axle M 12 x 20, length 400 mm

5-7 Working days

{"articleNo":"178098","name":"Gura – Plastic conveyor roller roller Ø 63 mm, threaded axle M 12 x 20","baseProduct":"M1837","productUrl":"/p/M1837/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424855_PRD_org_all.jpg"}

Item properties:

Max. load: 45 kg Installation length: 420 mm Casing length: 400 mm Weight: 0.94 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Installation length [mm]","normalizedName":"","value":"420","formattedValue":"420"},{"name":"Casing length [mm]","normalizedName":"","value":"400","formattedValue":"400"},{"name":"Weight [kg]","normalizedName":"","value":"0.94","formattedValue":"0.94"}]}

Item no.: 178136 49

Gura – Plastic conveyor roller, roller Ø 63 mm, threaded axle M 12 x 20, length 500 mm

5-7 Working days

{"articleNo":"178136","name":"Gura – Plastic conveyor roller roller Ø 63 mm, threaded axle M 12 x 20","baseProduct":"M1837","productUrl":"/p/M1837/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424855_PRD_org_all.jpg"}

Item properties:

Max. load: 35 kg Installation length: 520 mm Casing length: 500 mm Weight: 1.12 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"35","formattedValue":"35"},{"name":"Installation length [mm]","normalizedName":"","value":"520","formattedValue":"520"},{"name":"Casing length [mm]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Weight [kg]","normalizedName":"","value":"1.12","formattedValue":"1.12"}]}

Item no.: 178160 49

Gura – Plastic conveyor roller, roller Ø 63 mm, threaded axle M 12 x 20, length 600 mm

5-7 Working days

{"articleNo":"178160","name":"Gura – Plastic conveyor roller roller Ø 63 mm, threaded axle M 12 x 20","baseProduct":"M1837","productUrl":"/p/M1837/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424855_PRD_org_all.jpg"}

Item properties:

Max. load: 25 kg Installation length: 620 mm Casing length: 600 mm Weight: 1.29 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"25","formattedValue":"25"},{"name":"Installation length [mm]","normalizedName":"","value":"620","formattedValue":"620"},{"name":"Casing length [mm]","normalizedName":"","value":"600","formattedValue":"600"},{"name":"Weight [kg]","normalizedName":"","value":"1.29","formattedValue":"1.29"}]}

Item no.: 178225 49

Gura – Plastic conveyor roller, roller Ø 63 mm, threaded axle M 12 x 20, length 800 mm

5-7 Working days

{"articleNo":"178225","name":"Gura – Plastic conveyor roller roller Ø 63 mm, threaded axle M 12 x 20","baseProduct":"M1837","productUrl":"/p/M1837/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Plastic_conveyor_roller_pdpsmall--000037424855_PRD_org_all.jpg"}

Item properties:

Max. load: 10 kg Installation length: 820 mm Casing length: 800 mm Weight: 1.65 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Installation length [mm]","normalizedName":"","value":"820","formattedValue":"820"},{"name":"Casing length [mm]","normalizedName":"","value":"800","formattedValue":"800"},{"name":"Weight [kg]","normalizedName":"","value":"1.65","formattedValue":"1.65"}]}
