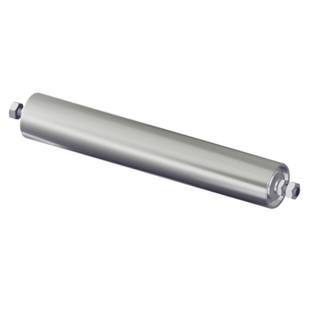

Gura – Steel conveyor roller

roller Ø 50 mm, threaded axle M 10 x 20

Durable and heavy duty steel construction
Smooth running for material flow without problems
Different axle versions available

The steel rollers can be used in many different areas within conveyor technology. A robust steel construction is outstandingly suited for heavy loads, and they are also maintenance free.

The indicated max. loads apply only with load distributed equally across the entire casing length.

Stainless steel conveyor rollers, steel coated with PVC, zinc plated model, with stainless steel bearing – available in additional length and diameters upon request.

Gura – Steel conveyor roller, roller Ø 50 mm, threaded axle M 10 x 20

Price / item (Ex. VAT)

from £14.50

Order quantity:

{"articleNo":"M1823","name":"Gura – Steel conveyor roller roller Ø 50 mm, threaded axle M 10 x 20","baseProduct":"","productUrl":"/p/M1823/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Steel_conveyor_roller_pdpsmall--000037424589_PRD_org_all.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

7 of 7 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 176532 49

Gura – Steel conveyor roller, roller Ø 50 mm, threaded axle M 10 x 20, length 1000 mm

5-7 Working days

{"articleNo":"176532","name":"Gura – Steel conveyor roller roller Ø 50 mm, threaded axle M 10 x 20","baseProduct":"M1823","productUrl":"/p/M1823/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Steel_conveyor_roller_pdpsmall--000037424588_PRD_org_all.jpg"}

Item properties:

Max. load: 30 kg Installation length: 1,020 mm Casing length: 1,000 mm Weight: 2.63 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Installation length [mm]","normalizedName":"","value":"1020","formattedValue":"1,020"},{"name":"Casing length [mm]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Weight [kg]","normalizedName":"","value":"2.63","formattedValue":"2.63"}]}

Item no.: 176567 49

Gura – Steel conveyor roller, roller Ø 50 mm, threaded axle M 10 x 20, length 200 mm

5-7 Working days

{"articleNo":"176567","name":"Gura – Steel conveyor roller roller Ø 50 mm, threaded axle M 10 x 20","baseProduct":"M1823","productUrl":"/p/M1823/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Steel_conveyor_roller_pdpsmall--000037424588_PRD_org_all.jpg"}

Item properties:

Max. load: 120 kg Installation length: 220 mm Casing length: 200 mm Weight: 0.7 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Installation length [mm]","normalizedName":"","value":"220","formattedValue":"220"},{"name":"Casing length [mm]","normalizedName":"","value":"200","formattedValue":"200"},{"name":"Weight [kg]","normalizedName":"","value":"0.7","formattedValue":"0.7"}]}

Item no.: 176591 49

Gura – Steel conveyor roller, roller Ø 50 mm, threaded axle M 10 x 20, length 300 mm

5-7 Working days

{"articleNo":"176591","name":"Gura – Steel conveyor roller roller Ø 50 mm, threaded axle M 10 x 20","baseProduct":"M1823","productUrl":"/p/M1823/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Steel_conveyor_roller_pdpsmall--000037424588_PRD_org_all.jpg"}

Item properties:

Max. load: 120 kg Installation length: 320 mm Casing length: 300 mm Weight: 0.94 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Installation length [mm]","normalizedName":"","value":"320","formattedValue":"320"},{"name":"Casing length [mm]","normalizedName":"","value":"300","formattedValue":"300"},{"name":"Weight [kg]","normalizedName":"","value":"0.94","formattedValue":"0.94"}]}

Item no.: 176621 49

Gura – Steel conveyor roller, roller Ø 50 mm, threaded axle M 10 x 20, length 400 mm

5-7 Working days

{"articleNo":"176621","name":"Gura – Steel conveyor roller roller Ø 50 mm, threaded axle M 10 x 20","baseProduct":"M1823","productUrl":"/p/M1823/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Steel_conveyor_roller_pdpsmall--000037424588_PRD_org_all.jpg"}

Item properties:

Max. load: 120 kg Installation length: 420 mm Casing length: 400 mm Weight: 1.18 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Installation length [mm]","normalizedName":"","value":"420","formattedValue":"420"},{"name":"Casing length [mm]","normalizedName":"","value":"400","formattedValue":"400"},{"name":"Weight [kg]","normalizedName":"","value":"1.18","formattedValue":"1.18"}]}

Item no.: 176664 49

Gura – Steel conveyor roller, roller Ø 50 mm, threaded axle M 10 x 20, length 500 mm

5-7 Working days

{"articleNo":"176664","name":"Gura – Steel conveyor roller roller Ø 50 mm, threaded axle M 10 x 20","baseProduct":"M1823","productUrl":"/p/M1823/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Steel_conveyor_roller_pdpsmall--000037424588_PRD_org_all.jpg"}

Item properties:

Max. load: 120 kg Installation length: 520 mm Casing length: 500 mm Weight: 1.42 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Installation length [mm]","normalizedName":"","value":"520","formattedValue":"520"},{"name":"Casing length [mm]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Weight [kg]","normalizedName":"","value":"1.42","formattedValue":"1.42"}]}

Item no.: 176699 49

Gura – Steel conveyor roller, roller Ø 50 mm, threaded axle M 10 x 20, length 600 mm

5-7 Working days

{"articleNo":"176699","name":"Gura – Steel conveyor roller roller Ø 50 mm, threaded axle M 10 x 20","baseProduct":"M1823","productUrl":"/p/M1823/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Steel_conveyor_roller_pdpsmall--000037424588_PRD_org_all.jpg"}

Item properties:

Max. load: 95 kg Installation length: 620 mm Casing length: 600 mm Weight: 1.67 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"95","formattedValue":"95"},{"name":"Installation length [mm]","normalizedName":"","value":"620","formattedValue":"620"},{"name":"Casing length [mm]","normalizedName":"","value":"600","formattedValue":"600"},{"name":"Weight [kg]","normalizedName":"","value":"1.67","formattedValue":"1.67"}]}

Item no.: 176753 49

Gura – Steel conveyor roller, roller Ø 50 mm, threaded axle M 10 x 20, length 800 mm

5-7 Working days

{"articleNo":"176753","name":"Gura – Steel conveyor roller roller Ø 50 mm, threaded axle M 10 x 20","baseProduct":"M1823","productUrl":"/p/M1823/","imageUrl":"/Conveying_equipment/Conveyor_rollers/Steel_conveyor_roller_pdpsmall--000037424588_PRD_org_all.jpg"}

Item properties:

Max. load: 55 kg Installation length: 820 mm Casing length: 800 mm Weight: 2.15 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"55","formattedValue":"55"},{"name":"Installation length [mm]","normalizedName":"","value":"820","formattedValue":"820"},{"name":"Casing length [mm]","normalizedName":"","value":"800","formattedValue":"800"},{"name":"Weight [kg]","normalizedName":"","value":"2.15","formattedValue":"2.15"}]}

Technical data

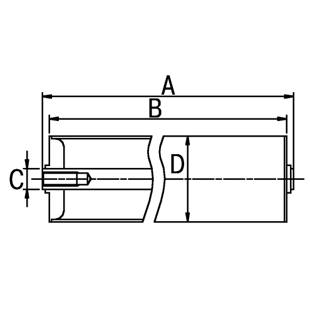

Axle type	threaded axle M 10 x 20
Axle diameter	10 mm
Material	steel
Roller diameter	50 mm
Supplied	assembled

Customer reviews

Gura – Steel conveyor roller

from Apr 18, 2017 | Switzerland Google Translate

Evaluation of the item with the item no.: 176699

Das Produkt wurde für eine Freizeitarbeit benötigt. Die Rollen mussten aber bearbeitet werden,da sie im Rohzustand waren, nicht verzinkt oder galvanisiert.

Gura – Steel conveyor roller

from Mar 6, 2017 | Great Britain

Evaluation of the item with the item no.: 176664

Good quality for the price

Gura – Steel conveyor roller

from Mar 8, 2016 | France Google Translate

Evaluation of the item with the item no.: 176699

bon produit léger et conforme à la description.
