Gura – Flexible skate wheel conveyor

track length 1700 – 6300 mm (extendable)

Optimises material flow in the workshop and suitable for mobile use
Space saving storage when collapsed
Durable, bright zinc plated model

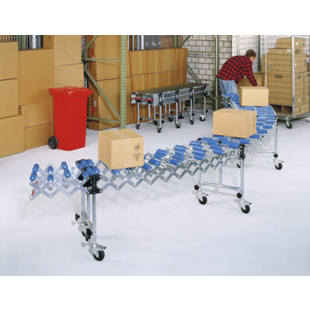

The GURA flexible skate wheel conveyors can be used in all areas of load transport in the workshop. Especially when a permanently installed system is not welcome, then this mobile version can be used.

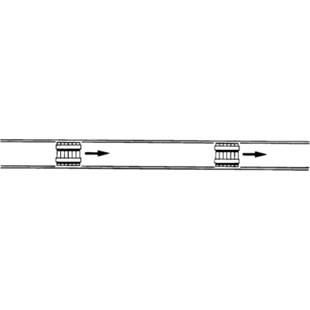

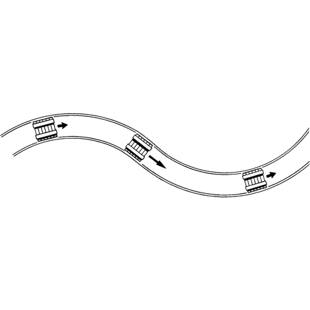

They allow your own logistics structures to be optimally modified and extended to suit requirements. The tracks are individual length and height adjustable, while curves of up to 180° can be formed at the same time.

The flat metal concertina is riveted and zinc plated, there are plastic handles on both conveyor ends for pulling apart and pushing together.

Other features:
– Upper track edge is height adjustable from 720 – 1150 mm.
– For transporting goods 440 – 700 mm.
– Axle spacing 150 mm when track is fully extended.
– Skate wheels (Ø 48 mm) with ball bearings on 8 mm axles, with spacing sleeves in between.

Other dimensions and electric drive available on request.

Gura – Flexible skate wheel conveyor, track length 1700 – 6300 mm (extendable)

Price / item (Ex. VAT)

from £1,203.00

Order quantity:

{"articleNo":"M91394","name":"Gura – Flexible skate wheel conveyor track length 1700 – 6300 mm (extendable)","baseProduct":"","productUrl":"/p/M91394/","imageUrl":"/Conveying_equipment/Roller_conveyors/Flexible_skate_wheel_conveyor_pdpsmall--00000365_kk.jpg"}

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

6 of 6 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 714033 49

Gura – Flexible skate wheel conveyor, track length 1700 – 6300 mm (extendable), track width 400 mm, steel skate wheels

2 Week delivery

{"articleNo":"714033","name":"Gura – Flexible skate wheel conveyor track length 1700 – 6300 mm (extendable)","baseProduct":"M91394","productUrl":"/p/M91394/","imageUrl":"/Conveying_equipment/Roller_conveyors/Flexible_skate_wheel_conveyor_pdpsmall--00000365_kk.jpg"}

Item properties:

Track width: 400 mm Width of goods conveyed: 200 – 600 mm Skate wheel design: steel Skate wheels per axle: 4 pcs. Weight: 87 kg

{"features":[{"name":"Track width [mm]","normalizedName":"","value":"400","formattedValue":"400"},{"name":"Width of goods conveyed [mm]","normalizedName":"","value":"200 – 600","formattedValue":"200 – 600"},{"name":"Skate wheel design","normalizedName":"","value":"steel","formattedValue":"steel"},{"name":"Skate wheels per axle [pcs.]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Weight [kg]","normalizedName":"","value":"87","formattedValue":"87"}]}

Item no.: 714034 49

Gura – Flexible skate wheel conveyor, track length 1700 – 6300 mm (extendable), track width 400 mm, plastic skate wheels

2 Week delivery

{"articleNo":"714034","name":"Gura – Flexible skate wheel conveyor track length 1700 – 6300 mm (extendable)","baseProduct":"M91394","productUrl":"/p/M91394/","imageUrl":"/Conveying_equipment/Roller_conveyors/Flexible_skate_wheel_conveyor_pdpsmall--00000365_kk.jpg"}

Item properties:

Track width: 400 mm Width of goods conveyed: 200 – 600 mm Skate wheel design: plastic Skate wheels per axle: 4 pcs. Weight: 82 kg

{"features":[{"name":"Track width [mm]","normalizedName":"","value":"400","formattedValue":"400"},{"name":"Width of goods conveyed [mm]","normalizedName":"","value":"200 – 600","formattedValue":"200 – 600"},{"name":"Skate wheel design","normalizedName":"","value":"plastic","formattedValue":"plastic"},{"name":"Skate wheels per axle [pcs.]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Weight [kg]","normalizedName":"","value":"82","formattedValue":"82"}]}

Item no.: 859745 49

Gura – Flexible skate wheel conveyor, track length 1700 – 6300 mm (extendable), track width 500 mm, steel skate wheels

2 Week delivery

{"articleNo":"859745","name":"Gura – Flexible skate wheel conveyor track length 1700 – 6300 mm (extendable)","baseProduct":"M91394","productUrl":"/p/M91394/","imageUrl":"/Conveying_equipment/Roller_conveyors/Flexible_skate_wheel_conveyor_pdpsmall--00000365_kk.jpg"}

Item properties:

Track width: 500 mm Width of goods conveyed: 200 – 800 mm Skate wheel design: steel Skate wheels per axle: 5 pcs. Fittings: centre section Weight: 112 kg

{"features":[{"name":"Track width [mm]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Width of goods conveyed [mm]","normalizedName":"","value":"200 – 800","formattedValue":"200 – 800"},{"name":"Skate wheel design","normalizedName":"","value":"steel","formattedValue":"steel"},{"name":"Skate wheels per axle [pcs.]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Fittings","normalizedName":"","value":"centre section","formattedValue":"centre section"},{"name":"Weight [kg]","normalizedName":"","value":"112","formattedValue":"112"}]}

Item no.: 859753 49

Gura – Flexible skate wheel conveyor, track length 1700 – 6300 mm (extendable), track width 500 mm, plastic skate wheels

2 Week delivery

{"articleNo":"859753","name":"Gura – Flexible skate wheel conveyor track length 1700 – 6300 mm (extendable)","baseProduct":"M91394","productUrl":"/p/M91394/","imageUrl":"/Conveying_equipment/Roller_conveyors/Flexible_skate_wheel_conveyor_pdpsmall--00000365_kk.jpg"}

Item properties:

Track width: 500 mm Width of goods conveyed: 200 – 800 mm Skate wheel design: plastic Skate wheels per axle: 5 pcs. Fittings: centre section Weight: 102 kg

{"features":[{"name":"Track width [mm]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Width of goods conveyed [mm]","normalizedName":"","value":"200 – 800","formattedValue":"200 – 800"},{"name":"Skate wheel design","normalizedName":"","value":"plastic","formattedValue":"plastic"},{"name":"Skate wheels per axle [pcs.]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Fittings","normalizedName":"","value":"centre section","formattedValue":"centre section"},{"name":"Weight [kg]","normalizedName":"","value":"102","formattedValue":"102"}]}

Item no.: 859842 49

Gura – Flexible skate wheel conveyor, track length 1700 – 6300 mm (extendable), track width 600 mm, steel skate wheels

2 Week delivery

{"articleNo":"859842","name":"Gura – Flexible skate wheel conveyor track length 1700 – 6300 mm (extendable)","baseProduct":"M91394","productUrl":"/p/M91394/","imageUrl":"/Conveying_equipment/Roller_conveyors/Flexible_skate_wheel_conveyor_pdpsmall--00000365_kk.jpg"}

Item properties:

Track width: 600 mm Width of goods conveyed: 200 – 900 mm Skate wheel design: steel Skate wheels per axle: 6 pcs. Fittings: centre section Weight: 137 kg

{"features":[{"name":"Track width [mm]","normalizedName":"","value":"600","formattedValue":"600"},{"name":"Width of goods conveyed [mm]","normalizedName":"","value":"200 – 900","formattedValue":"200 – 900"},{"name":"Skate wheel design","normalizedName":"","value":"steel","formattedValue":"steel"},{"name":"Skate wheels per axle [pcs.]","normalizedName":"","value":"6","formattedValue":"6"},{"name":"Fittings","normalizedName":"","value":"centre section","formattedValue":"centre section"},{"name":"Weight [kg]","normalizedName":"","value":"137","formattedValue":"137"}]}

Item no.: 859966 49

Gura – Flexible skate wheel conveyor, track length 1700 – 6300 mm (extendable), track width 600 mm, plastic skate wheels

2 Week delivery

{"articleNo":"859966","name":"Gura – Flexible skate wheel conveyor track length 1700 – 6300 mm (extendable)","baseProduct":"M91394","productUrl":"/p/M91394/","imageUrl":"/Conveying_equipment/Roller_conveyors/Flexible_skate_wheel_conveyor_pdpsmall--00000365_kk.jpg"}

Item properties:

Track width: 600 mm Width of goods conveyed: 200 – 900 mm Skate wheel design: plastic Skate wheels per axle: 6 pcs. Fittings: centre section Weight: 122 kg

{"features":[{"name":"Track width [mm]","normalizedName":"","value":"600","formattedValue":"600"},{"name":"Width of goods conveyed [mm]","normalizedName":"","value":"200 – 900","formattedValue":"200 – 900"},{"name":"Skate wheel design","normalizedName":"","value":"plastic","formattedValue":"plastic"},{"name":"Skate wheels per axle [pcs.]","normalizedName":"","value":"6","formattedValue":"6"},{"name":"Fittings","normalizedName":"","value":"centre section","formattedValue":"centre section"},{"name":"Weight [kg]","normalizedName":"","value":"122","formattedValue":"122"}]}
