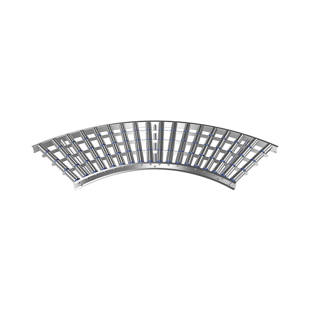

Gura – Light duty roller conveyor, aluminium frame with aluminium rollers

track width 600 mm, 90° curve

Optimises the material flow in the company
Modular system, making it individually adjustable
A very low empty weight makes it suitable for flexible use

This lightweight roller conveyor from GURA improves the material flow within a company quickly and easily. The versatile modular system allows individual adjustment to suit your requirements.

Sturdy side profiles made of aluminium with 20 x 60 x 20 mm. Ball bearing mounted aluminium rollers, Ø 50 mm or sprung axle with Ø 8 mm.

Designing your conveyor:

– Assemble required conveyor length from individual sections. Determine required number of straight and curved sections.

– Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported.

– With 75 mm axle spacing the effective length for 1 m = 975 mm, for 2 m = 1950 mm.

– Use our individual CAD planning service for comprehensive complete planning.

Supplied without dual stands and side guide rails.

Alternative versions, 45° curves and passages available on request.

Quality advantages

Gura – Light duty roller conveyor, aluminium frame with aluminium rollers, track width 600 mm, 90° curve

Price / item (Ex. VAT)

from £515.00

Order quantity:

{"articleNo":"M75978","name":"Gura – Light duty roller conveyor, aluminium frame with aluminium rollers track width 600 mm, 90° curve","baseProduct":"","productUrl":"/p/M75978/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_aluminium_rollers_pdpsmall--000056296871_PRD_org_all.jpg"}

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 903603 49

Gura – Light duty roller conveyor, aluminium frame with aluminium rollers, track width 600 mm, 90° curve, inner radius 800 mm, axle spacing 75 mm

2 Week delivery

{"articleNo":"903603","name":"Gura – Light duty roller conveyor, aluminium frame with aluminium rollers track width 600 mm, 90° curve","baseProduct":"M75978","productUrl":"/p/M75978/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_aluminium_rollers_pdpsmall--000056295762_PRD_org_all.jpg"}

Item properties:

Axle spacing: 75 mm Length of goods conveyed: 225 – 1000 mm Weight: 28 kg

{"features":[{"name":"Axle spacing [mm]","normalizedName":"","value":"75","formattedValue":"75"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"225 – 1000","formattedValue":"225 – 1000"},{"name":"Weight [kg]","normalizedName":"","value":"28","formattedValue":"28"}]}

Item no.: 903826 49

Gura – Light duty roller conveyor, aluminium frame with aluminium rollers, track width 600 mm, 90° curve, inner radius 800 mm, axle spacing 100 mm

2 Week delivery

{"articleNo":"903826","name":"Gura – Light duty roller conveyor, aluminium frame with aluminium rollers track width 600 mm, 90° curve","baseProduct":"M75978","productUrl":"/p/M75978/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_aluminium_rollers_pdpsmall--000056296871_PRD_org_all.jpg"}

Item properties:

Axle spacing: 100 mm Length of goods conveyed: 300 – 1000 mm Weight: 23 kg

{"features":[{"name":"Axle spacing [mm]","normalizedName":"","value":"100","formattedValue":"100"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"300 – 1000","formattedValue":"300 – 1000"},{"name":"Weight [kg]","normalizedName":"","value":"23","formattedValue":"23"}]}

Technical data

Design of frame	aluminium
Track width	600 mm
Overall height	70 mm
Overall width	640 mm
Roller diameter	50 mm
Roller material	aluminium
Width of goods conveyed	750 mm
Max. load with 1 m frame support spacing	200 kg
Installation length	603 mm
Tube length	593 mm
Curve	90 °
Radius of curve	800 mm
Supplied	assembled
