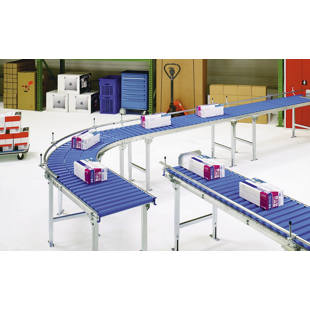

Light duty roller conveyor, aluminium frame with plastic rollers Gura – Light duty roller conveyor, aluminium frame with plastic rollers
Light duty roller conveyor, aluminium frame with plastic rollers Gura – Light duty roller conveyor, aluminium frame with plastic rollers
Light duty roller conveyor, aluminium frame with plastic rollers Gura – Light duty roller conveyor, aluminium frame with plastic rollers
Light duty roller conveyor, aluminium frame with plastic rollers Gura – Light duty roller conveyor, aluminium frame with plastic rollers
Light duty roller conveyor, aluminium frame with plastic rollers Gura – Light duty roller conveyor, aluminium frame with plastic rollers
Light duty roller conveyor, aluminium frame with plastic rollers Gura – Light duty roller conveyor, aluminium frame with plastic rollers
More of Gura | Other Gura Roller conveyors

Gura – Light duty roller conveyor, aluminium frame with plastic rollers

track width 500 mm

Gura
  • Optimises the material flow in the company
  • Modular system, making it individually adjustable
  • A very low empty weight makes it suitable for flexible use
This lightweight roller conveyor from GURA improves the material flow within a company quickly and easily. The versatile modular system allows individual adjustment to suit your requirements.

Sturdy side profiles made of aluminium with 20 x 60 x 20 mm. Ball bearing mounted plastic rollers, Ø 50 mm or sprung axle with Ø 8 mm.

Designing your conveyor:

– Assemble required conveyor length from individual sections. Determine required number of straight and curved sections.

– Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported.

– With 75 mm axle spacing the effective length for 1 m = 975 mm, for 2 m = 1950 mm.

– Use our individual CAD planning service for comprehensive complete planning.
Supplied without dual stands and side guide rails.
Alternative versions, 45° curves and passages available on request.
Quality advantages
CAD service Send us a dimensioned sketch of a room, indicating where windows, doors etc. are located, and select a series from the catalogue. Then we will provide you with a complete offer with a scale drawing, perspective drawing and a list of items.
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm
Price / item (Ex. VAT)
from £135.00
Order quantity:
{"articleNo":"M13192","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021131_kk.jpg"}
9 of 9 items correspond to your selection criteria:
  • View:
Item no. / Description of item Delivery time: Order quantity: Price / item
axle spacing 100 mm, length 1000 mm
Item no.:  903645 49
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 100 mm, length 1000 mm
 2 Week delivery
items
Ex. VAT £135.00
Add to the wish list Compare item
{"articleNo":"903645","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"M13192","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021136_kk.jpg"}
Item properties:
Length: 1,000 mm Axle spacing: 100 mm Length of goods conveyed: 300 – 1000 mm Model: straight 1 m Weight: 9 kg
{"features":[{"name":"Length [mm]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Axle spacing [mm]","normalizedName":"","value":"100","formattedValue":"100"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"300 – 1000","formattedValue":"300 – 1000"},{"name":"Model","normalizedName":"","value":"straight 1 m","formattedValue":"straight 1 m"},{"name":"Weight [kg]","normalizedName":"","value":"9","formattedValue":"9"}]}
axle spacing 100 mm, length 1500 mm
Item no.:  903646 49
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 100 mm, length 1500 mm
 2 Week delivery
items
Ex. VAT £185.00
Add to the wish list Compare item
{"articleNo":"903646","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"M13192","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021136_kk.jpg"}
Item properties:
Length: 1,500 mm Axle spacing: 100 mm Length of goods conveyed: 300 – 1000 mm Model: straight 1.5 m Weight: 13.5 kg
{"features":[{"name":"Length [mm]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Axle spacing [mm]","normalizedName":"","value":"100","formattedValue":"100"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"300 – 1000","formattedValue":"300 – 1000"},{"name":"Model","normalizedName":"","value":"straight 1.5 m","formattedValue":"straight 1.5 m"},{"name":"Weight [kg]","normalizedName":"","value":"13.5","formattedValue":"13.5"}]}
axle spacing 100 mm, length 2000 mm
Item no.:  903648 49
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 100 mm, length 2000 mm
 2 Week delivery
items
Ex. VAT £236.00
Add to the wish list Compare item
{"articleNo":"903648","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"M13192","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021136_kk.jpg"}
Item properties:
Length: 2,000 mm Axle spacing: 100 mm Length of goods conveyed: 300 – 1000 mm Model: straight 2 m Weight: 18 kg
{"features":[{"name":"Length [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Axle spacing [mm]","normalizedName":"","value":"100","formattedValue":"100"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"300 – 1000","formattedValue":"300 – 1000"},{"name":"Model","normalizedName":"","value":"straight 2 m","formattedValue":"straight 2 m"},{"name":"Weight [kg]","normalizedName":"","value":"18","formattedValue":"18"}]}
axle spacing 75 mm, length 1000 mm
Item no.:  903650 49
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 75 mm, length 1000 mm
 2 Week delivery
items
Ex. VAT £167.00
Add to the wish list Compare item
{"articleNo":"903650","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"M13192","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021136_kk.jpg"}
Item properties:
Length: 1,000 mm Axle spacing: 75 mm Length of goods conveyed: 225 – 1000 mm Model: straight 1 m Weight: 11 kg
{"features":[{"name":"Length [mm]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Axle spacing [mm]","normalizedName":"","value":"75","formattedValue":"75"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"225 – 1000","formattedValue":"225 – 1000"},{"name":"Model","normalizedName":"","value":"straight 1 m","formattedValue":"straight 1 m"},{"name":"Weight [kg]","normalizedName":"","value":"11","formattedValue":"11"}]}
axle spacing 75 mm, length 1500 mm
Item no.:  903651 49
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 75 mm, length 1500 mm
 2 Week delivery
items
Ex. VAT £223.00
Add to the wish list Compare item
{"articleNo":"903651","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"M13192","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021136_kk.jpg"}
Item properties:
Length: 1,500 mm Axle spacing: 75 mm Length of goods conveyed: 225 – 1000 mm Model: straight 1.5 m Weight: 16.5 kg
{"features":[{"name":"Length [mm]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Axle spacing [mm]","normalizedName":"","value":"75","formattedValue":"75"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"225 – 1000","formattedValue":"225 – 1000"},{"name":"Model","normalizedName":"","value":"straight 1.5 m","formattedValue":"straight 1.5 m"},{"name":"Weight [kg]","normalizedName":"","value":"16.5","formattedValue":"16.5"}]}
axle spacing 75 mm, length 2000 mm
Item no.:  903652 49
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 75 mm, length 2000 mm
 2 Week delivery
items
Ex. VAT £287.00
Add to the wish list Compare item
{"articleNo":"903652","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"M13192","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021136_kk.jpg"}
Item properties:
Length: 2,000 mm Axle spacing: 75 mm Length of goods conveyed: 225 – 1000 mm Model: straight 2 m Weight: 22 kg
{"features":[{"name":"Length [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Axle spacing [mm]","normalizedName":"","value":"75","formattedValue":"75"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"225 – 1000","formattedValue":"225 – 1000"},{"name":"Model","normalizedName":"","value":"straight 2 m","formattedValue":"straight 2 m"},{"name":"Weight [kg]","normalizedName":"","value":"22","formattedValue":"22"}]}
axle spacing 62.5 mm, length 1000 mm
Item no.:  903864 49
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 62.5 mm, length 1000 mm
 2 Week delivery
items
Ex. VAT £185.00
Add to the wish list Compare item
{"articleNo":"903864","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"M13192","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021136_kk.jpg"}
Item properties:
Length: 1,000 mm Axle spacing: 62.5 mm Length of goods conveyed: 189 – 1000 mm Model: straight 1 m Weight: 12 kg
{"features":[{"name":"Length [mm]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Axle spacing [mm]","normalizedName":"","value":"62.5","formattedValue":"62.5"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"189 – 1000","formattedValue":"189 – 1000"},{"name":"Model","normalizedName":"","value":"straight 1 m","formattedValue":"straight 1 m"},{"name":"Weight [kg]","normalizedName":"","value":"12","formattedValue":"12"}]}
axle spacing 62.5 mm, length 1500 mm
Item no.:  903865 49
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 62.5 mm, length 1500 mm
 2 Week delivery
items
Ex. VAT £249.00
Add to the wish list Compare item
{"articleNo":"903865","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"M13192","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021136_kk.jpg"}
Item properties:
Length: 1,500 mm Axle spacing: 62.5 mm Length of goods conveyed: 189 – 1000 mm Model: straight 1.5 m Weight: 18 kg
{"features":[{"name":"Length [mm]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Axle spacing [mm]","normalizedName":"","value":"62.5","formattedValue":"62.5"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"189 – 1000","formattedValue":"189 – 1000"},{"name":"Model","normalizedName":"","value":"straight 1.5 m","formattedValue":"straight 1.5 m"},{"name":"Weight [kg]","normalizedName":"","value":"18","formattedValue":"18"}]}
axle spacing 62.5 mm, length 2000 mm
Item no.:  903866 49
Gura – Light duty roller conveyor, aluminium frame with plastic rollers, track width 500 mm, axle spacing 62.5 mm, length 2000 mm
 2 Week delivery
items
Ex. VAT £335.00
Add to the wish list Compare item
{"articleNo":"903866","name":"Gura – Light duty roller conveyor, aluminium frame with plastic rollers track width 500 mm","baseProduct":"M13192","productUrl":"/p/M13192/","imageUrl":"/Conveying_equipment/Roller_conveyors/Light_duty_roller_conveyor_aluminium_frame_with_plastic_rollers_pdpsmall--00021136_kk.jpg"}
Item properties:
Length: 2,000 mm Axle spacing: 62.5 mm Length of goods conveyed: 189 – 1000 mm Model: straight 2 m Weight: 24 kg
{"features":[{"name":"Length [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Axle spacing [mm]","normalizedName":"","value":"62.5","formattedValue":"62.5"},{"name":"Length of goods conveyed [mm]","normalizedName":"","value":"189 – 1000","formattedValue":"189 – 1000"},{"name":"Model","normalizedName":"","value":"straight 2 m","formattedValue":"straight 2 m"},{"name":"Weight [kg]","normalizedName":"","value":"24","formattedValue":"24"}]}

Technical data

Design of frame aluminium
Track width 500 mm
Overall height 70 mm
Overall width 540 mm
Roller diameter 50 mm
Roller material plastic
Width of goods conveyed 600 mm
Max. load with 1 m frame support spacing 200 kg
Installation length 502 mm
Tube length 485 mm
Supplied assembled
