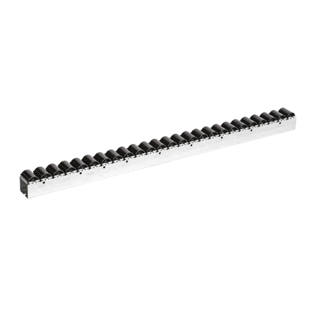

Heavy duty roller track with plastic cylindrical rollers

Heavy duty roller track with plastic cylindrical rollers

roller spacing 48 mm, Ø 46 mm

Closely spaced axles allow quiet running without problems
Very little noise produced due to plastic rollers
Robust and durable

Ideally suited to e.g. transporting pallets to the opposite side over a pitched flow-through bed.

Information on installation:
Horizontal or at a slight pitch. Directly on the floor, on tables, working platforms or in flow-through shelves.

The contact surface of the goods to be transported must be flat.

Heavy duty roller track with plastic cylindrical rollers, roller spacing 48 mm, Ø 46 mm

Price / item (Ex. VAT)

from £120.00

Order quantity:

{"articleNo":"M1532","name":"Heavy duty roller track with plastic cylindrical rollers roller spacing 48 mm, Ø 46 mm","baseProduct":"","productUrl":"/p/M1532/","imageUrl":"/Conveying_equipment/Roller_rails/Heavy_duty_roller_track_with_plastic_cylindrical_rollers_pdpsmall--000022925427_PRD_org_all.jpg"}

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 517518 49

Heavy duty roller track with plastic cylindrical rollers, roller spacing 48 mm, Ø 46 mm, length 2400 mm

5-7 Working days

{"articleNo":"517518","name":"Heavy duty roller track with plastic cylindrical rollers roller spacing 48 mm, Ø 46 mm","baseProduct":"M1532","productUrl":"/p/M1532/","imageUrl":"/Conveying_equipment/Roller_rails/Heavy_duty_roller_track_with_plastic_cylindrical_rollers_pdpsmall--00014560_kk.jpg"}

Item properties:

Length: 2,400 mm Weight: 14.26 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"2400","formattedValue":"2,400"},{"name":"Weight [kg]","normalizedName":"","value":"14.26","formattedValue":"14.26"}]}

Item no.: 614553 49

Heavy duty roller track with plastic cylindrical rollers, roller spacing 48 mm, Ø 46 mm, length 1200 mm

5-7 Working days

{"articleNo":"614553","name":"Heavy duty roller track with plastic cylindrical rollers roller spacing 48 mm, Ø 46 mm","baseProduct":"M1532","productUrl":"/p/M1532/","imageUrl":"/Conveying_equipment/Roller_rails/Heavy_duty_roller_track_with_plastic_cylindrical_rollers_pdpsmall--000022925427_PRD_org_all.jpg"}

Item properties:

Length: 1,200 mm Weight: 7.15 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"1200","formattedValue":"1,200"},{"name":"Weight [kg]","normalizedName":"","value":"7.15","formattedValue":"7.15"}]}

Technical data

Roller diameter	46 mm
Roller shape	cylinder
Roller bearing	plain bearing
Roller spacing	48 mm
Roller material	plastic
Max. load per roller	65 kg
Supplied	assembled
