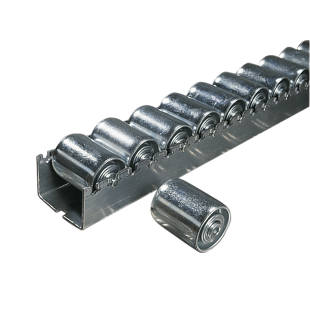

Heavy duty roller track with steel cylindrical rollers

Heavy duty roller track with steel cylindrical rollers

roller spacing 96 mm, Ø 45 mm

Closely spaced axles allow quiet running without problems
Ideally suited for heavy loads
Robust and durable

Ideally suited to e.g. transporting pallets to the opposite side over a pitched flow-through bed.

Information on installation:
Horizontal or at a slight pitch. Directly on the floor, on tables, working platforms or in flow-through shelves.

The contact surface of the goods to be transported must be flat.

Heavy duty roller track with steel cylindrical rollers, roller spacing 96 mm, Ø 45 mm

Price / item (Ex. VAT)

from £152.00

Order quantity:

{"articleNo":"M1478","name":"Heavy duty roller track with steel cylindrical rollers roller spacing 96 mm, Ø 45 mm","baseProduct":"","productUrl":"/p/M1478/","imageUrl":"/Conveying_equipment/Roller_rails/Heavy_duty_roller_track_with_steel_cylindrical_rollers_pdpsmall--AA00614559FF-G1.jpg"}

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 614561 49

Heavy duty roller track with steel cylindrical rollers, roller spacing 96 mm, Ø 45 mm, length 1200 mm

5-7 Working days

{"articleNo":"614561","name":"Heavy duty roller track with steel cylindrical rollers roller spacing 96 mm, Ø 45 mm","baseProduct":"M1478","productUrl":"/p/M1478/","imageUrl":"/Conveying_equipment/Roller_rails/Heavy_duty_roller_track_with_steel_cylindrical_rollers_pdpsmall--000022925572_PRD_org_all.jpg"}

Item properties:

Length: 1,200 mm Weight: 8.85 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"1200","formattedValue":"1,200"},{"name":"Weight [kg]","normalizedName":"","value":"8.85","formattedValue":"8.85"}]}

Item no.: 716119 49

Heavy duty roller track with steel cylindrical rollers, roller spacing 96 mm, Ø 45 mm, length 2400 mm

5-7 Working days

{"articleNo":"716119","name":"Heavy duty roller track with steel cylindrical rollers roller spacing 96 mm, Ø 45 mm","baseProduct":"M1478","productUrl":"/p/M1478/","imageUrl":"/Conveying_equipment/Roller_rails/Heavy_duty_roller_track_with_steel_cylindrical_rollers_pdpsmall--AA00614559FF-G1.jpg"}

Item properties:

Length: 2,400 mm Weight: 17.75 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"2400","formattedValue":"2,400"},{"name":"Weight [kg]","normalizedName":"","value":"17.75","formattedValue":"17.75"}]}

Technical data

Roller diameter	45 mm
Roller shape	cylinder
Roller bearing	ball bearing
Roller spacing	96 mm
Roller material	steel, zinc plated
Max. load per roller	130 kg
Supplied	assembled
