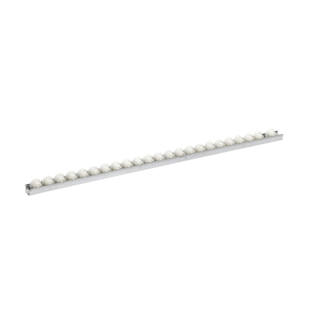

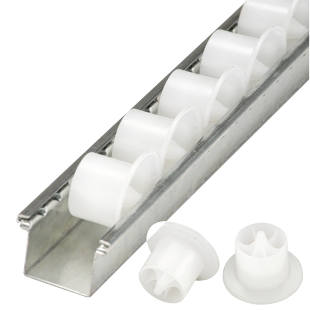

Roller track with plastic flanged rollers

Roller track with plastic flanged rollers

roller spacing 42 mm, Ø 26 mm

Closely spaced axles allow quiet running without problems
Very little noise produced due to plastic rollers
Robust and durable

Ideally suited to e.g. transporting packaged goods to the opposite side over a pitched flow-through bed.

Information on installation:
Horizontal or at a slight pitch. Directly on the floor, on tables, working platforms or in flow-through shelves.

The contact surface of the goods to be transported must be flat.

Roller track with plastic flanged rollers, roller spacing 42 mm, Ø 26 mm

Price / item (Ex. VAT)

from £12.50

Order quantity:

{"articleNo":"M1517","name":"Roller track with plastic flanged rollers roller spacing 42 mm, Ø 26 mm","baseProduct":"","productUrl":"/p/M1517/","imageUrl":"/Conveying_equipment/Roller_rails/Roller_track_with_plastic_flanged_rollers_pdpsmall--000022925426_PRD_org_all.jpg"}

Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 609204 49

Roller track with plastic flanged rollers, roller spacing 42 mm, Ø 26 mm, length 2000 mm

5-7 Working days

{"articleNo":"609204","name":"Roller track with plastic flanged rollers roller spacing 42 mm, Ø 26 mm","baseProduct":"M1517","productUrl":"/p/M1517/","imageUrl":"/Conveying_equipment/Roller_rails/Roller_track_with_plastic_flanged_rollers_pdpsmall--AA00614552FF-01.jpg"}

Item properties:

Length: 2,000 mm Weight: 1.41 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Weight [kg]","normalizedName":"","value":"1.41","formattedValue":"1.41"}]}

Item no.: 614552 49

Roller track with plastic flanged rollers, roller spacing 42 mm, Ø 26 mm, length 1000 mm

5-7 Working days

{"articleNo":"614552","name":"Roller track with plastic flanged rollers roller spacing 42 mm, Ø 26 mm","baseProduct":"M1517","productUrl":"/p/M1517/","imageUrl":"/Conveying_equipment/Roller_rails/Roller_track_with_plastic_flanged_rollers_pdpsmall--000022925426_PRD_org_all.jpg"}

Item properties:

Length: 1,000 mm Weight: 0.7 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Weight [kg]","normalizedName":"","value":"0.7","formattedValue":"0.7"}]}

Technical data

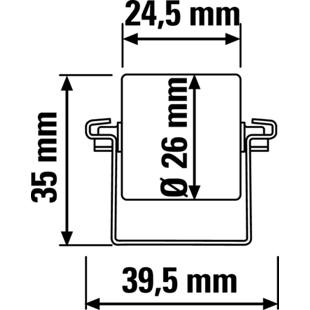

Roller diameter	26 mm
Roller shape	wheel flange
Roller bearing	sturdy axles
Roller spacing	42 mm
Roller material	plastic
Max. load per roller	4 kg

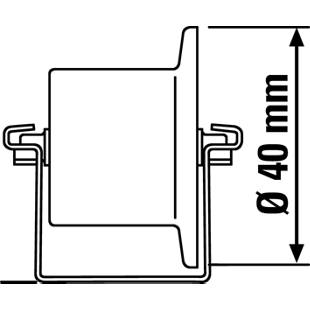

Flange diameter	40 mm
Supplied	assembled
