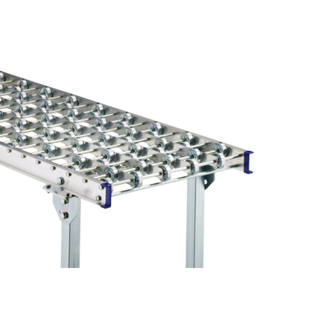

Gura – Light duty skate wheel conveyor, aluminium frame with zinc plated steel ...

track width 500 mm, distance between axles 50 mm

Optimises the material flow in the company
Modular system, making it individually adjustable
A very low empty weight makes it suitable for flexible use

This lightweight skate wheel conveyor from GURA improves the material flow within a company quickly and easily. The versatile modular system allows individual adjustment to suit your requirements.

Sturdy profiles with 20 x 60 x 20 mm. Skate wheels with ball bearings, Ø 48 mm. Staggered layout of skate wheels from axle to axle with constant number per axle. The underside of the goods being moved must be flat, smooth and firm to guarantee the material flow.

Designing your conveyor:
– Assemble required conveyor length from individual sections. Determine required number of straight and curved sections.
– Determine track width according to largest dimension of goods to be transported and axle spacing of the rollers according to smallest dimension of goods to be transported.
– With 75 mm axle spacing the effective length for 1 m = 975 mm, for 2 m = 1950 mm.

Use our individual CAD planning service for comprehensive complete planning.

Alternative versions, curves with 45° and passages available on request.

Quality advantages

Gura – Light duty skate wheel conveyor, aluminium frame with zinc plated steel ..., track width 500 mm, distance between axles 50 mm

Price / item (Ex. VAT)

from £232.00

Order quantity:

{"articleNo":"M10416","name":"Gura – Light duty skate wheel conveyor, aluminium frame with zinc plated steel ... track width 500 mm, distance between axles 50 mm","baseProduct":"","productUrl":"/p/M10416/","imageUrl":"/Conveying_equipment/Skate_wheel_conveyors/Light_duty_skate_wheel_conveyor_aluminium_frame_with_zinc_plated_steel_skate_wheels_pdpsmall--00021095_kk.jpg"}

3 of 3 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 903486 49

Gura – Light duty skate wheel conveyor, aluminium frame with zinc plated steel ..., track width 500 mm, distance between axles 50 mm, length 1 m

2 Week delivery

{"articleNo":"903486","name":"Gura – Light duty skate wheel conveyor, aluminium frame with zinc plated steel ... track width 500 mm, distance between axles 50 mm","baseProduct":"M10416","productUrl":"/p/M10416/","imageUrl":"/Conveying_equipment/Skate_wheel_conveyors/Light_duty_skate_wheel_conveyor_aluminium_frame_with_zinc_plated_steel_skate_wheels_pdpsmall--00021095_kk.jpg"}

Item properties:

Length: 1 m Model: straight 1 m Weight: 15 kg

{"features":[{"name":"Length [m]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Model","normalizedName":"","value":"straight 1 m","formattedValue":"straight 1 m"},{"name":"Weight [kg]","normalizedName":"","value":"15","formattedValue":"15"}]}

Item no.: 903487 49

Gura – Light duty skate wheel conveyor, aluminium frame with zinc plated steel ..., track width 500 mm, distance between axles 50 mm, length 1.5 m

2 Week delivery

{"articleNo":"903487","name":"Gura – Light duty skate wheel conveyor, aluminium frame with zinc plated steel ... track width 500 mm, distance between axles 50 mm","baseProduct":"M10416","productUrl":"/p/M10416/","imageUrl":"/Conveying_equipment/Skate_wheel_conveyors/Light_duty_skate_wheel_conveyor_aluminium_frame_with_zinc_plated_steel_skate_wheels_pdpsmall--00021095_kk.jpg"}

Item properties:

Length: 1.5 m Model: straight 1.5 m Weight: 22.5 kg

{"features":[{"name":"Length [m]","normalizedName":"","value":"1.5","formattedValue":"1.5"},{"name":"Model","normalizedName":"","value":"straight 1.5 m","formattedValue":"straight 1.5 m"},{"name":"Weight [kg]","normalizedName":"","value":"22.5","formattedValue":"22.5"}]}

Item no.: 903488 49

Gura – Light duty skate wheel conveyor, aluminium frame with zinc plated steel ..., track width 500 mm, distance between axles 50 mm, length 2 m

2 Week delivery

{"articleNo":"903488","name":"Gura – Light duty skate wheel conveyor, aluminium frame with zinc plated steel ... track width 500 mm, distance between axles 50 mm","baseProduct":"M10416","productUrl":"/p/M10416/","imageUrl":"/Conveying_equipment/Skate_wheel_conveyors/Light_duty_skate_wheel_conveyor_aluminium_frame_with_zinc_plated_steel_skate_wheels_pdpsmall--00021095_kk.jpg"}

Item properties:

Length: 2 m Model: straight 2 m Weight: 30 kg

{"features":[{"name":"Length [m]","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Model","normalizedName":"","value":"straight 2 m","formattedValue":"straight 2 m"},{"name":"Weight [kg]","normalizedName":"","value":"30","formattedValue":"30"}]}

Technical data

Track width	500 mm
Design of frame	aluminium
Skate wheel material	steel, zinc plated
Max. load	200 kg
Axle spacing	50 mm
Overall height	69 mm
Width of goods conveyed	150 – 600 mm
Length of goods conveyed	150 – 1000 mm
Skate wheel arrangement	5 : 5
Overall width	540 mm
Supplied	assembled
