Hazardous goods storage cupboard, type 90 2 doors

  • Approval for storage of flammable liquids at the workplace in compliance with EN 14470-1 (type 90) and TRGS 510, Annex 3
  • Type approved as fireproof for >90 minutes, GS tested
  • Insulated in accordance with DIN 4102
  • Doors close automatically in the event of fire
  • Supplied complete with perforated metal cover for the base sump
  • Operation in accordance with TRGS 510 (also approved without extraction – the explosion protected area around the cupboard must be complied with)
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
For toxic liquids
For toxic liquids

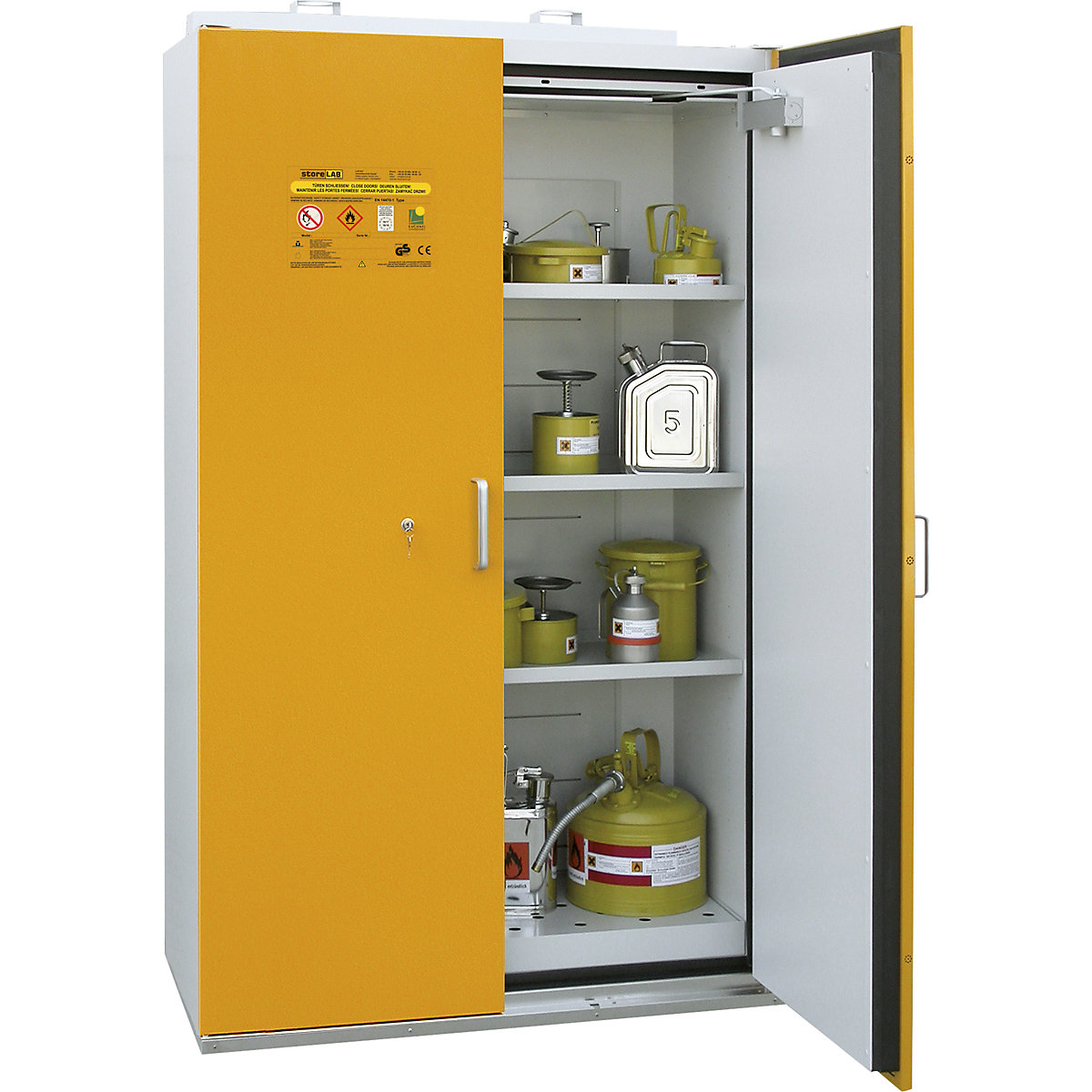

Hazardous goods storage cupboard, type 90, 2 doors, HxWxD 1935 x 900 x 598 mm
Price / items (net)
from
£2,995.00

Product description
Sheet steel body, powder coated in light grey RAL 7035, hinged doors in daffodil yellow RAL 1007.
Inner body made of HPL coated panels – RAL 7035.

Base cover rail made of stainless steel – stainless steel diamond.
Ventilation connected using DN 80 pipe sockets.
Adjustable feet for levelling on uneven surfaces.
Earth connection compliant with TRBS 2153 (Avoidance of ignition sources).
Identification in accordance with EN 14470-1 / TRGS 510, Annex 3 / ISO 3864 / ASR A1.3.

Interior fittings:
1 x base sump in acc. with StawaR / manufacturer's declaration of conformity
1 x perforated metal cover as 1st storage level
3 x shelves height adjustable in increments of 64 mm

Delivered to the point of use at extra cost – please ask.

All specified max. loads apply with uniform load distribution.

Doors can be locked with cylinder lock.
  • Approval for storage of flammable liquids at the workplace in compliance with EN 14470-1 (type 90) and TRGS 510, Annex 3
  • Type approved as fireproof for >90 minutes, GS tested
  • Insulated in accordance with DIN 4102
  • Doors close automatically in the event of fire
  • Supplied complete with perforated metal cover for the base sump
  • Operation in accordance with TRGS 510 (also approved without extraction – the explosion protected area around the cupboard must be complied with)
Tested safety
This is a test mark. GS stands for tested safety.
Tested safety. This is a test mark. GS stands for tested safety.
For toxic liquids
For toxic liquids
Type 90 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 90 minutes, fire chamber tested and certified. Complies with EN 144701-1.
Type 90 hazardous goods storage cupboards for the storage of flammable liquids. Proven protection against fire for 90 minutes, fire chamber tested and certified. Complies with EN 144701-1.
For water hazardous liquids
For water hazardous liquids
For flammable liquids
For flammable liquids
Technical data
Fire resistance90 minutes
External height1935 mm
External depth598 mm
Internal height1700 mm
Internal depth430 mm
Materialsheet steel
Body colourlight grey RAL 7035
Door colourdaffodil yellow RAL 1007
Door typehinged door
Door version2 doors
Lock typecylinder lock
Number of doors2 pcs.
Number of shelves3 pcs.
Shelf materialsheet steel
Max. shelf load75 kg
Shelf height adjustment increments64 mm
Number of sump trays1 pcs.
Suppliedassembled
