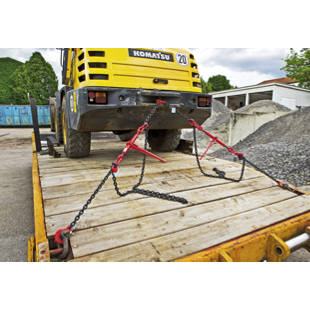

Restraint chain system

two-part

Quality class 8
Manufactured in accordance with EN-12195-3
Shortening hooks with a safety latch
Ratchet tensioner with quick release mechanism

Restraint chains with verifiable chain number with a corresponding record card. German professional accident prevention label.

On request
All restraint chain systems are also available in quality class 10. Tensioning force up to 25 % greater than quality class 8.
In many cases this enables transition to smaller chain dimensions.

Surcharge item

You can edit the quantity of these additional items in the shopping cart Restraint chain
link thickness 10 mm

Ex. VAT £19.00
£ / m 19.00

More information
You can edit the quantity of these additional items in the shopping cart Restraint chain
link thickness 13 mm

Ex. VAT £33.00
£ / m 33.00

More information
You can edit the quantity of these additional items in the shopping cart Restraint chain
link thickness 6 mm

Ex. VAT £11.00
£ / m 11.00

More information
You can edit the quantity of these additional items in the shopping cart Restraint chain
link thickness 8 mm

Ex. VAT £14.50
£ / m 14.50

More information

Display more

Restraint chain system, two-part

Price / item (Ex. VAT)

from £84.00

from£ / m 84.00

Order quantity:

{"articleNo":"M1036124","name":"Restraint chain system two-part","baseProduct":"","productUrl":"/p/M1036124/","imageUrl":"/Hoists_Restraints_Hoist_slings/Lifting_chains/Restraint_chain_system_pdpsmall--000023657464_PRD_org_all.jpg"}

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

4 of 4 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 968863 49

Restraint chain system, two-part, link thickness 6 mm

4 Week delivery

{"articleNo":"968863","name":"Restraint chain system two-part","baseProduct":"M1036124","productUrl":"/p/M1036124/","imageUrl":"/Hoists_Restraints_Hoist_slings/Lifting_chains/Restraint_chain_system_pdpsmall--000023657464_PRD_org_all.jpg"}

Item properties:

Length: 1,000 mm Chain thickness: 6 mm Pretensioning force: 550 daN Tensile force: 2,200 daN Weight: 3.48 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Chain thickness [mm]","normalizedName":"","value":"6","formattedValue":"6"},{"name":"Pretensioning force [daN]","normalizedName":"","value":"550","formattedValue":"550"},{"name":"Tensile force [daN]","normalizedName":"","value":"2200","formattedValue":"2,200"},{"name":"Weight [kg]","normalizedName":"","value":"3.48","formattedValue":"3.48"}]}

Item no.: 968864 49

Restraint chain system, two-part, link thickness 8 mm

4 Week delivery

{"articleNo":"968864","name":"Restraint chain system two-part","baseProduct":"M1036124","productUrl":"/p/M1036124/","imageUrl":"/Hoists_Restraints_Hoist_slings/Lifting_chains/Restraint_chain_system_pdpsmall--000023657464_PRD_org_all.jpg"}

Item properties:

Length: 1,000 mm Chain thickness: 8 mm Pretensioning force: 1,000 daN Tensile force: 4,000 daN Weight: 7.41 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Chain thickness [mm]","normalizedName":"","value":"8","formattedValue":"8"},{"name":"Pretensioning force [daN]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Tensile force [daN]","normalizedName":"","value":"4000","formattedValue":"4,000"},{"name":"Weight [kg]","normalizedName":"","value":"7.41","formattedValue":"7.41"}]}

Item no.: 968865 49

Restraint chain system, two-part, link thickness 10 mm

4 Week delivery

{"articleNo":"968865","name":"Restraint chain system two-part","baseProduct":"M1036124","productUrl":"/p/M1036124/","imageUrl":"/Hoists_Restraints_Hoist_slings/Lifting_chains/Restraint_chain_system_pdpsmall--000023657464_PRD_org_all.jpg"}

Item properties:

Length: 1,000 mm Chain thickness: 10 mm Pretensioning force: 1,575 daN Tensile force: 6,300 daN Weight: 10.1 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Chain thickness [mm]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Pretensioning force [daN]","normalizedName":"","value":"1575","formattedValue":"1,575"},{"name":"Tensile force [daN]","normalizedName":"","value":"6300","formattedValue":"6,300"},{"name":"Weight [kg]","normalizedName":"","value":"10.1","formattedValue":"10.1"}]}

Item no.: 968866 49

Restraint chain system, two-part, link thickness 13 mm

4 Week delivery

{"articleNo":"968866","name":"Restraint chain system two-part","baseProduct":"M1036124","productUrl":"/p/M1036124/","imageUrl":"/Hoists_Restraints_Hoist_slings/Lifting_chains/Restraint_chain_system_pdpsmall--000023657464_PRD_org_all.jpg"}

Item properties:

Length: 2,000 mm Chain thickness: 13 mm Pretensioning force: 1,500 daN Tensile force: 10,000 daN Weight: 15.49 kg

{"features":[{"name":"Length [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Chain thickness [mm]","normalizedName":"","value":"13","formattedValue":"13"},{"name":"Pretensioning force [daN]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Tensile force [daN]","normalizedName":"","value":"10000","formattedValue":"10,000"},{"name":"Weight [kg]","normalizedName":"","value":"15.49","formattedValue":"15.49"}]}

Technical data

Material	steel
Model	2-piece
Supplied	assembled
