TR30 cable pull with pendant control

  • Low weight
  • Fast installation
  • High quality workmanship
Ref.: 548230 49
TR30 cable pull, with pendant control, voltage 230 V
Bulk discount of up to 4.71%
QuantityPrice/PackYou save
1
£4,250.00
-
2
£4,050.00
4.71 %
Quantity discount from 2
Price / items (Plus VAT)
£4,250.00

Product description

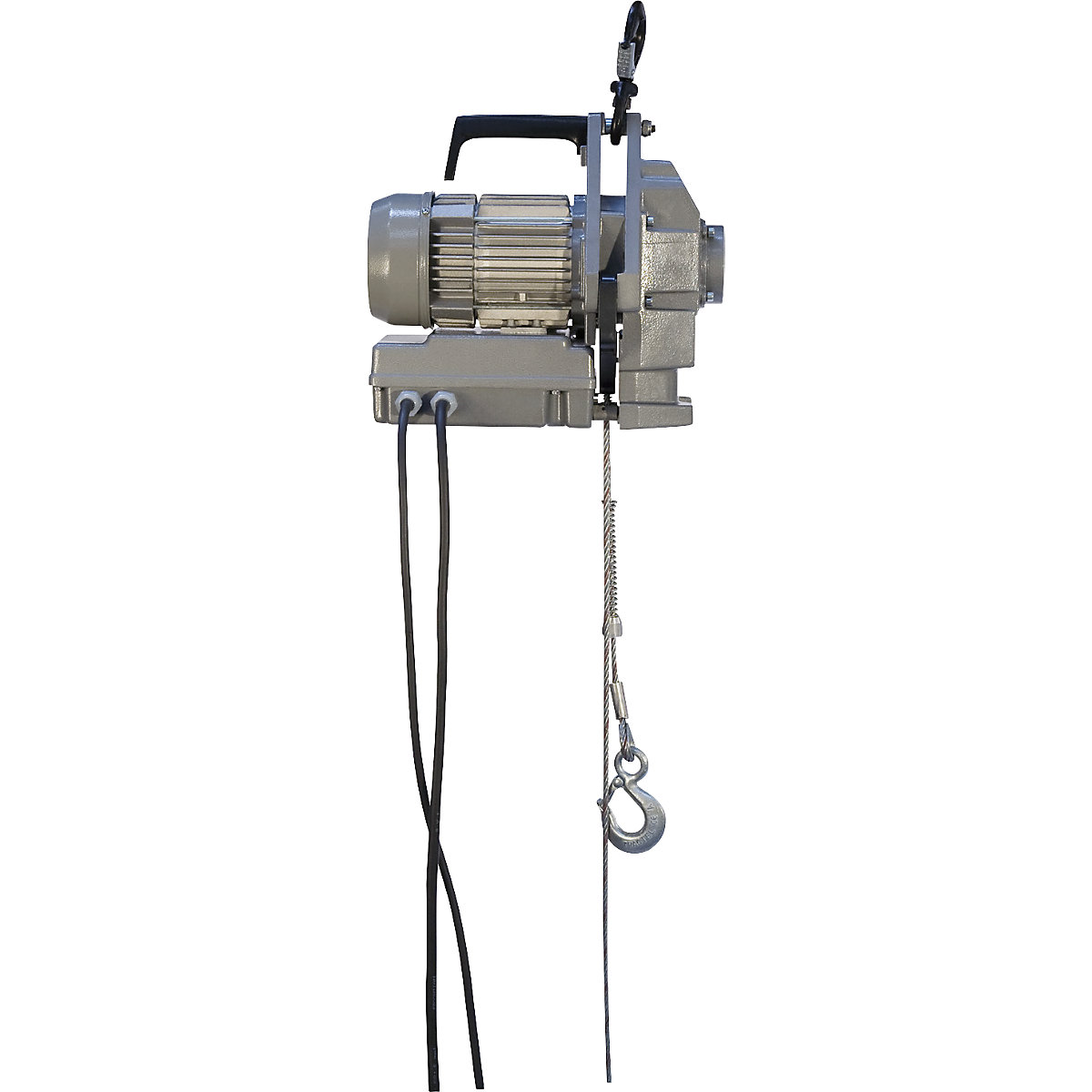

The Minifor™ is a portable cable pull with an electric motor for lifting and pulling loads with an unlimited wire rope length, and which features a self-braking drive system that allows a hoisting cable of any length to be used. It is suitable for use in many different configuration options.

A pendant control is used for operation (cable length 2.5 m).
Wire rope not included in the delivery.
  • Low weight
  • Fast installation
  • High quality workmanship
Technical data
Max. load300 kg
Wire rope speed5 m/min
Voltage230 V
Power0,37 kW
Cable length2.5 m
Weight31 kg
Protection typeIP55
Suppliedassembled
