HAZET – MINI TWIN turbo extra short impact wrench max. operating pressure 6.3 bar

  • Exhaust air is guided downwards through the handle
  • Low vibration and easy operation
  • Innovative 8-blade air motor with 25% higher impact performance ensures maximum torques
HAZET
New
Ref.: 570555 49

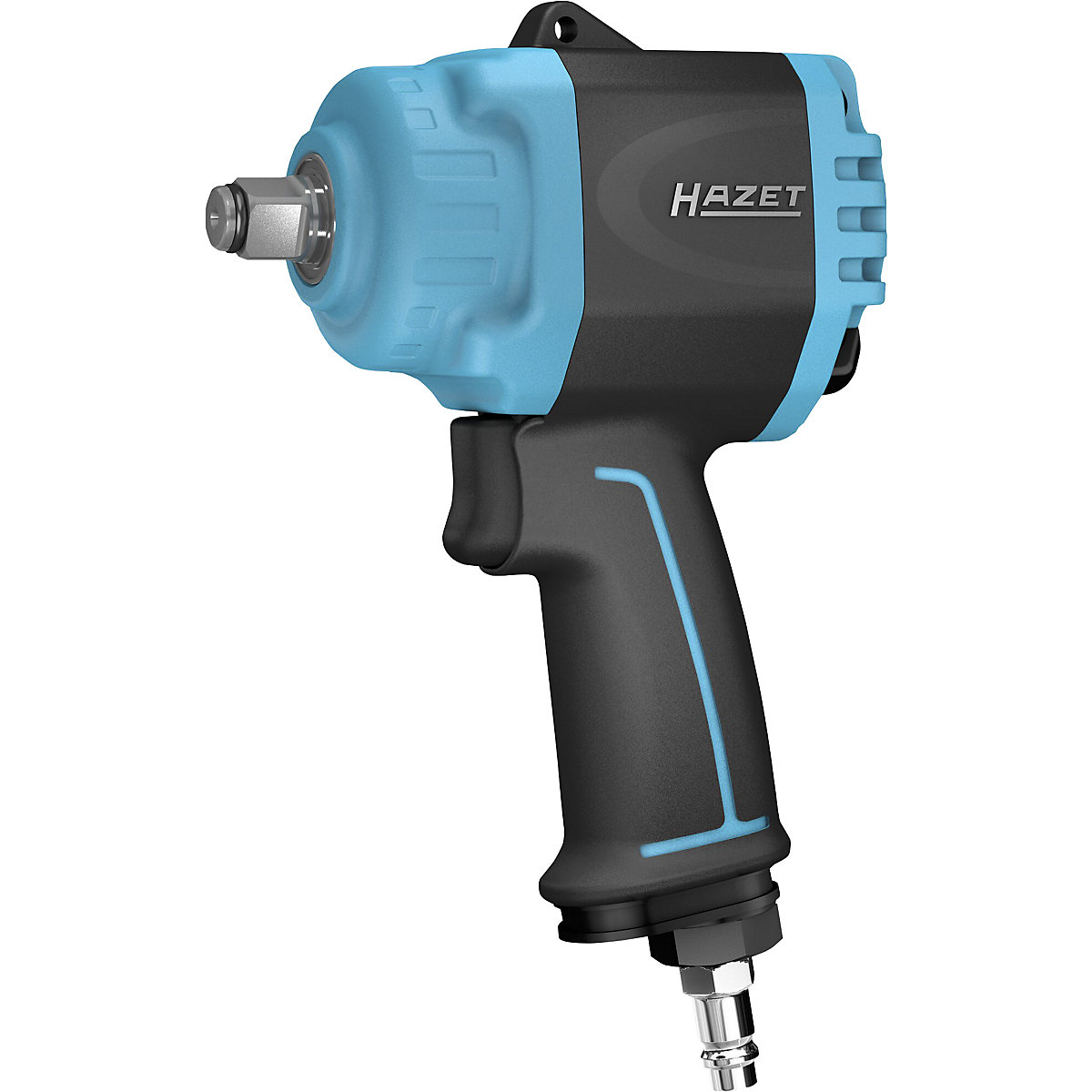

HAZET – MINI TWIN turbo extra short impact wrench, max. operating pressure 6.3 bar, max. release torque 1600 Nm
Price / items (net)
£289.00

Product description
Long service life and high efficiency in industrial and automotive applications. Compact design optimised for work in confined spaces.

Air connection inlet: inside thread 12.91 mm (1/4'')
Coupler plug: nominal width 7.2 (included)
Sound power level (at operating pressure): 103.5 dB(A) Lp W
Vibration acceleration: 8.39 m/s²
Release torque (max) determined with screw size M16
Forward and reverse: two-stage (clockwise), single-stage (anti-clockwise)
  • Exhaust air is guided downwards through the handle
  • Low vibration and easy operation
  • Innovative 8-blade air motor with 25% higher impact performance ensures maximum torques
Technical data
Modeltwo-level (clockwise), one-level (anti-clockwise)
Max. operating pressure6.3 bar
Recommended torque542 N·m
Handlehandle insulated against cold
Air consumption133.1 l/min
Max. release torque1600 N·m
Noise level92.5 dB(A)
Sound power level103.5 dB(A)
Weight1.64 kg
Suppliedassembled
