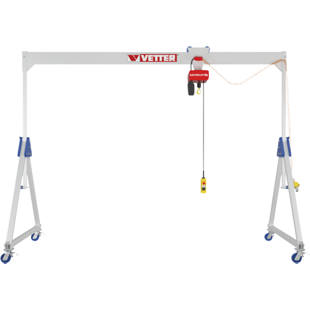

Vetter – ALU1 aluminium gantry crane

with electric chain hoist

Height adjustable, also mobile when loaded
Easy plug in assembly, ideal for changing locations
Low empty weight due to aluminium profile

This mobile gantry crane is used exactly where you currently need it. It is quick to set up and disassemble, and can work with heavy loads without problems – this makes it particularly suitable for mobile use.
Assembly is just as easy as using it, and requires no drilling and no tools: all parts are produced with plug connections. Due to these characteristics, it is especially suitable for assembly purposes.

This model is equipped with an electric chain hoist. Suitable for indoor operation (outdoor equipment upon request). Includes electrical system (CEE plug/switch combination, and spiral cable routed up to the hoist).

Vetter – ALU1 aluminium gantry crane, with electric chain hoist

Price / item (Ex. VAT)

from £7,392.00

Order quantity:

{"articleNo":"M1000818","name":"Vetter – ALU1 aluminium gantry crane with electric chain hoist","baseProduct":"","productUrl":"/p/M1000818/","imageUrl":"/Stackers_lifting_equipment/Cranes/ALU1_aluminium_gantry_crane_pdpsmall--000059207038_PRD_f_all.jpg"}

Versions Versions
Combinations Combinations
Accessories / spare parts Accessories / spare parts
Technical data
Select item

6 of 6 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 968997 49

Vetter – ALU1 aluminium gantry crane, with electric chain hoist, max. load 500 kg, suspension height 2170 – 3020 mm

Over 4 weeks

{"articleNo":"968997","name":"Vetter – ALU1 aluminium gantry crane with electric chain hoist","baseProduct":"M1000818","productUrl":"/p/M1000818/","imageUrl":"/Stackers_lifting_equipment/Cranes/ALU1_aluminium_gantry_crane_pdpsmall--000059207038_PRD_f_all.jpg"}

Item properties:

Max. load: 500 kg Suspension height from – to: 2170 – 3020 mm Overall height from – to: 2550 – 3400 mm Side support width: 2,000 mm Max. lifting height: 2,642 mm Main lift: 4.5 m/min Precise lift: 1.1 m/min Weight: 203 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Suspension height from – to [mm]","normalizedName":"","value":"2170 – 3020","formattedValue":"2170 – 3020"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"2550 – 3400","formattedValue":"2550 – 3400"},{"name":"Side support width [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Max. lifting height [mm]","normalizedName":"","value":"2642","formattedValue":"2,642"},{"name":"Main lift [m/min]","normalizedName":"","value":"4.5","formattedValue":"4.5"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1.1","formattedValue":"1.1"},{"name":"Weight [kg]","normalizedName":"","value":"203","formattedValue":"203"}]}

Item no.: 968998 49

Vetter – ALU1 aluminium gantry crane, with electric chain hoist, max. load 500 kg, suspension height 2500 – 3800 mm

Over 4 weeks

{"articleNo":"968998","name":"Vetter – ALU1 aluminium gantry crane with electric chain hoist","baseProduct":"M1000818","productUrl":"/p/M1000818/","imageUrl":"/Stackers_lifting_equipment/Cranes/ALU1_aluminium_gantry_crane_pdpsmall--000059207038_PRD_f_all.jpg"}

Item properties:

Max. load: 500 kg Suspension height from – to: 2500 – 3800 mm Overall height from – to: 2880 – 4180 mm Side support width: 2,320 mm Max. lifting height: 3,422 mm Main lift: 4.5 m/min Precise lift: 1.1 m/min Weight: 218 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Suspension height from – to [mm]","normalizedName":"","value":"2500 – 3800","formattedValue":"2500 – 3800"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"2880 – 4180","formattedValue":"2880 – 4180"},{"name":"Side support width [mm]","normalizedName":"","value":"2320","formattedValue":"2,320"},{"name":"Max. lifting height [mm]","normalizedName":"","value":"3422","formattedValue":"3,422"},{"name":"Main lift [m/min]","normalizedName":"","value":"4.5","formattedValue":"4.5"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1.1","formattedValue":"1.1"},{"name":"Weight [kg]","normalizedName":"","value":"218","formattedValue":"218"}]}

Item no.: 968999 49

Vetter – ALU1 aluminium gantry crane, with electric chain hoist, max. load 1000 kg, suspension height 2170 – 3020 mm

Over 4 weeks

{"articleNo":"968999","name":"Vetter – ALU1 aluminium gantry crane with electric chain hoist","baseProduct":"M1000818","productUrl":"/p/M1000818/","imageUrl":"/Stackers_lifting_equipment/Cranes/ALU1_aluminium_gantry_crane_pdpsmall--000059207038_PRD_f_all.jpg"}

Item properties:

Max. load: 1,000 kg Suspension height from – to: 2170 – 3020 mm Overall height from – to: 2550 – 3400 mm Side support width: 2,000 mm Max. lifting height: 2,548 mm Main lift: 4 m/min Precise lift: 1 m/min Weight: 229 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Suspension height from – to [mm]","normalizedName":"","value":"2170 – 3020","formattedValue":"2170 – 3020"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"2550 – 3400","formattedValue":"2550 – 3400"},{"name":"Side support width [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Max. lifting height [mm]","normalizedName":"","value":"2548","formattedValue":"2,548"},{"name":"Main lift [m/min]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Weight [kg]","normalizedName":"","value":"229","formattedValue":"229"}]}

Item no.: 969000 49

Vetter – ALU1 aluminium gantry crane, with electric chain hoist, max. load 1000 kg, suspension height 2500 – 3800 mm

Over 4 weeks

{"articleNo":"969000","name":"Vetter – ALU1 aluminium gantry crane with electric chain hoist","baseProduct":"M1000818","productUrl":"/p/M1000818/","imageUrl":"/Stackers_lifting_equipment/Cranes/ALU1_aluminium_gantry_crane_pdpsmall--000059207038_PRD_f_all.jpg"}

Item properties:

Max. load: 1,000 kg Suspension height from – to: 2500 – 3800 mm Overall height from – to: 2880 – 4180 mm Side support width: 2,320 mm Max. lifting height: 3,328 mm Main lift: 4 m/min Precise lift: 1 m/min Weight: 244 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Suspension height from – to [mm]","normalizedName":"","value":"2500 – 3800","formattedValue":"2500 – 3800"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"2880 – 4180","formattedValue":"2880 – 4180"},{"name":"Side support width [mm]","normalizedName":"","value":"2320","formattedValue":"2,320"},{"name":"Max. lifting height [mm]","normalizedName":"","value":"3328","formattedValue":"3,328"},{"name":"Main lift [m/min]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Weight [kg]","normalizedName":"","value":"244","formattedValue":"244"}]}

Item no.: 969002 49

Vetter – ALU1 aluminium gantry crane, with electric chain hoist, max. load 1500 kg, suspension height 2170 – 3020 mm

Over 4 weeks

{"articleNo":"969002","name":"Vetter – ALU1 aluminium gantry crane with electric chain hoist","baseProduct":"M1000818","productUrl":"/p/M1000818/","imageUrl":"/Stackers_lifting_equipment/Cranes/ALU1_aluminium_gantry_crane_pdpsmall--000059207038_PRD_f_all.jpg"}

Item properties:

Max. load: 1,500 kg Suspension height from – to: 2170 – 3020 mm Overall height from – to: 2550 – 3400 mm Side support width: 2,000 mm Max. lifting height: 2,456 mm Main lift: 4 m/min Precise lift: 1 m/min Weight: 238 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Suspension height from – to [mm]","normalizedName":"","value":"2170 – 3020","formattedValue":"2170 – 3020"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"2550 – 3400","formattedValue":"2550 – 3400"},{"name":"Side support width [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Max. lifting height [mm]","normalizedName":"","value":"2456","formattedValue":"2,456"},{"name":"Main lift [m/min]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Weight [kg]","normalizedName":"","value":"238","formattedValue":"238"}]}

Item no.: 969003 49

Vetter – ALU1 aluminium gantry crane, with electric chain hoist, max. load 1500 kg, suspension height 2500 – 3800 mm

Over 4 weeks

{"articleNo":"969003","name":"Vetter – ALU1 aluminium gantry crane with electric chain hoist","baseProduct":"M1000818","productUrl":"/p/M1000818/","imageUrl":"/Stackers_lifting_equipment/Cranes/ALU1_aluminium_gantry_crane_pdpsmall--000059207038_PRD_f_all.jpg"}

Item properties:

Max. load: 1,500 kg Suspension height from – to: 2500 – 3800 mm Overall height from – to: 2880 – 4180 mm Side support width: 2,320 mm Max. lifting height: 3,236 mm Main lift: 4 m/min Precise lift: 1 m/min Weight: 254 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Suspension height from – to [mm]","normalizedName":"","value":"2500 – 3800","formattedValue":"2500 – 3800"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"2880 – 4180","formattedValue":"2880 – 4180"},{"name":"Side support width [mm]","normalizedName":"","value":"2320","formattedValue":"2,320"},{"name":"Max. lifting height [mm]","normalizedName":"","value":"3236","formattedValue":"3,236"},{"name":"Main lift [m/min]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Weight [kg]","normalizedName":"","value":"254","formattedValue":"254"}]}

Technical data

Design of mobile gantry crane	crane with electric chain hoist
Material	aluminium
Overall width	4,400 mm
Clear width	4,000 mm
Operating voltage	400 V / 50 Hz
Control voltage	48 V
Supplied	flat pack
