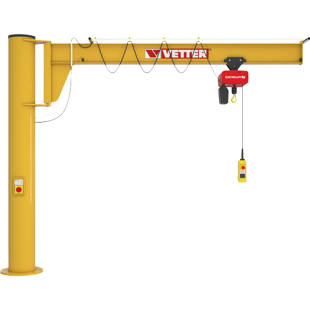

Vetter – ASSISTENT AS post mounted jib crane

Vetter – ASSISTENT AS post mounted jib crane

with electric chain hoist, max. load 250 kg

Compact design, ideally suited for low rooms
High quality workmanship, also suitable for outdoors
Flexible assembly fixtures with several versions

The versatile workplace crane is ideally suited for low and narrow workshop spaces with little space. Regardless of whether it is used in a hall or outdoors, the individual post height and the stabiliser length means it adapts perfectly to your needs. With a swivel range of 270°, it can quickly and easily move loads or machine components to the closest workplace.

Constructed according to EN directives and EU machine guidelines for light industrial use.

Included in delivery:
Standard electrical system with lockable mains cut-off switch and power supply to hoist. Cable holding bracket up to 3 m jib length, round trailing cable for min. jib length of 4 m. Dolly buffers on front and back. VAS2 securing anchor system. Detailed documentation is included in delivery.

VAS2 securing anchor system:
For direct mounting to B25 concrete floors, min. thickness 190 mm. Can be put into service immediately after assembly – no base casting required on even floor. Uneven flooring (up to 10 mm) compensated by underlay. Includes recessed plugs – no tripping hazard.

This model features an electric chain hoist with a manual drive dolly.

You couldn't find the right model? Other load capacities, reaches, overall heights, paint coats and mounting systems available on request.

Vetter – ASSISTENT AS post mounted jib crane, with electric chain hoist, max. load 250 kg

Price / item (Ex. VAT)

from £3,317.00

Order quantity:

{"articleNo":"M1079947","name":"Vetter – ASSISTENT AS post mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"","productUrl":"/p/M1079947/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AS_post_mounted_jib_crane_pdpsmall--000059205543_PRD_f_all.jpg"}

Versions Versions
Combinations Combinations
Alternatives Alternatives
Technical data
Select item

4 of 4 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 968970 49

Vetter – ASSISTENT AS post mounted jib crane, with electric chain hoist, max. load 250 kg, reach 3 m

Over 4 weeks

{"articleNo":"968970","name":"Vetter – ASSISTENT AS post mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"M1079947","productUrl":"/p/M1079947/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AS_post_mounted_jib_crane_pdpsmall--000059205543_PRD_f_all.jpg"}

Item properties:

Flange width: 91 mm Overall height: 2,790 mm Foundation dimensions: 1050 x 1050 mm Reach: 3,000 mm Weight: 294 kg

{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"91","formattedValue":"91"},{"name":"Overall height [mm]","normalizedName":"","value":"2790","formattedValue":"2,790"},{"name":"Foundation dimensions [mm]","normalizedName":"","value":"1050 x 1050","formattedValue":"1050 x 1050"},{"name":"Reach [mm]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Weight [kg]","normalizedName":"","value":"294","formattedValue":"294"}]}

Item no.: 968971 49

Vetter – ASSISTENT AS post mounted jib crane, with electric chain hoist, max. load 250 kg, reach 4 m

Over 4 weeks

{"articleNo":"968971","name":"Vetter – ASSISTENT AS post mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"M1079947","productUrl":"/p/M1079947/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AS_post_mounted_jib_crane_pdpsmall--000059205543_PRD_f_all.jpg"}

Item properties:

Flange width: 120 mm Overall height: 2,845 mm Foundation dimensions: 1250 x 1250 mm Reach: 4,000 mm Weight: 439 kg

{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Overall height [mm]","normalizedName":"","value":"2845","formattedValue":"2,845"},{"name":"Foundation dimensions [mm]","normalizedName":"","value":"1250 x 1250","formattedValue":"1250 x 1250"},{"name":"Reach [mm]","normalizedName":"","value":"4000","formattedValue":"4,000"},{"name":"Weight [kg]","normalizedName":"","value":"439","formattedValue":"439"}]}

Item no.: 968972 49

Vetter – ASSISTENT AS post mounted jib crane, with electric chain hoist, max. load 250 kg, reach 5 m

Over 4 weeks

{"articleNo":"968972","name":"Vetter – ASSISTENT AS post mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"M1079947","productUrl":"/p/M1079947/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AS_post_mounted_jib_crane_pdpsmall--000059205543_PRD_f_all.jpg"}

Item properties:

Flange width: 120 mm Overall height: 2,845 mm Foundation dimensions: 1350 x 1350 mm Reach: 5,000 mm Weight: 472 kg

{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Overall height [mm]","normalizedName":"","value":"2845","formattedValue":"2,845"},{"name":"Foundation dimensions [mm]","normalizedName":"","value":"1350 x 1350","formattedValue":"1350 x 1350"},{"name":"Reach [mm]","normalizedName":"","value":"5000","formattedValue":"5,000"},{"name":"Weight [kg]","normalizedName":"","value":"472","formattedValue":"472"}]}

Item no.: 968973 49

Vetter – ASSISTENT AS post mounted jib crane, with electric chain hoist, max. load 250 kg, reach 6 m

Over 4 weeks

{"articleNo":"968973","name":"Vetter – ASSISTENT AS post mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"M1079947","productUrl":"/p/M1079947/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AS_post_mounted_jib_crane_pdpsmall--000059205543_PRD_f_all.jpg"}

Item properties:

Flange width: 120 mm Overall height: 2,845 mm Foundation dimensions: 1450 x 1450 mm Reach: 6,000 mm Weight: 506 kg

{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Overall height [mm]","normalizedName":"","value":"2845","formattedValue":"2,845"},{"name":"Foundation dimensions [mm]","normalizedName":"","value":"1450 x 1450","formattedValue":"1450 x 1450"},{"name":"Reach [mm]","normalizedName":"","value":"6000","formattedValue":"6,000"},{"name":"Weight [kg]","normalizedName":"","value":"506","formattedValue":"506"}]}

Technical data

Max. load	250 kg
Operating voltage	400 V / 50 Hz
Swivel range	270°
Design of rotary crane	crane with electric chain hoist and manual drive dolly
Priming coat	daffodil yellow RAL 1007
Height of lifting gear	433 mm
Main lift	6 m/min
Precise lift	1.5 m/min
Crane jib bottom edge	2,500 mm
Control voltage	48 V
Supplied	flat pack
