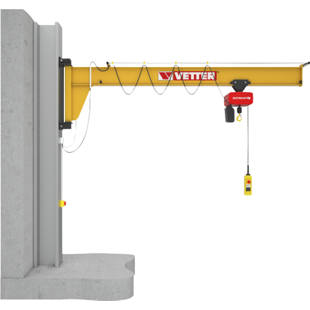

Vetter – ASSISTENT AW wall mounted jib crane

without electric chain hoist, max. load 500 kg

Vetter
  • Compact design, ideal for low rooms
  • High quality craftsmanship
  • Flexibility in assembly
The compact design and the large usable lifting height also make it ideally suited for narrow and small spaces. It also features a variable stabilising arm length, which adapts to your requirements.
Decide for yourself whether the wall mounted jib crane should be attached to a steel support, reinforced concrete support, reinforced concrete wall or steel construction.

Construction complies with EN regulations and EU machine guidelines for light industrial use. Steel shot blasted, painted in yellow RAL 1007. Bearing brackets jet black RAL 9005.

Included in delivery
Standard electrical system with lockable mains cut-off switch and power supply to hoist. Round trailing cable. Dolly buffers on front and back. Wall mounted jib crane including bearing brackets, without mounting screws. Detailed documentation is included in delivery.
You couldn't find the right model? Other load capacities, reaches, overall heights and paint coats available on request.
Vetter – ASSISTENT AW wall mounted jib crane, without electric chain hoist, max. load 500 kg
Price / item (Ex. VAT)
from £1,138.00
Order quantity:
{"articleNo":"M1022749","name":"Vetter – ASSISTENT AW wall mounted jib crane without electric chain hoist, max. load 500 kg","baseProduct":"","productUrl":"/p/M1022749/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_f_all.jpg"}
4 of 4 items correspond to your selection criteria:
  • View:
Item no. / Description of item Delivery time: Order quantity: Price / item
reach 6 m
Item no.:  609914 49
Vetter – ASSISTENT AW wall mounted jib crane, without electric chain hoist, max. load 500 kg, reach 6 m
Over 4 weeks
items
Ex. VAT £2,747.00
{"articleNo":"609914","name":"Vetter – ASSISTENT AW wall mounted jib crane without electric chain hoist, max. load 500 kg","baseProduct":"M1022749","productUrl":"/p/M1022749/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_f_all.jpg"}
Item properties:
Flange width: 150 mm Horizontal force max.: 36 kN Vertical force max.: 9 kN Reach: 6,000 mm Weight: 400 kg
{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"150","formattedValue":"150"},{"name":"Horizontal force max. [kN]","normalizedName":"","value":"36","formattedValue":"36"},{"name":"Vertical force max. [kN]","normalizedName":"","value":"9","formattedValue":"9"},{"name":"Reach [mm]","normalizedName":"","value":"6000","formattedValue":"6,000"},{"name":"Weight [kg]","normalizedName":"","value":"400","formattedValue":"400"}]}
reach 3 m
Item no.:  750514 49
Vetter – ASSISTENT AW wall mounted jib crane, without electric chain hoist, max. load 500 kg, reach 3 m
Over 4 weeks
items
Ex. VAT £1,138.00
{"articleNo":"750514","name":"Vetter – ASSISTENT AW wall mounted jib crane without electric chain hoist, max. load 500 kg","baseProduct":"M1022749","productUrl":"/p/M1022749/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_f_all.jpg"}
Item properties:
Flange width: 120 mm Horizontal force max.: 26 kN Vertical force max.: 7 kN Reach: 3,000 mm Weight: 139 kg
{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Horizontal force max. [kN]","normalizedName":"","value":"26","formattedValue":"26"},{"name":"Vertical force max. [kN]","normalizedName":"","value":"7","formattedValue":"7"},{"name":"Reach [mm]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Weight [kg]","normalizedName":"","value":"139","formattedValue":"139"}]}
reach 4 m
Item no.:  750522 49
Vetter – ASSISTENT AW wall mounted jib crane, without electric chain hoist, max. load 500 kg, reach 4 m
Over 4 weeks
items
Ex. VAT £1,261.00
{"articleNo":"750522","name":"Vetter – ASSISTENT AW wall mounted jib crane without electric chain hoist, max. load 500 kg","baseProduct":"M1022749","productUrl":"/p/M1022749/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_f_all.jpg"}
Item properties:
Flange width: 120 mm Horizontal force max.: 26 kN Vertical force max.: 7 kN Reach: 4,000 mm Weight: 170 kg
{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Horizontal force max. [kN]","normalizedName":"","value":"26","formattedValue":"26"},{"name":"Vertical force max. [kN]","normalizedName":"","value":"7","formattedValue":"7"},{"name":"Reach [mm]","normalizedName":"","value":"4000","formattedValue":"4,000"},{"name":"Weight [kg]","normalizedName":"","value":"170","formattedValue":"170"}]}
reach 5 m
Item no.:  935956 49
Vetter – ASSISTENT AW wall mounted jib crane, without electric chain hoist, max. load 500 kg, reach 5 m
Over 4 weeks
items
Ex. VAT £1,908.00
{"articleNo":"935956","name":"Vetter – ASSISTENT AW wall mounted jib crane without electric chain hoist, max. load 500 kg","baseProduct":"M1022749","productUrl":"/p/M1022749/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_f_all.jpg"}
Item properties:
Flange width: 150 mm Horizontal force max.: 29 kN Vertical force max.: 8 kN Reach: 5,000 mm Weight: 290 kg
{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"150","formattedValue":"150"},{"name":"Horizontal force max. [kN]","normalizedName":"","value":"29","formattedValue":"29"},{"name":"Vertical force max. [kN]","normalizedName":"","value":"8","formattedValue":"8"},{"name":"Reach [mm]","normalizedName":"","value":"5000","formattedValue":"5,000"},{"name":"Weight [kg]","normalizedName":"","value":"290","formattedValue":"290"}]}

Technical data

Max. load 500 kg
Operating voltage 400 V / 50 Hz
Swivel range 180°
Design of rotary crane crane without electric chain hoist
Priming coat daffodil yellow RAL 1007
Height of lifting gear 480 mm
Bracket module A
Supplied flat pack
