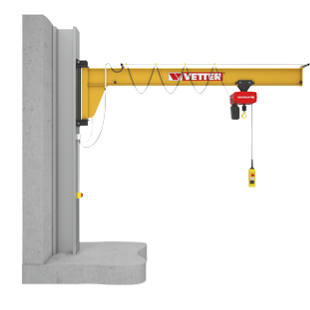

Vetter – ASSISTENT AW wall mounted jib crane

Vetter – ASSISTENT AW wall mounted jib crane

with electric chain hoist, max. load 250 kg

Compact design, ideal for low rooms
High quality craftsmanship
Flexibility in assembly

The compact design and the large usable lifting height also make it ideally suited for narrow and small spaces. It also features a variable stabilising arm length, which adapts to your requirements.
Decide for yourself whether the wall mounted jib crane should be attached to a steel support, reinforced concrete support, reinforced concrete wall or steel construction.

Construction complies with EN regulations and EU machine guidelines for light industrial use. Steel shot blasted, painted in yellow RAL 1007. Bearing brackets jet black RAL 9005.

Included in delivery:
Standard electrical system with lockable mains cut-off switch and current feed to hoist. Cable holding bracket up to 3 m jib length, round trailing cable for min. jib length of 4 m. Dolly buffers on front and back.
Includes bearing brackets, without mounting screws. Detailed documentation is included in delivery.

This model features an electric chain hoist with a manual drive dolly.

You couldn't find the right model? Other load capacities, reaches, overall heights and paint coats available on request.

Vetter – ASSISTENT AW wall mounted jib crane, with electric chain hoist, max. load 250 kg

Price / item (Ex. VAT)

from £2,658.00

Order quantity:

{"articleNo":"M1080028","name":"Vetter – ASSISTENT AW wall mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"","productUrl":"/p/M1080028/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_org_all.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

4 of 4 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 968983 49

Vetter – ASSISTENT AW wall mounted jib crane, with electric chain hoist, max. load 250 kg, reach 3 m

Over 4 weeks

{"articleNo":"968983","name":"Vetter – ASSISTENT AW wall mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"M1080028","productUrl":"/p/M1080028/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_org_all.jpg"}

Item properties:

Flange width: 91 mm Horizontal force max.: 14 kN Vertical force max.: 4 kN Reach: 3,000 mm Weight: 176 kg

{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"91","formattedValue":"91"},{"name":"Horizontal force max. [kN]","normalizedName":"","value":"14","formattedValue":"14"},{"name":"Vertical force max. [kN]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Reach [mm]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Weight [kg]","normalizedName":"","value":"176","formattedValue":"176"}]}

Item no.: 968984 49

Vetter – ASSISTENT AW wall mounted jib crane, with electric chain hoist, max. load 250 kg, reach 4 m

Over 4 weeks

{"articleNo":"968984","name":"Vetter – ASSISTENT AW wall mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"M1080028","productUrl":"/p/M1080028/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_org_all.jpg"}

Item properties:

Flange width: 120 mm Horizontal force max.: 21 kN Vertical force max.: 5 kN Reach: 4,000 mm Weight: 253 kg

{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Horizontal force max. [kN]","normalizedName":"","value":"21","formattedValue":"21"},{"name":"Vertical force max. [kN]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Reach [mm]","normalizedName":"","value":"4000","formattedValue":"4,000"},{"name":"Weight [kg]","normalizedName":"","value":"253","formattedValue":"253"}]}

Item no.: 968985 49

Vetter – ASSISTENT AW wall mounted jib crane, with electric chain hoist, max. load 250 kg, reach 5 m

Over 4 weeks

{"articleNo":"968985","name":"Vetter – ASSISTENT AW wall mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"M1080028","productUrl":"/p/M1080028/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_org_all.jpg"}

Item properties:

Flange width: 120 mm Horizontal force max.: 27 kN Vertical force max.: 5 kN Reach: 5,000 mm Weight: 286 kg

{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Horizontal force max. [kN]","normalizedName":"","value":"27","formattedValue":"27"},{"name":"Vertical force max. [kN]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Reach [mm]","normalizedName":"","value":"5000","formattedValue":"5,000"},{"name":"Weight [kg]","normalizedName":"","value":"286","formattedValue":"286"}]}

Item no.: 968987 49

Vetter – ASSISTENT AW wall mounted jib crane, with electric chain hoist, max. load 250 kg, reach 6 m

Over 4 weeks

{"articleNo":"968987","name":"Vetter – ASSISTENT AW wall mounted jib crane with electric chain hoist, max. load 250 kg","baseProduct":"M1080028","productUrl":"/p/M1080028/","imageUrl":"/Stackers_lifting_equipment/Cranes/ASSISTENT_AW_wall_mounted_jib_crane_pdpsmall--000059205248_PRD_org_all.jpg"}

Item properties:

Flange width: 120 mm Horizontal force max.: 34 kN Vertical force max.: 5 kN Reach: 6,000 mm Weight: 319 kg

{"features":[{"name":"Flange width [mm]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Horizontal force max. [kN]","normalizedName":"","value":"34","formattedValue":"34"},{"name":"Vertical force max. [kN]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Reach [mm]","normalizedName":"","value":"6000","formattedValue":"6,000"},{"name":"Weight [kg]","normalizedName":"","value":"319","formattedValue":"319"}]}

Technical data

Max. load	250 kg
Operating voltage	400 V / 50 Hz
Swivel range	180°
Design of rotary crane	crane with electric chain hoist and manual drive dolly (lifting height 3 m)
Priming coat	daffodil yellow RAL 1007
Height of lifting gear	433 mm
Main lift	6 m/min
Precise lift	1.5 m/min
Bracket module	A
Supplied	flat pack
