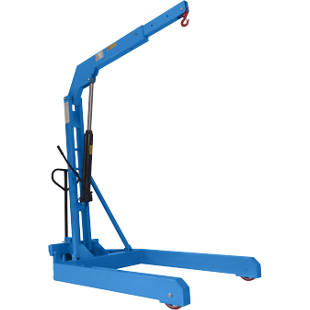

BLUE workshop crane

max. load 2000 kg, parallel chassis

Convenient loading and unloading of heavy loads
Fast raising and precise lowering
Easy operation and suitable for mobile use

The crane jib, adjustable in four positions, means this workshop crane will make everyday work in the workshop easier when lifting and lowering heavy loads.
The safety crane hook can be rotated by 360° and the finely adjustable valve also allows heavy loads to be lowered precisely. The required stability is guaranteed by a durable steel construction with 2 swivel castors and 2 fixed castors.

The parallel chassis allows Euro pallets to be straddled sideways in order to process them more quickly. The workshop crane can also be disassembled and therefore be stored to save space. The pump lever is installed at the side, making convenient monitoring of the lifting and lowering process possible – and additional foot protection is installed.

Individual custom made models are available on request.

Item no.: 739460 49

BLUE workshop crane, max. load 2000 kg, parallel chassis, double action hydraulic system

Price / item (Ex. VAT)

£2,794.00

Order quantity:

Delivery time:

5-7 Working days

Add to the wish list

Compare item

{"articleNo":"739460","name":"BLUE workshop crane max. load 2000 kg, parallel chassis","baseProduct":"M12673","productUrl":"/p/M12673/","imageUrl":"/Stackers_lifting_equipment/Cranes/BLUE_workshop_crane_pdpsmall--000060409608_PRD_org_all.jpg"}

Versions Versions
Combinations Combinations
Alternatives Alternatives
Technical data
Select item

This product can be found in 1 variants.

View:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 739460 49

BLUE workshop crane, max. load 2000 kg, parallel chassis, double action hydraulic system

5-7 Working days

{"features":[]}

Technical data

Max. load	2,000 kg
Colour	light blue RAL 5012

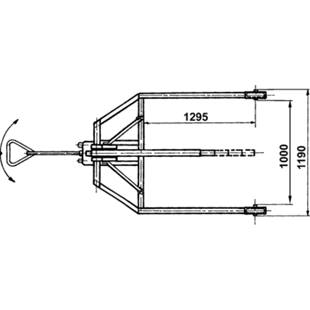

Overall width	1,190 mm
Overall length	2,200 mm
Lifting height max. cantilever arm extended	3,150 mm
Hydraulic pump	double action
Max. crane arm length	1,920 mm
Min. crane arm length	1,310 mm
Wheel type	polyurethane
Wheel bearing	ball bearing
Fixed wheel diameter	200 mm
Steering wheel diameter	200 mm
Design of workshop crane	suitable for disassembly, parallel chassis
Chassis height	215 mm

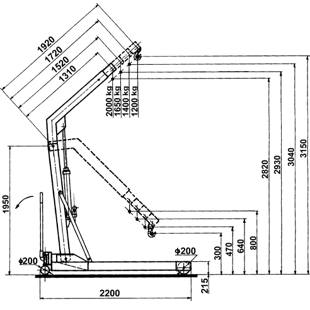

Max. load (at jib length mm)	2000 (1310) kg
Max. load 1 (at jib length mm)	1650 (1520) kg
Max. load 2 (at jib length mm)	1400 (1720) kg
Max. load 3 (at jib length mm)	1200 (1920) kg
Lifting height max. cantilever arm retracted	2,820 mm
Supplied	assembled
Weight	270 kg
