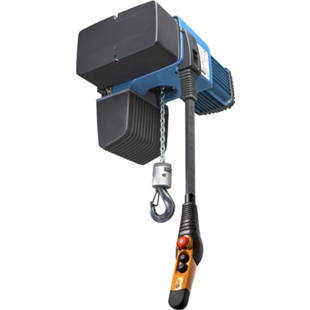

BLUE electric chain hoist

with push trolley

Quality product made in Germany
Fast and easy commissioning
Chain hoist and chassis certified according to IP55 (dust and splash water protected)

Obtain support for your everyday workshop tasks with this electric chain hoist. Its ergonomic design and the control circuit that can be freely positioned ensure all tasks at work are quick and easy to complete. It also features two lifting speeds. The high quality powder coating of the surface optimally protects the device from outside influences.
A friction clutch with an automatic shutdown function ensures you remain safe by monitoring the speed. The short switch on time means the electric chain hoist is ready to use quickly, and it functions reliably even when there are high temperature fluctuations from –20 °C to +45 °C. The related slack chain box is included as standard.

Motor: 380 – 415 V / 50 Hz
Contactor control: 24 V
Control cable length: 0.8 – 2.8 m
FEM hoist classification: FEM 3 m = 3200 hours, FEM 2 m = 1600 hours

This device does not meet your requirements? Additional lifting heights, max. loads and individual options available on request.

BLUE electric chain hoist, with push trolley

Price / item (Ex. VAT)

from £1,548.00

Order quantity:

{"articleNo":"M1349413","name":"BLUE electric chain hoist with push trolley","baseProduct":"","productUrl":"/p/M1349413/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/BLUE_electric_chain_hoist_pdpsmall--00055365_kk_f.jpg"}

Versions Versions
Combinations Combinations
Technical data
Select item

5 of 5 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 478663 49

BLUE electric chain hoist, with push trolley, lifting height 4000 mm, max. load 125 kg

5-7 Working days

{"articleNo":"478663","name":"BLUE electric chain hoist with push trolley","baseProduct":"M1349413","productUrl":"/p/M1349413/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/BLUE_electric_chain_hoist_pdpsmall--00055365_kk_f.jpg"}

Item properties:

Max. load: 125 kg FEM group: 3 m Main lift: 8 m/min Number of strands: 1 pcs. Flange width from – to: 58 – 200 mm Overall height: 416 mm Precise lift: 2 m/min Lifting motor power main lift / precise lift: 0.18 / 0.05 kW Weight: 29 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"125","formattedValue":"125"},{"name":"FEM group","normalizedName":"","value":"3 m","formattedValue":"3 m"},{"name":"Main lift [m/min]","normalizedName":"","value":"8","formattedValue":"8"},{"name":"Number of strands [pcs.]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Flange width from – to [mm]","normalizedName":"","value":"58 – 200","formattedValue":"58 – 200"},{"name":"Overall height [mm]","normalizedName":"","value":"416","formattedValue":"416"},{"name":"Precise lift [m/min]","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Lifting motor power main lift / precise lift [kW]","normalizedName":"","value":"0.18 / 0.05","formattedValue":"0.18 / 0.05"},{"name":"Weight [kg]","normalizedName":"","value":"29","formattedValue":"29"}]}

Item no.: 478664 49

BLUE electric chain hoist, with push trolley, lifting height 4000 mm, max. load 250 kg

5-7 Working days

{"articleNo":"478664","name":"BLUE electric chain hoist with push trolley","baseProduct":"M1349413","productUrl":"/p/M1349413/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/BLUE_electric_chain_hoist_pdpsmall--00055365_kk_f.jpg"}

Item properties:

Max. load: 250 kg FEM group: 2 m Main lift: 6 m/min Number of strands: 1 pcs. Flange width from – to: 58 – 200 mm Overall height: 416 mm Precise lift: 1.5 m/min Lifting motor power main lift / precise lift: 0.37 / 0.1 kW Weight: 29 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"250","formattedValue":"250"},{"name":"FEM group","normalizedName":"","value":"2 m","formattedValue":"2 m"},{"name":"Main lift [m/min]","normalizedName":"","value":"6","formattedValue":"6"},{"name":"Number of strands [pcs.]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Flange width from – to [mm]","normalizedName":"","value":"58 – 200","formattedValue":"58 – 200"},{"name":"Overall height [mm]","normalizedName":"","value":"416","formattedValue":"416"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1.5","formattedValue":"1.5"},{"name":"Lifting motor power main lift / precise lift [kW]","normalizedName":"","value":"0.37 / 0.1","formattedValue":"0.37 / 0.1"},{"name":"Weight [kg]","normalizedName":"","value":"29","formattedValue":"29"}]}

Item no.: 478665 49

BLUE electric chain hoist, with push trolley, lifting height 4000 mm, max. load 500 kg

5-7 Working days

{"articleNo":"478665","name":"BLUE electric chain hoist with push trolley","baseProduct":"M1349413","productUrl":"/p/M1349413/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/BLUE_electric_chain_hoist_pdpsmall--00055365_kk_f.jpg"}

Item properties:

Max. load: 500 kg FEM group: 2 m Main lift: 4.5 m/min Number of strands: 1 pcs. Flange width from – to: 58 – 200 mm Overall height: 468 mm Precise lift: 1.1 m/min Lifting motor power main lift / precise lift: 0.56 / 0.14 kW Weight: 35 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"FEM group","normalizedName":"","value":"2 m","formattedValue":"2 m"},{"name":"Main lift [m/min]","normalizedName":"","value":"4.5","formattedValue":"4.5"},{"name":"Number of strands [pcs.]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Flange width from – to [mm]","normalizedName":"","value":"58 – 200","formattedValue":"58 – 200"},{"name":"Overall height [mm]","normalizedName":"","value":"468","formattedValue":"468"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1.1","formattedValue":"1.1"},{"name":"Lifting motor power main lift / precise lift [kW]","normalizedName":"","value":"0.56 / 0.14","formattedValue":"0.56 / 0.14"},{"name":"Weight [kg]","normalizedName":"","value":"35","formattedValue":"35"}]}

Item no.: 478666 49

BLUE electric chain hoist, with push trolley, lifting height 4000 mm, max. load 1000 kg

5-7 Working days

{"articleNo":"478666","name":"BLUE electric chain hoist with push trolley","baseProduct":"M1349413","productUrl":"/p/M1349413/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/BLUE_electric_chain_hoist_pdpsmall--00055365_kk_f.jpg"}

Item properties:

Max. load: 1,000 kg FEM group: 2 m Main lift: 4 m/min Number of strands: 1 pcs. Flange width from – to: 58 – 200 mm Overall height: 557 mm Precise lift: 1 m/min Lifting motor power main lift / precise lift: 1.1 / 0.27 kW Weight: 56 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"FEM group","normalizedName":"","value":"2 m","formattedValue":"2 m"},{"name":"Main lift [m/min]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Number of strands [pcs.]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Flange width from – to [mm]","normalizedName":"","value":"58 – 200","formattedValue":"58 – 200"},{"name":"Overall height [mm]","normalizedName":"","value":"557","formattedValue":"557"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Lifting motor power main lift / precise lift [kW]","normalizedName":"","value":"1.1 / 0.27","formattedValue":"1.1 / 0.27"},{"name":"Weight [kg]","normalizedName":"","value":"56","formattedValue":"56"}]}

Item no.: 478667 49

BLUE electric chain hoist, with push trolley, lifting height 4000 mm, max. load 2000 kg

Over 4 weeks

{"articleNo":"478667","name":"BLUE electric chain hoist with push trolley","baseProduct":"M1349413","productUrl":"/p/M1349413/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/BLUE_electric_chain_hoist_pdpsmall--00055365_kk_f.jpg"}

Item properties:

Max. load: 2,000 kg FEM group: 2 m Main lift: 4 m/min Number of strands: 2 pcs. Flange width from – to: 74 – 200 mm Overall height: 569 mm Precise lift: 1 m/min Lifting motor power main lift / precise lift: 2.3 / 0.57 kW Weight: 83 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"FEM group","normalizedName":"","value":"2 m","formattedValue":"2 m"},{"name":"Main lift [m/min]","normalizedName":"","value":"4","formattedValue":"4"},{"name":"Number of strands [pcs.]","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Flange width from – to [mm]","normalizedName":"","value":"74 – 200","formattedValue":"74 – 200"},{"name":"Overall height [mm]","normalizedName":"","value":"569","formattedValue":"569"},{"name":"Precise lift [m/min]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Lifting motor power main lift / precise lift [kW]","normalizedName":"","value":"2.3 / 0.57","formattedValue":"2.3 / 0.57"},{"name":"Weight [kg]","normalizedName":"","value":"83","formattedValue":"83"}]}

Technical data

Design of chain hoist	with push trolley
Colour	azure blue RAL 5009
Operating voltage	400 V
Protection class	IP55
Control cable length	2.8 m
Standard slack chain box up to lift height	4 m
Hook travel	4 m
Lifting height	4,000 mm
Starting time main lift / precise lift	40 / 20 %
Supplied	assembled
