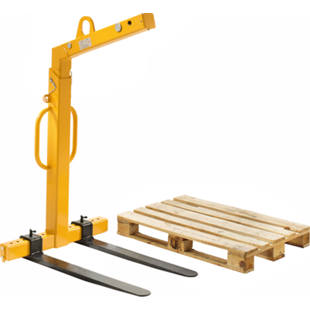

Crane fork

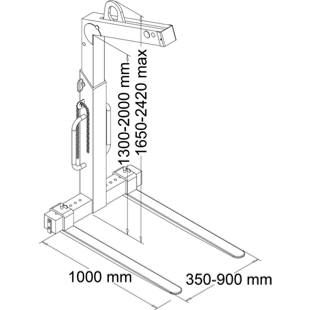

effective height adjustable from 1300 – 2000 mm

With automatic weight counterbalance for transporting all pallet goods
The effective height can be individually adjusted to the transported goods
Load securing mechanism for attachment included

This crane fork is suitable for flexible use on a construction sites, and the automatic weight counterbalance allows even heavy loads to be transported properly and safety. It is fast and easy to fit onto the crane, and can hold Euro pallets either lengthwise or crosswise, the fork is automatically adjusted to the load centre by means of carriage and spring.

Other features:
– Minimum load 20 – 25% of nominal load
– Forks laterally adjustable
– Steel shot blasted

Alternative models available on request.

Crane fork, effective height adjustable from 1300 – 2000 mm

Price / item (Ex. VAT)

from £843.00

Order quantity:

{"articleNo":"M1230911","name":"Crane fork effective height adjustable from 1300 – 2000 mm","baseProduct":"","productUrl":"/p/M1230911/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Crane_fork_pdpsmall--000038615895_PRD_org_all.jpg"}

Combinations Combinations
Technical data
Select item

4 of 4 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 453670 49

Crane fork, effective height adjustable from 1300 – 2000 mm, max. load 1000 kg

5-7 Working days

{"articleNo":"453670","name":"Crane fork effective height adjustable from 1300 – 2000 mm","baseProduct":"M1230911","productUrl":"/p/M1230911/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Crane_fork_pdpsmall--000038615895_PRD_org_all.jpg"}

Item properties:

Max. load: 1,000 kg Fork width: 100 mm Fork height: 30 mm Overall height from – to: 1650 – 2350 mm Fork adjustment range: 350 – 900 mm Weight: 140 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Fork width [mm]","normalizedName":"","value":"100","formattedValue":"100"},{"name":"Fork height [mm]","normalizedName":"","value":"30","formattedValue":"30"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"1650 – 2350","formattedValue":"1650 – 2350"},{"name":"Fork adjustment range [mm]","normalizedName":"","value":"350 – 900","formattedValue":"350 – 900"},{"name":"Weight [kg]","normalizedName":"","value":"140","formattedValue":"140"}]}

Item no.: 453671 49

Crane fork, effective height adjustable from 1300 – 2000 mm, max. load 1500 kg

5-7 Working days

{"articleNo":"453671","name":"Crane fork effective height adjustable from 1300 – 2000 mm","baseProduct":"M1230911","productUrl":"/p/M1230911/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Crane_fork_pdpsmall--000038615895_PRD_org_all.jpg"}

Item properties:

Max. load: 1,500 kg Fork width: 100 mm Fork height: 35 mm Overall height from – to: 1650 – 2350 mm Fork adjustment range: 350 – 900 mm Weight: 165 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Fork width [mm]","normalizedName":"","value":"100","formattedValue":"100"},{"name":"Fork height [mm]","normalizedName":"","value":"35","formattedValue":"35"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"1650 – 2350","formattedValue":"1650 – 2350"},{"name":"Fork adjustment range [mm]","normalizedName":"","value":"350 – 900","formattedValue":"350 – 900"},{"name":"Weight [kg]","normalizedName":"","value":"165","formattedValue":"165"}]}

Item no.: 453672 49

Crane fork, effective height adjustable from 1300 – 2000 mm, max. load 2000 kg

5-7 Working days

{"articleNo":"453672","name":"Crane fork effective height adjustable from 1300 – 2000 mm","baseProduct":"M1230911","productUrl":"/p/M1230911/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Crane_fork_pdpsmall--000038615895_PRD_org_all.jpg"}

Item properties:

Max. load: 2,000 kg Fork width: 120 mm Fork height: 40 mm Overall height from – to: 1655 – 2355 mm Fork adjustment range: 400 – 900 mm Weight: 220 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Fork width [mm]","normalizedName":"","value":"120","formattedValue":"120"},{"name":"Fork height [mm]","normalizedName":"","value":"40","formattedValue":"40"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"1655 – 2355","formattedValue":"1655 – 2355"},{"name":"Fork adjustment range [mm]","normalizedName":"","value":"400 – 900","formattedValue":"400 – 900"},{"name":"Weight [kg]","normalizedName":"","value":"220","formattedValue":"220"}]}

Item no.: 453673 49

Crane fork, effective height adjustable from 1300 – 2000 mm, max. load 3000 kg

5-7 Working days

{"articleNo":"453673","name":"Crane fork effective height adjustable from 1300 – 2000 mm","baseProduct":"M1230911","productUrl":"/p/M1230911/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Crane_fork_pdpsmall--000038615895_PRD_org_all.jpg"}

Item properties:

Max. load: 3,000 kg Fork width: 125 mm Fork height: 45 mm Overall height from – to: 1720 – 2420 mm Fork adjustment range: 450 – 900 mm Weight: 280 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Fork width [mm]","normalizedName":"","value":"125","formattedValue":"125"},{"name":"Fork height [mm]","normalizedName":"","value":"45","formattedValue":"45"},{"name":"Overall height from – to [mm]","normalizedName":"","value":"1720 – 2420","formattedValue":"1720 – 2420"},{"name":"Fork adjustment range [mm]","normalizedName":"","value":"450 – 900","formattedValue":"450 – 900"},{"name":"Weight [kg]","normalizedName":"","value":"280","formattedValue":"280"}]}

Technical data

Load centre	500 mm
Effective height from	1,300 mm
Prong length	1,000 mm
Weight compensation	automatic
Material	steel, painted
Colour	melon yellow RAL 1028
Effective height up to	2,000 mm
Supplied	assembled
