New

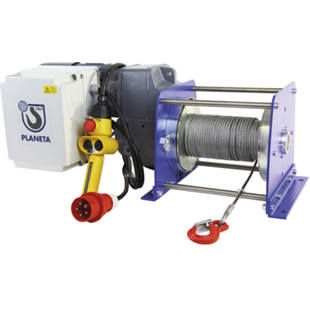

Electric wire rope winch

control cable 3 m

Flexible use for pulling, lifting and moving loads
Extremely low maintenance due to permanent lubrication
Long operating time allows almost uninterrupted use

A modular design makes this one of the most advanced devices you can find for pulling, lifting and moving loads. The large equipment package allows it to be used for many applications. The spur gear transmission is equipped with an AC braking motor as standard.

Technical details
• Motor protection type IP55
• Grooved drum and integrated contactor control
• Spur gear transmission and braking motor
• Duty time 60%

Electric wire rope winch, control cable 3 m

Price on request

Order quantity:

{"articleNo":"M1321115","name":"Electric wire rope winch control cable 3 m","baseProduct":"","productUrl":"/p/M1321115/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Electric_wire_rope_winch_pdpsmall--000050070477_PRD_org_all.jpg"}

Alternatives Alternatives
Technical data
Select item

3 of 3 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

New

Item no.: 478285 49

Electric wire rope winch, control cable 3 m, max. load 500 kg

Delivery time not known

{"articleNo":"478285","name":"Electric wire rope winch control cable 3 m","baseProduct":"M1321115","productUrl":"/p/M1321115/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Electric_wire_rope_winch_pdpsmall--000050070477_PRD_org_all.jpg"}

Item properties:

Max. load: 500 kg Power: 0.75 kW Weight: 65 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Power [kW]","normalizedName":"","value":"0.75","formattedValue":"0.75"},{"name":"Weight [kg]","normalizedName":"","value":"65","formattedValue":"65"}]}

New

Item no.: 478286 49

Electric wire rope winch, control cable 3 m, max. load 990 kg

Delivery time not known

{"articleNo":"478286","name":"Electric wire rope winch control cable 3 m","baseProduct":"M1321115","productUrl":"/p/M1321115/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Electric_wire_rope_winch_pdpsmall--000050070477_PRD_org_all.jpg"}

Item properties:

Max. load: 990 kg Power: 1.5 kW Weight: 110 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"990","formattedValue":"990"},{"name":"Power [kW]","normalizedName":"","value":"1.5","formattedValue":"1.5"},{"name":"Weight [kg]","normalizedName":"","value":"110","formattedValue":"110"}]}

New

Item no.: 478287 49

Electric wire rope winch, control cable 3 m, max. load 2000 kg

Delivery time not known

{"articleNo":"478287","name":"Electric wire rope winch control cable 3 m","baseProduct":"M1321115","productUrl":"/p/M1321115/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Electric_wire_rope_winch_pdpsmall--000050070477_PRD_org_all.jpg"}

Item properties:

Max. load: 2,000 kg Power: 2.6 kW Weight: 240 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Power [kW]","normalizedName":"","value":"2.6","formattedValue":"2.6"},{"name":"Weight [kg]","normalizedName":"","value":"240","formattedValue":"240"}]}
