New

Grip hoist

incl. extensive basic equipment

Placement of loads exact to the millimetre, and no limits to the rope length
Low weight and fast installation
Easy to handle, lightweight, robust, powerful

Multi-purpose hoists are portable devices for lifting, pulling and tensioning. They provide constant safety when operating in any position and any direction, providing that they can be aligned with the pulling direction. There is one operating lever each for lifting and lowering. By moving the plugged-in level pipe back and forth, two pairs of clamping jaws move the rope through the device in alternation.

The rope length (= working path) is practically unlimited. The mechanism is self-locking, and the rope pulls the clamping jaws together when under load. The grip hoist can be released when there is no load. The rope can then be retracted and pre-tensioned by hand, and be pulled out again after finishing work.

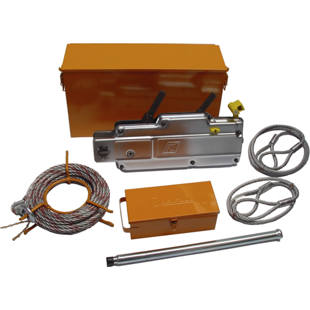

Included in delivery:
– Grip hoist
– Lever pipe
– Rope with tip and hook with thimble (on manual winder, Ø 8 mm, length 20 m)
– Wire rope strop, Ø 10 mm, length 1 m
– Wire rope strop, Ø 10 mm, length 2 m
– Box made of sheet steel, dimensions 550 x 150 x 310 mm
– Tools in plastic bag and lubricant oil
– MC return pulley, max. load 1.6 t

Grip hoist, incl. extensive basic equipment

Price / item (Ex. VAT)

from £1,314.00

Order quantity:

{"articleNo":"M3173900","name":"Grip hoist incl. extensive basic equipment","baseProduct":"","productUrl":"/p/M3173900/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Grip_hoist_pdpsmall--000060912978_PRD_org_all.jpg"}

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

3 of 3 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

New

Item no.: 485675 49

Grip hoist, incl. extensive basic equipment, max. load 800 kg

2 Week delivery

{"articleNo":"485675","name":"Grip hoist incl. extensive basic equipment","baseProduct":"M3173900","productUrl":"/p/M3173900/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Grip_hoist_pdpsmall--000060912978_PRD_org_all.jpg"}

Item properties:

Max. load: 800 kg Weight: 23 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"800","formattedValue":"800"},{"name":"Weight [kg]","normalizedName":"","value":"23","formattedValue":"23"}]}

New

Item no.: 485676 49

Grip hoist, incl. extensive basic equipment, max. load 1600 kg

2 Week delivery

{"articleNo":"485676","name":"Grip hoist incl. extensive basic equipment","baseProduct":"M3173900","productUrl":"/p/M3173900/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Grip_hoist_pdpsmall--000060912978_PRD_org_all.jpg"}

Item properties:

Max. load: 1,600 kg Weight: 42.8 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"1600","formattedValue":"1,600"},{"name":"Weight [kg]","normalizedName":"","value":"42.8","formattedValue":"42.8"}]}

New

Item no.: 485677 49

Grip hoist, incl. extensive basic equipment, max. load 3200 kg

2 Week delivery

{"articleNo":"485677","name":"Grip hoist incl. extensive basic equipment","baseProduct":"M3173900","productUrl":"/p/M3173900/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Grip_hoist_pdpsmall--000060912978_PRD_org_all.jpg"}

Item properties:

Max. load: 3,200 kg Weight: 50 kg

{"features":[{"name":"Max. load [kg]","normalizedName":"","value":"3200","formattedValue":"3,200"},{"name":"Weight [kg]","normalizedName":"","value":"50","formattedValue":"50"}]}

Technical data

Scope of delivery	grip hoist, lever pipe, rope with tip and hook with thimble (on manual winder, Ø 8 mm, length 20 m), wire rope strop (Ø 10 mm, length 1 m), wire rope strop (Ø 10 mm, length 2 m), sheet steel box (dimensions 550 x 150 x 310 mm), tools in plastic bag and lubricant oil, MC return pulley (max. load 1.6 t)
Supplied	assembled
