New

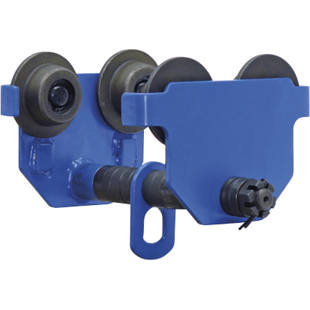

Manual beam trolley

adjustment width max. 300 mm

For pulling or moving loads quickly
Fast and easy assembly by sliding onto the open beam
Balanced load distribution due to four wheels

This manual beam trolley is moved by pushing the load. The self-adjusting oscillation around the pin axis ensures balanced load distribution. In combination with the permanently lubricated, high quality ball bearings, this ensures an extremely quiet run.

Changing the spacer discs allows the adjustment range to be adapted to many beams.

Manual beam trolley, adjustment width max. 300 mm

Price on request

Order quantity:

{"articleNo":"M1321267","name":"Manual beam trolley adjustment width max. 300 mm","baseProduct":"","productUrl":"/p/M1321267/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Manual_beam_trolley_pdpsmall--000050070239_PRD_org_all.jpg"}

Combinations Combinations
Technical data
Select item

6 of 6 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

New

Item no.: 478248 49

Manual beam trolley, adjustment width max. 300 mm, max. load 0.5 t

Delivery time not known

{"articleNo":"478248","name":"Manual beam trolley adjustment width max. 300 mm","baseProduct":"M1321267","productUrl":"/p/M1321267/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Manual_beam_trolley_pdpsmall--000050070239_PRD_org_all.jpg"}

Item properties:

Max. load: 0.5 t Gripping range: 50 – 203 mm Weight: 7 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"0.5","formattedValue":"0.5"},{"name":"Gripping range [mm]","normalizedName":"","value":"50 – 203","formattedValue":"50 – 203"},{"name":"Weight [kg]","normalizedName":"","value":"7","formattedValue":"7"}]}

New

Item no.: 478249 49

Manual beam trolley, adjustment width max. 300 mm, max. load 1 t

Delivery time not known

{"articleNo":"478249","name":"Manual beam trolley adjustment width max. 300 mm","baseProduct":"M1321267","productUrl":"/p/M1321267/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Manual_beam_trolley_pdpsmall--000050070239_PRD_org_all.jpg"}

Item properties:

Max. load: 1 t Gripping range: 64 – 203 mm Weight: 10.5 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"1","formattedValue":"1"},{"name":"Gripping range [mm]","normalizedName":"","value":"64 – 203","formattedValue":"64 – 203"},{"name":"Weight [kg]","normalizedName":"","value":"10.5","formattedValue":"10.5"}]}

New

Item no.: 478250 49

Manual beam trolley, adjustment width max. 300 mm, max. load 2 t

Delivery time not known

{"articleNo":"478250","name":"Manual beam trolley adjustment width max. 300 mm","baseProduct":"M1321267","productUrl":"/p/M1321267/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Manual_beam_trolley_pdpsmall--000050070239_PRD_org_all.jpg"}

Item properties:

Max. load: 2 t Gripping range: 88 – 203 mm Weight: 17.5 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"2","formattedValue":"2"},{"name":"Gripping range [mm]","normalizedName":"","value":"88 – 203","formattedValue":"88 – 203"},{"name":"Weight [kg]","normalizedName":"","value":"17.5","formattedValue":"17.5"}]}

New

Item no.: 478251 49

Manual beam trolley, adjustment width max. 300 mm, max. load 3 t

Delivery time not known

{"articleNo":"478251","name":"Manual beam trolley adjustment width max. 300 mm","baseProduct":"M1321267","productUrl":"/p/M1321267/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Manual_beam_trolley_pdpsmall--000050070239_PRD_org_all.jpg"}

Item properties:

Max. load: 3 t Gripping range: 100 – 203 mm Weight: 27 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"3","formattedValue":"3"},{"name":"Gripping range [mm]","normalizedName":"","value":"100 – 203","formattedValue":"100 – 203"},{"name":"Weight [kg]","normalizedName":"","value":"27","formattedValue":"27"}]}

New

Item no.: 478252 49

Manual beam trolley, adjustment width max. 300 mm, max. load 5 t

Delivery time not known

{"articleNo":"478252","name":"Manual beam trolley adjustment width max. 300 mm","baseProduct":"M1321267","productUrl":"/p/M1321267/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Manual_beam_trolley_pdpsmall--000050070239_PRD_org_all.jpg"}

Item properties:

Max. load: 5 t Gripping range: 114 – 203 mm Weight: 41 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Gripping range [mm]","normalizedName":"","value":"114 – 203","formattedValue":"114 – 203"},{"name":"Weight [kg]","normalizedName":"","value":"41","formattedValue":"41"}]}

New

Item no.: 478253 49

Manual beam trolley, adjustment width max. 300 mm, max. load 10 t

Delivery time not known

{"articleNo":"478253","name":"Manual beam trolley adjustment width max. 300 mm","baseProduct":"M1321267","productUrl":"/p/M1321267/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Manual_beam_trolley_pdpsmall--000050070239_PRD_org_all.jpg"}

Item properties:

Max. load: 10 t Gripping range: 124 –203 mm Weight: 48 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Gripping range [mm]","normalizedName":"","value":"124 –203","formattedValue":"124 –203"},{"name":"Weight [kg]","normalizedName":"","value":"48","formattedValue":"48"}]}
