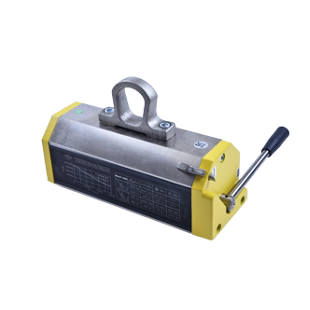

Stationary lifting magnet

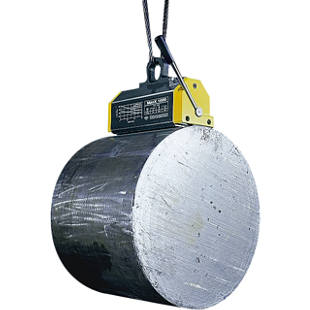

for flat and round material

Very user friendly by simply flipping the lever
Highly concentrated energy guarantees constant and reliable grip
Magnetic force ensures the load is handled gently and is never damaged

Lifting magnets are used wherever safe handling of metallic objects is required. Simply flipping the lever switches this magnetic force on and off, and the integrated safety mechanism locks the lever during the holding phase.

The holding force is also concentrate where it is needed, and therefore prevents adjacent steel parts to the side of the load from being attracted.
Uneven surfaces are also no problem. The compact design and the comparatively low weight mean the lifting magnet can be used everywhere you need it.

Stationary lifting magnet, for flat and round material

Price / item (Ex. VAT)

from £424.00

Order quantity:

{"articleNo":"M1024631","name":"Stationary lifting magnet for flat and round material","baseProduct":"","productUrl":"/p/M1024631/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Stationary_lifting_magnet_pdpsmall--000032317904_PRD_org_all.jpg"}

Versions Versions
Combinations Combinations
Technical data
Select item

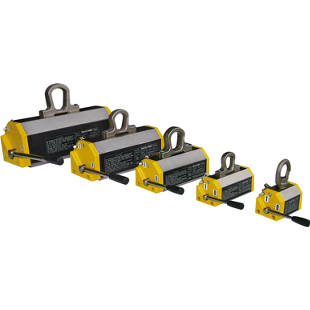

5 of 5 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 927471 49

Stationary lifting magnet, for flat and round material, lifting capacity 250 kg for flat material, 100 kg for round material

5-7 Working days

{"articleNo":"927471","name":"Stationary lifting magnet for flat and round material","baseProduct":"M1024631","productUrl":"/p/M1024631/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Stationary_lifting_magnet_pdpsmall--000032317762_PRD_org_all.jpg"}

Item properties:

Width: 79 mm Max. diameter for round material: 300 mm Max. load permitted for flat material: 250 kg Max. load permitted for round material: 100 kg Height: 142 mm Length: 189 mm Min. wall thickness for round material: 10 mm Min. wall thickness for flat material: 20 mm Max. workpiece length: 1,500 mm Weight: 6 kg

{"features":[{"name":"Width [mm]","normalizedName":"","value":"79","formattedValue":"79"},{"name":"Max. diameter for round material [mm]","normalizedName":"","value":"300","formattedValue":"300"},{"name":"Max. load permitted for flat material [kg]","normalizedName":"","value":"250","formattedValue":"250"},{"name":"Max. load permitted for round material [kg]","normalizedName":"","value":"100","formattedValue":"100"},{"name":"Height [mm]","normalizedName":"","value":"142","formattedValue":"142"},{"name":"Length [mm]","normalizedName":"","value":"189","formattedValue":"189"},{"name":"Min. wall thickness for round material [mm]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Min. wall thickness for flat material [mm]","normalizedName":"","value":"20","formattedValue":"20"},{"name":"Max. workpiece length [mm]","normalizedName":"","value":"1500","formattedValue":"1,500"},{"name":"Weight [kg]","normalizedName":"","value":"6","formattedValue":"6"}]}

Item no.: 927472 49

Stationary lifting magnet, for flat and round material, lifting capacity 500 kg for flat material, 200 kg for round material

5-7 Working days

{"articleNo":"927472","name":"Stationary lifting magnet for flat and round material","baseProduct":"M1024631","productUrl":"/p/M1024631/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Stationary_lifting_magnet_pdpsmall--000032317766_PRD_org_all.jpg"}

Item properties:

Width: 106 mm Max. diameter for round material: 400 mm Max. load permitted for flat material: 500 kg Max. load permitted for round material: 200 kg Height: 189 mm Length: 249 mm Min. wall thickness for round material: 15 mm Min. wall thickness for flat material: 25 mm Max. workpiece length: 2,000 mm Weight: 15 kg

{"features":[{"name":"Width [mm]","normalizedName":"","value":"106","formattedValue":"106"},{"name":"Max. diameter for round material [mm]","normalizedName":"","value":"400","formattedValue":"400"},{"name":"Max. load permitted for flat material [kg]","normalizedName":"","value":"500","formattedValue":"500"},{"name":"Max. load permitted for round material [kg]","normalizedName":"","value":"200","formattedValue":"200"},{"name":"Height [mm]","normalizedName":"","value":"189","formattedValue":"189"},{"name":"Length [mm]","normalizedName":"","value":"249","formattedValue":"249"},{"name":"Min. wall thickness for round material [mm]","normalizedName":"","value":"15","formattedValue":"15"},{"name":"Min. wall thickness for flat material [mm]","normalizedName":"","value":"25","formattedValue":"25"},{"name":"Max. workpiece length [mm]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Weight [kg]","normalizedName":"","value":"15","formattedValue":"15"}]}

Item no.: 927474 49

Stationary lifting magnet, for flat and round material, lifting capacity 1000 kg for flat material, 400 kg for round material

2 Week delivery

{"articleNo":"927474","name":"Stationary lifting magnet for flat and round material","baseProduct":"M1024631","productUrl":"/p/M1024631/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Stationary_lifting_magnet_pdpsmall--000032317904_PRD_org_all.jpg"}

Item properties:

Width: 133 mm Max. diameter for round material: 450 mm Max. load permitted for flat material: 1,000 kg Max. load permitted for round material: 400 kg Height: 219 mm Length: 342 mm Min. wall thickness for round material: 25 mm Min. wall thickness for flat material: 40 mm Max. workpiece length: 3,000 mm Weight: 34 kg

{"features":[{"name":"Width [mm]","normalizedName":"","value":"133","formattedValue":"133"},{"name":"Max. diameter for round material [mm]","normalizedName":"","value":"450","formattedValue":"450"},{"name":"Max. load permitted for flat material [kg]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Max. load permitted for round material [kg]","normalizedName":"","value":"400","formattedValue":"400"},{"name":"Height [mm]","normalizedName":"","value":"219","formattedValue":"219"},{"name":"Length [mm]","normalizedName":"","value":"342","formattedValue":"342"},{"name":"Min. wall thickness for round material [mm]","normalizedName":"","value":"25","formattedValue":"25"},{"name":"Min. wall thickness for flat material [mm]","normalizedName":"","value":"40","formattedValue":"40"},{"name":"Max. workpiece length [mm]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Weight [kg]","normalizedName":"","value":"34","formattedValue":"34"}]}

Item no.: 927475 49

Stationary lifting magnet, for flat and round material, lifting capacity 125 kg for flat material, 50 kg for round material

5-7 Working days

{"articleNo":"927475","name":"Stationary lifting magnet for flat and round material","baseProduct":"M1024631","productUrl":"/p/M1024631/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Stationary_lifting_magnet_pdpsmall--000032317907_PRD_org_all.jpg"}

Item properties:

Width: 79 mm Max. diameter for round material: 300 mm Max. load permitted for flat material: 125 kg Max. load permitted for round material: 50 kg Height: 161 mm Length: 121 mm Min. wall thickness for round material: 10 mm Min. wall thickness for flat material: 20 mm Max. workpiece length: 1,000 mm Weight: 3.7 kg

{"features":[{"name":"Width [mm]","normalizedName":"","value":"79","formattedValue":"79"},{"name":"Max. diameter for round material [mm]","normalizedName":"","value":"300","formattedValue":"300"},{"name":"Max. load permitted for flat material [kg]","normalizedName":"","value":"125","formattedValue":"125"},{"name":"Max. load permitted for round material [kg]","normalizedName":"","value":"50","formattedValue":"50"},{"name":"Height [mm]","normalizedName":"","value":"161","formattedValue":"161"},{"name":"Length [mm]","normalizedName":"","value":"121","formattedValue":"121"},{"name":"Min. wall thickness for round material [mm]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Min. wall thickness for flat material [mm]","normalizedName":"","value":"20","formattedValue":"20"},{"name":"Max. workpiece length [mm]","normalizedName":"","value":"1000","formattedValue":"1,000"},{"name":"Weight [kg]","normalizedName":"","value":"3.7","formattedValue":"3.7"}]}

Item no.: 927476 49

Stationary lifting magnet, for flat and round material, lifting capacity 2000 kg for flat material, 800 kg for round material

2 Week delivery

{"articleNo":"927476","name":"Stationary lifting magnet for flat and round material","baseProduct":"M1024631","productUrl":"/p/M1024631/","imageUrl":"/Stackers_lifting_equipment/Lifting_slings/Stationary_lifting_magnet_pdpsmall--000032318013_PRD_org_all.jpg"}

Item properties:

Width: 166 mm Max. diameter for round material: 600 mm Max. load permitted for flat material: 2,000 kg Max. load permitted for round material: 800 kg Height: 293 mm Length: 441 mm Min. wall thickness for round material: 35 mm Min. wall thickness for flat material: 55 mm Max. workpiece length: 3,000 mm Weight: 80 kg

{"features":[{"name":"Width [mm]","normalizedName":"","value":"166","formattedValue":"166"},{"name":"Max. diameter for round material [mm]","normalizedName":"","value":"600","formattedValue":"600"},{"name":"Max. load permitted for flat material [kg]","normalizedName":"","value":"2000","formattedValue":"2,000"},{"name":"Max. load permitted for round material [kg]","normalizedName":"","value":"800","formattedValue":"800"},{"name":"Height [mm]","normalizedName":"","value":"293","formattedValue":"293"},{"name":"Length [mm]","normalizedName":"","value":"441","formattedValue":"441"},{"name":"Min. wall thickness for round material [mm]","normalizedName":"","value":"35","formattedValue":"35"},{"name":"Min. wall thickness for flat material [mm]","normalizedName":"","value":"55","formattedValue":"55"},{"name":"Max. workpiece length [mm]","normalizedName":"","value":"3000","formattedValue":"3,000"},{"name":"Weight [kg]","normalizedName":"","value":"80","formattedValue":"80"}]}
