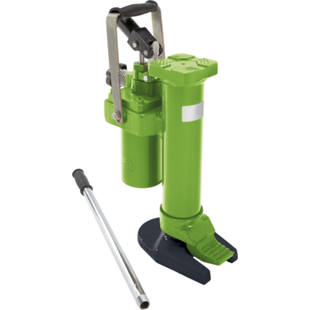

Hydraulic jack

for horizontal and vertical use

Can be used horizontally and vertically, housing rotates 360°
Low maintenance hydraulics with overload valve
Release valve with automatic position return and removable pump lever

The two sided hydraulic jack can be used safely when the ground clearance is 26 mm or more. Its precise lowering regulation allows heavy goods to be lowered slowly and in a controlled manner.

Hydraulic jack, for horizontal and vertical use

Price / item (Ex. VAT)

from £410.00

Order quantity:

{"articleNo":"M1036137","name":"Hydraulic jack for horizontal and vertical use","baseProduct":"","productUrl":"/p/M1036137/","imageUrl":"/Stackers_lifting_equipment/Machine_jacks/Hydraulic_jack_pdpsmall--00052325_kk_f.jpg"}

Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 116585 49

Hydraulic jack, for horizontal and vertical use, max. load 5 t

5-7 Working days

{"articleNo":"116585","name":"Hydraulic jack for horizontal and vertical use","baseProduct":"M1036137","productUrl":"/p/M1036137/","imageUrl":"/Stackers_lifting_equipment/Machine_jacks/Hydraulic_jack_pdpsmall--00052325_kk_f.jpg"}

Item properties:

Max. load: 5 t Lifting range with lifting head: 368 – 573 mm Lifting range with lifting toe: 25 – 230 mm Lift: 205 mm Weight: 25 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Lifting range with lifting head [mm]","normalizedName":"","value":"368 – 573","formattedValue":"368 – 573"},{"name":"Lifting range with lifting toe [mm]","normalizedName":"","value":"25 – 230","formattedValue":"25 – 230"},{"name":"Lift [mm]","normalizedName":"","value":"205","formattedValue":"205"},{"name":"Weight [kg]","normalizedName":"","value":"25","formattedValue":"25"}]}

Item no.: 116586 49

Hydraulic jack, for horizontal and vertical use, max. load 10 t

5-7 Working days

{"articleNo":"116586","name":"Hydraulic jack for horizontal and vertical use","baseProduct":"M1036137","productUrl":"/p/M1036137/","imageUrl":"/Stackers_lifting_equipment/Machine_jacks/Hydraulic_jack_pdpsmall--00052325_kk_f.jpg"}

Item properties:

Max. load: 10 t Lifting range with lifting head: 420 – 650 mm Lifting range with lifting toe: 30 – 260 mm Lift: 230 mm Weight: 35 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Lifting range with lifting head [mm]","normalizedName":"","value":"420 – 650","formattedValue":"420 – 650"},{"name":"Lifting range with lifting toe [mm]","normalizedName":"","value":"30 – 260","formattedValue":"30 – 260"},{"name":"Lift [mm]","normalizedName":"","value":"230","formattedValue":"230"},{"name":"Weight [kg]","normalizedName":"","value":"35","formattedValue":"35"}]}

Technical data

Floor clearance	26 mm
Supplied	assembled
