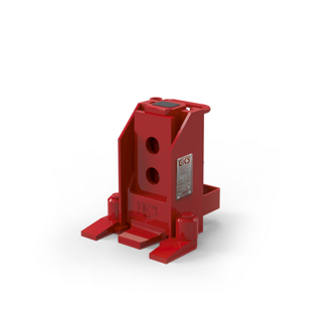

Lifter

without a hydraulic unit

Can also be used where space is tight due to the compact design
High quality, compact steel construction

A compact and powerful device is particularly useful for lifting and positioning heavy machine tools or similar equipment. Regardless of whether for production operations, in the workshop or for outdoor use – the high quality materials mean this lifting device can be used everywhere and it is designed for durability.

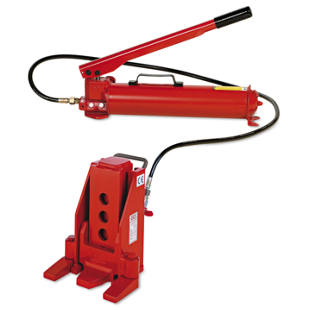

This version does not feature a hydraulic unit of its own, and is used with a separate pump in order to allow compliance with the required safety clearance.

Lifter, without a hydraulic unit

Price / item (Ex. VAT)

from £745.00

Order quantity:

{"articleNo":"M1114338","name":"Lifter without a hydraulic unit","baseProduct":"","productUrl":"/p/M1114338/","imageUrl":"/Stackers_lifting_equipment/Machine_jacks/Lifter_pdpsmall--000014241061_PRD_org_all.jpg"}

Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 117610 49

Lifter, without a hydraulic unit, type V5, max. load 5 t

2 Week delivery

{"articleNo":"117610","name":"Lifter without a hydraulic unit","baseProduct":"M1114338","productUrl":"/p/M1114338/","imageUrl":"/Stackers_lifting_equipment/Machine_jacks/Lifter_pdpsmall--000014241061_PRD_org_all.jpg"}

Item properties:

Max. load: 5 t Lifting range with lifting head: 252 – 392 mm Lifting range with lifting toe: 15 – 165 mm Lift: 140 mm Max. load with lifting head: 5 t Max. load with lifting toe: 5 t Weight: 17 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Lifting range with lifting head [mm]","normalizedName":"","value":"252 – 392","formattedValue":"252 – 392"},{"name":"Lifting range with lifting toe [mm]","normalizedName":"","value":"15 – 165","formattedValue":"15 – 165"},{"name":"Lift [mm]","normalizedName":"","value":"140","formattedValue":"140"},{"name":"Max. load with lifting head [t]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Max. load with lifting toe [t]","normalizedName":"","value":"5","formattedValue":"5"},{"name":"Weight [kg]","normalizedName":"","value":"17","formattedValue":"17"}]}

Item no.: 117611 49

Lifter, without a hydraulic unit, type V10, max. load 10 t

2 Week delivery

{"articleNo":"117611","name":"Lifter without a hydraulic unit","baseProduct":"M1114338","productUrl":"/p/M1114338/","imageUrl":"/Stackers_lifting_equipment/Machine_jacks/Lifter_pdpsmall--000014241292_PRD_org_all.jpg"}

Item properties:

Max. load: 10 t Lifting range with lifting head: 310 – 470 mm Lifting range with lifting toe: 20 – 180 mm Lift: 160 mm Max. load with lifting head: 10 t Max. load with lifting toe: 10 t Weight: 27 kg

{"features":[{"name":"Max. load [t]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Lifting range with lifting head [mm]","normalizedName":"","value":"310 – 470","formattedValue":"310 – 470"},{"name":"Lifting range with lifting toe [mm]","normalizedName":"","value":"20 – 180","formattedValue":"20 – 180"},{"name":"Lift [mm]","normalizedName":"","value":"160","formattedValue":"160"},{"name":"Max. load with lifting head [t]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Max. load with lifting toe [t]","normalizedName":"","value":"10","formattedValue":"10"},{"name":"Weight [kg]","normalizedName":"","value":"27","formattedValue":"27"}]}
