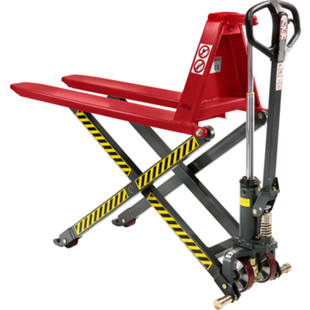

High-lift pallet truck

manual hydraulics, standard

Lift, move and deliver loads with a single device.

All models with QuickLift to save time and energy. QuickLift fast lifting is active for loads up to 100 kg. Light loads are lifted quickly. Heavier loads are raised more slowly, but with minimal effort. Automatic control of the lowering speed. The device is protected by an overload pressure valve. Additional supports for safety when forks are lifted. Polyurethane wheels.
All models can also be used as a standard pallet truck.

With manual hydraulic lift. Powder coated in signal red RAL 3001.

Quality advantages

Item no.: 480552 49

High-lift pallet truck, manual hydraulics, standard, max. load 1000 kg

Price / item (Ex. VAT)

£525.00

Order quantity:

Delivery time:

5-7 Working days

Add to the wish list

Compare item

{"articleNo":"480552","name":"High-lift pallet truck manual hydraulics, standard","baseProduct":"M1442585","productUrl":"/p/M1442585/","imageUrl":"/Stackers_lifting_equipment/Pallet_trucks/High-lift_pallet_truck_pdpsmall--00055374_kk_f.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

This product can be found in 1 variants.

View:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 480552 49

High-lift pallet truck, manual hydraulics, standard, max. load 1000 kg

5-7 Working days

{"features":[]}

Technical data

Max. load	1,000 kg
Lifting range	85 – 800 mm
Lift drive	manual hydraulics
Fork length	1,140 mm
Fork width	162 mm
Distance across forks	520 mm
Overall length	1,475 mm
Overall width	520 mm
Overall height	1,260 mm
Steering radius	180 °
Mobile up to lifting height	400 mm
Lift per pump stroke with QuickLift	25 mm
Lift per pump stroke	10 mm
Steering wheel material	polyurethane
Steering wheel diameter	150 mm
Steering wheel width	40 mm
Fork roller material	polyurethane
Fork roller version	single
Fork roller diameter	75 mm
Fork roller width	50 mm
Colour	signal red RAL 3001
Finish	powder coated
Supplied	assembled
Weight	92 kg
