Pallet truck with precision scale

with standard display, multi-range scale

Extremely robust and precise – maximum deviation is less than 0.1 % of the load being weighed
Determining dispatch weight
Order picking with weight check
For checking received goods according to weight

Supplied with external battery charger. Battery capacity of up to 150 hours. Max. charging time 10 hours.

Multi-range scale.

Scale division
– 0 to 1100 kg in 0.2 kg increments
– 1100 to 2200 kg in 0.5 kg increments

Backlit LCD display, height 25 mm, easy to read data. Direct weight control during loading and unloading. Manual and automatic reset as well as taring function.

Models with printer

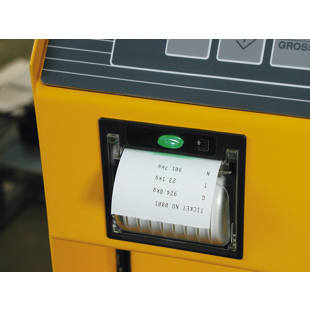

Both types of scales are also available with integrated thermal transfer printer. For printing gross, tare and net weights as well as the number of weighing processes. Resistant to temperature fluctuations and dust.

On request
Calibrated version, finer scale division, higher max. load as well as custom lengths and widths.

Pallet truck with precision scale, with standard display, multi-range scale

Price / item (Ex. VAT)

from £2,247.00

Order quantity:

{"articleNo":"M88181","name":"Pallet truck with precision scale with standard display, multi-range scale","baseProduct":"","productUrl":"/p/M88181/","imageUrl":"/Stackers_lifting_equipment/Pallet_trucks/Pallet_truck_with_precision_scale_pdpsmall--00046525_kk.jpg"}

Versions Versions
Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 614627 49

Pallet truck with precision scale, with standard display, multi-range scale, without printer

Delivery time not known

{"articleNo":"614627","name":"Pallet truck with precision scale with standard display, multi-range scale","baseProduct":"M88181","productUrl":"/p/M88181/","imageUrl":"/Stackers_lifting_equipment/Pallet_trucks/Pallet_truck_with_precision_scale_pdpsmall--00046110_kk_f.jpg"}

Item properties:

Scale equipment: without printer

{"features":[{"name":"Scale equipment","normalizedName":"","value":"without printer","formattedValue":"without printer"}]}

Item no.: 614628 49

Pallet truck with precision scale, with standard display, multi-range scale, with thermal transfer printer

Delivery time not known

{"articleNo":"614628","name":"Pallet truck with precision scale with standard display, multi-range scale","baseProduct":"M88181","productUrl":"/p/M88181/","imageUrl":"/Stackers_lifting_equipment/Pallet_trucks/Pallet_truck_with_precision_scale_pdpsmall--00046525_kk.jpg"}

Item properties:

Scale equipment: with thermal transfer printer

{"features":[{"name":"Scale equipment","normalizedName":"","value":"with thermal transfer printer","formattedValue":"with thermal transfer printer"}]}

Technical data

Max. load	2,200 kg
Load centre	578 mm
Lifting range	85 – 205 mm
Overall length	1,570 mm
Fork length	1,155 mm
Fork width	170 mm
Distance across forks	560 mm
Steering radius	210 °
Scale model	with standard display
Steering wheel material	solid rubber
Fork roller material	polyurethane
Steering wheel diameter	200 mm
Steering wheel width	40 mm
Fork roller version	tandem
Fork roller diameter	80 mm
Fork roller width	70 mm
Supplied	assembled
Weight	155 kg
