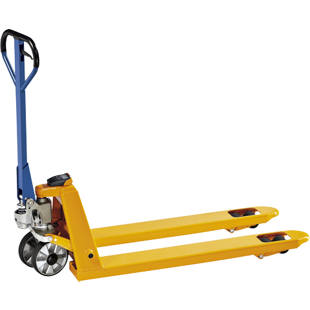

Pallet truck

with weighing scale

For weighing checks
For checking incoming goods
Determination of dispatch weights
Prevention of overloading
Max. load 2000 kg

Polyurethane steering wheels and fork rollers.
Includes batteries (2 x AA 1.5 V) for weighing approx. 3000 times. Battery level indicator, switches off automatically after approx. 2 minutes.

Very easy to operate
1. Switch on the weighing unit to determine tare weight
2. Pump forks up to reference height
3. Press tare button
4. Lower forks and pick-up goods to be weighed
5. Pump forks up to reference height to weigh

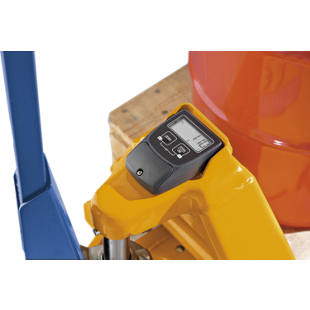

Display unit
Digit height 18 mm. IP65 – protected against dust and splash water.

Measuring tolerances
50 – 500 kg ± 20 kg
500 – 1000 kg ± 30 kg
1000 – 1500 kg ± 40 kg
1500 – 2000 kg ± 50 kg

Scale division
Up to 1000 kg = 5 kg / over 1000 kg = 20 kg

Item no.: 968925 49

Pallet truck, with weighing scale, max. load 2000 kg

Price / item (Ex. VAT)

£455.00

Alternatives Alternatives
Technical data
Select item

This product can be found in 1 variants.

View:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 968925 49

Pallet truck, with weighing scale, max. load 2000 kg

5-7 Working days

{"articleNo":"968925","name":"Pallet truck with weighing scale","baseProduct":"M1036223","productUrl":"/p/M1036223/","imageUrl":"/Stackers_lifting_equipment/Pallet_trucks/Pallet_truck_pdpsmall--00049515_kk_f.jpg"}

{"features":[]}

Technical data

Max. load	2,000 kg
Lifting range	85 – 200 mm
Overall length	1,542 mm
Fork length	1,150 mm
Fork width	160 mm
Distance across forks	540 mm
Steering radius	205 °
Scale equipment	including battery
Steering wheel material	polyurethane
Fork roller material	polyurethane
Steering wheel diameter	180 mm
Steering wheel width	50 mm
Fork roller version	tandem
Fork roller diameter	80 mm
Fork roller width	70 mm
Protection type	IP65
Scale division	5 / 20 kg
Supplied	assembled
Weight	79 kg
