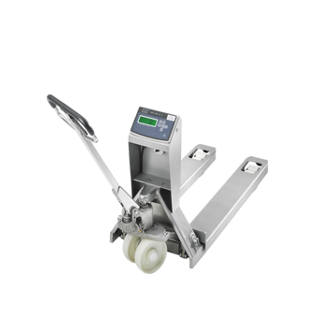

Stainless steel pallet truck with precision scale

Stainless steel pallet truck with precision scale

with standard display, multi-range scale

Extremely robust and precise – maximum deviation is less than 0.1 % of the load being weighed
For checking received goods according to weight
Determining dispatch weight
Order picking with weight check

Stainless steel 1.4301, protection type IP67. Nylon wheels.
With standard display, without printer. Multi-range scale.

Scale division
– 0 to 1100 kg in 0.2 kg increments
– 1100 to 2200 kg in 0.5 kg increments

Backlit LCD display, height 25 mm, easy to read data. Direct weight control during loading and unloading. Manual and automatic reset as well as taring function.

Supplied with external battery charger. Battery capacity of up to 150 hours. Max. charging time 10 hours.

Calibrated version, finer scale division, higher max. load as well as custom lengths and widths available on request.

Quality advantages

Item no.: 614632 49

Stainless steel pallet truck with precision scale, with standard display, multi-range scale, protection type IP 67

Price / item (Ex. VAT)

£6,385.00

Order quantity:

Delivery time:

Delivery time not known

Add to the wish list

Compare item

{"articleNo":"614632","name":"Stainless steel pallet truck with precision scale with standard display, multi-range scale","baseProduct":"M88184","productUrl":"/p/M88184/","imageUrl":"/Stackers_lifting_equipment/Pallet_trucks/Stainless_steel_pallet_truck_with_precision_scale_pdpsmall--00046113_kk_f.jpg"}

Alternatives Alternatives
Technical data
Select item

This product can be found in 1 variants.

View:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 614632 49

Stainless steel pallet truck with precision scale, with standard display, multi-range scale, protection type IP 67

Delivery time not known

{"features":[]}

Technical data

Max. load	2,200 kg
Load centre	578 mm
Lifting range	85 – 205 mm
Overall length	1,570 mm
Fork length	1,155 mm
Fork width	170 mm
Distance across forks	560 mm
Steering radius	210 °
Scale equipment	without printer
Scale model	with standard display
Steering wheel material	nylon
Fork roller material	nylon
Steering wheel diameter	200 mm
Steering wheel width	40 mm
Fork roller version	tandem
Fork roller diameter	80 mm
Fork roller width	70 mm
Material	stainless steel
Protection type	IP67
Supplied	assembled
Weight	160 kg
