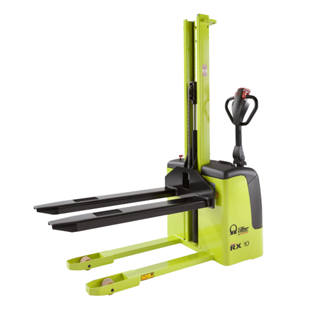

Pramac – Electric drawbar stacker

max. load 1000 kg

Electric drive – electro-hydraulic lifting

0.35 kW drive motor and 2.2 kW DC lifting motor. Energy saving MOS-FET drive control with proportional speed regulation. Creep speed possible with drawbar in upright position when space is tight.
Drive unit with robust sheet steel frame. The devices are fully compliant with the requirements of directive 2006/42/EC. CE conformity. With horn, emergency stop switch and all-round foot protection.
Semi-traction batteries ensure operation for approx. 2 hours.

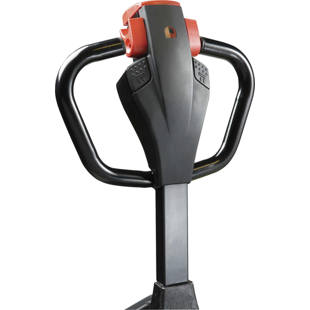

Safety steering unit with ergonomic controls
Direction controller in butterfly design for sensitive, stepless start-up and stop. Raising and lowering activated on the drawbar handle. LED display for battery status. Button for horn. Security key to protect the driver.
Changes direction when counterpressure is applied.

Can be used in passageways with a width of 2120 mm with 800 x 1200 mm, lengthwise.

On request
– Max. load up to 1600 kg
– Lifting height up to 5000 mm
– Wide gauge chassis possible

Item no.: 118455 49

Pramac – Electric drawbar stacker, max. load 1000 kg, fork dimensions LxW 1153 x 150 mm

Price / item (Ex. VAT)

£4,503.00

Order quantity:

Delivery time:

4 Week delivery

Add to the wish list

Compare item

{"articleNo":"118455","name":"Pramac – Electric drawbar stacker max. load 1000 kg","baseProduct":"M1120148","productUrl":"/p/M1120148/","imageUrl":"/Stackers_lifting_equipment/Stackers/Electric_drawbar_stacker_pdpsmall--000023101054_PRD_org_all.jpg"}

Alternatives Alternatives
Technical data
Select item

This product can be found in 1 variants.

View:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 118455 49

Pramac – Electric drawbar stacker, max. load 1000 kg, fork dimensions LxW 1153 x 150 mm

4 Week delivery

{"features":[]}

Technical data

Max. load	1,000 kg
Lifting range	90 – 1600 mm
Fork length	1,153 mm
Fork width	150 mm
Distance across forks	560 mm
Overall length	1,675 mm
Overall width	794 mm
Overall height	1,970 mm
Min. lifting speed	110 mm/s
Max. lifting speed	180 mm/s
Min. driving speed	3.7 km/h
Max. driving speed	4.3 km/h
Climbing performance with load	9 %
Climbing performance without load	25 %
Turning radius	1,344 mm
Thickness of fork prong	60 mm
Battery	2 x 12 V / 54 Ah
Battery charger	8 A impulse charger
Working gangway for pallet length	2,120 mm
Fork roller material	polyurethane
Fork roller version	single
Fork roller diameter	82 mm
Fork roller width	70 mm
Steering wheel width	50 mm
Steering wheel diameter	186 mm
Travel motor	0.35 kW
Lifting motor	2.2 kW
Supplied	assembled
Weight	371 kg
