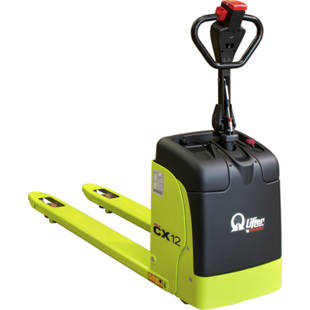

Pramac – Electric lifting trolley

max. load 1200 kg

European product with high quality standard

For easy use in tight spaces. Especially easy to handle. Smaller turning radius and dimensions comparable with a pallet truck. Spring loaded rollers at the side. Energy saving MOS-FET drive control with proportional speed regulation. Creep speed possible with drawbar in upright position.
With horn, emergency stop switch and all-round foot protection.
Semi-traction batteries ensure operation for 2 – 3 hours or a multiple service life compared to standard batteries.

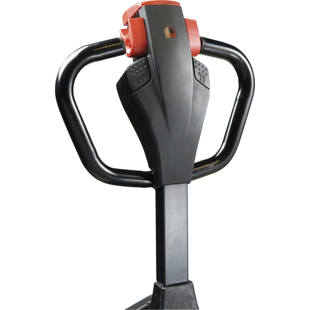

Safety steering unit with ergonomic controls
Direction controller in butterfly design for sensitive, stepless start-up and stop. Raising and lowering activated on the drawbar handle. LED display for battery status. Button for horn. Security key to protect the driver.
Changes direction when counterpressure is applied.

Other lifting trolleys on request
– Fork lengths 800 or 1000 mm
– Lifting truck with scales
– Larger models – also with operator platform
– Inverter charger for trucks

Item no.: 118454 49

Pramac – Electric lifting trolley, max. load 1200 kg, fork dimensions LxW 1150 x 150 mm

Price / item (Ex. VAT)

£3,179.00

Order quantity:

Delivery time:

4 Week delivery

Add to the wish list

Compare item

{"articleNo":"118454","name":"Pramac – Electric lifting trolley max. load 1200 kg","baseProduct":"M1120152","productUrl":"/p/M1120152/","imageUrl":"/Stackers_lifting_equipment/Stackers/Electric_lifting_trolley_pdpsmall--000023101051_PRD_org_all.jpg"}

Alternatives Alternatives
Technical data
Select item

This product can be found in 1 variants.

View:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 118454 49

Pramac – Electric lifting trolley, max. load 1200 kg, fork dimensions LxW 1150 x 150 mm

4 Week delivery

{"features":[]}

Technical data

Max. load	1,200 kg
Lifting range	85 – 200 mm
Fork length	1,150 mm
Fork width	150 mm
Distance across forks	520 mm
Overall length	1,510 mm
Overall width	520 mm
Overall height	1,345 mm
Min. lifting speed	0.03 m/s
Max. lifting speed	0.04 m/s
Min. driving speed	4.3 km/h
Max. driving speed	4.8 km/h
Climbing performance with load	10 %
Climbing performance without load	25 %
Turning radius	1,268 mm
Thickness of fork prong	55 mm
Battery	2 x 12 V / 60 Ah
Battery charger	8 A impulse charger
Working gangway for pallet length	2,120 mm
Fork roller material	polyurethane
Fork roller version	single
Fork roller diameter	82 mm
Fork roller width	82 mm
Steering wheel width	50 mm
Steering wheel diameter	186 mm
Supplied	assembled
Weight	148 kg
