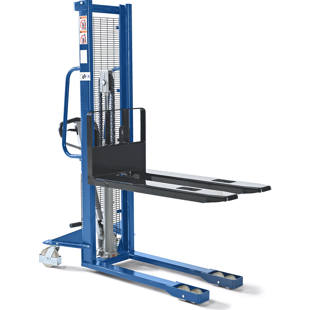

High lift stacker

lifting range 90 – 1600 mm, max. load 1100 kg

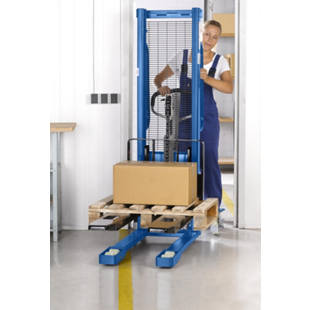

Energy saving lifting via drawbar or pedal
Environmentally friendly: manual transport and lifting
Max. load 1100 kg
Fits through most doors

Robust workmanship with reinforced mast profile. Load chains and hydraulic cylinder secured with protective fencing. Excellent stability due to wheel stops on the steering wheels. Easy rolling due to hard nylon castors, even under full load. Increased floor clearance – 40 mm. High quality powder coating in signal blue RAL 5005.

Lifting and lowering
Energy saving lifting using drawbar or pedal. Hardened chrome plated hydraulic ram. Progressive lowering via rubberised, ergonomically shaped drawbar grip. Safety overload valve ensures long service life.

Item no.: 474285 49

High lift stacker, lifting range 90 – 1600 mm, max. load 1100 kg, overall height 1980 mm

Price / item (Ex. VAT)

£1,269.00

Order quantity:

Delivery time:

5-7 Working days

Add to the wish list

Compare item

{"articleNo":"474285","name":"High lift stacker lifting range 90 – 1600 mm, max. load 1100 kg","baseProduct":"M1287525","productUrl":"/p/M1287525/","imageUrl":"/Stackers_lifting_equipment/Stackers/High_lift_stacker_pdpsmall--000040544974_PRD_org_all.jpg"}

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

This product can be found in 1 variants.

View:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 474285 49

High lift stacker, lifting range 90 – 1600 mm, max. load 1100 kg, overall height 1980 mm

5-7 Working days

{"features":[]}

Technical data

Max. load	1,100 kg
Load centre	600 mm
Lifting range	90 – 1600 mm
Fork length	1,150 mm
Distance across forks	550 mm
Fork width	170 mm
Overall length	1,705 mm
Overall width	755 mm
Overall height	1,980 mm
Lift per pump stroke	20 mm
Wheel fittings	2 swivel castors with wheel stops
Steering wheel material	nylon
Steering wheel diameter	150 mm
Steering wheel width	40 mm
Fork roller version	tandem
Fork roller material	nylon
Fork roller diameter	83 mm
Fork roller width	60 mm
Finish	powder coated
Colour	signal blue RAL 5005
Supplied	assembled
Weight	230 kg
