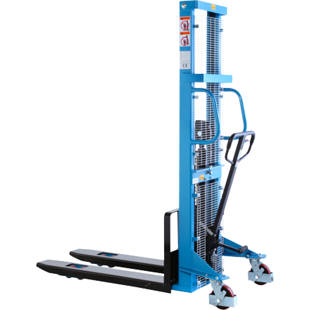

High lift stacker

lifting range 90 – 1600 mm, max. load 1000 kg

Environmentally friendly: manual transport and lifting
Max. load 1000 kg

Robust construction with reinforced mast profile. Load chain and hydraulic cylinder with guard screen for safety.
Excellent stability due to wheel stops on the steering wheels – even under full load.
High quality powder coating in light blue RAL 5012.
Lifting and lowering
Energy saving lifting via drawbar or pedal. Hardened, chrome plated hydraulic ram.
Progressive lowering via rubberised, ergonomically shaped drawbar handle. Safety overload valve ensures a long service life.

Item no.: 986300 49

High lift stacker, lifting range 90 – 1600 mm, max. load 1000 kg, overall height 1980 mm

Price / item (Ex. VAT)

£1,364.00

Order quantity:

Delivery time:

4 Week delivery

Add to the wish list

Compare item

{"articleNo":"986300","name":"High lift stacker lifting range 90 – 1600 mm, max. load 1000 kg","baseProduct":"M37687","productUrl":"/p/M37687/","imageUrl":"/Stackers_lifting_equipment/Stackers/High_lift_stacker_pdpsmall--000067913949_PRD_org_all.jpg"}

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

This product can be found in 1 variants.

View:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 986300 49

High lift stacker, lifting range 90 – 1600 mm, max. load 1000 kg, overall height 1980 mm

4 Week delivery

{"features":[]}

Technical data

Max. load	1,000 kg
Load centre	600 mm
Lifting range	90 – 1600 mm
Fork length	1,150 mm
Distance across forks	550 mm
Fork width	170 mm
Overall length	1,705 mm
Overall width	755 mm
Overall height	1,980 mm
Design of mast	single mast
Lift per pump stroke	20 mm
Wheel fittings	2 swivel castors with wheel stops, 2 fork rollers
Steering wheel diameter	150 mm
Steering wheel width	40 mm
Fork roller version	tandem
Fork roller diameter	83 mm
Fork roller width	60 mm
Finish	powder coated
Colour	light blue RAL 5012
Supplied	assembled
Weight	230 kg
