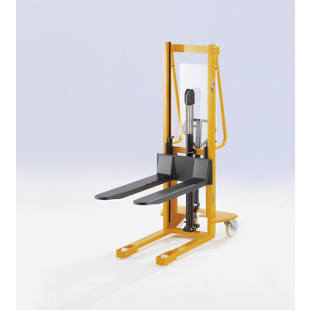

Baka – QuickLift high lift stacker

max. load 1000 kg, single mast

The environmentally friendly and cost effective type, for high lifting and moving loads
Max. load 1000 kg
Protective screen made of shatterproof polycarbonate
Made in Germany

Guide profiles made from extruded precision lifting mast steel, maintenance free ball bearing guide rollers.
QuickLift function for lifting items up to 80 kg. Lift per pump stroke with/without QuickLift 50 / 15 mm. Progressive lowering, fitted with overload valve as standard.
2 steering wheels, 1 with wheel stop, wheel Ø x width 175 x 50 mm. 2 fork rollers, wheel Ø 80 mm. Wheels and rollers made of nylon, smooth running with ball bearings.
Slide-on platform as an accessory. Secured on both sides with clamp screws.

Quality advantages

Baka – QuickLift high lift stacker, max. load 1000 kg, single mast

Price / item (Ex. VAT)

from £2,167.00

Order quantity:

{"articleNo":"M80452","name":"Baka – QuickLift high lift stacker max. load 1000 kg, single mast","baseProduct":"","productUrl":"/p/M80452/","imageUrl":"/Stackers_lifting_equipment/Stackers/QuickLift_high_lift_stacker_pdpsmall--00045518_kk.jpg"}

Versions Versions
Accessories / spare parts Accessories / spare parts
Alternatives Alternatives
Technical data
Select item

2 of 2 items correspond to your selection criteria:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 614586 49

Baka – QuickLift high lift stacker, max. load 1000 kg, single mast, lifting range 90 – 900 mm

Over 4 weeks

{"articleNo":"614586","name":"Baka – QuickLift high lift stacker max. load 1000 kg, single mast","baseProduct":"M80452","productUrl":"/p/M80452/","imageUrl":"/Stackers_lifting_equipment/Stackers/QuickLift_high_lift_stacker_pdpsmall--00045518_kk.jpg"}

Item properties:

Lifting range: 90 – 900 mm Overall height: 1,260 mm Weight: 218 kg

{"features":[{"name":"Lifting range [mm]","normalizedName":"","value":"90 – 900","formattedValue":"90 – 900"},{"name":"Overall height [mm]","normalizedName":"","value":"1260","formattedValue":"1,260"},{"name":"Weight [kg]","normalizedName":"","value":"218","formattedValue":"218"}]}

Item no.: 614587 49

Baka – QuickLift high lift stacker, max. load 1000 kg, single mast, lifting range 90 – 1600 mm

Over 4 weeks

{"articleNo":"614587","name":"Baka – QuickLift high lift stacker max. load 1000 kg, single mast","baseProduct":"M80452","productUrl":"/p/M80452/","imageUrl":"/Stackers_lifting_equipment/Stackers/QuickLift_high_lift_stacker_pdpsmall--00045518_kk.jpg"}

Item properties:

Lifting range: 90 – 1600 mm Overall height: 1,950 mm Weight: 260 kg

{"features":[{"name":"Lifting range [mm]","normalizedName":"","value":"90 – 1600","formattedValue":"90 – 1600"},{"name":"Overall height [mm]","normalizedName":"","value":"1950","formattedValue":"1,950"},{"name":"Weight [kg]","normalizedName":"","value":"260","formattedValue":"260"}]}

Technical data

Max. load	1,000 kg
Fork length	1,120 mm
Distance across forks	570 mm
Fork width	160 mm
Overall length	1,700 mm
Overall width	780 mm
Design of mast	single mast
Lift per pump stroke	15 mm
Lift per pump stroke with QuickLift	50 mm
Wheel fittings	2 steering wheels, 1 with wheel stop, 2 fork rollers
Steering wheel material	nylon
Steering wheel diameter	175 mm
Steering wheel width	50 mm
Fork roller material	nylon
Fork roller diameter	80 mm
Supplied	assembled
