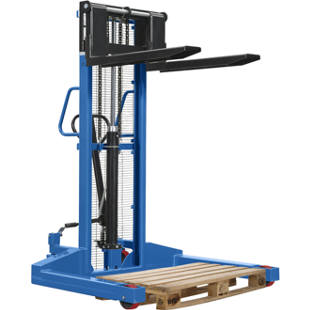

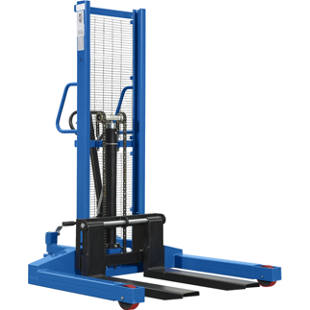

Wide gauge stacker

max. load 1000 kg

Max. load 1000 kg
Width adjustable forks to safely pick up Euro pallets from the side
Wide support legs to straddle pallets

Guide profiles made from extruded precision lifting mast steel, maintenance free ball bearing guide rollers. Hydraulic lifting with drawbar or foot pedal. 15 mm per pump stroke. Overload pressure valve.
Protective mesh enables clear view of forks, but cannot be reached through.

Wheels
2 steering wheels with wheel stop, wheel Ø x width 180 x 50 mm. 2 fork rollers, wheel Ø 145 mm. Polyurethane wheels on aluminium rims, smooth running with ball bearings.

Item no.: 969076 49

Wide gauge stacker, max. load 1000 kg, fork LxW 900 x 150 mm

Price / item (Ex. VAT)

£1,873.00

Alternatives Alternatives
Technical data
Select item

This product can be found in 1 variants.

View:

Item no. / Description of item Delivery time: Order quantity: Price / item

Item no.: 969076 49

Wide gauge stacker, max. load 1000 kg, fork LxW 900 x 150 mm

4 Week delivery

{"articleNo":"969076","name":"Wide gauge stacker max. load 1000 kg","baseProduct":"M1079880","productUrl":"/p/M1079880/","imageUrl":"/Stackers_lifting_equipment/Stackers/Wide_gauge_stacker_pdpsmall--00052937_kk_f_ret.jpg"}

{"features":[]}

Technical data

Max. load	1,000 kg
Lifting range	95 – 1600 mm
Fork length	900 mm
Distance across forks	320 – 740 mm
Fork width	150 mm
Overall length	1,840 mm
Overall width	1,400 mm
Overall height	1,980 mm
Lift per pump stroke	15 mm
Lift drive	hydraulic with drawbar or foot pedal
Wheel fittings	2 swivel castors with wheel stop, 2 fork rollers
Wheel bearing	ball bearing
Material of rim	aluminium
Steering wheel material	polyurethane
Steering wheel diameter	180 mm
Steering wheel width	50 mm
Fork roller material	polyurethane
Fork roller diameter	145 mm
Supplied	assembled
Weight	336 kg
