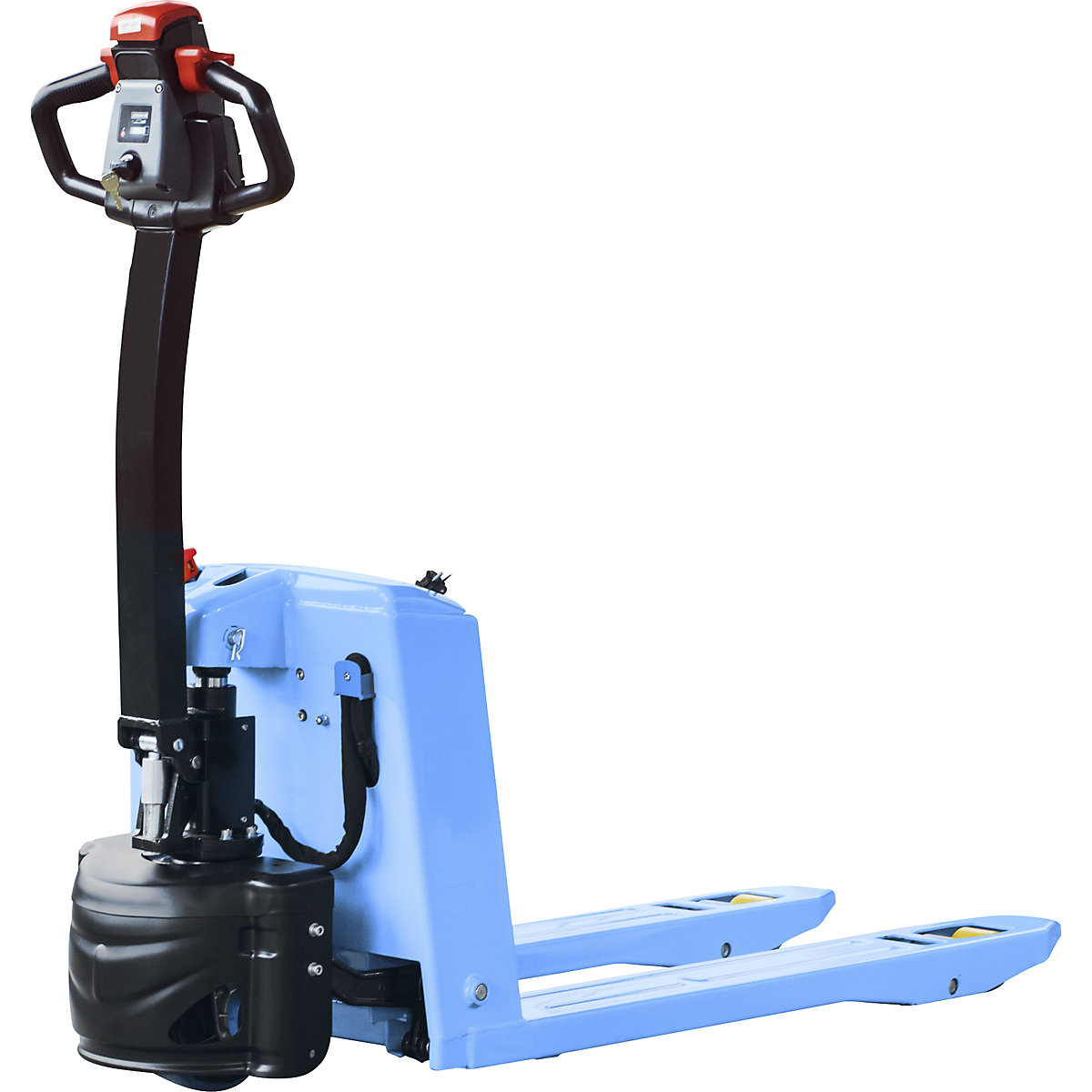

Electric pallet truck max. load 1500 kg

  • Fully electric pallet truck
  • Economical entry level model
  • Low weight
Ref.: 547842 49
Electric pallet truck, max. load 1500 kg, fork length 1150 mm, 65 Ah gel battery
Price / items (Plus VAT)

Product description
This electric fork lift truck is a reliable and inexpensive entry level model, made possible by using simple, reliable and tried-and-tested technical components that are also cost-effective to purchase. This electric pallet truck is therefore the ideal entry level model. Within the electric pallet truck sector it convinces with its low price and great performance data.
With a max. load of 1500 kg, the robust electric pallet truck can lift almost all pallets. The biggest advantage is, however, its low weight of just 190 kg. This makes it the optimal electric pallet truck for heavy goods vehicles.

Perfect for HGVs and confined spaces
The electric pallet truck not only has a low dead weight, it has compact dimensions that also provide particularly good handling in confined spaces. Operation has been designed to be particularly user friendly, allowing the electric pallet truck to be used efficiently after just a short period of time. This makes it an outstanding aid for loading an HGV.
Gel battery
The electric pallet truck is equipped with an effective gel battery and an integrated battery charger, offering its user maximum flexibility. One advantage of gel batteries is that they provide greater protection from vibrations than conventional batteries do. The encapsulated design also makes handling easier and improves safety. The user need not fear any leakage from an intact gel battery.
Energy saving and maintenance friendly
A DC drive saves energy and familiar and tried-and-tested components make it extremely maintenance friendly.Furthermore, the ergonomic and modular design ensures this fast helper makes work pleasant and safe.
  • Fully electric pallet truck
  • Economical entry level model
  • Low weight
Technical data
Max. load1500 kg
Lifting range80 – 195 mm
Fork length1150 mm
Fork width150 mm
Distance across forks560 mm
Length1608 mm
Width560 mm
Overall height1320 mm
Min. lifting speed27 mm/s
Max. lifting speed34 mm/s
Min. driving speed4 km/h
Max. driving speed4.5 km/h
Climbing performance with load5 %
Climbing performance without load16 %
Turning radius1436 mm
Thickness of fork prong50 mm
Battery2 x 12 V / 65 Ah
Battery charger24 V / 8 A
Working gangway for pallet length1890 mm
Fork roller materialpolyurethane
Fork roller versiontandem
Fork roller diameter78 mm
Fork roller width60 mm
Steering wheel width210 mm
Steering wheel diameter70 mm
Travel motor0.65 kW
Lifting motor0.8 kW
