Edmolift – AIR work platform electric drive

  • Mobile, safe, intelligent
  • Sturdy design
Ref.: 539617 49

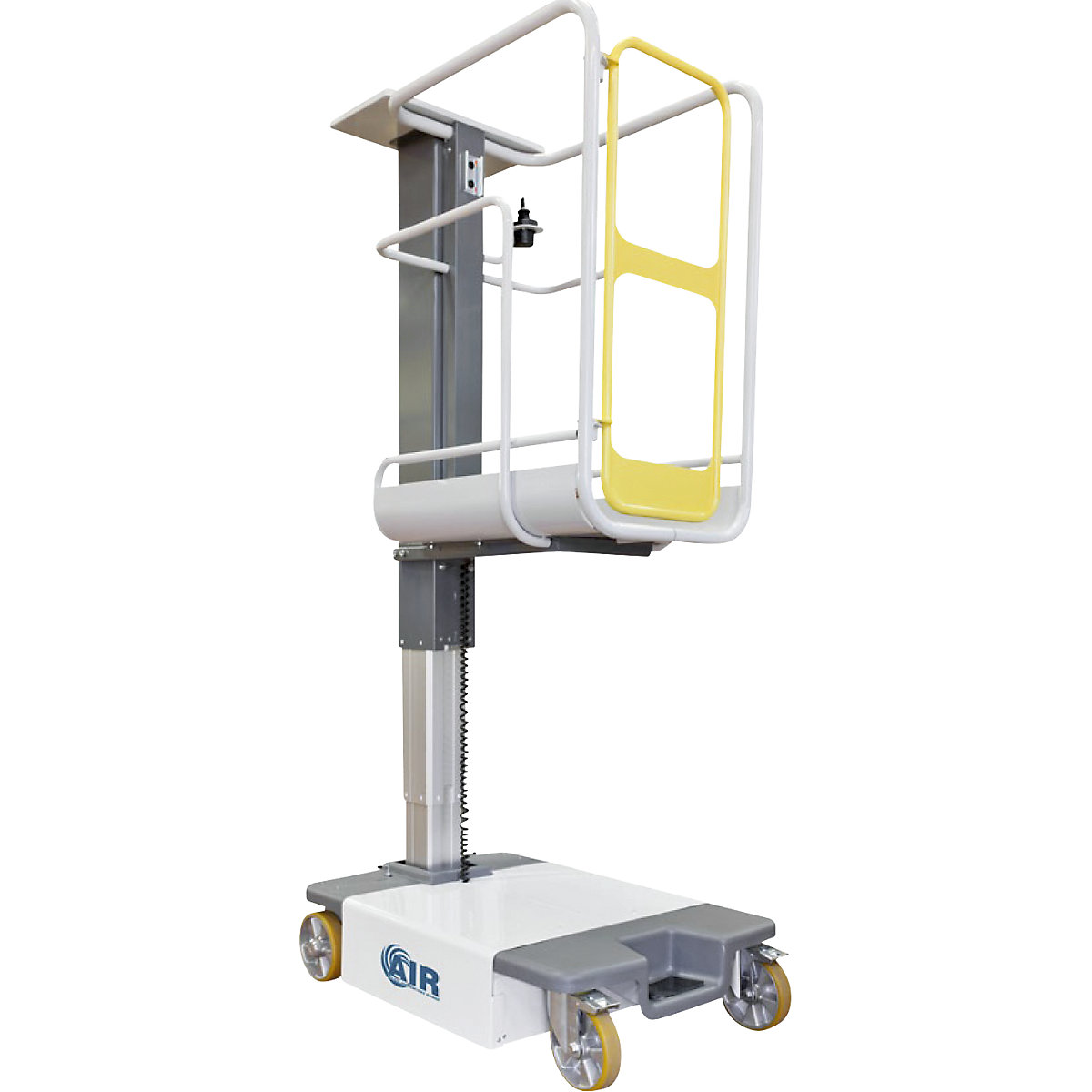

Edmolift – AIR work platform, electric drive, working height 4950 mm, max. load 180 kg
Price / items (Plus VAT)

Product description
Work platforms for indoor use
EdmoLift AIR is a series of compact and versatile work platforms that allow safe work in indoor areas. AIR lifts are characterised by their low entry height, small turning radius and low weight. AIR makes working at great heights efficient and safe, and eliminates the need for ladders. Our lifting platforms are made in Sweden and feature a CE marking verifying compliance with the high safety standards in the EU and EN 280 standards.

The AIR products made by EdmoLift were developed to make work in sectors such as retail, installation, cleaning, maintenance, warehousing and the construction industry easier. All of our products are easy to operate and look after. All lifting platforms are delivered assembled and ready for operation. At the end of the day's work, the lifting platform is plugged into a normal power socket and the integrated battery charger recharges the battery.
It couldn't be any easier.

The advantages of EdmoLift AIR
– Decoupling: the traverse drive can be disconnected with one simple operation, allowing the platform to be moved manually
– Operating instructions: always easily accessible in a built-in compartment
– Small turning radius: drive around tight corners
– Anchorage point: for attachment of a harness, when required
– USB ports: for easy charging of tablets or mobile devices
– Emergency stop: if an accident occurs nearby
  • Mobile, safe, intelligent
  • Sturdy design
Technical data
Height1572 mm
Width780 mm
Length1165 mm
Platform length760 mm
Platform width530 mm
Working height4950 mm
Colourtelegrey RAL 7047
basalt grey RAL 7012
Overall height270 mm
Max. payload180 kg
Min. lifting speed168 mm/s
Max. lifting speed168 mm/s
Lifting range270 - 2950 mm
Lifting motor0.8 kW
Travel motor0.18 kW
Min. driving speed2 km/h
Max. driving speed4 km/h
Wheel fittings2 swivel castors with double stops, 2 fixed castors
Swivel castor diameter200 mm
Fork roller diameter200 mm
Battery2 x 12 V / 75 Ah
Battery versionlead gel rechargeable battery
Battery charger230 V / 11 A
