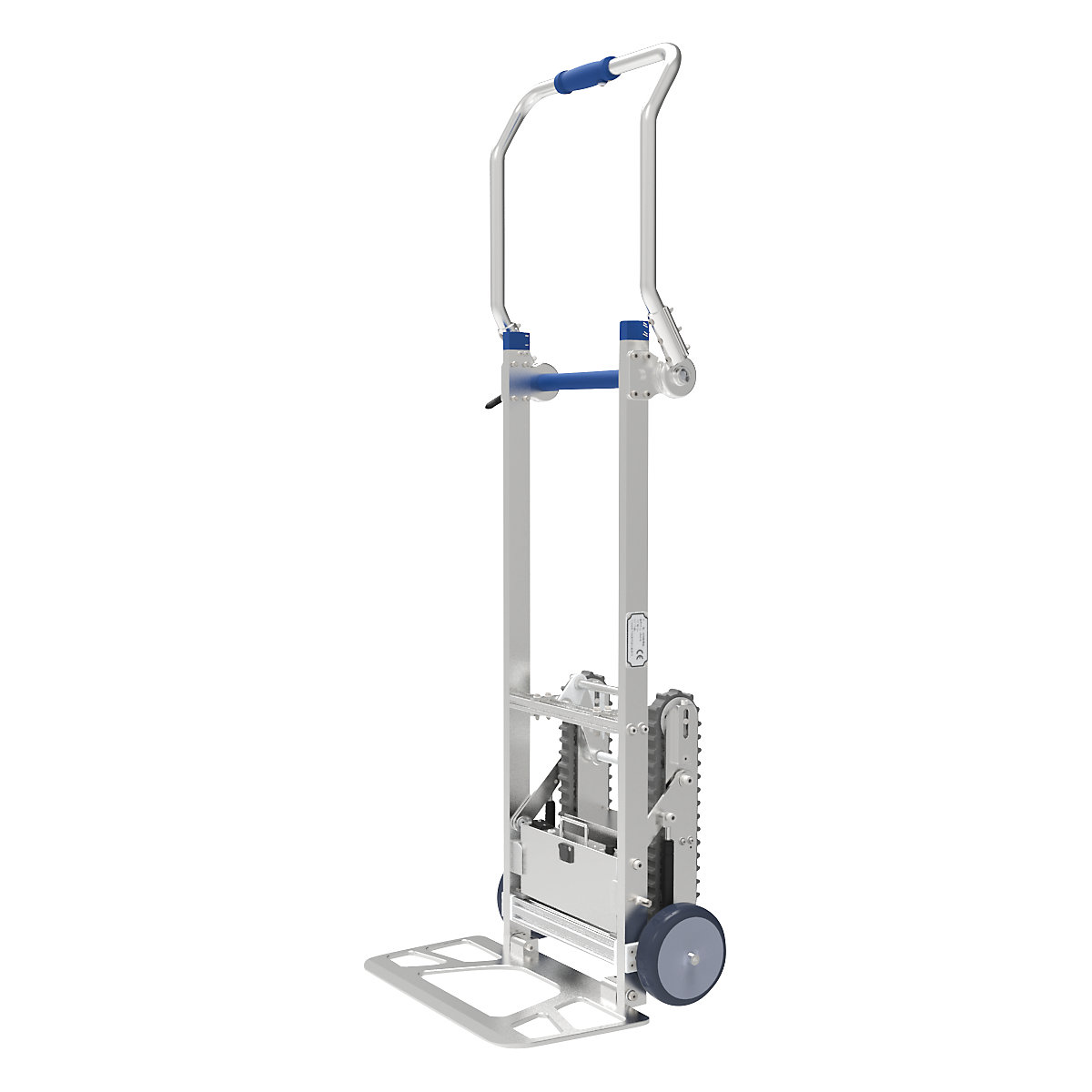

Continuous track stair climber, electric footplate WxD 400 x 250 mm

  • Self-braking crawler gears
  • Up to 45 steps per minute
  • Folding push handle
Ref.: 546817 49
Continuous track stair climber, electric, footplate WxD 400 x 250 mm, max. load 70 kg
Price / items (net)

Product description
The electric continuous track stair climber is an ideal device for the transport of all types of goods across ground surfaces and stairs.
Featuring rubber chains, this stair climber can also move up spiral staircases and narrow platform steps.
Small corrections to the direction of motion are easy to make. Safe and gentle transport up all types of stairs.

Its speed of up to 45 steps/minute and its weight of just 15 kg make fast transport of loads up to 70 kg possible.

Climbing speed 1: 30 steps per minute
Climbing speed 2: 45 steps per minute

Battery type: lithium-ion rechargeable battery
Battery output: 400 – 500 steps
Battery voltage: 48 V, 2.0 Ah
Battery weight: 1.2 kg
Charging time: 1 h
Charging voltage: 110 – 230 V

Volume: less than 70 dB

Protection class: IP54

Dimensions: upper handle bar top (HxWxD) 1400 x 450 x 460 mm
Dimensions: handle bar/crawler folded (HxWxD) 1000 x 200 x 460 mm
  • Self-braking crawler gears
  • Up to 45 steps per minute
  • Folding push handle
Technical data
Modelwith crawler drive
External dimensions when folded1000 mm
Overall width420 mm
Overall height1000 mm
Overall depth200 mm
Product typestair climber
Wheel typesolid rubber
Wheel width420 mm
Wheel diameter155 mm
Wheel bearingball bearing
Footplate width400 mm
Footplate materialaluminium
Footplate depth250 mm
Max. height of steps220 mm
Max. load70 kg
